DESCRIPTION

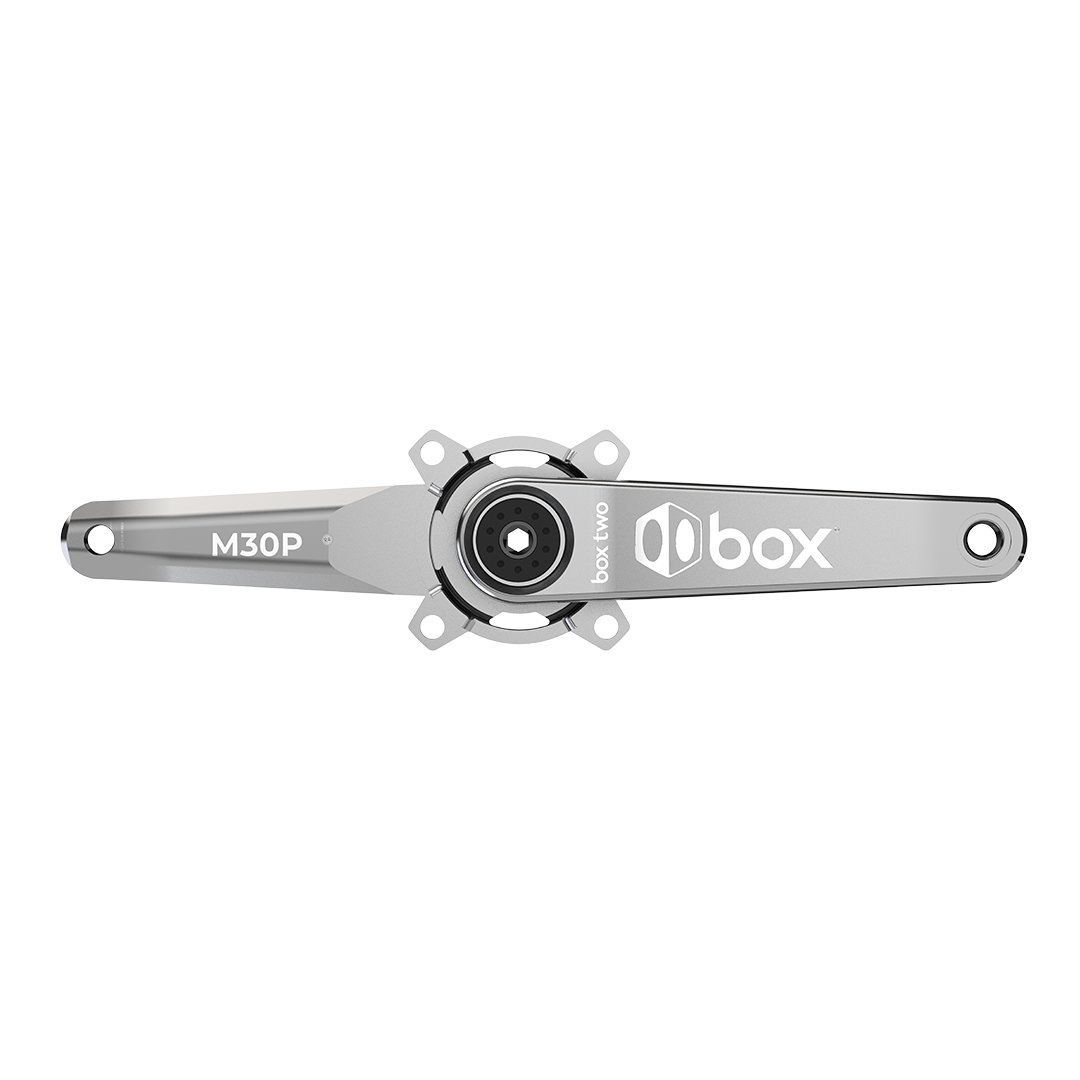

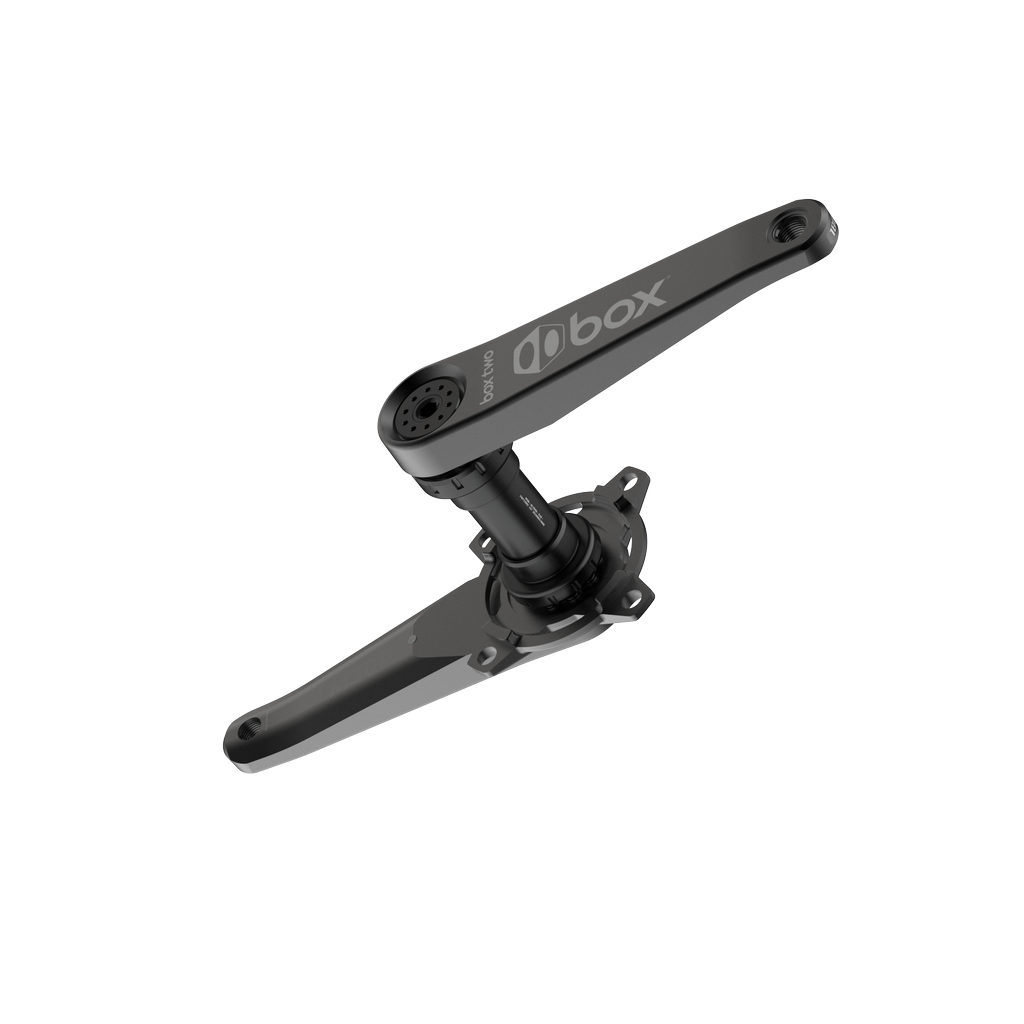

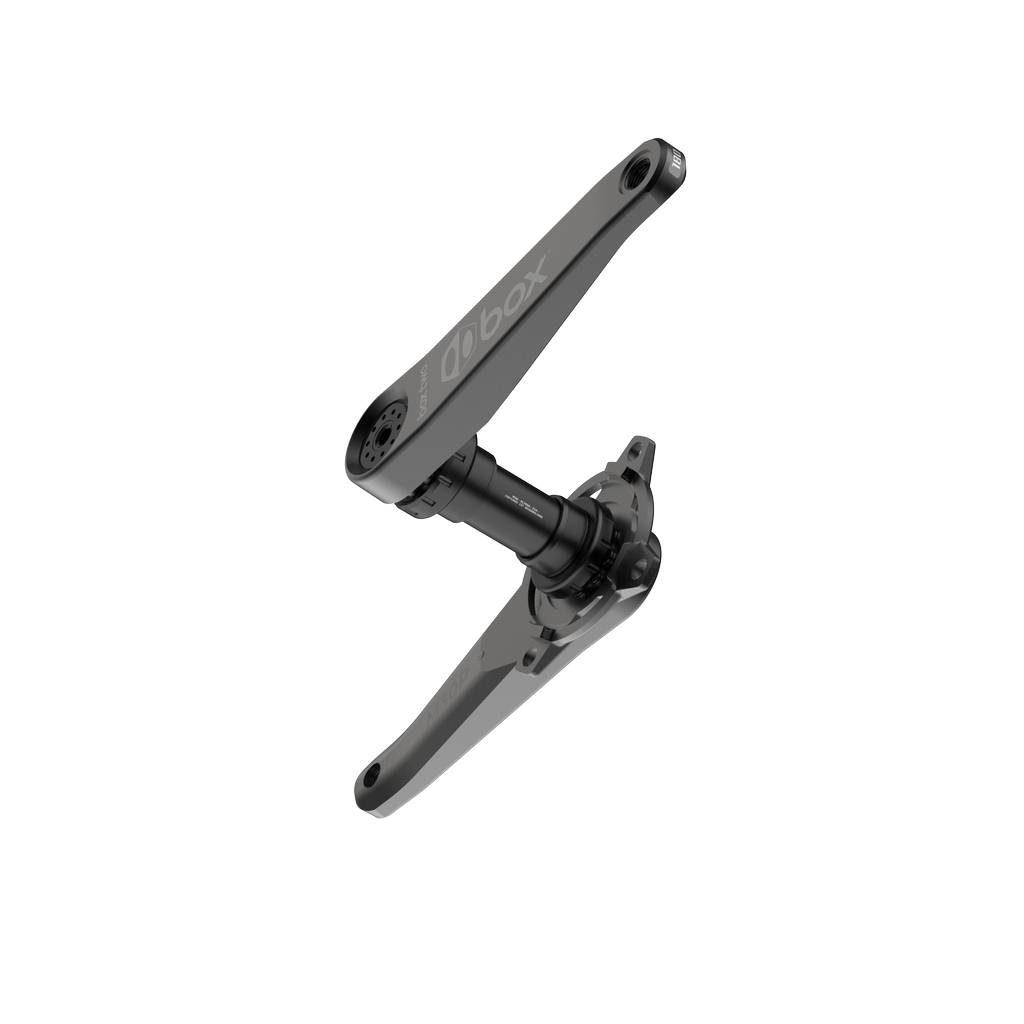

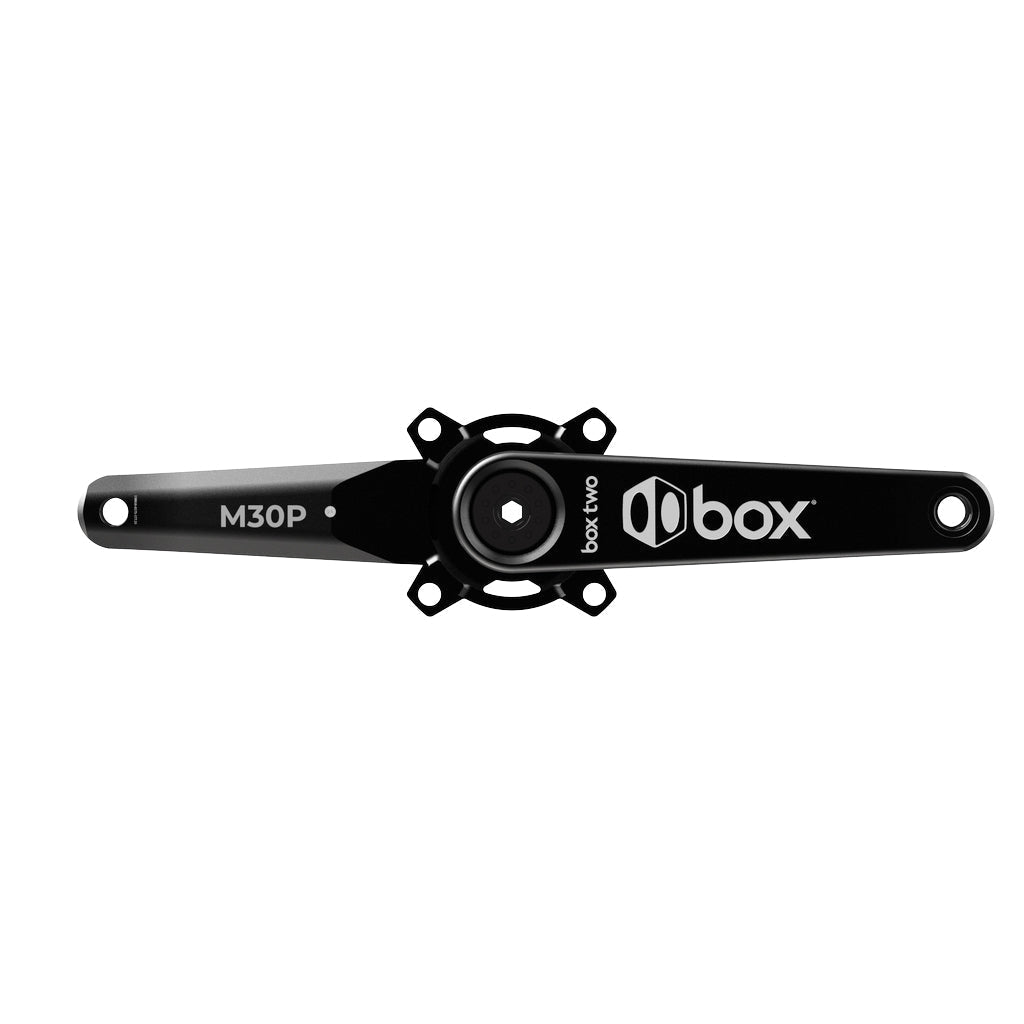

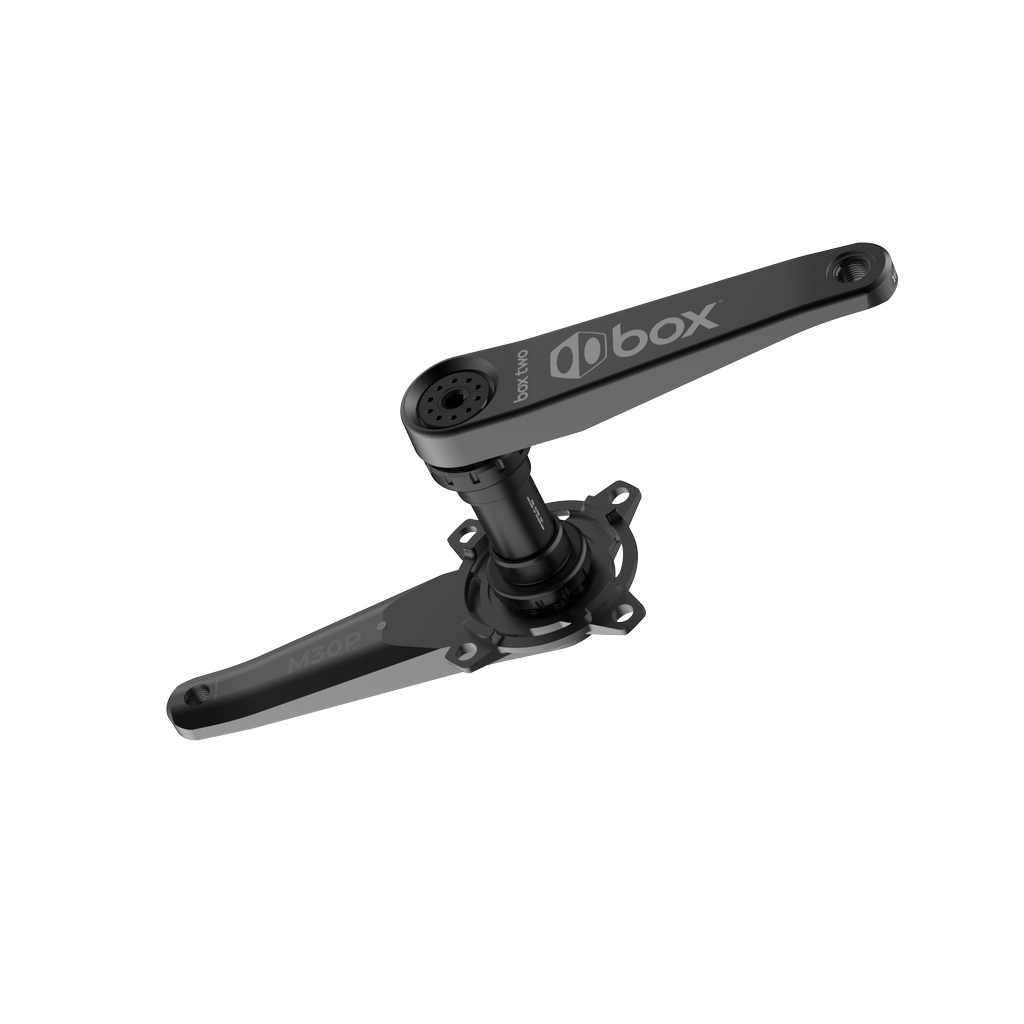

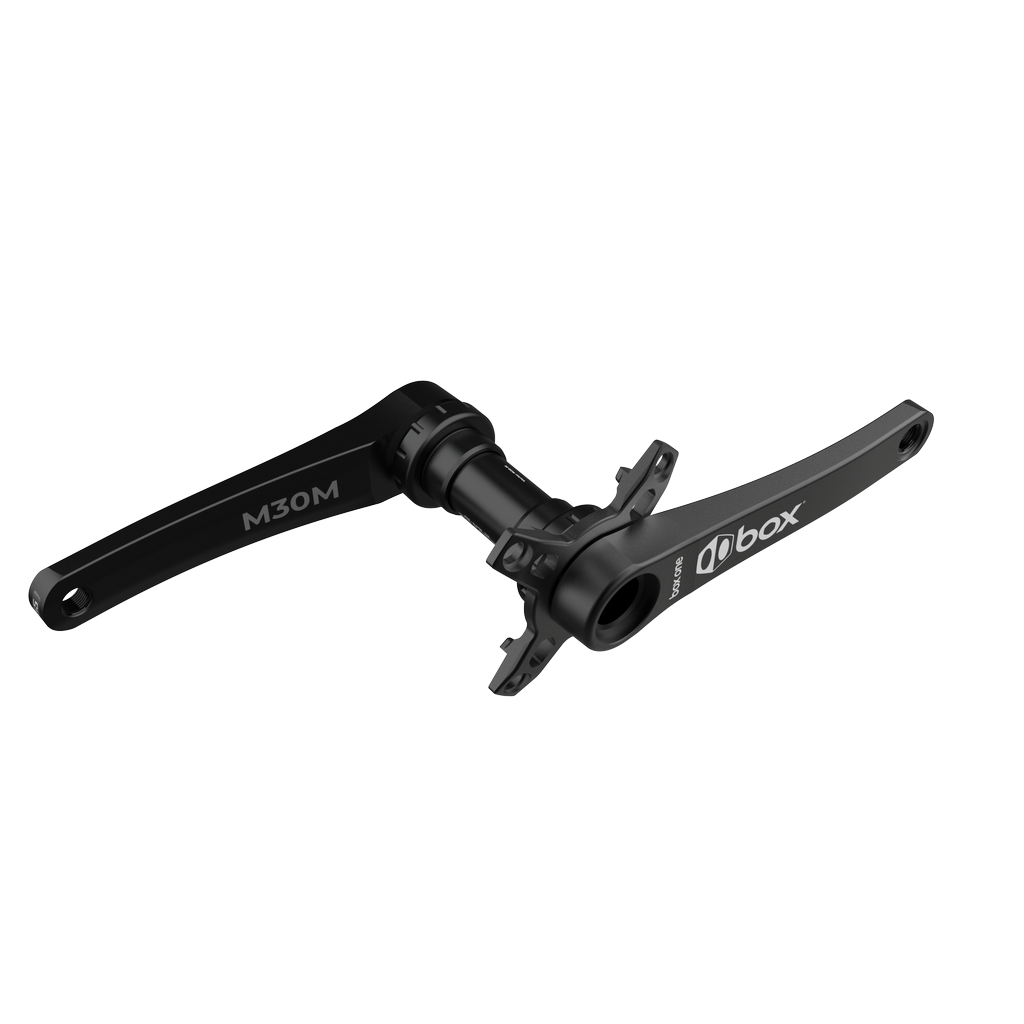

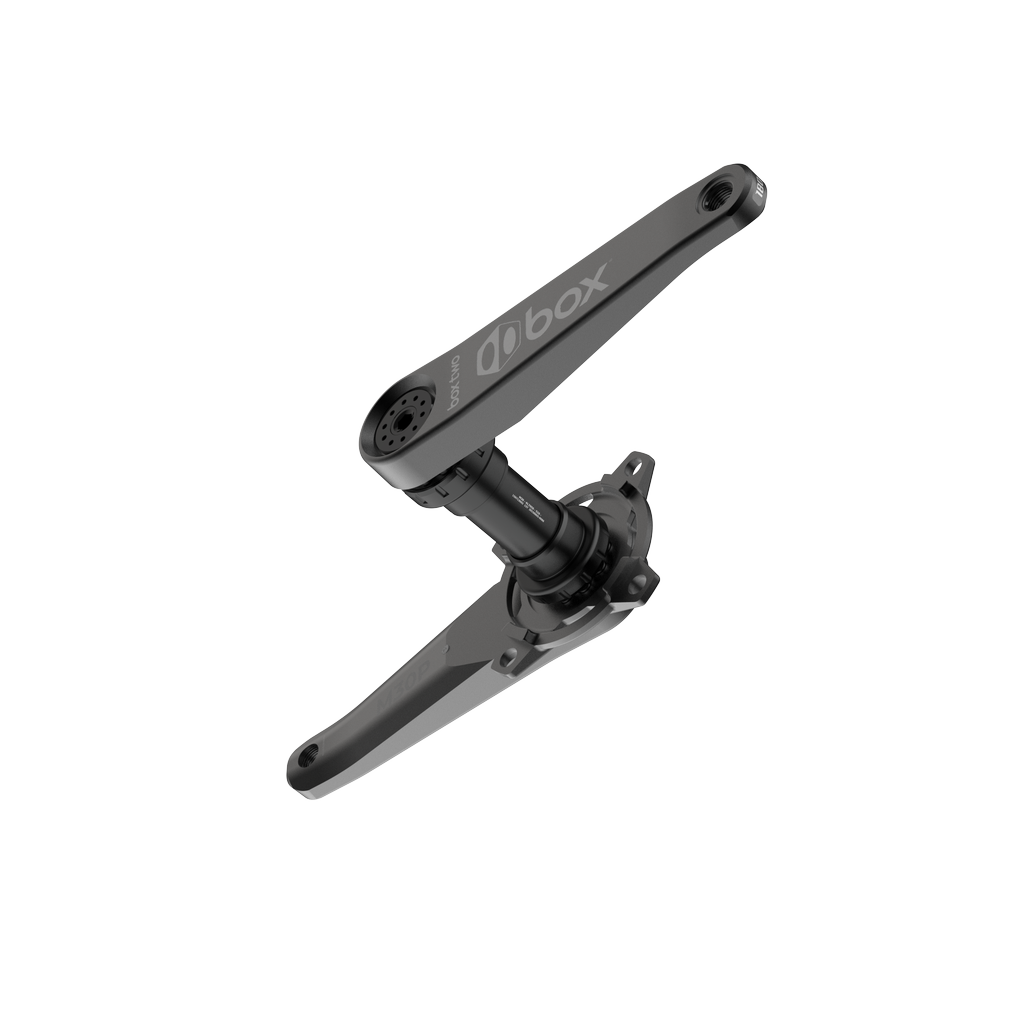

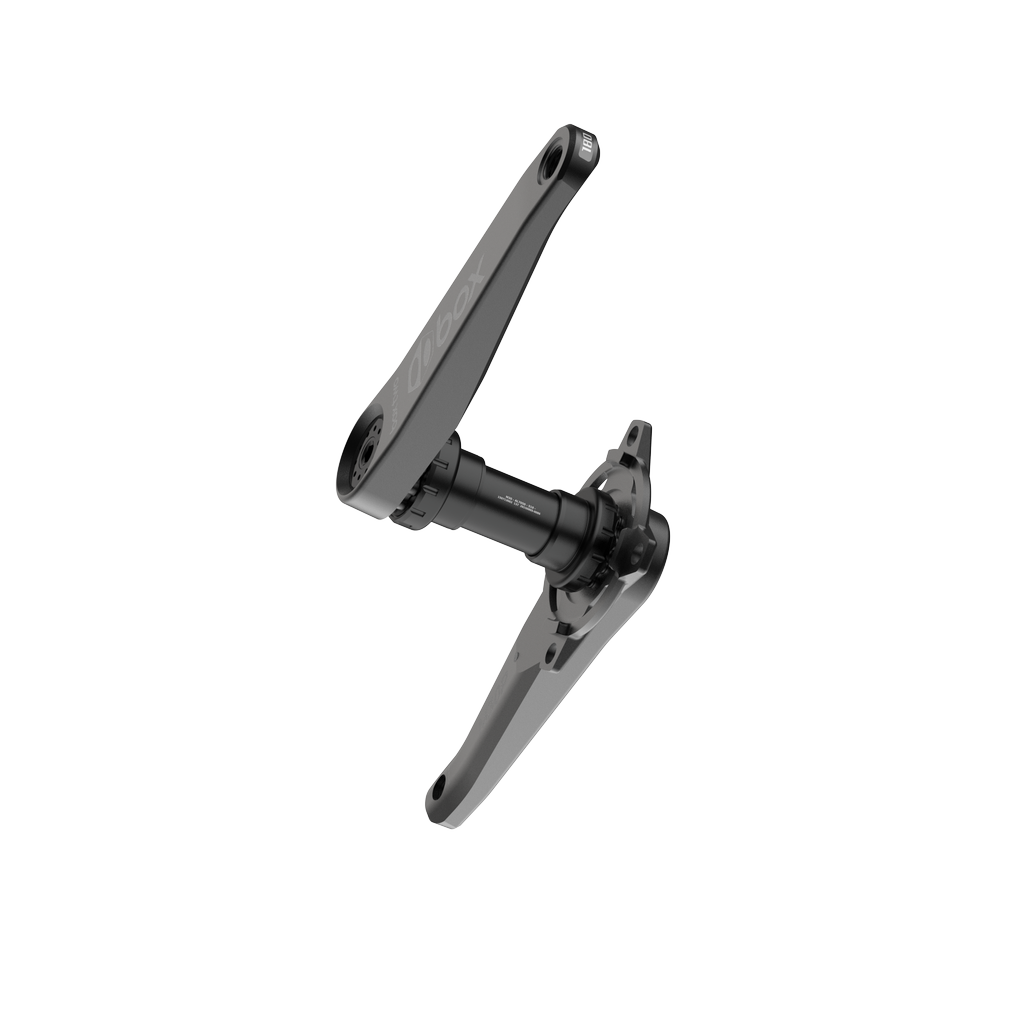

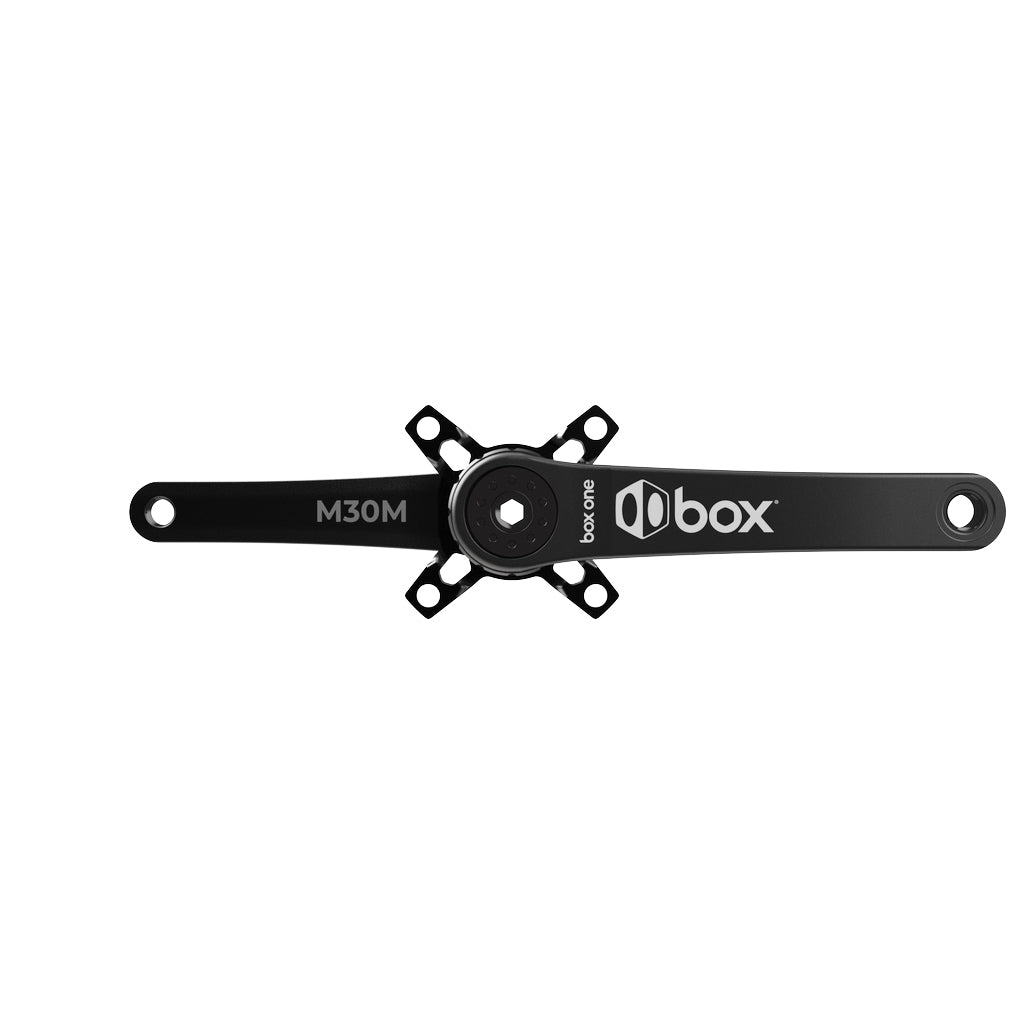

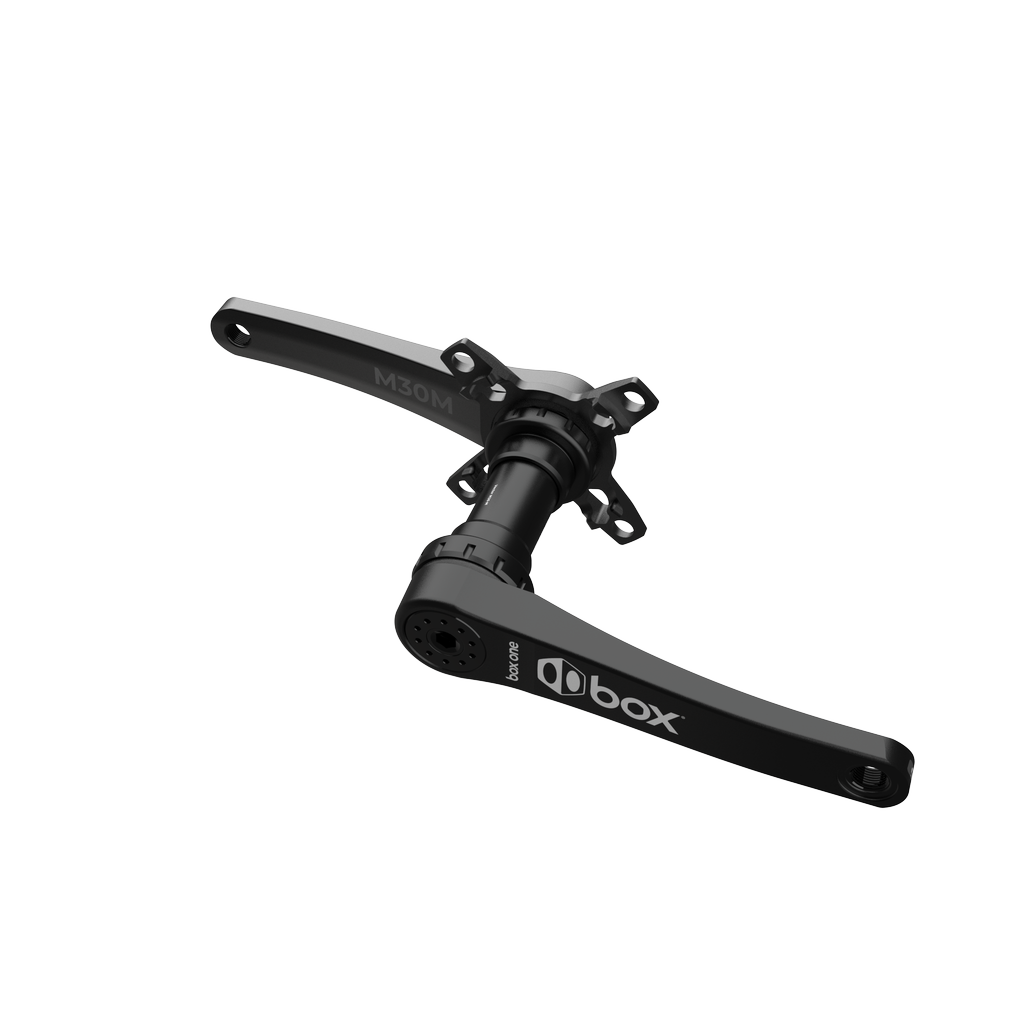

Featuring oversized hollow-forged crank arms and a massive 30-millimeter Praxis™ M-30 spindle cold-forged from 7075 aluminum and precision ground to extremely tight tolerances, Box Two™ M30-M cranks fit frames with European bottom brackets, paired with the same oversized, hollow-forged arms and 104 BCD spider with a flex-resistant ring as our Box One™ M35 cranks.

Each crankset includes a Praxis™ M30-BSA Threaded Bottom Bracket that is compatible with all BSA European style bottom brackets. For frames with BB86 or BB30/PF30 bottom bracket shells, compatible adapters can be purchased separately from Praxis ™.

FEATURES

Oversized Technology™ Hollow Forged Design
Oversized 30mm Alloy Spindle

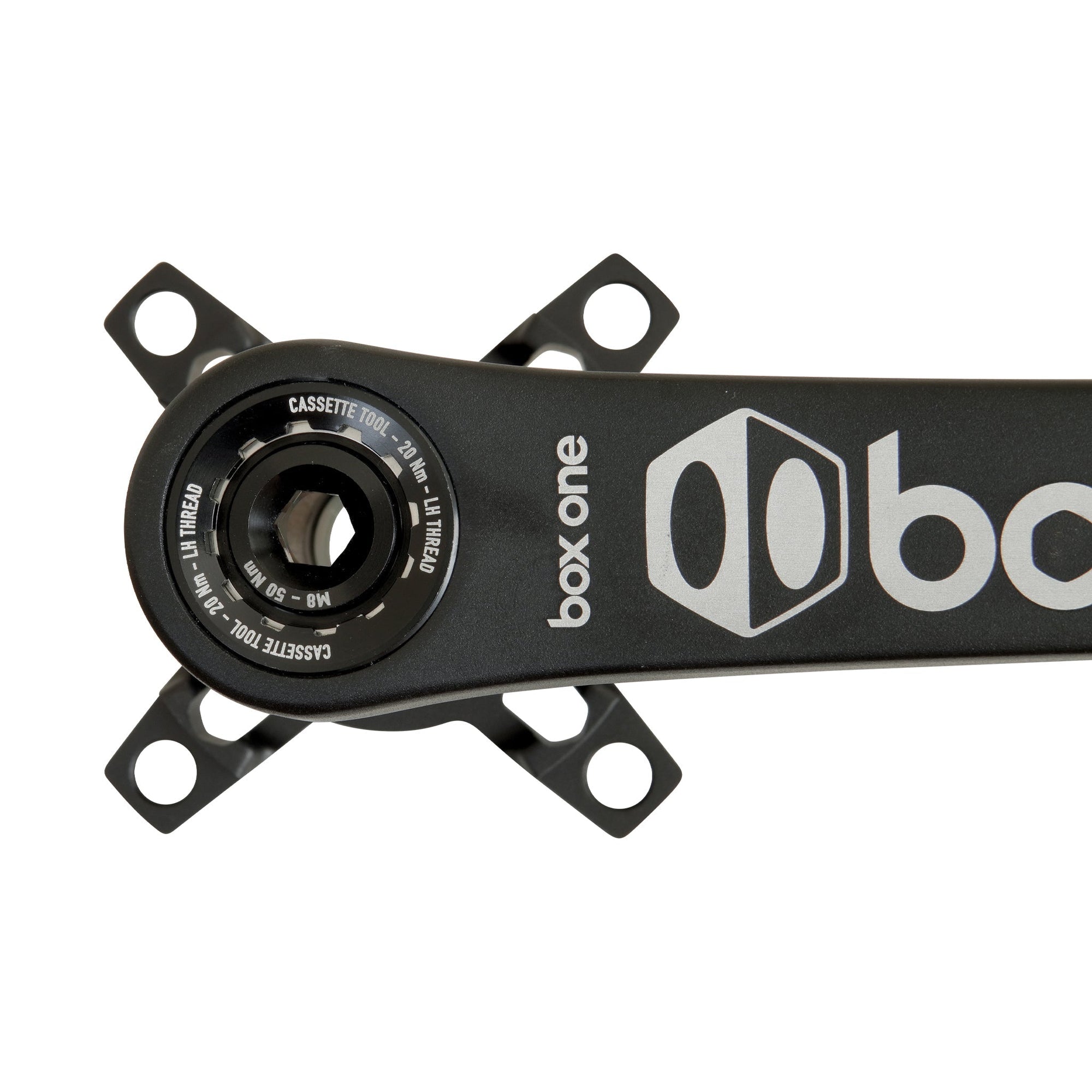

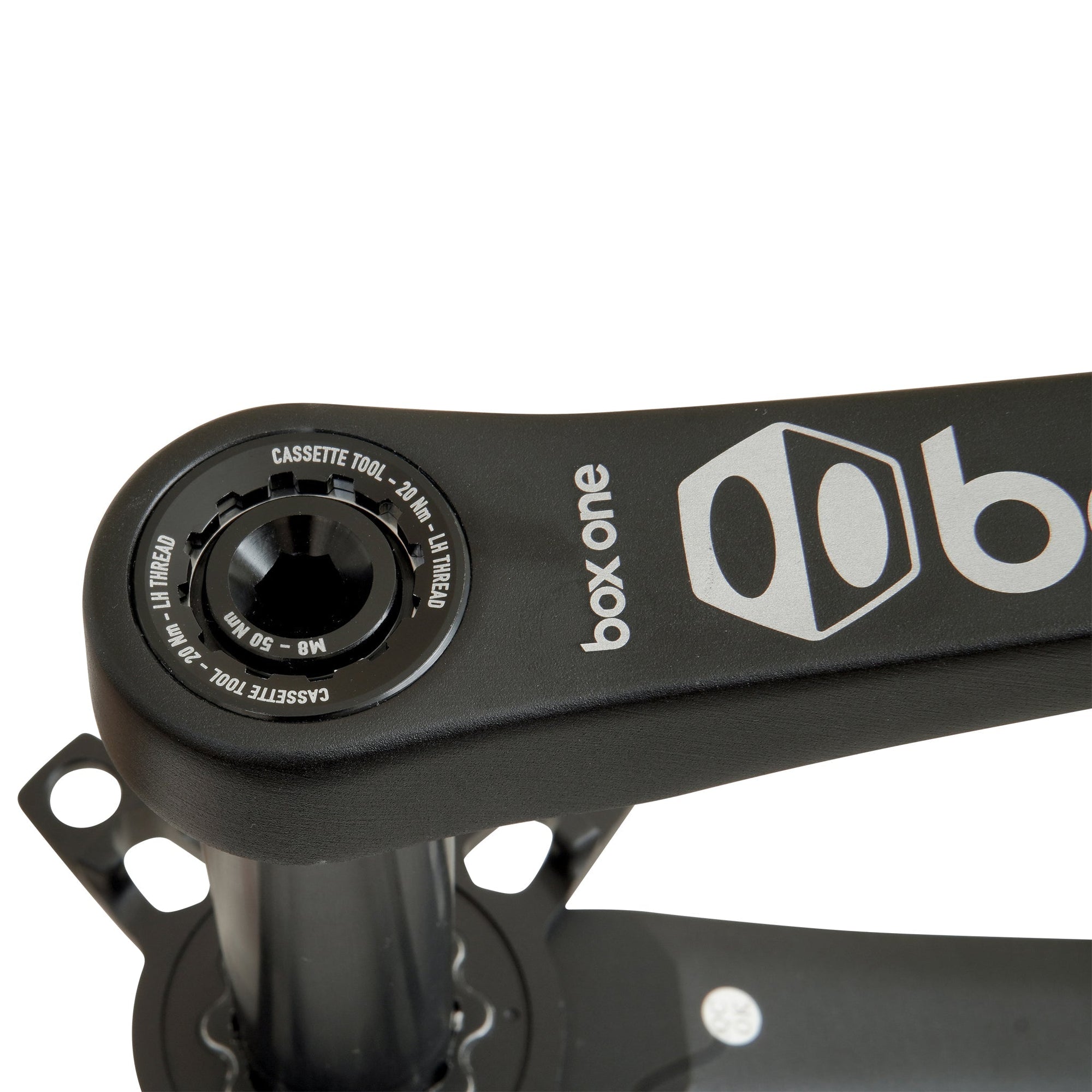

Self-Extracting Crank Bolt System
Top-Load Clamp Design
4-bolt 104 BCD Spider
External BSA 30mm BB Included

COMPATIBILITY

Box Two Chainring
Box One Chromoly Chainring Bolts
Box One 7075 Alloy Chainring Bolts
Box Two Oversized bottom bracket M30

FAQ

No. These cranks are designed to not use pedal washers. Installing pedal washers can damage the crank as the pedal will not be threaded in sufficiently.

Yes, but you will need a BB86 conversion bottom bracket available from Praxis Cycle Works.

The cranks are designed to specifically for 68mm wide BMX bottom bracket shells and require no spacers. Spacers may be required if your frame has a bottom bracket shell that is less than 68mm wide.

No. A chainring can only be installed on the inside of the spider.

No. A loose pedal will damage the crank and can cause injury. Always ensure that your pedals are tightened correctly.

Notes:

BB86 frames require Praxis™ part 86-4001B.

BB30/PF30 frames require Praxis™ part 68-4001R or 68-5401R.

T47 frames require Praxis™ part 47-0000.

Do not use pedal washers when installing pedals onto these cranks. M30-M cranks were designed to be used without pedal washers.

SPECIFICATIONS

	145mm	150mm	155mm
BB (Included)	BSA 30mm 1.37	BSA 30mm 1.37	BSA 30mm 1.37
Spindle	30mm Alloy	30mm Alloy	30mm Alloy
Material	7075 T-6 Aluminum	7075 T-6 Aluminum	7075 T-6 Aluminum
Process	Hollow-Forged	Hollow-Forged	Hollow-Forged
Chainline	44.5mm	44.5mm	44.5mm
Q Factor	153mm	153mm	153mm
Weight	498g/17.6oz	509g/17.9oz	518g/18.3oz

Due to the complexity of hollow-forged manufacturing, the weights may vary +/- 10%
