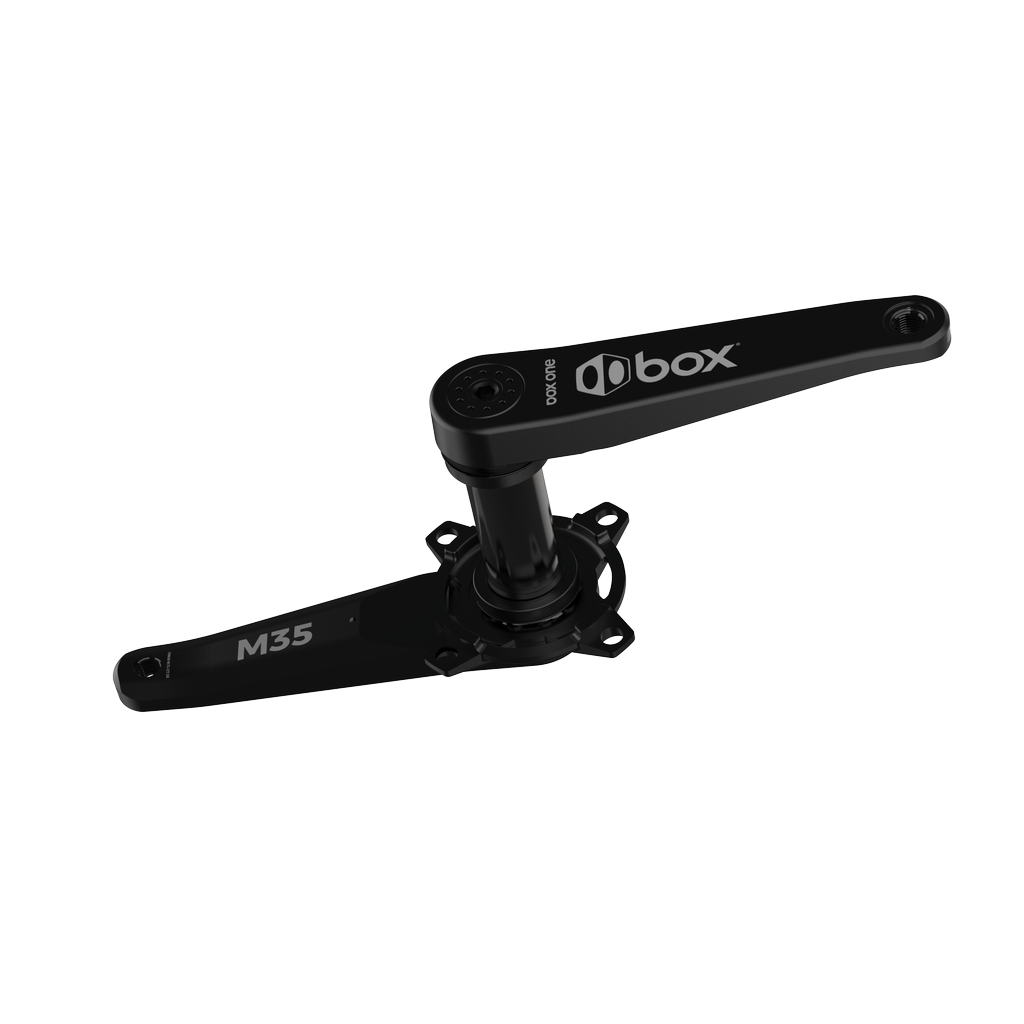

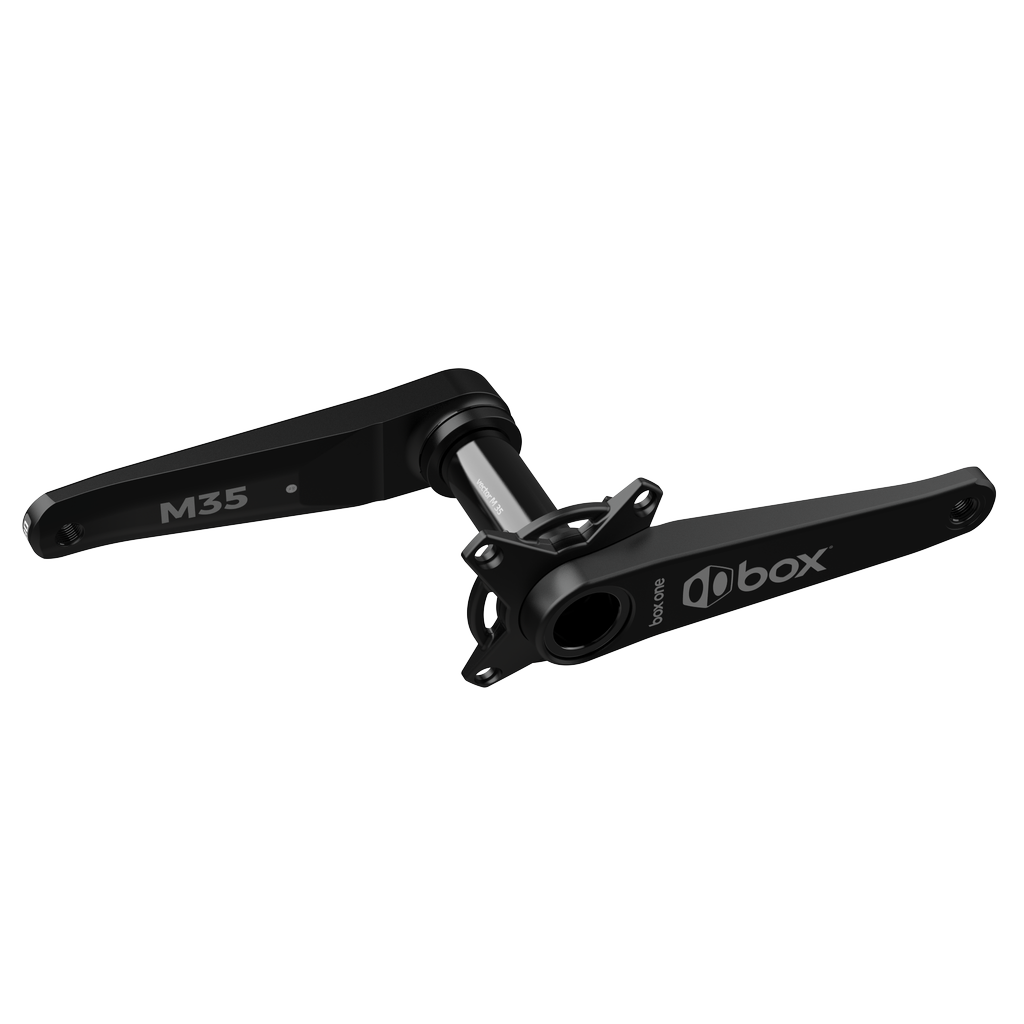

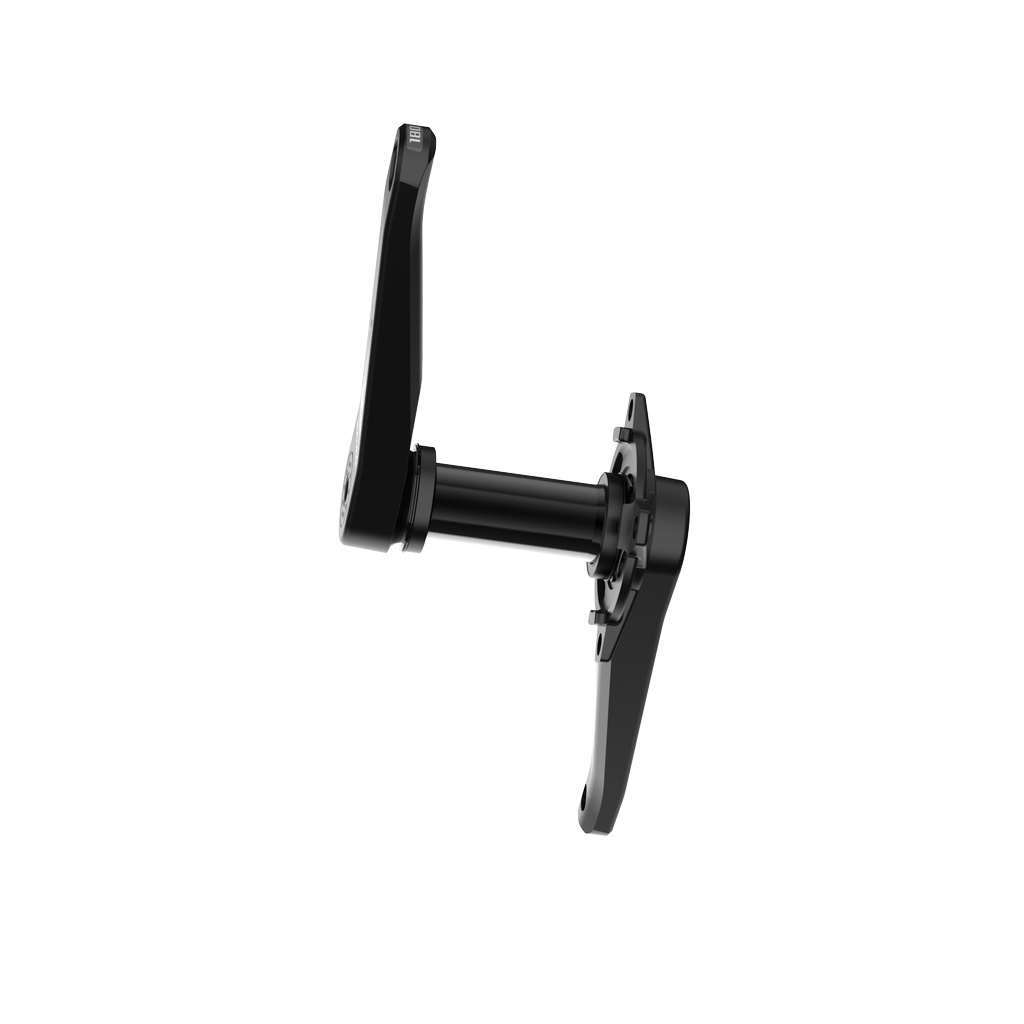

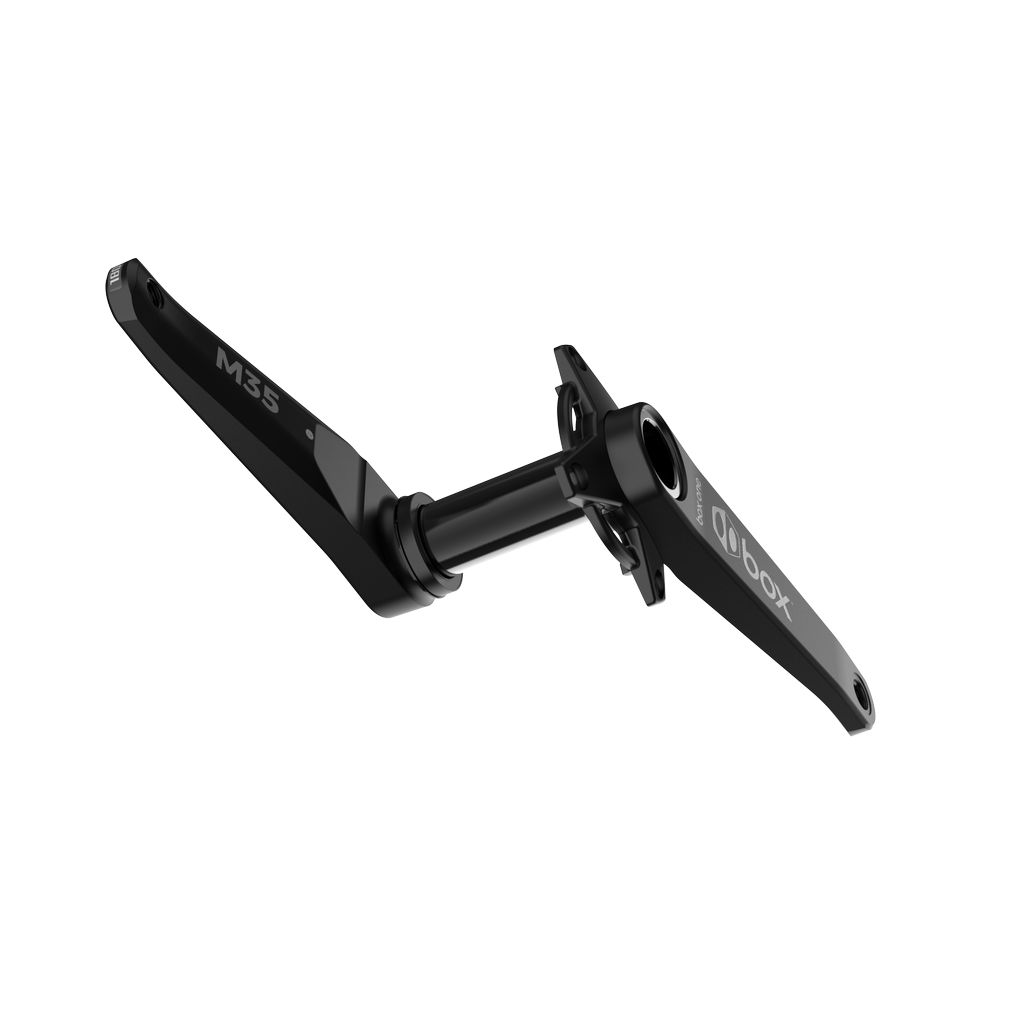

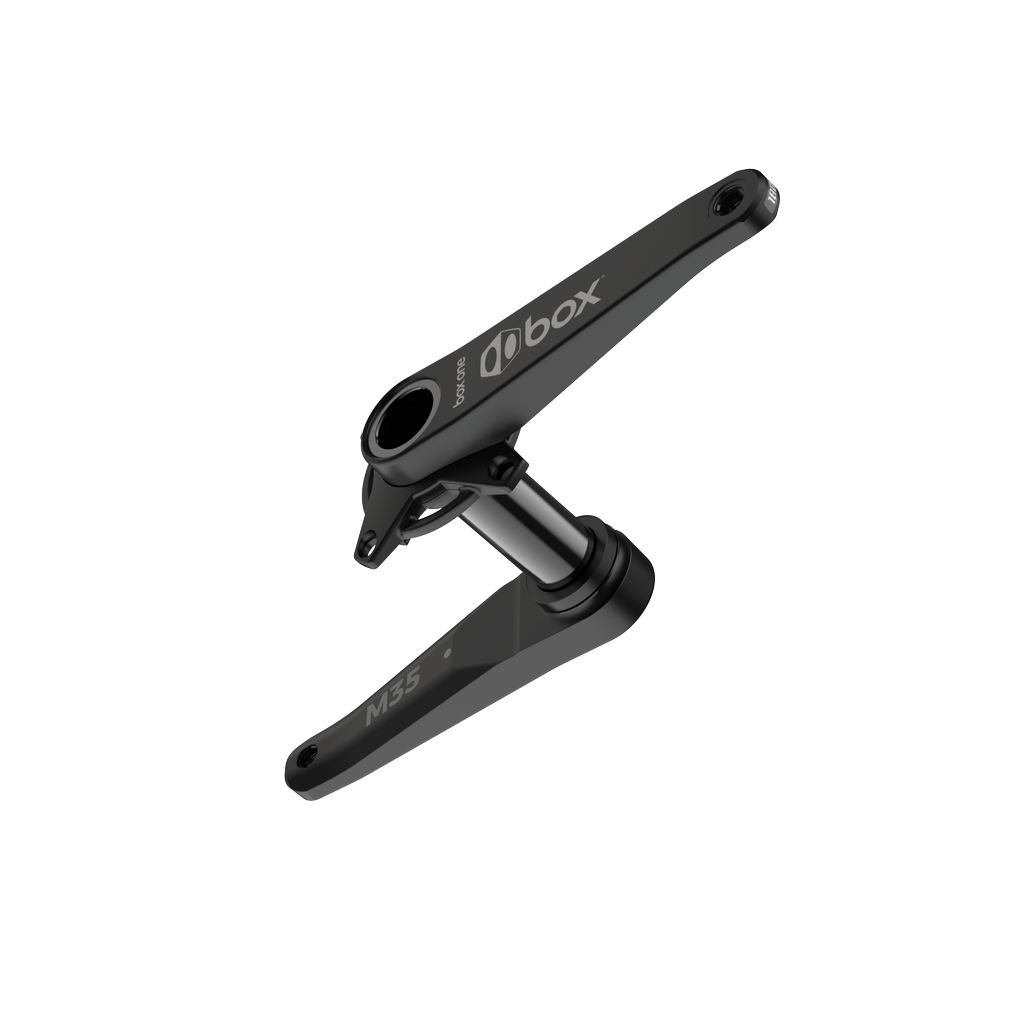

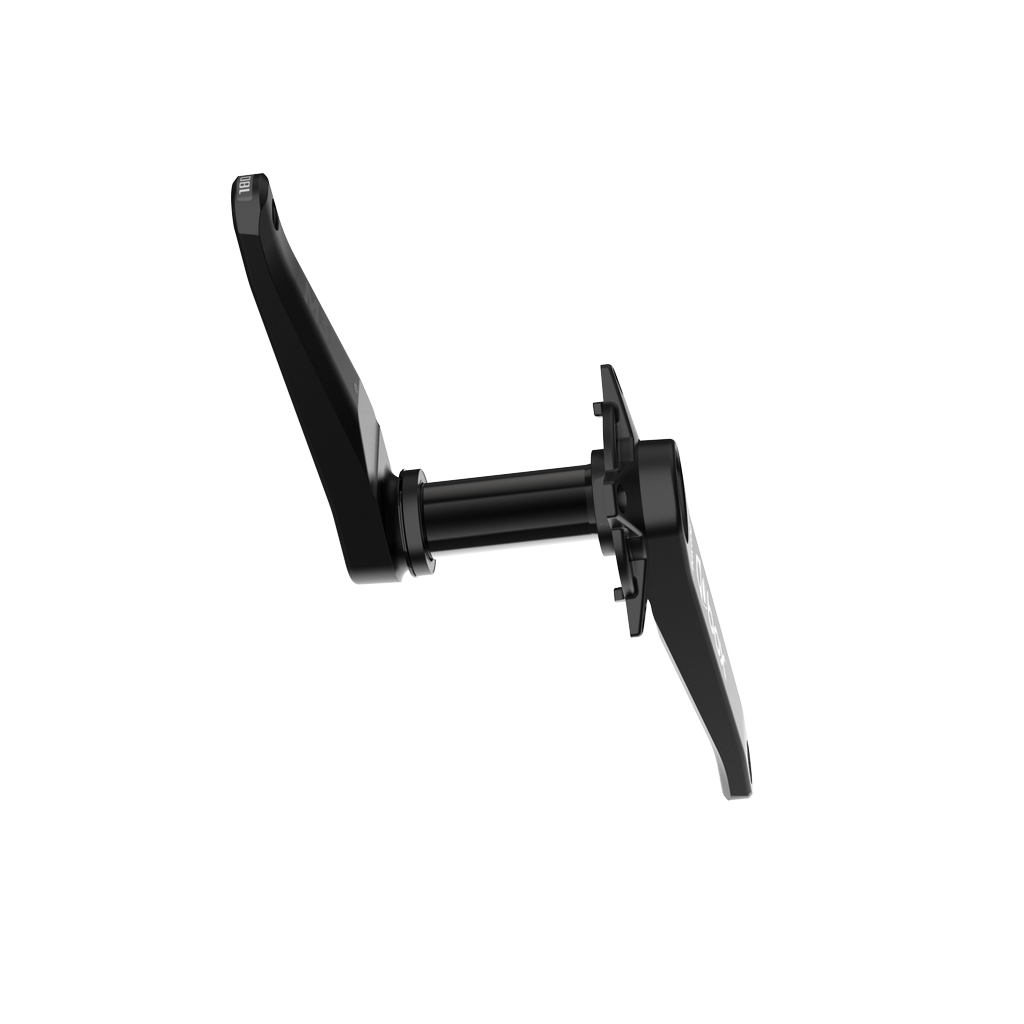

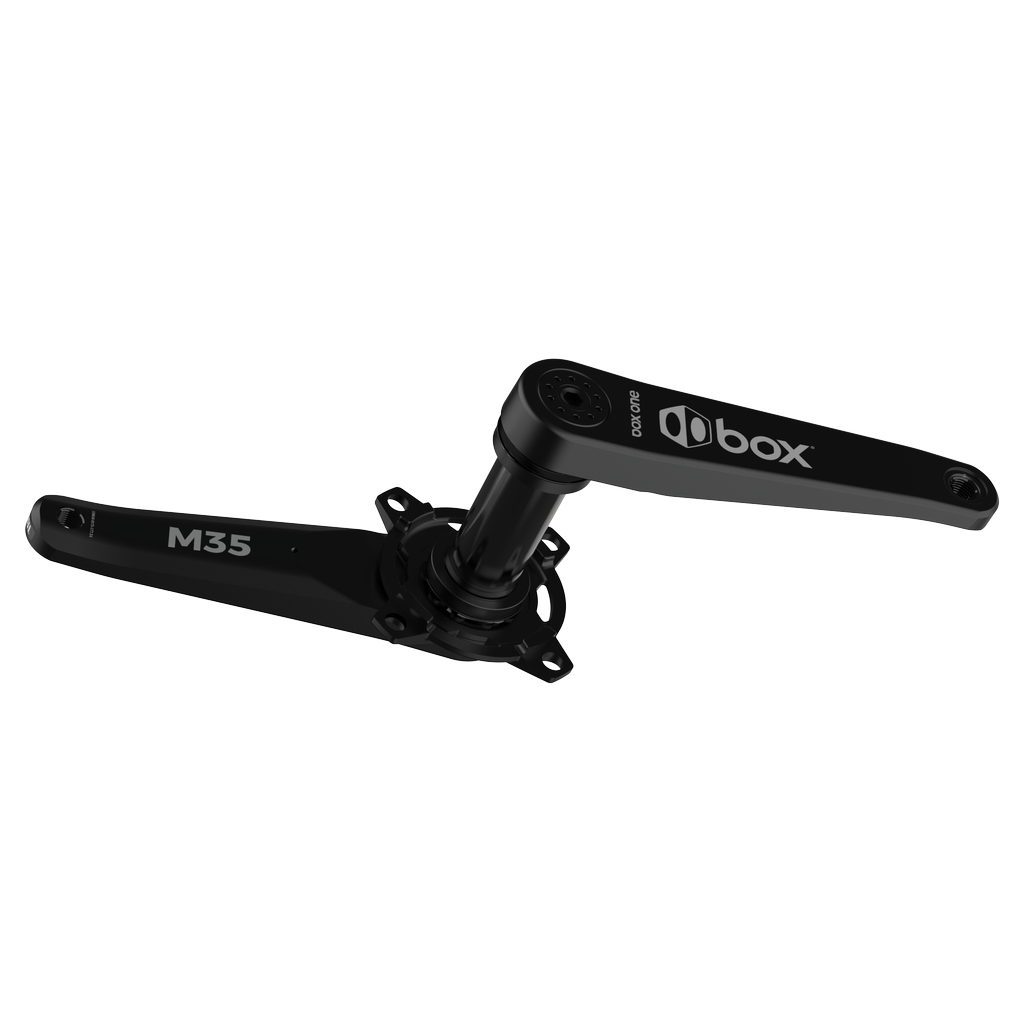

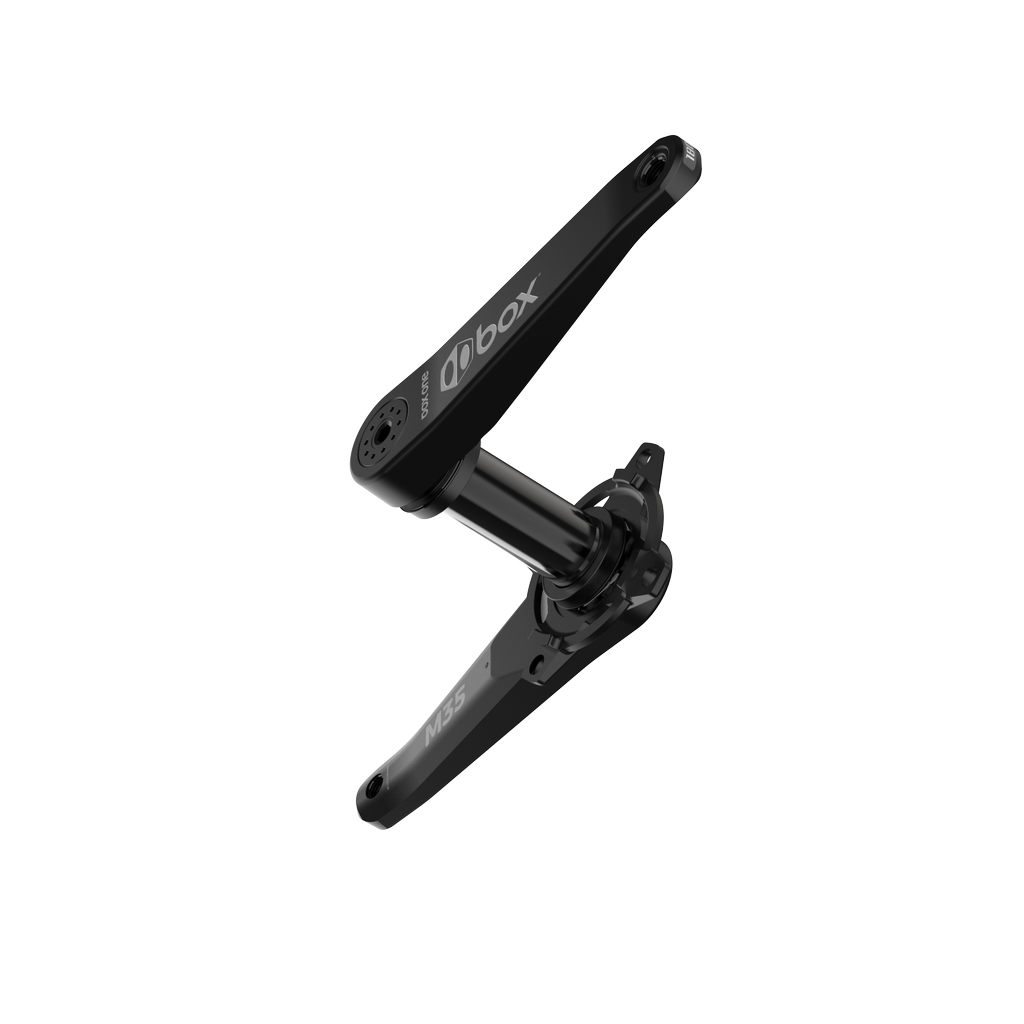

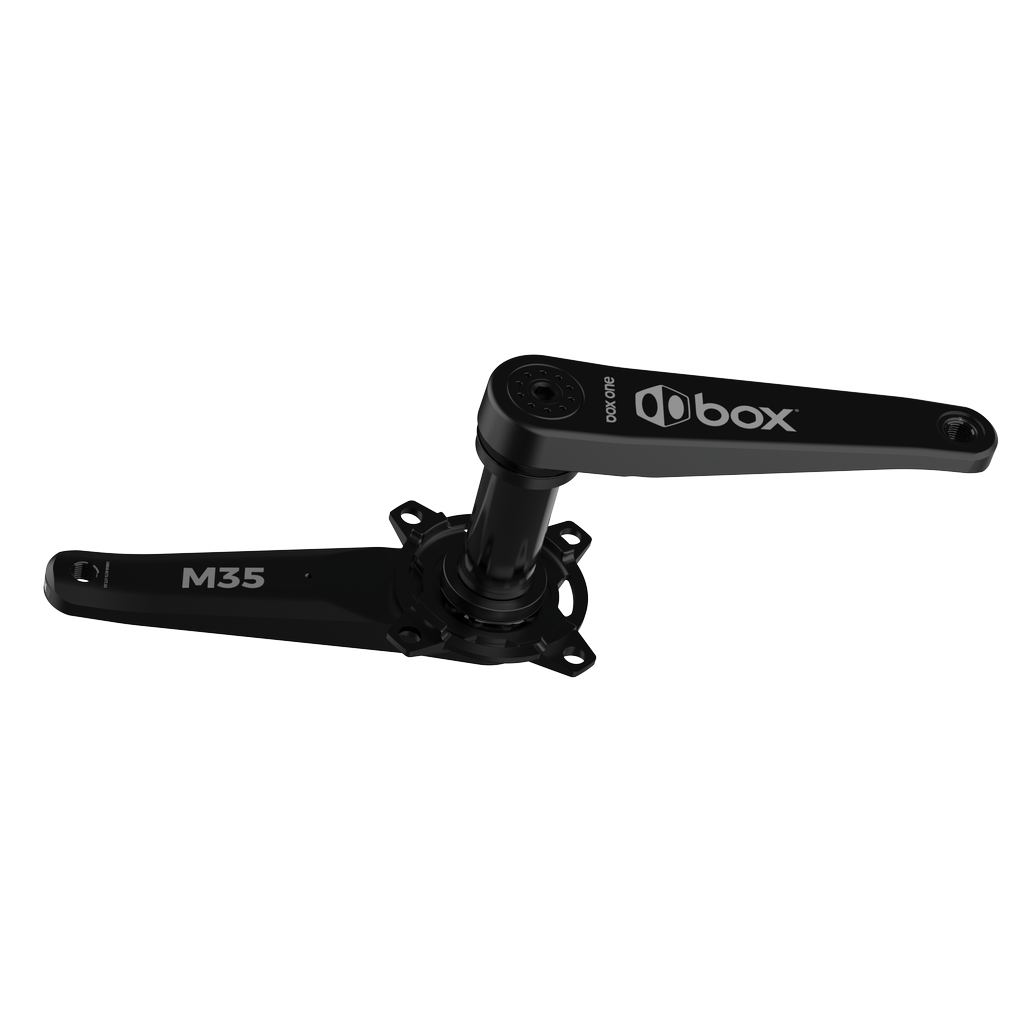

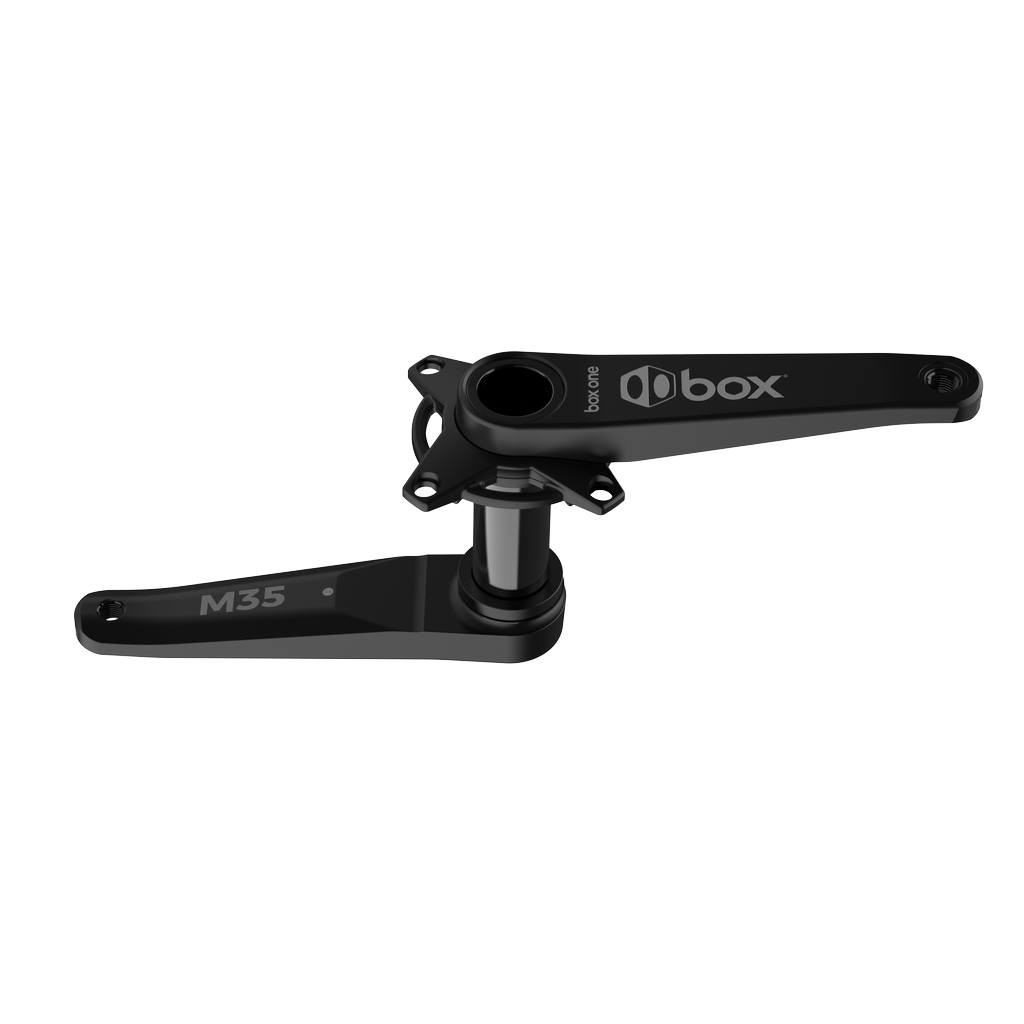

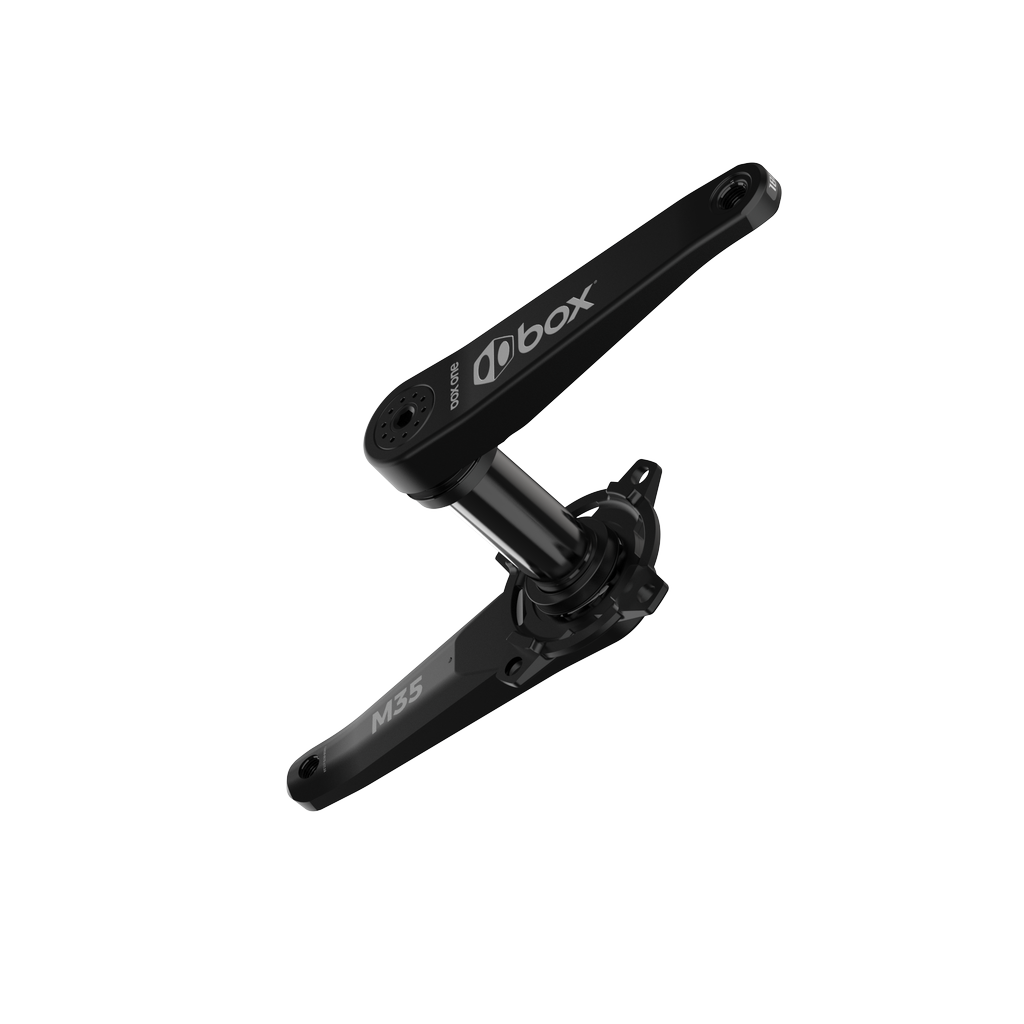

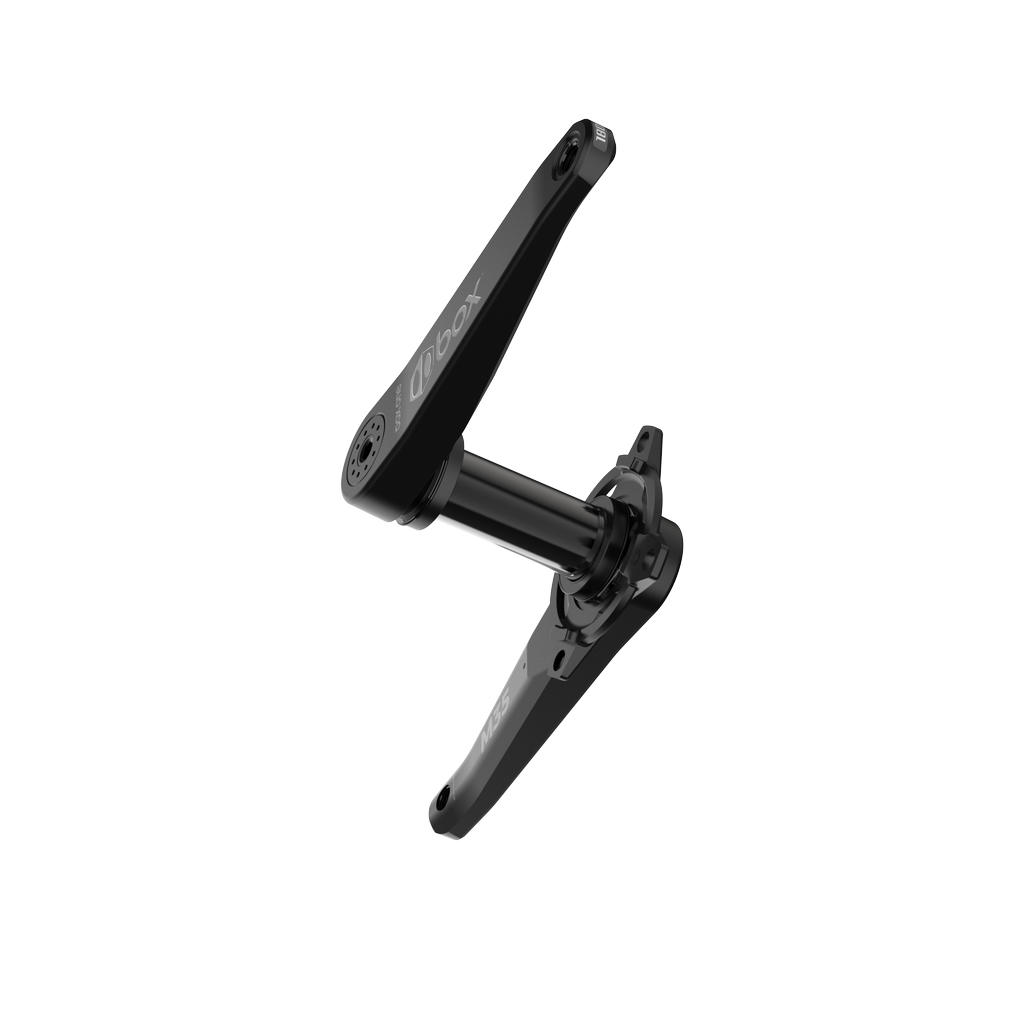

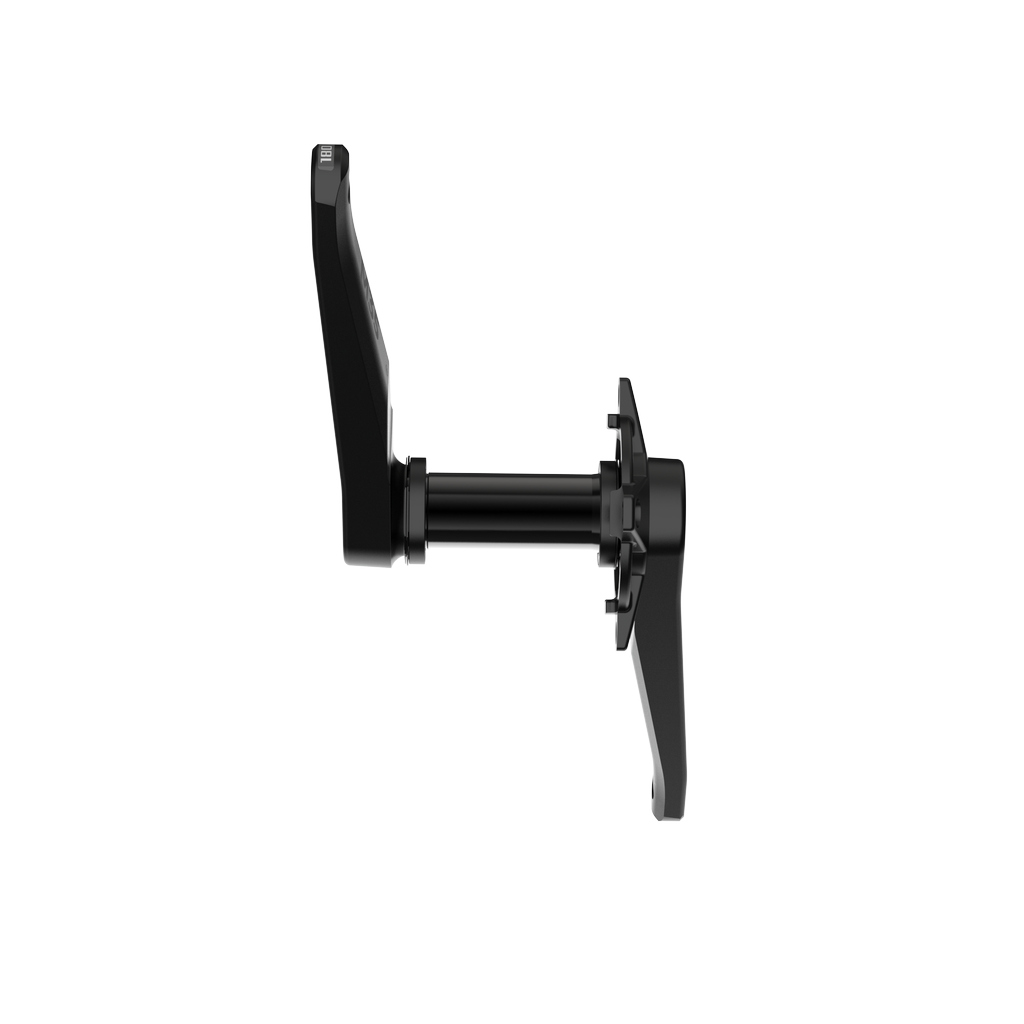

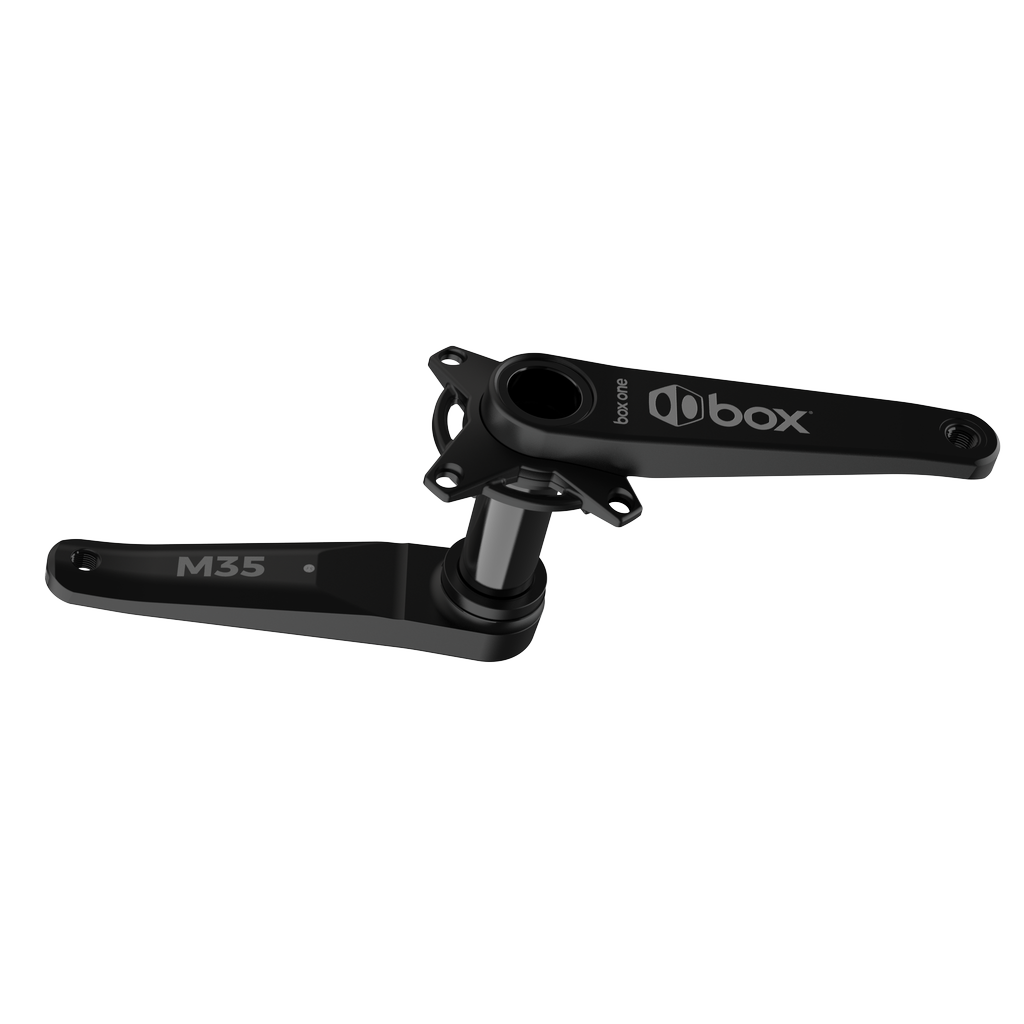

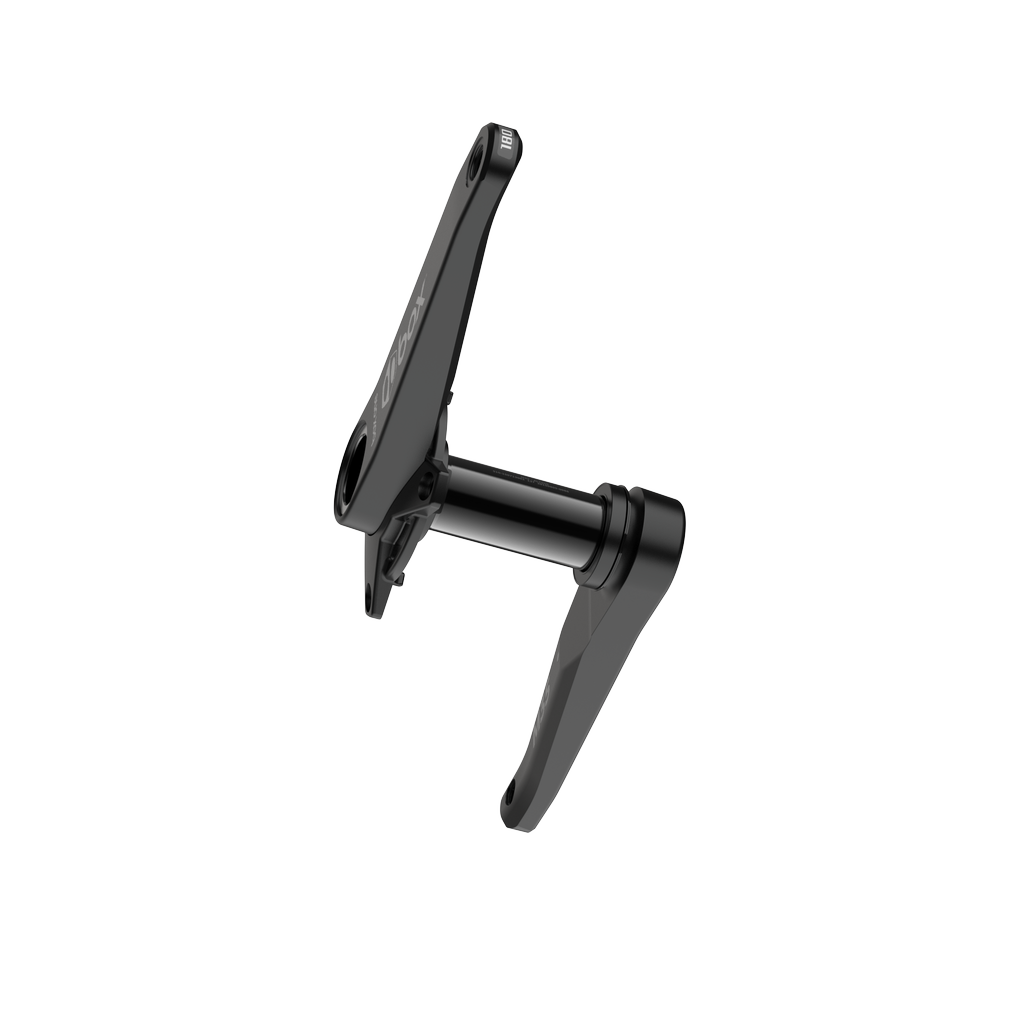

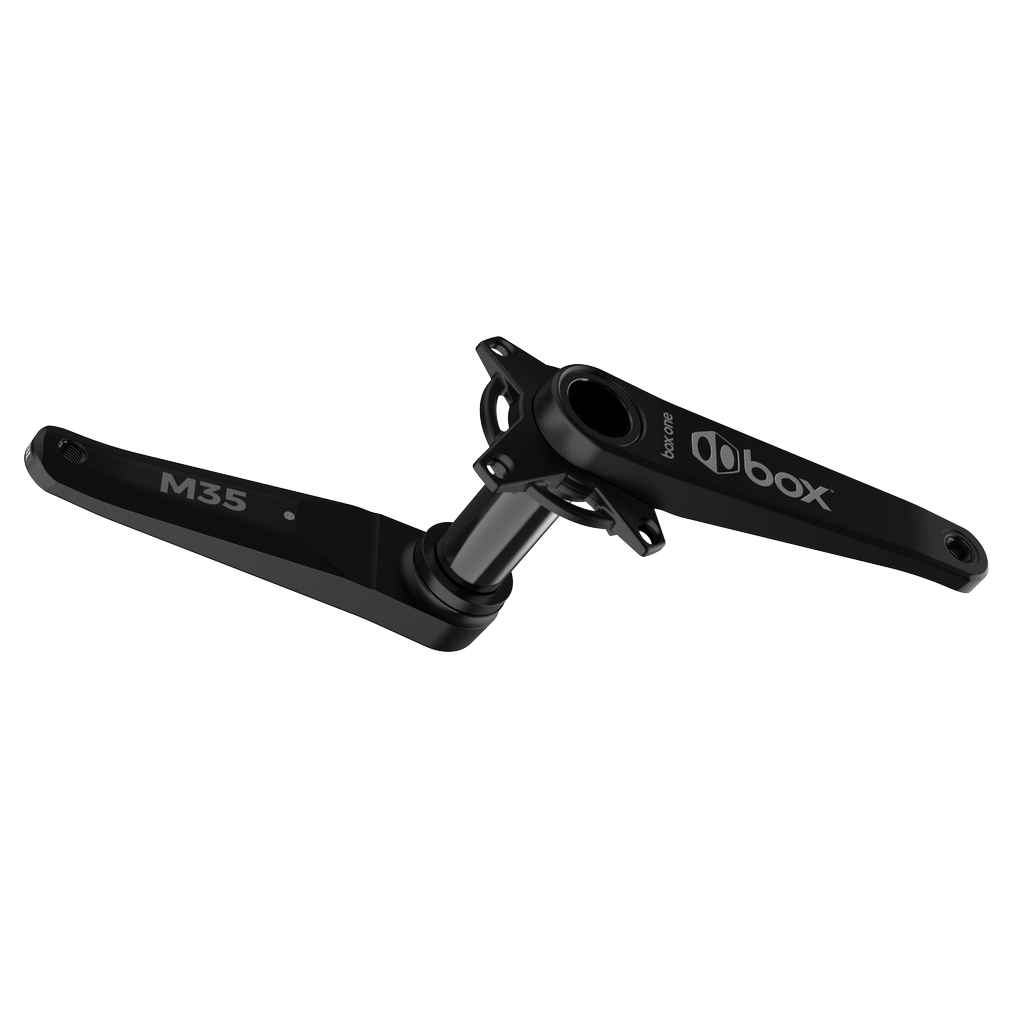

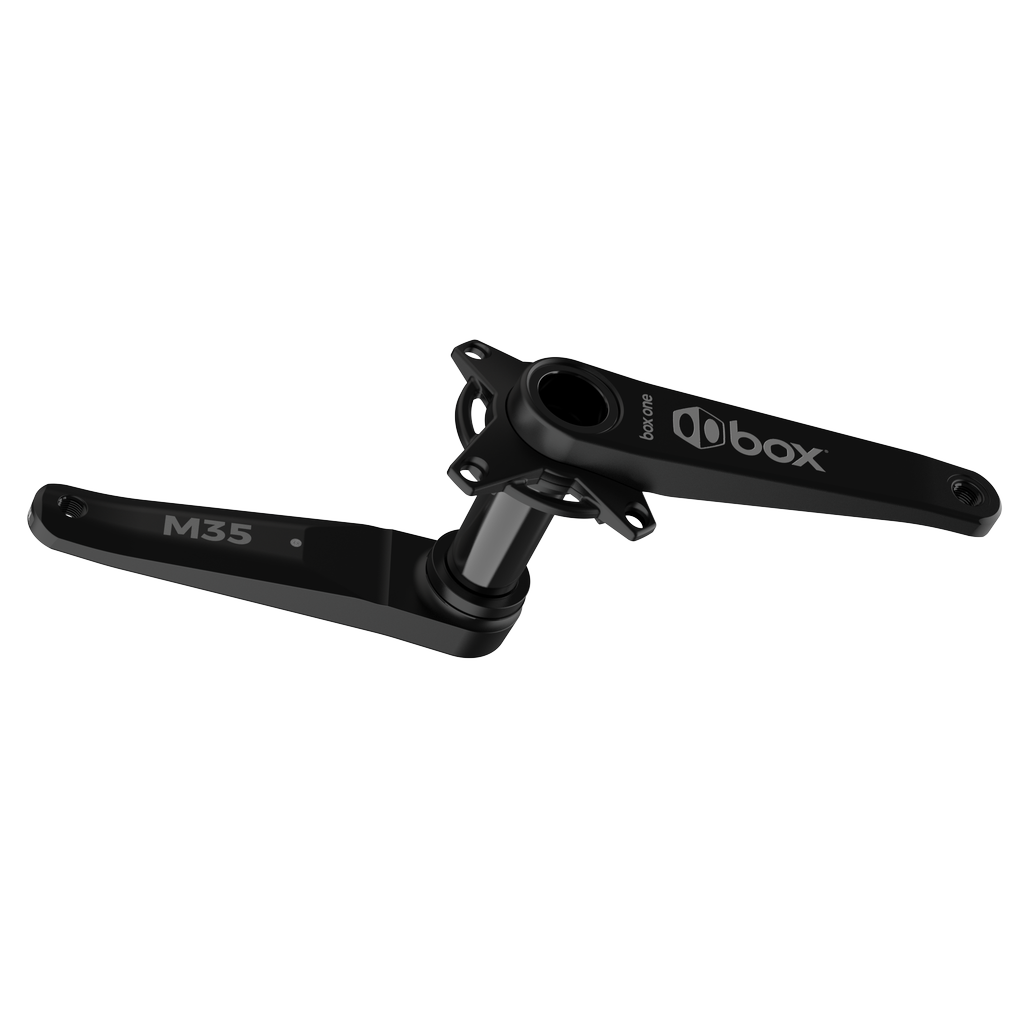

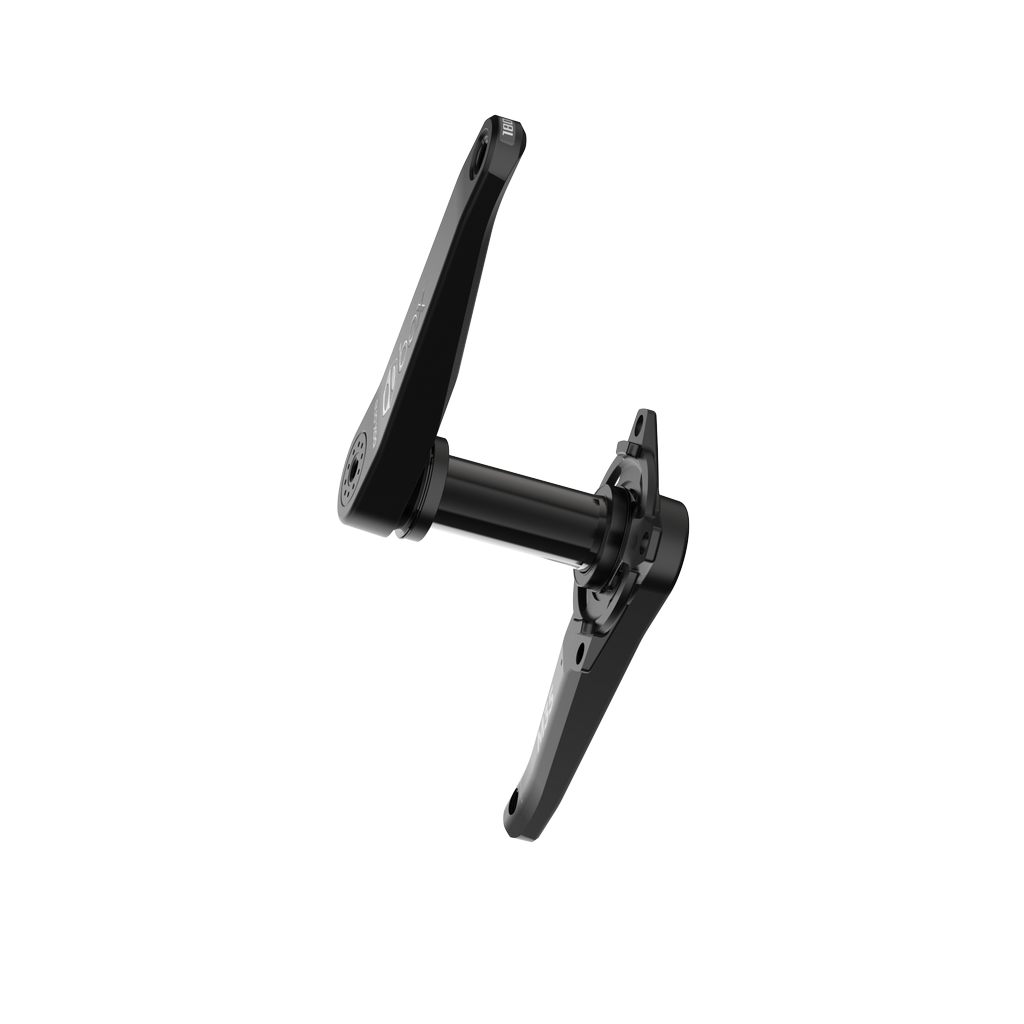

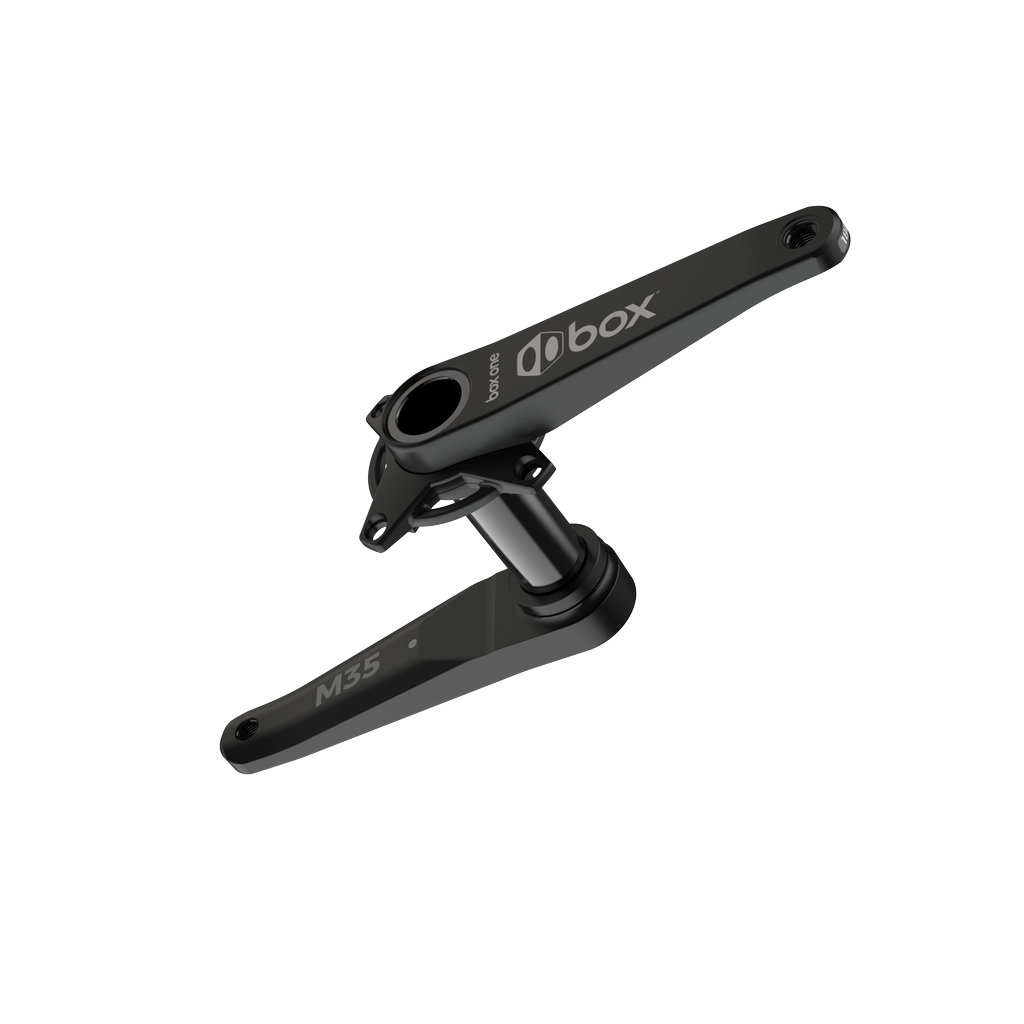

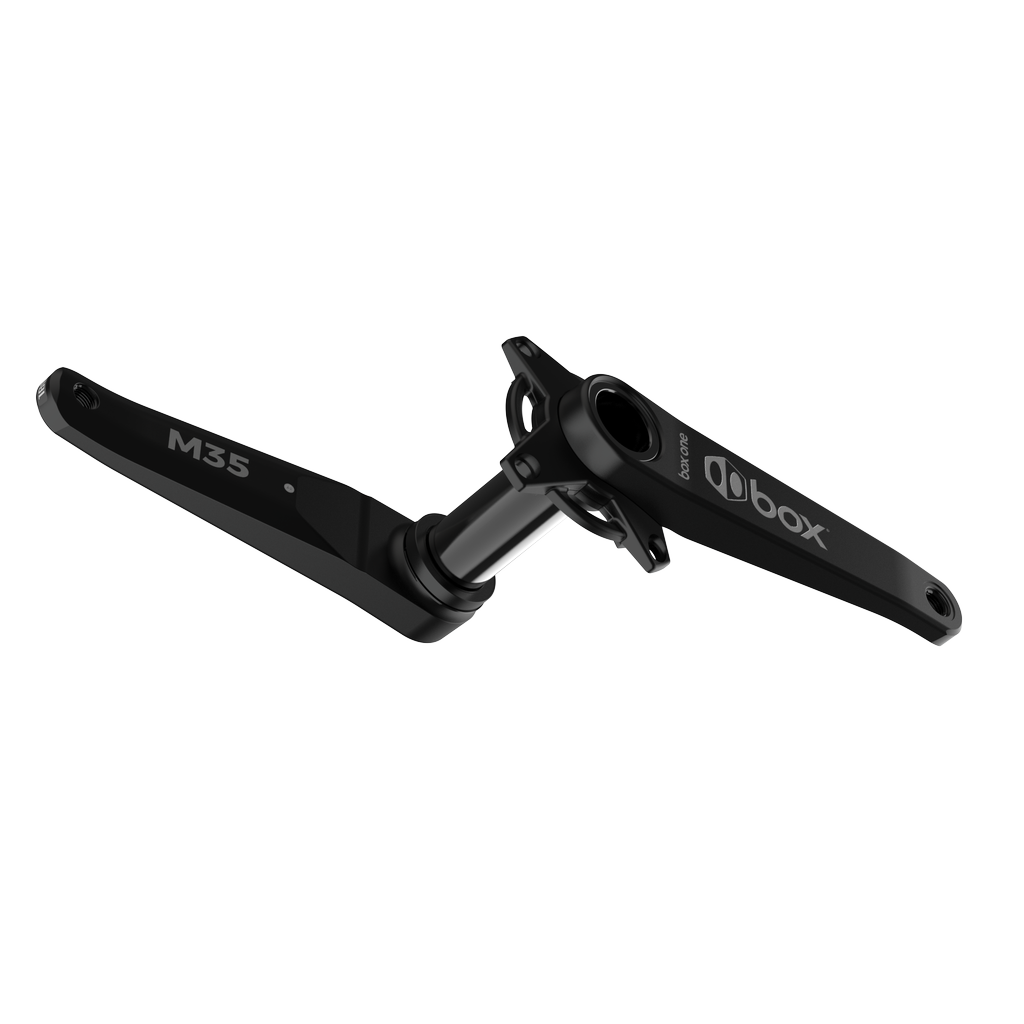

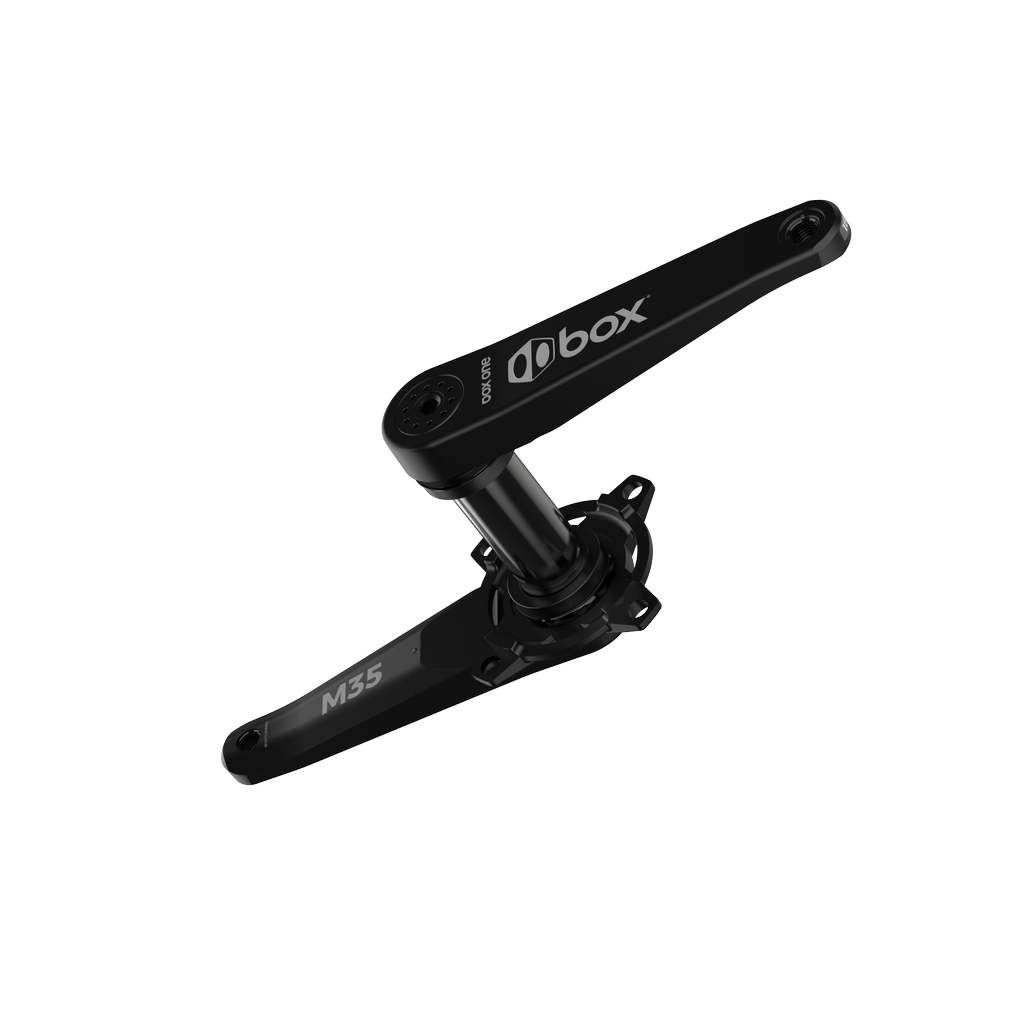

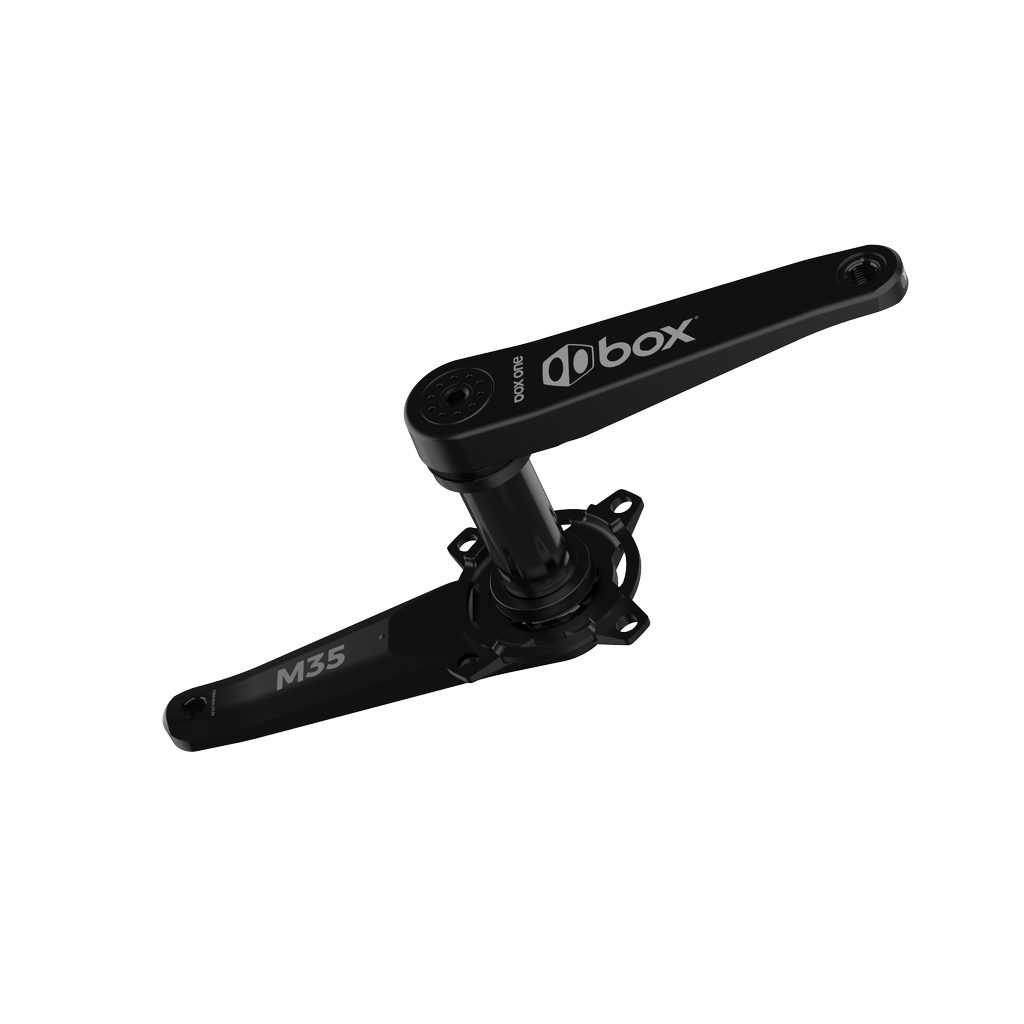

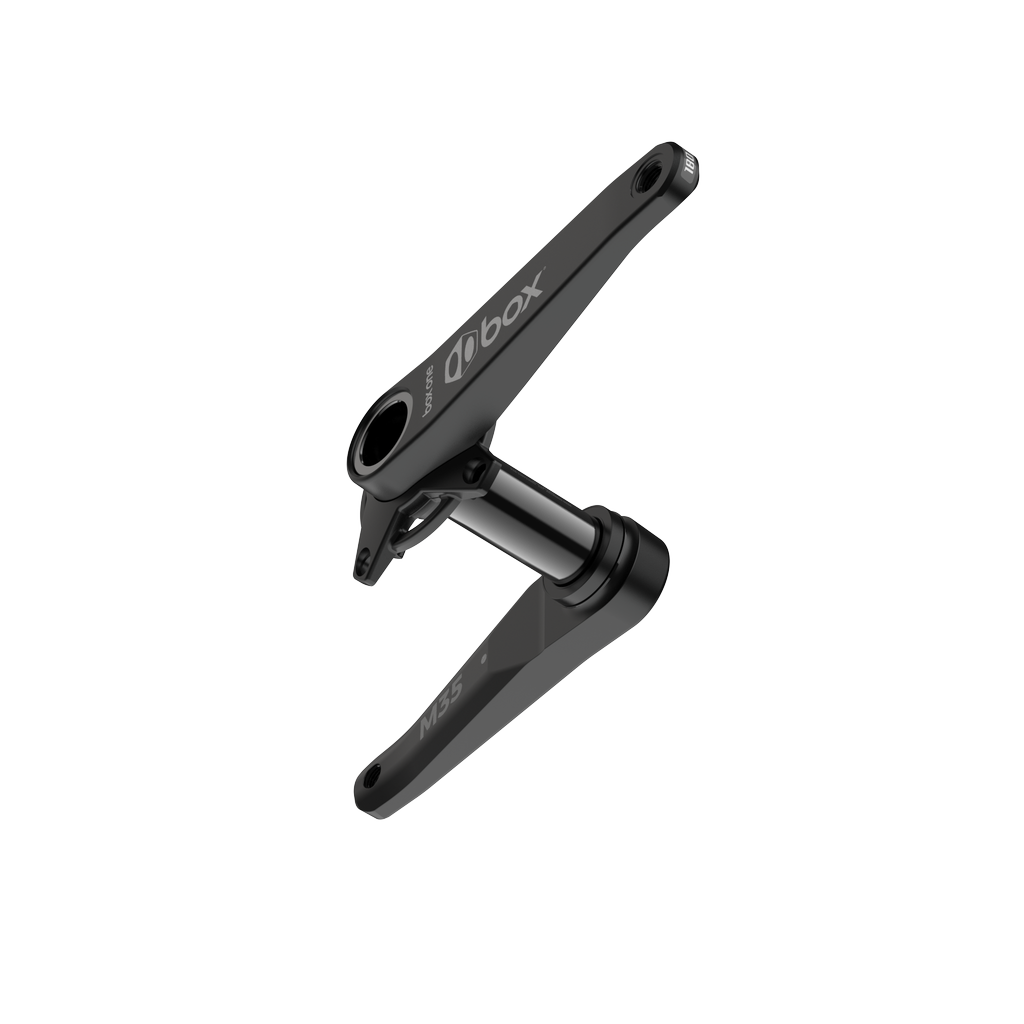

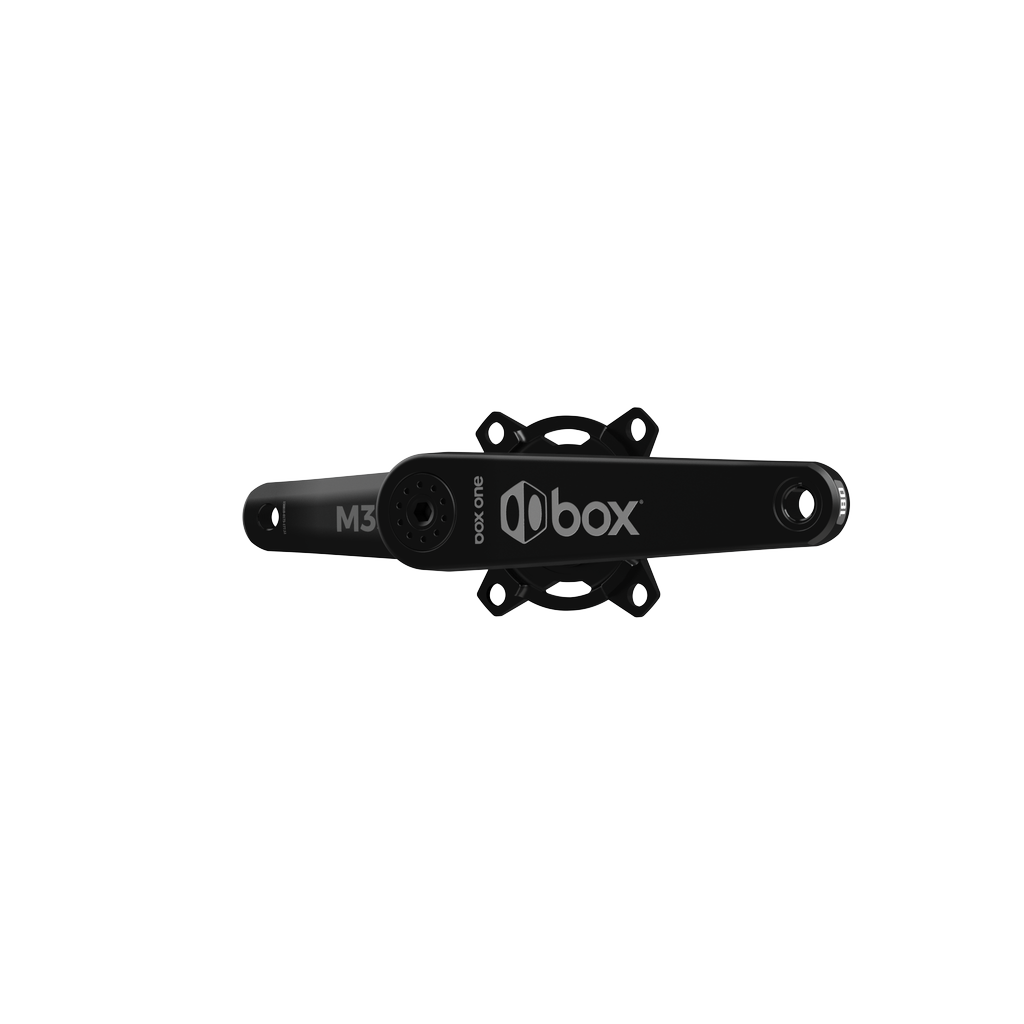

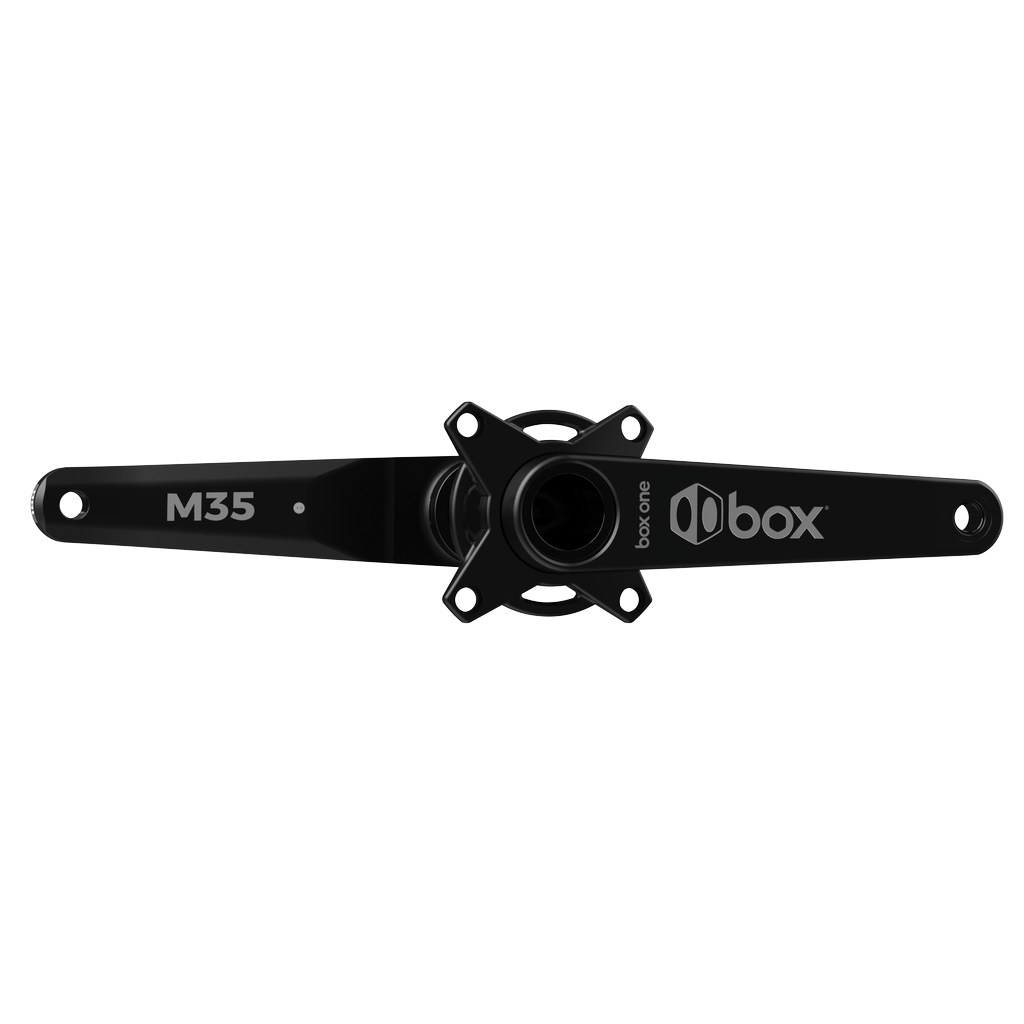

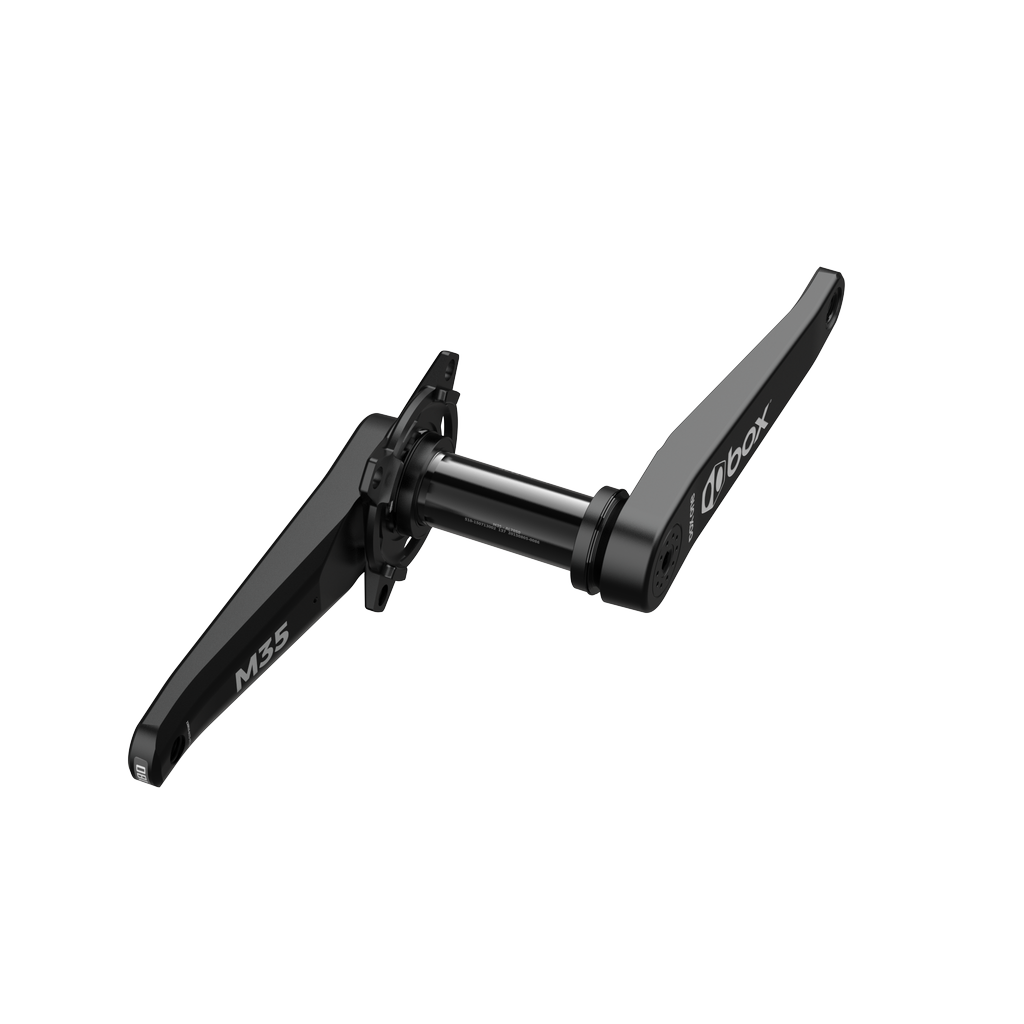

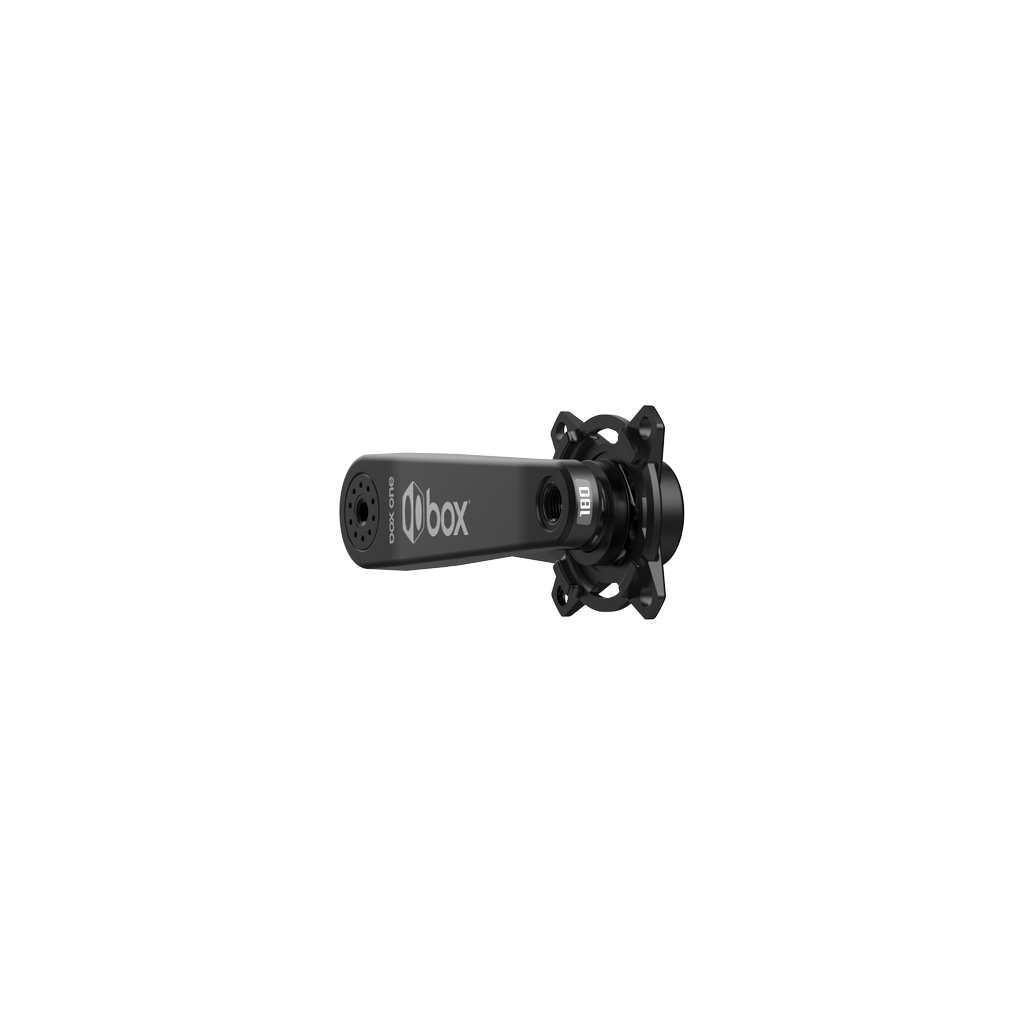

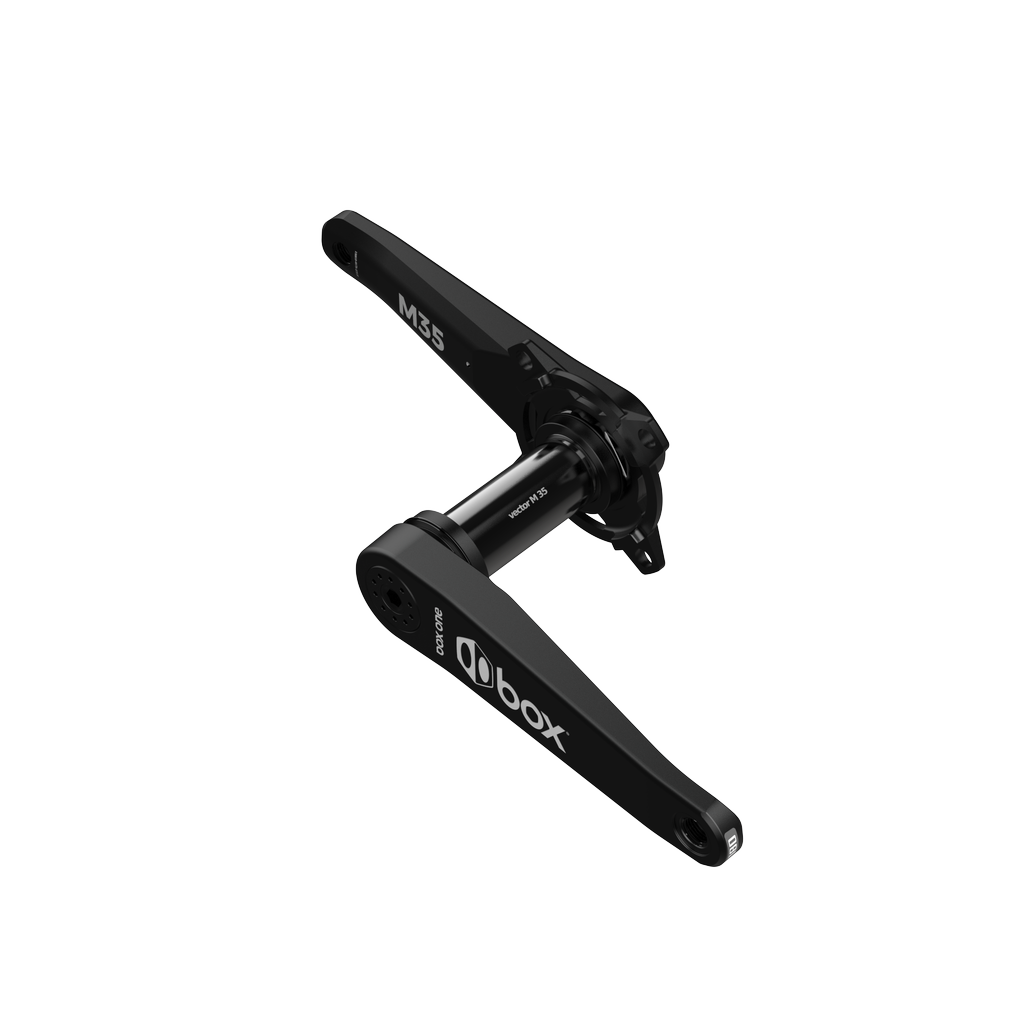

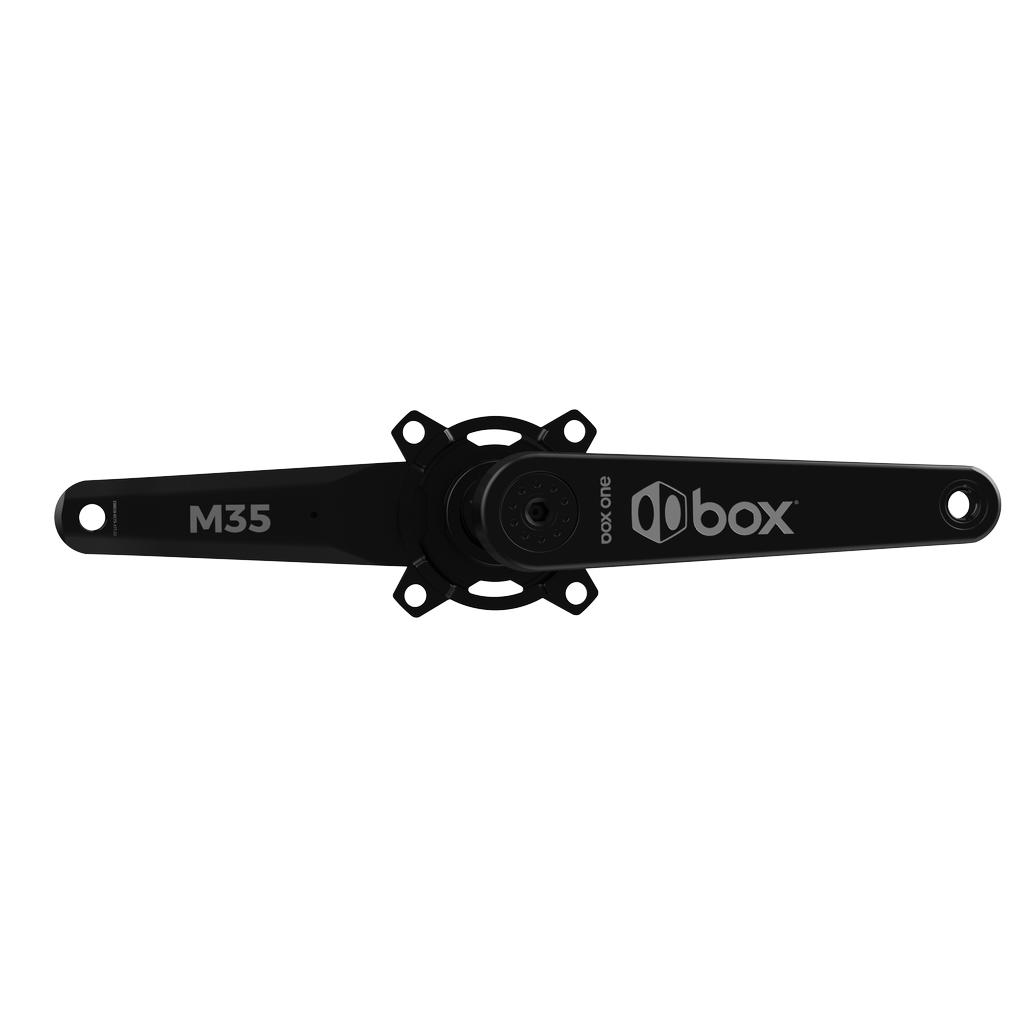

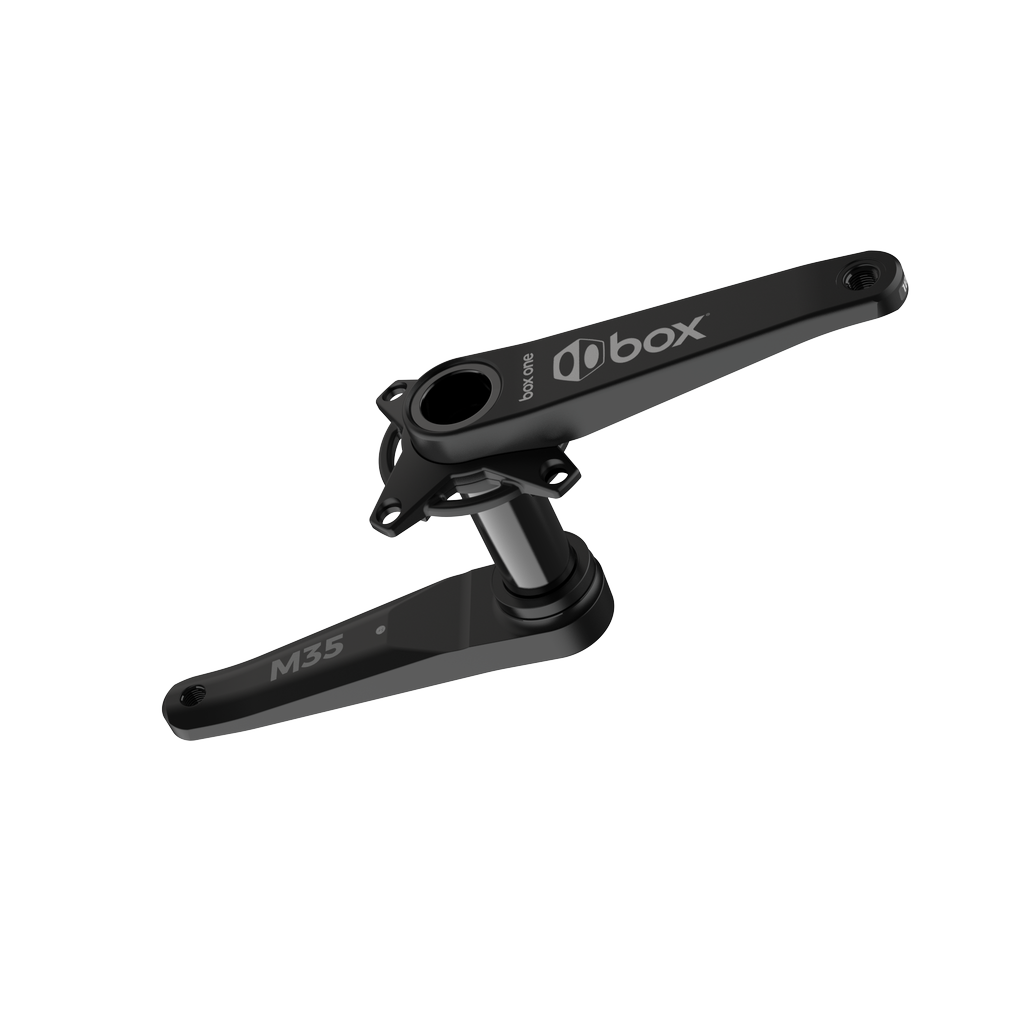

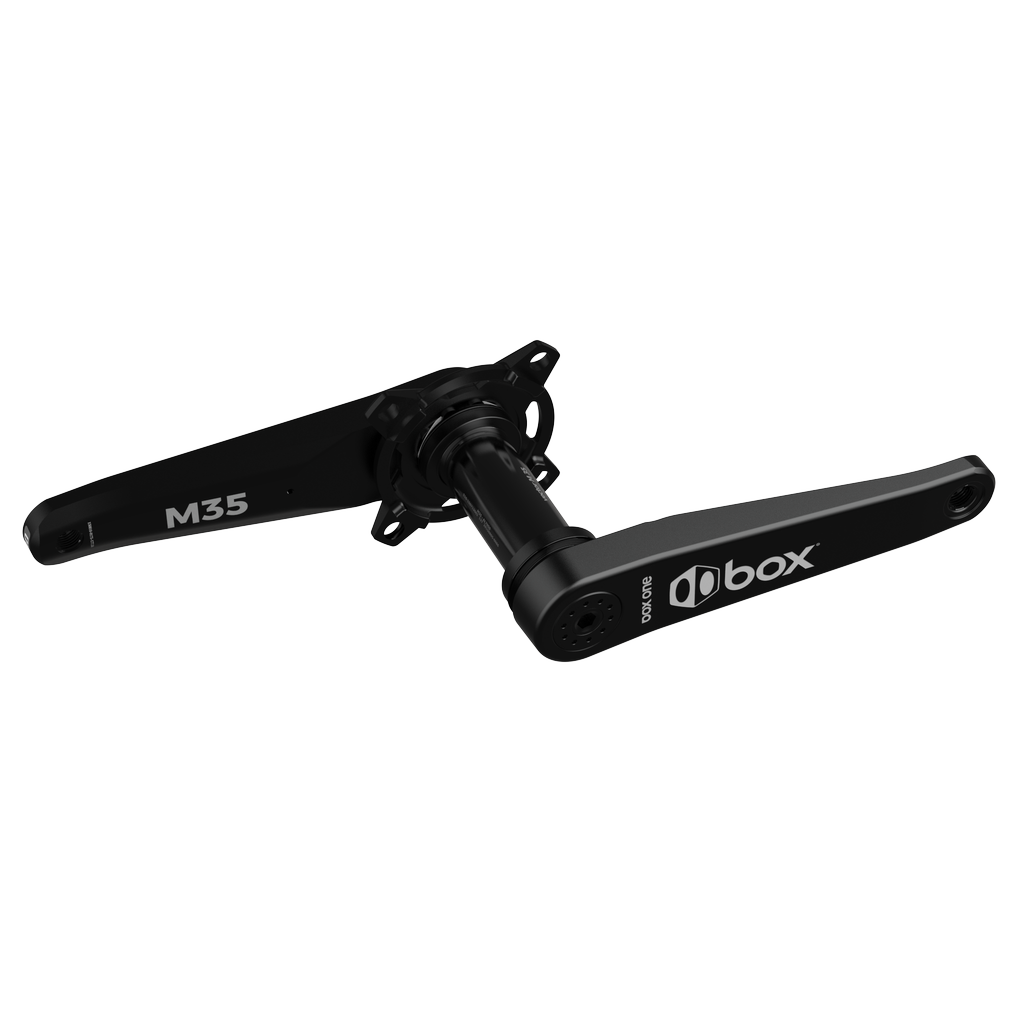

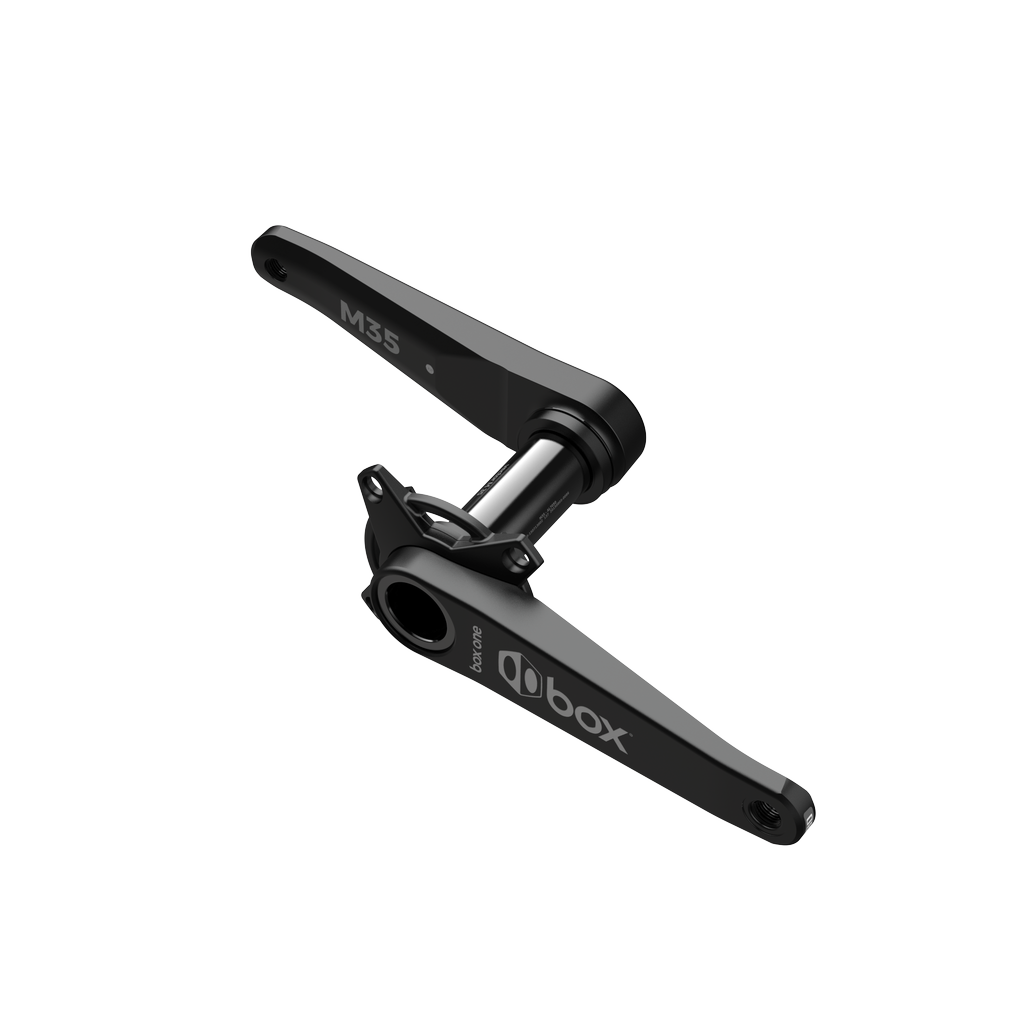

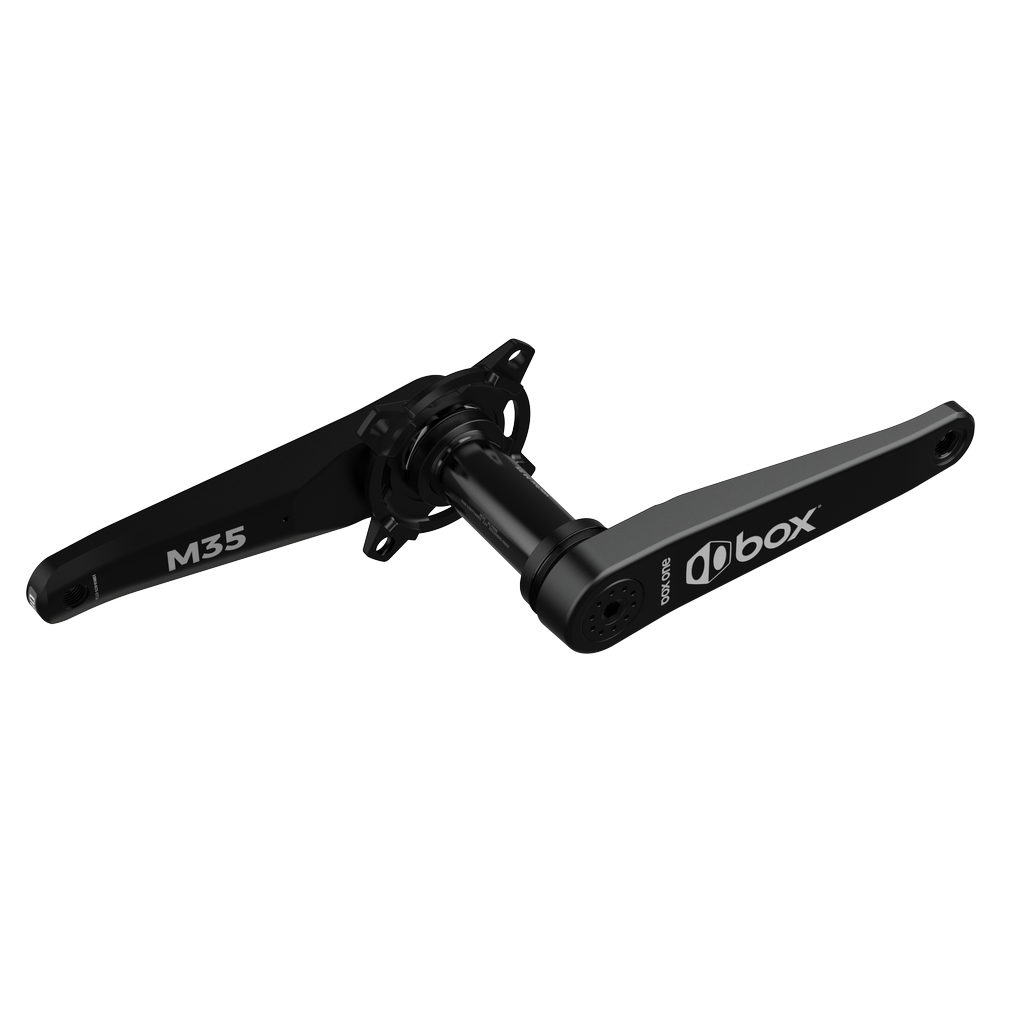

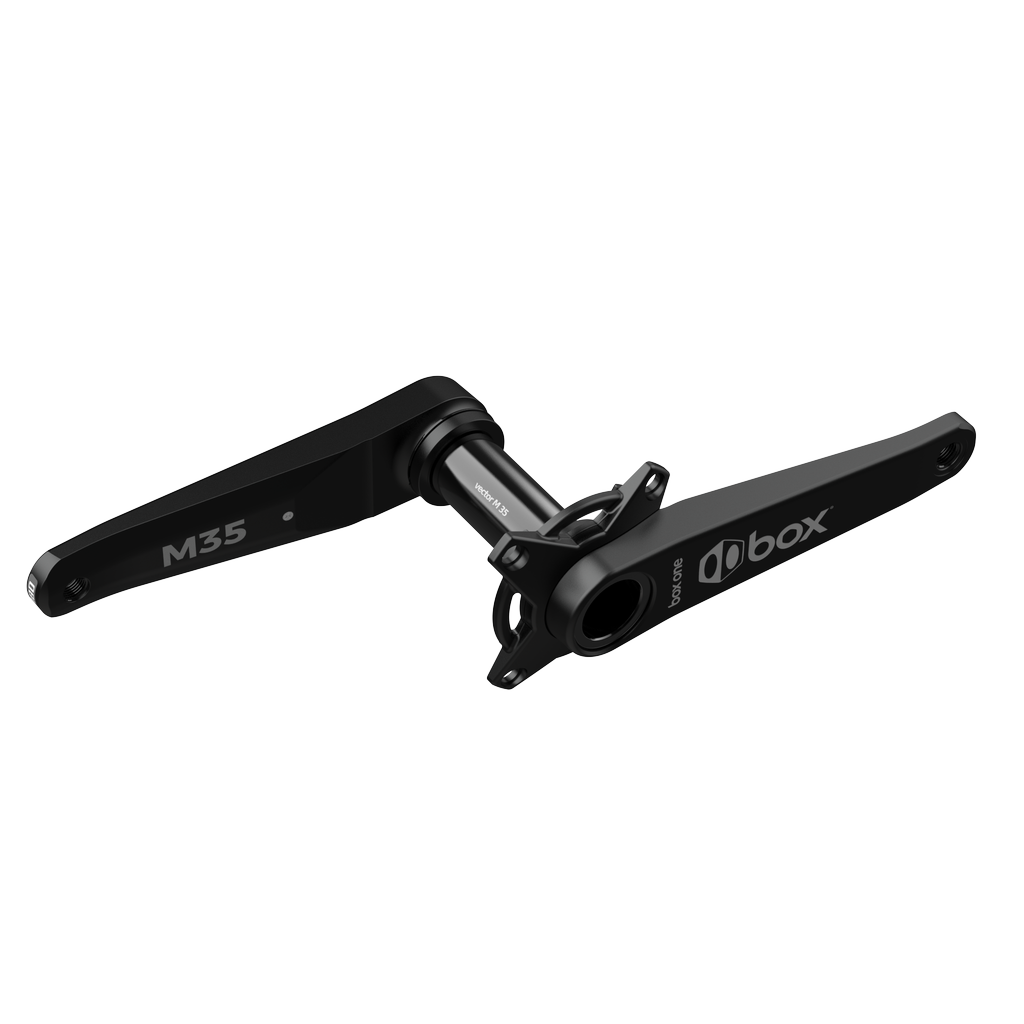

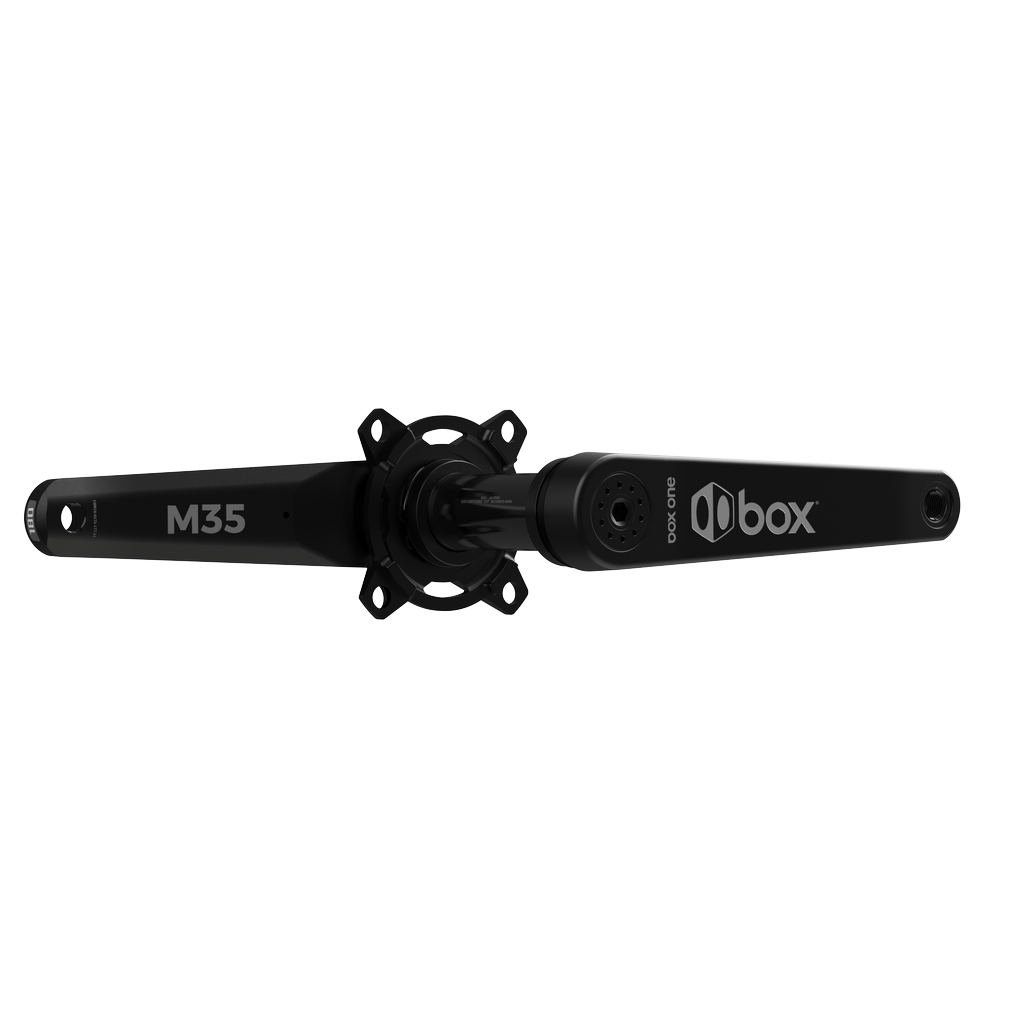

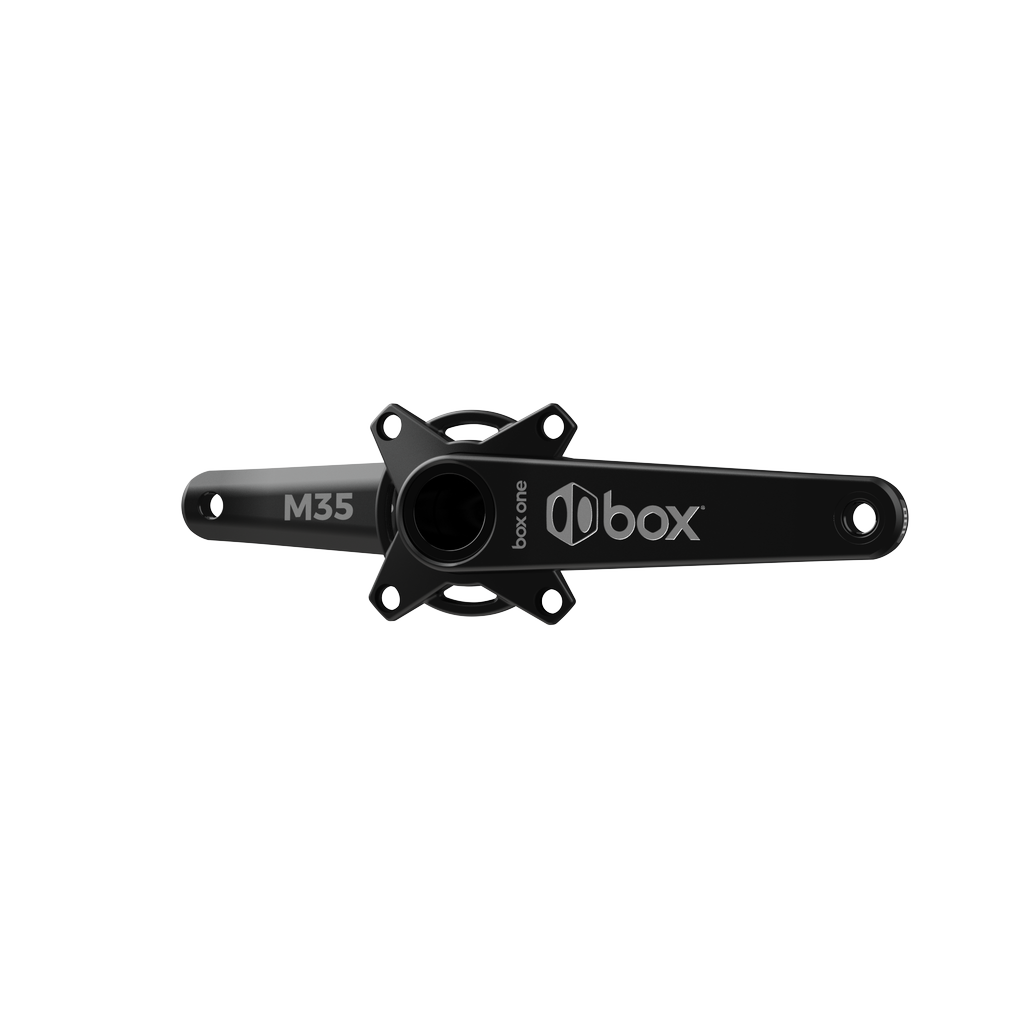

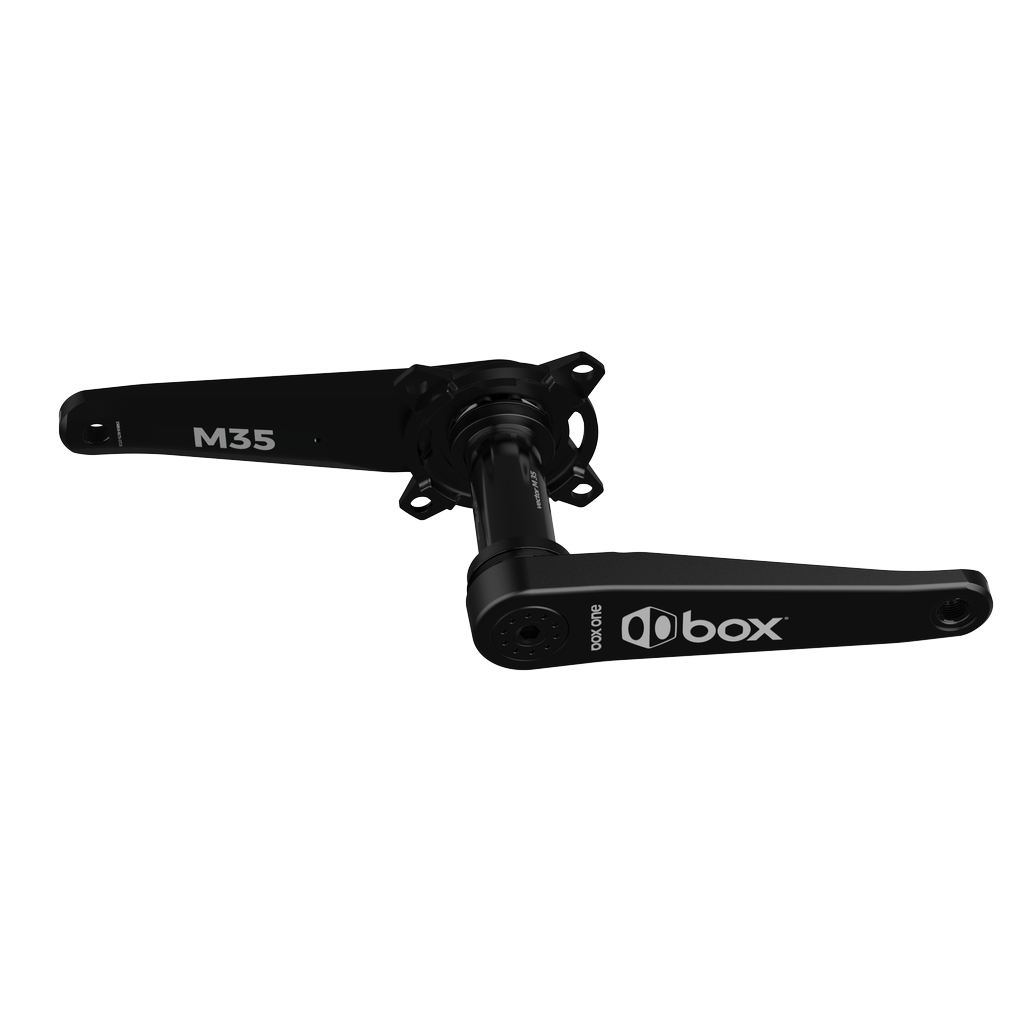

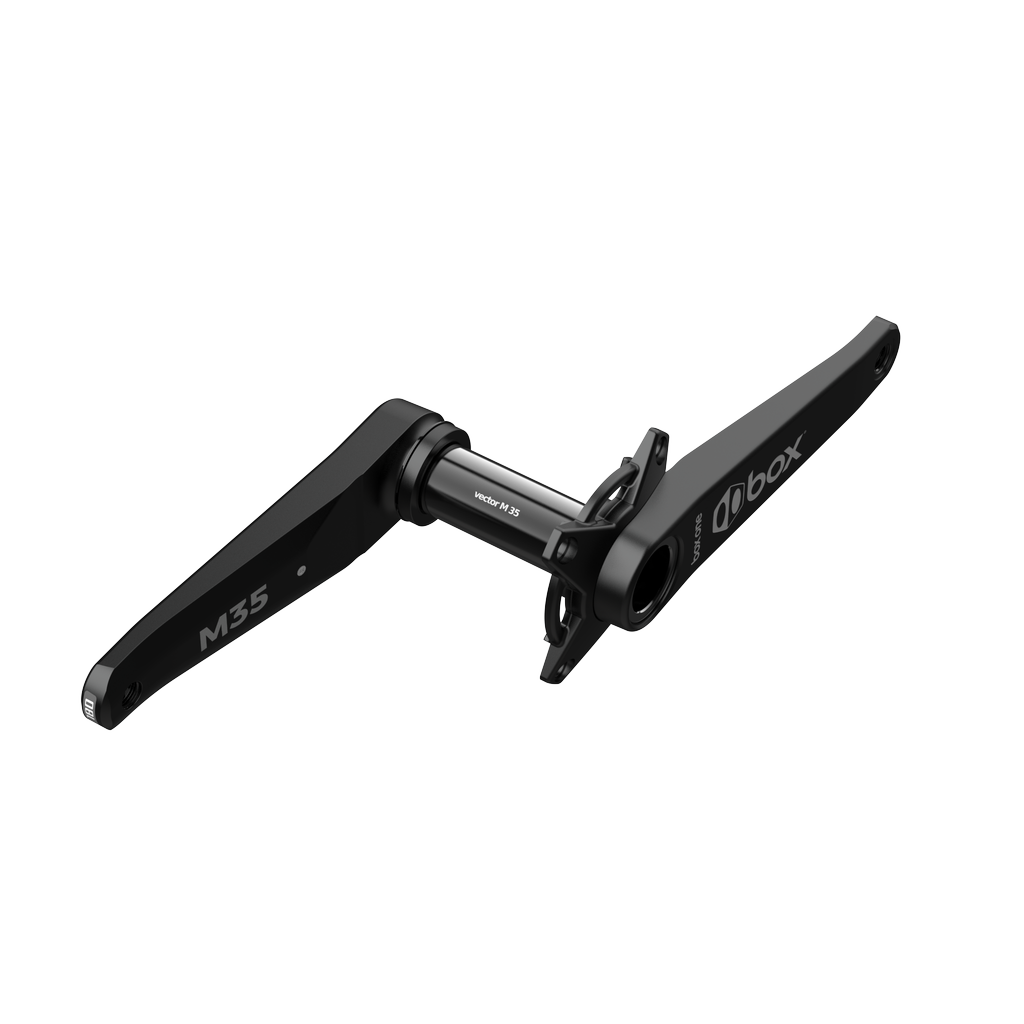

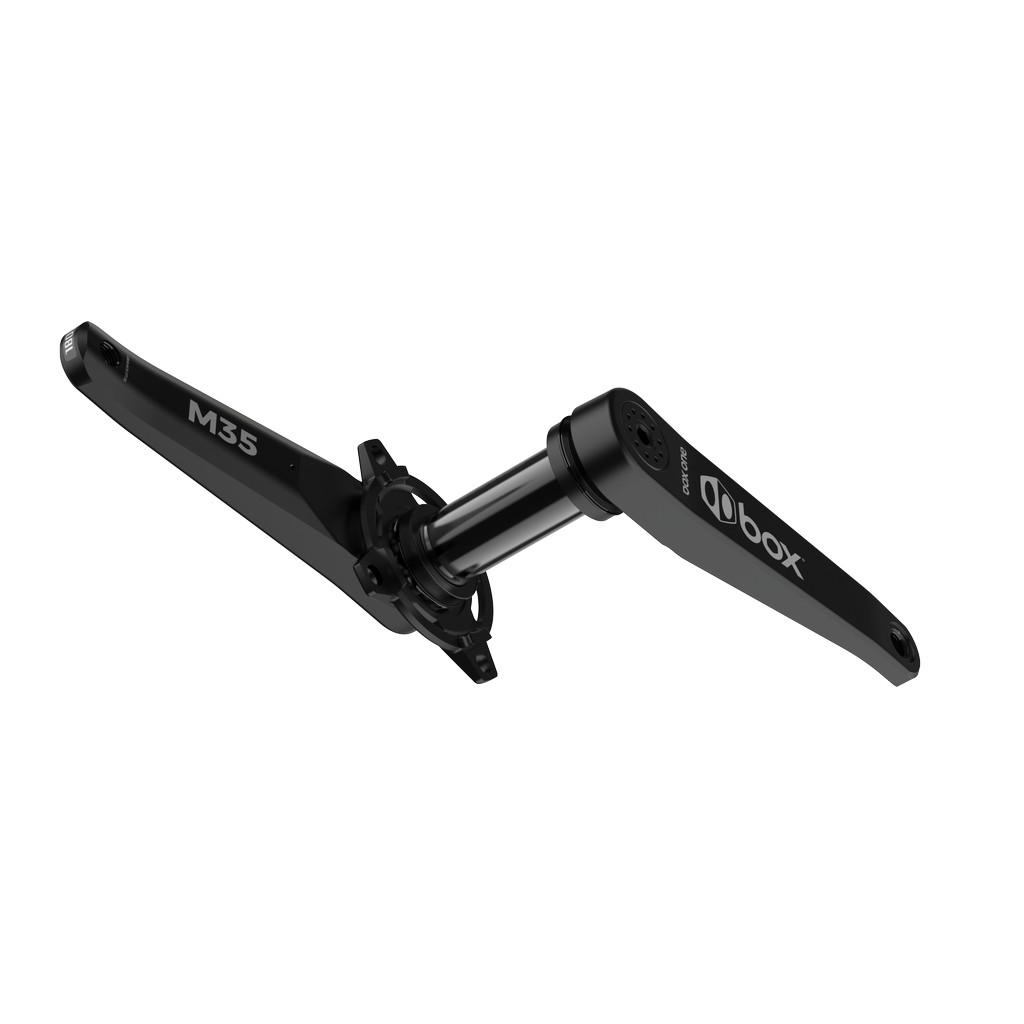

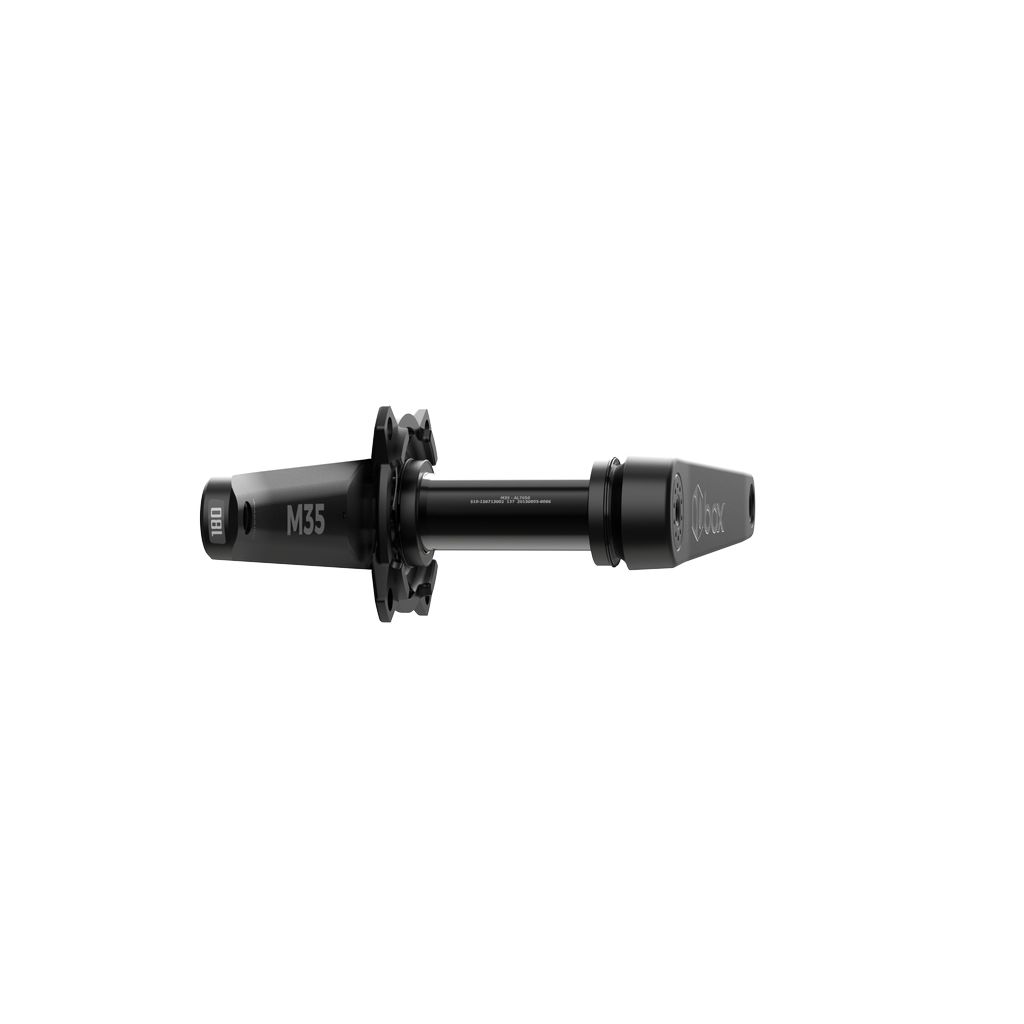

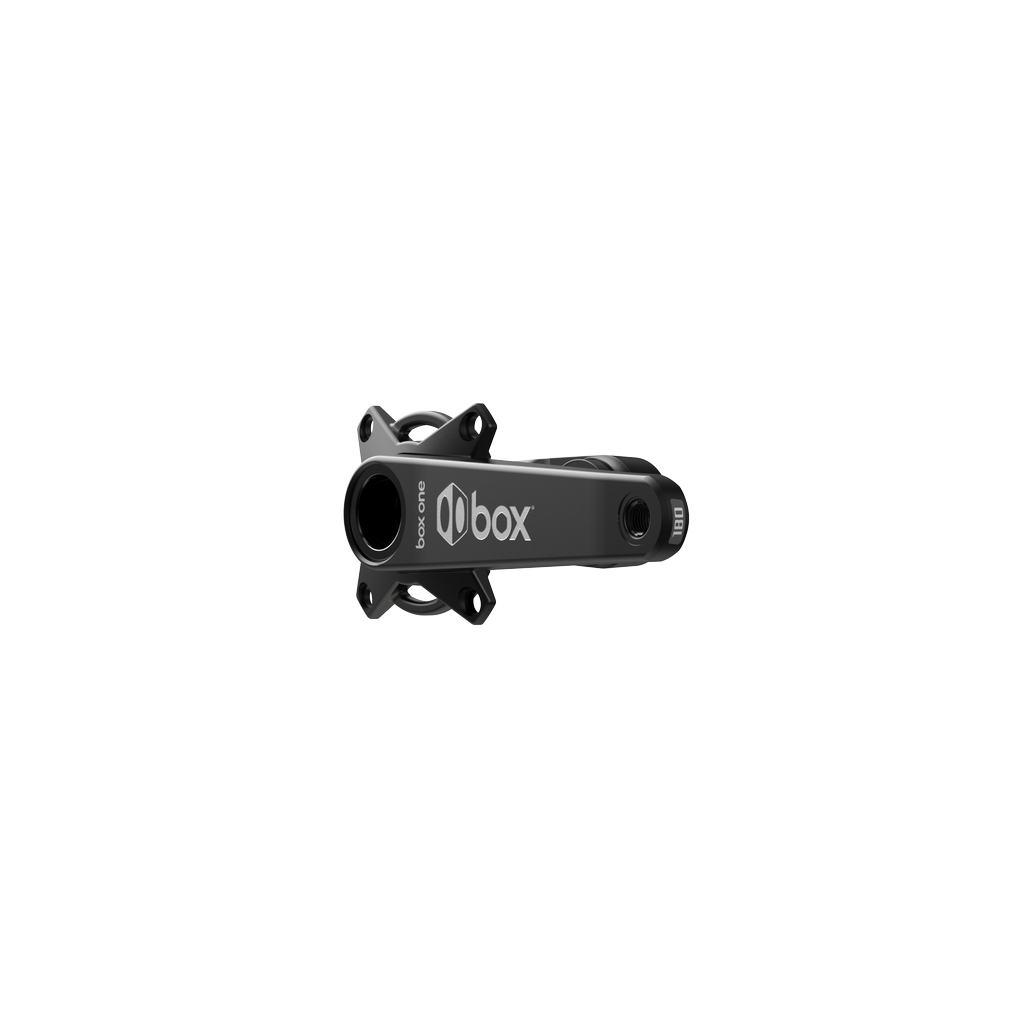

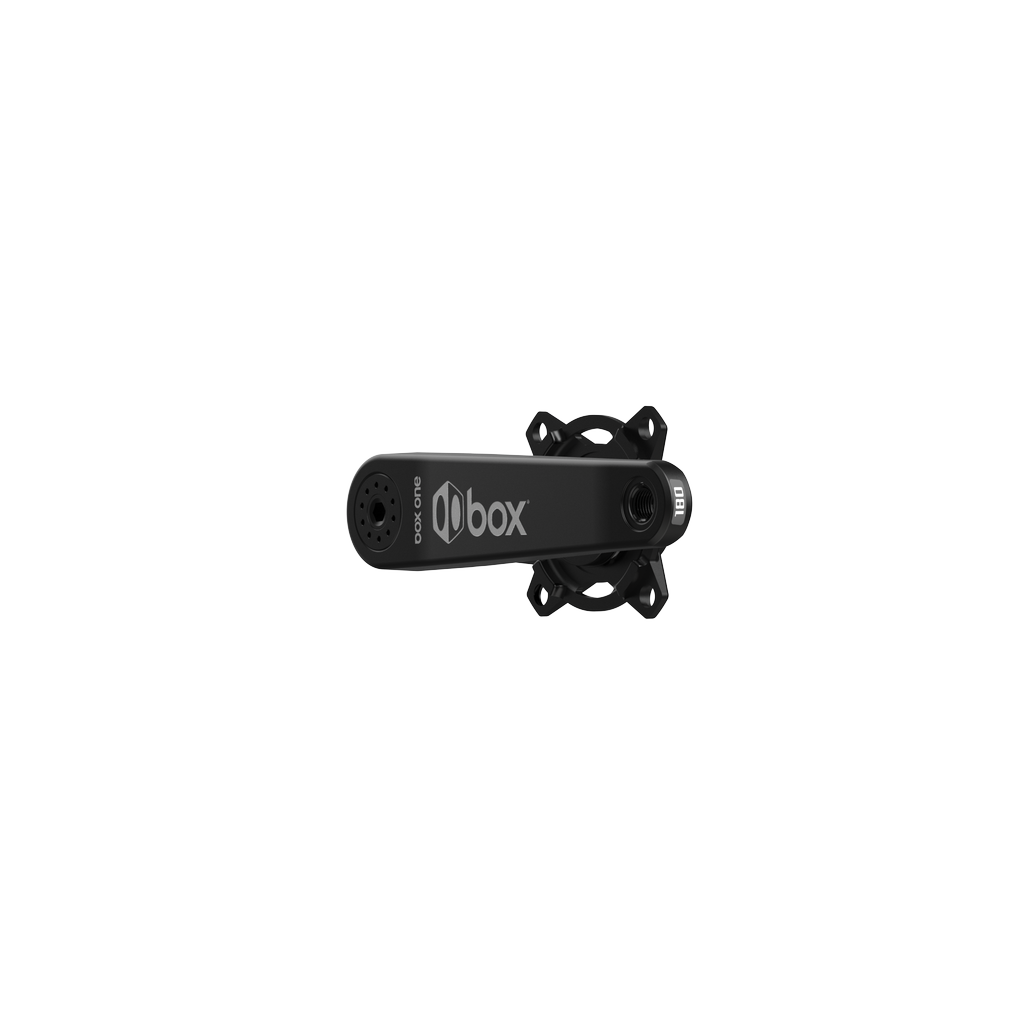

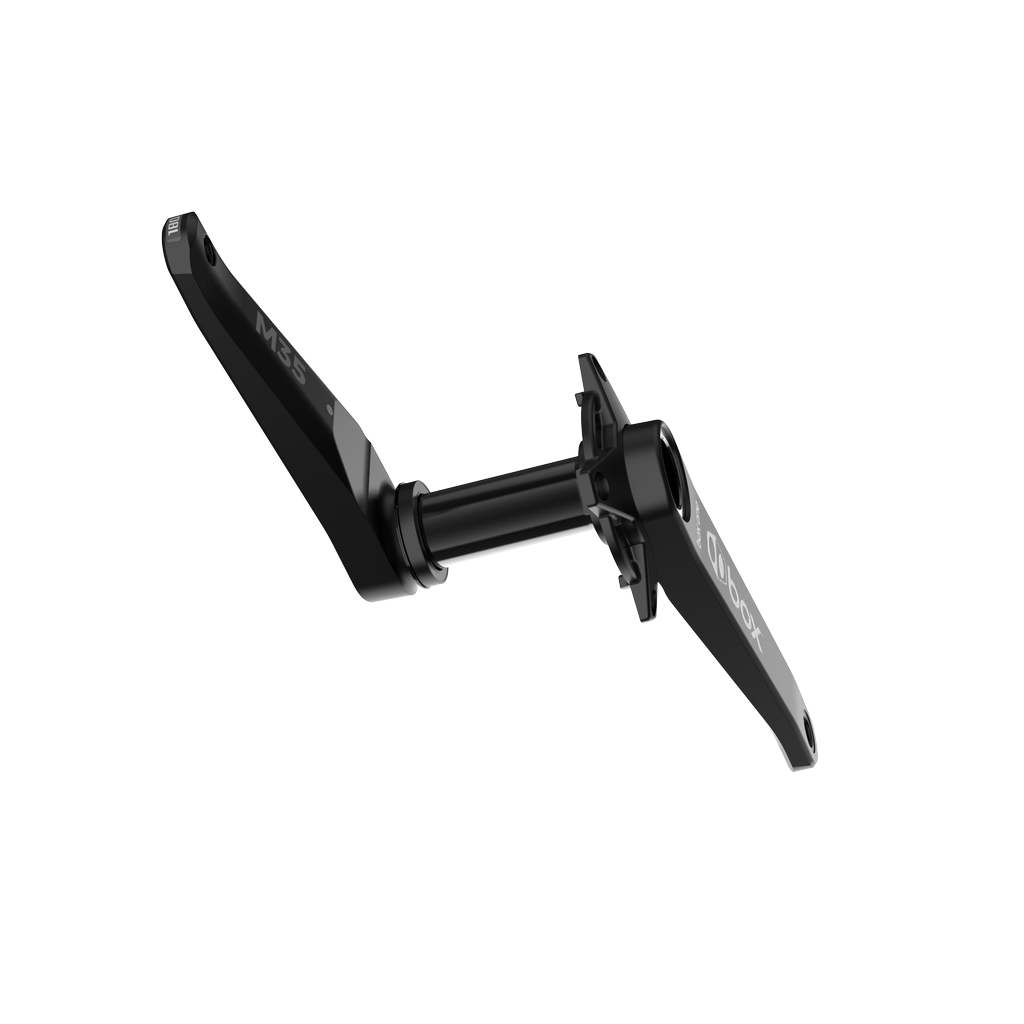

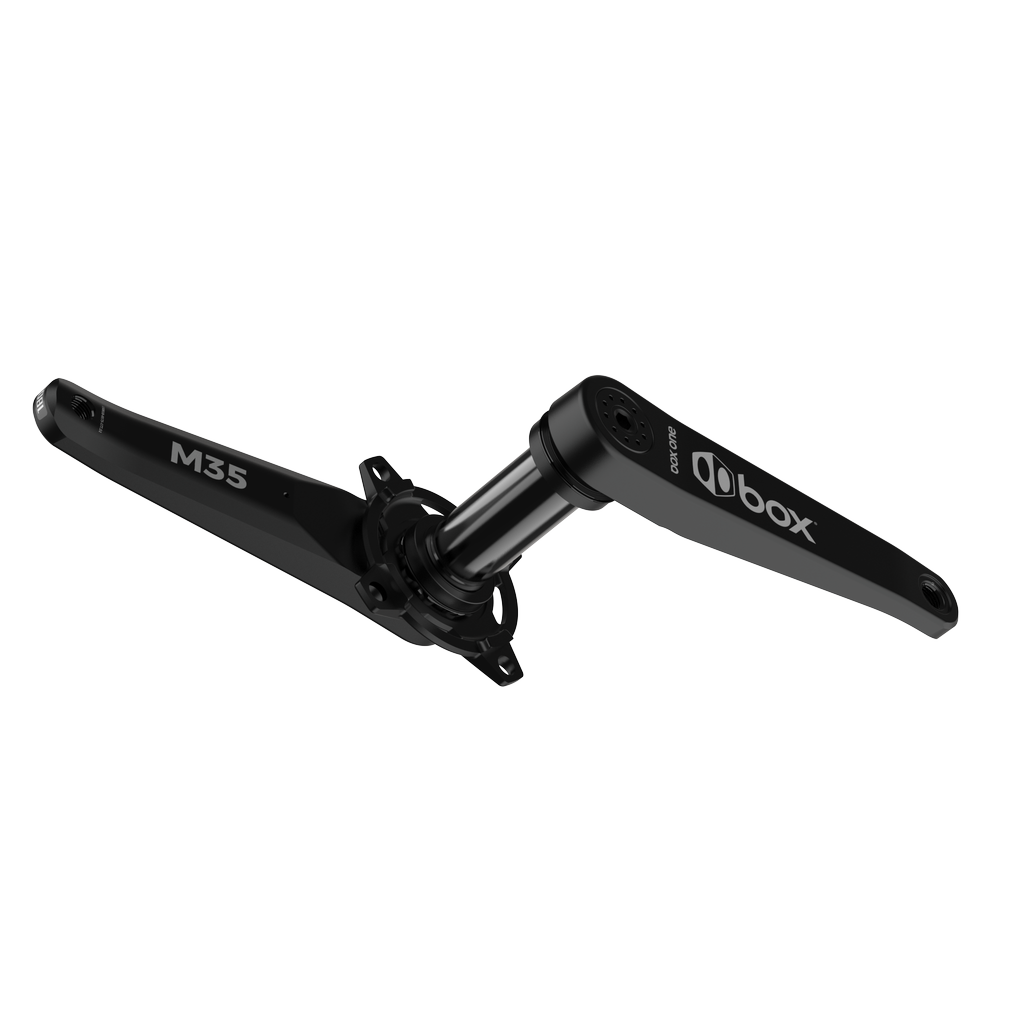

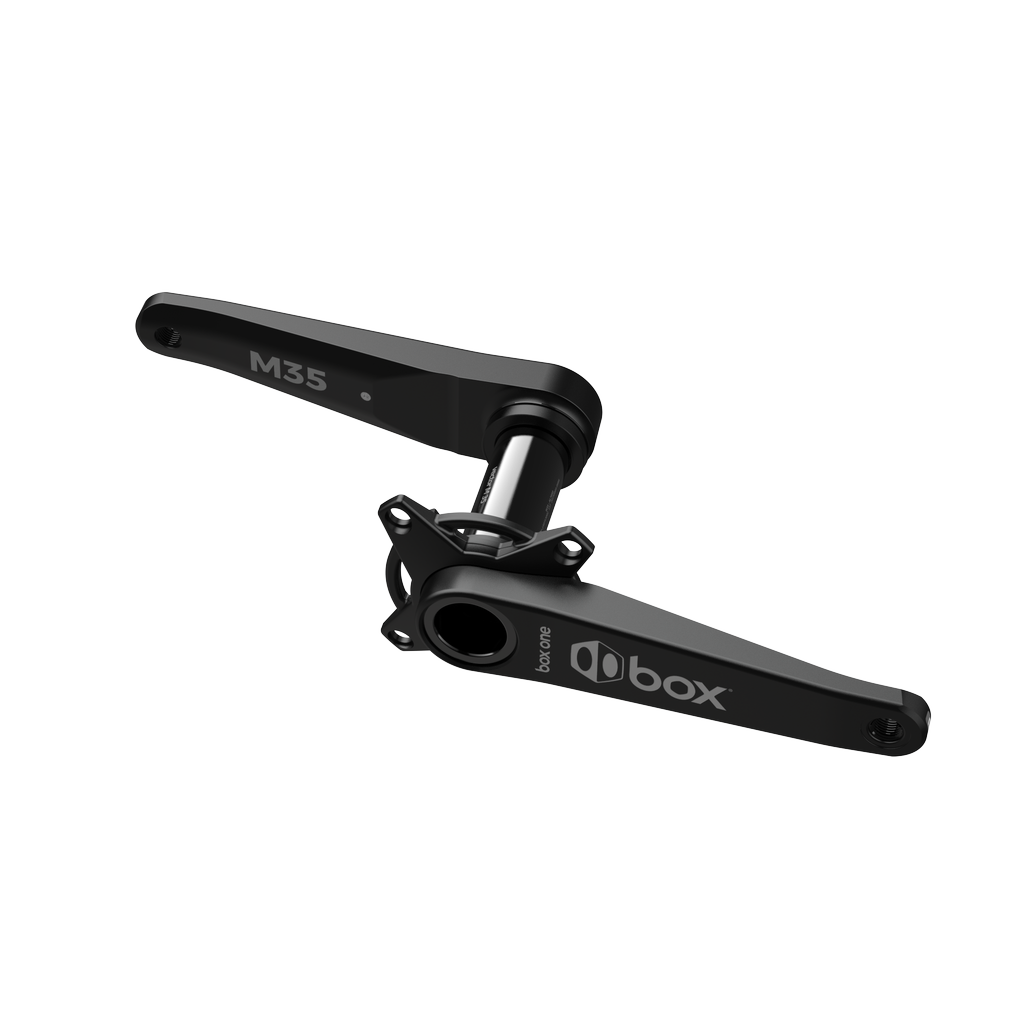

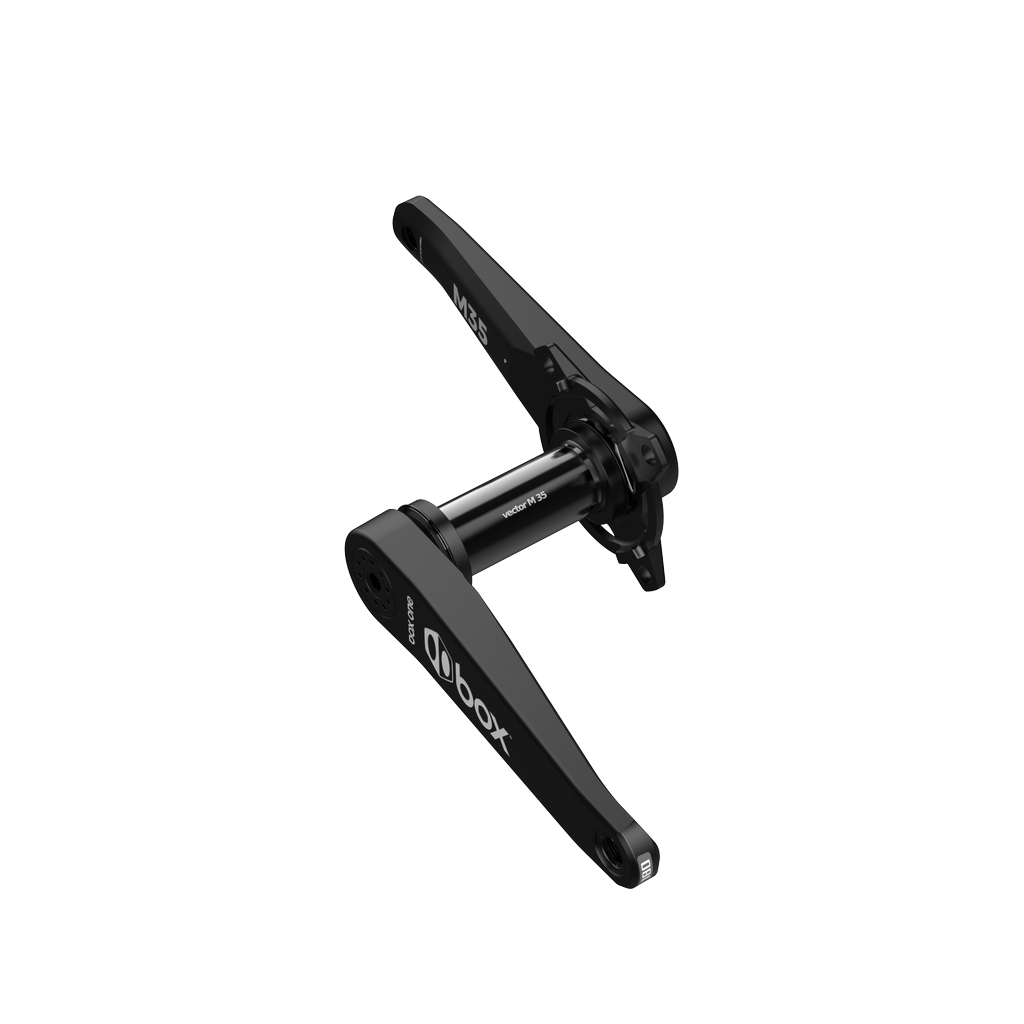

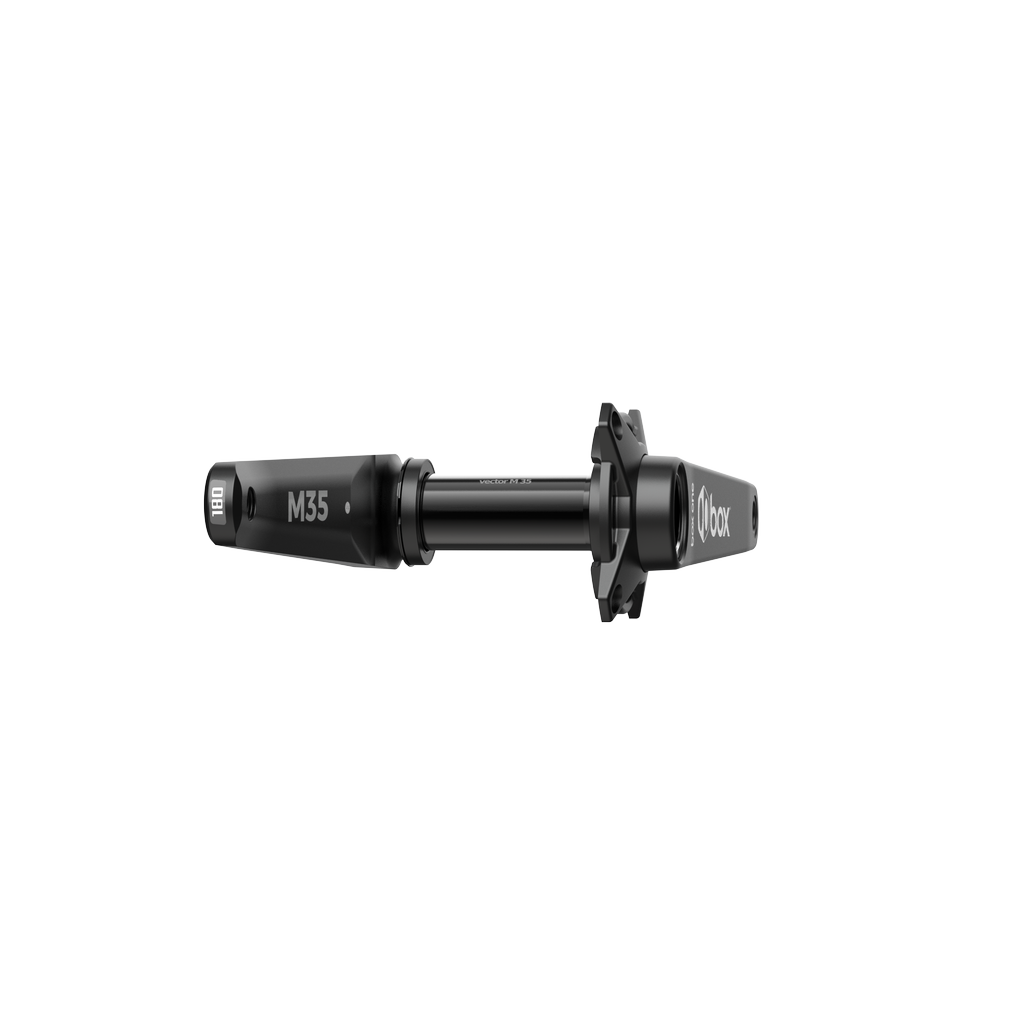

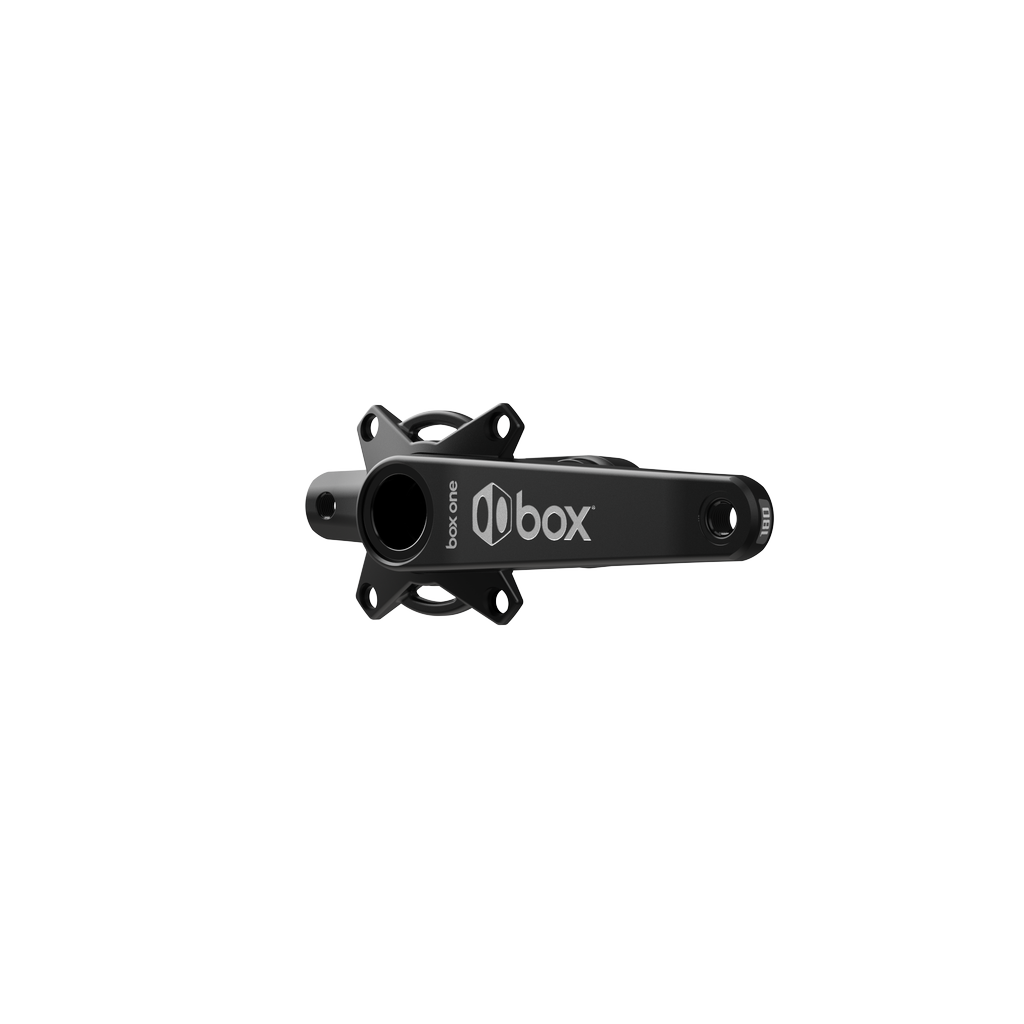

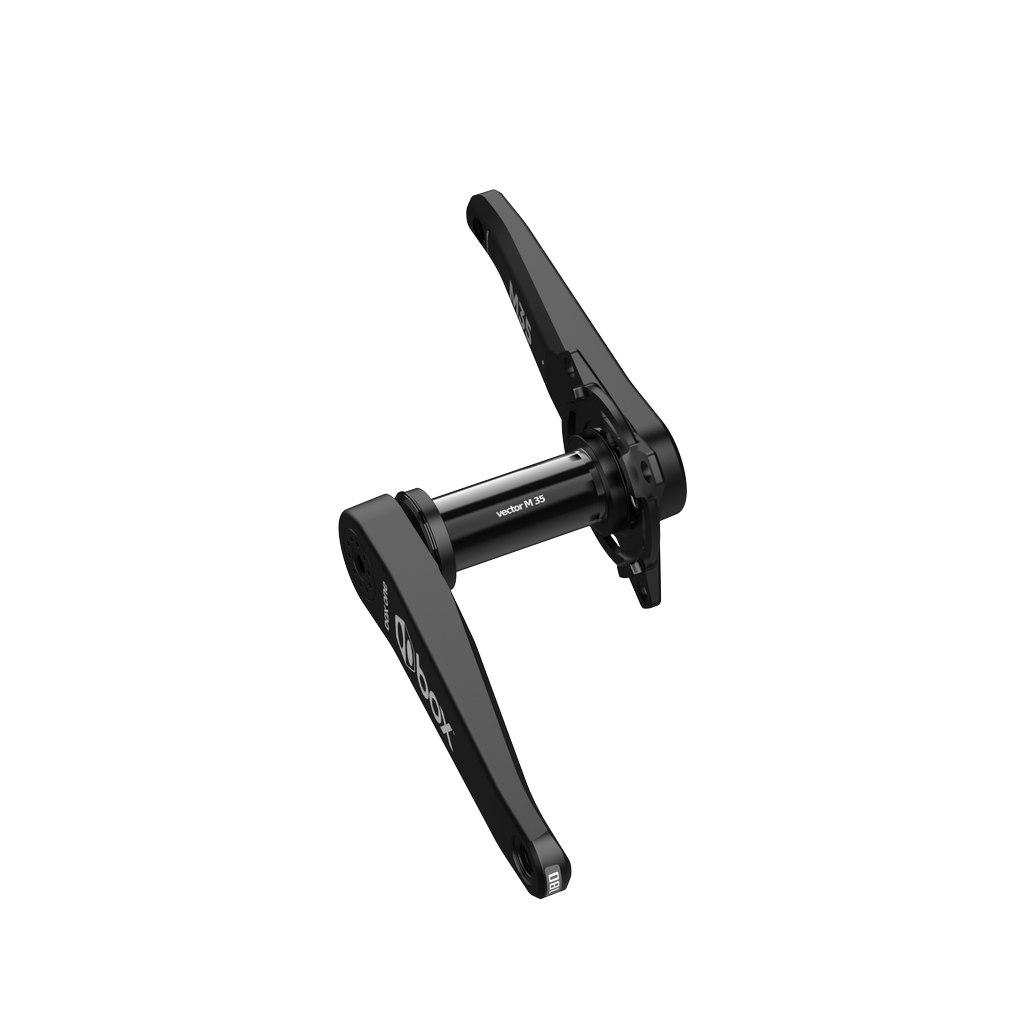

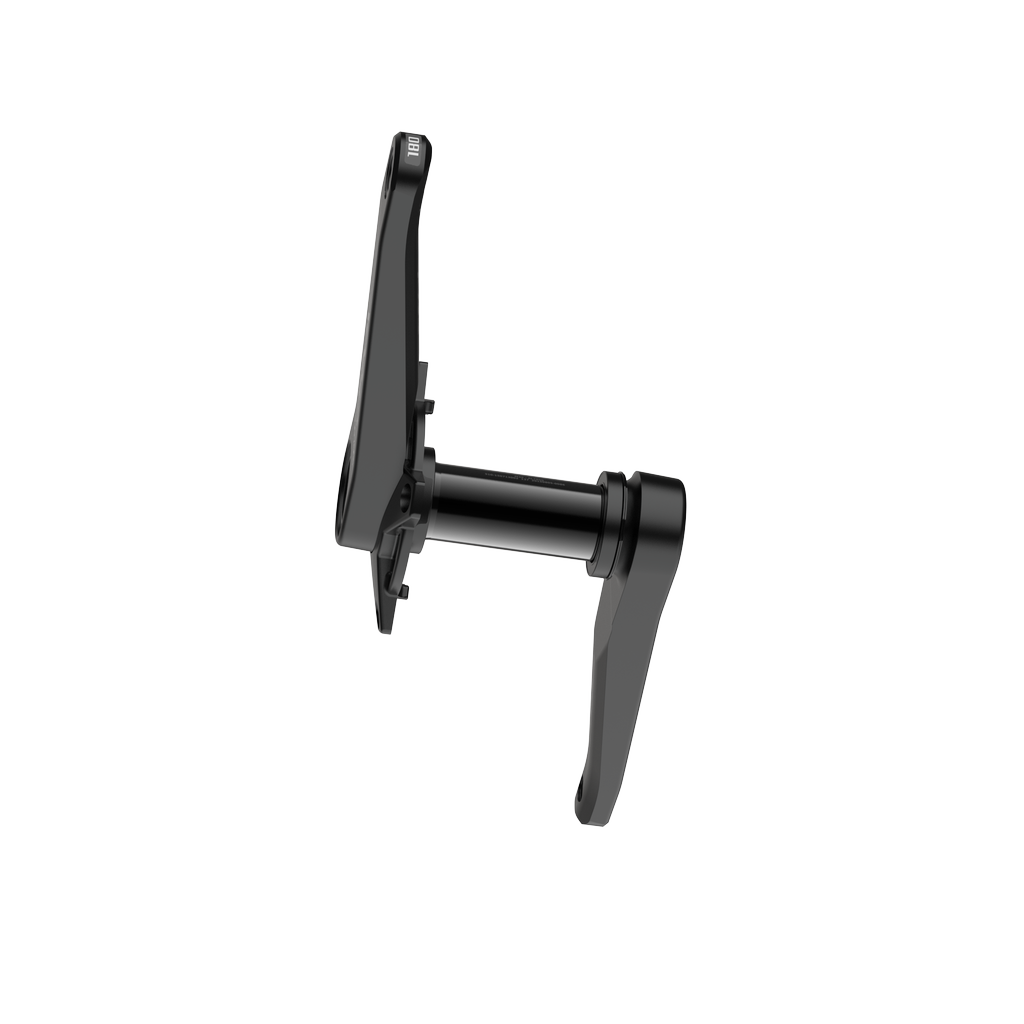

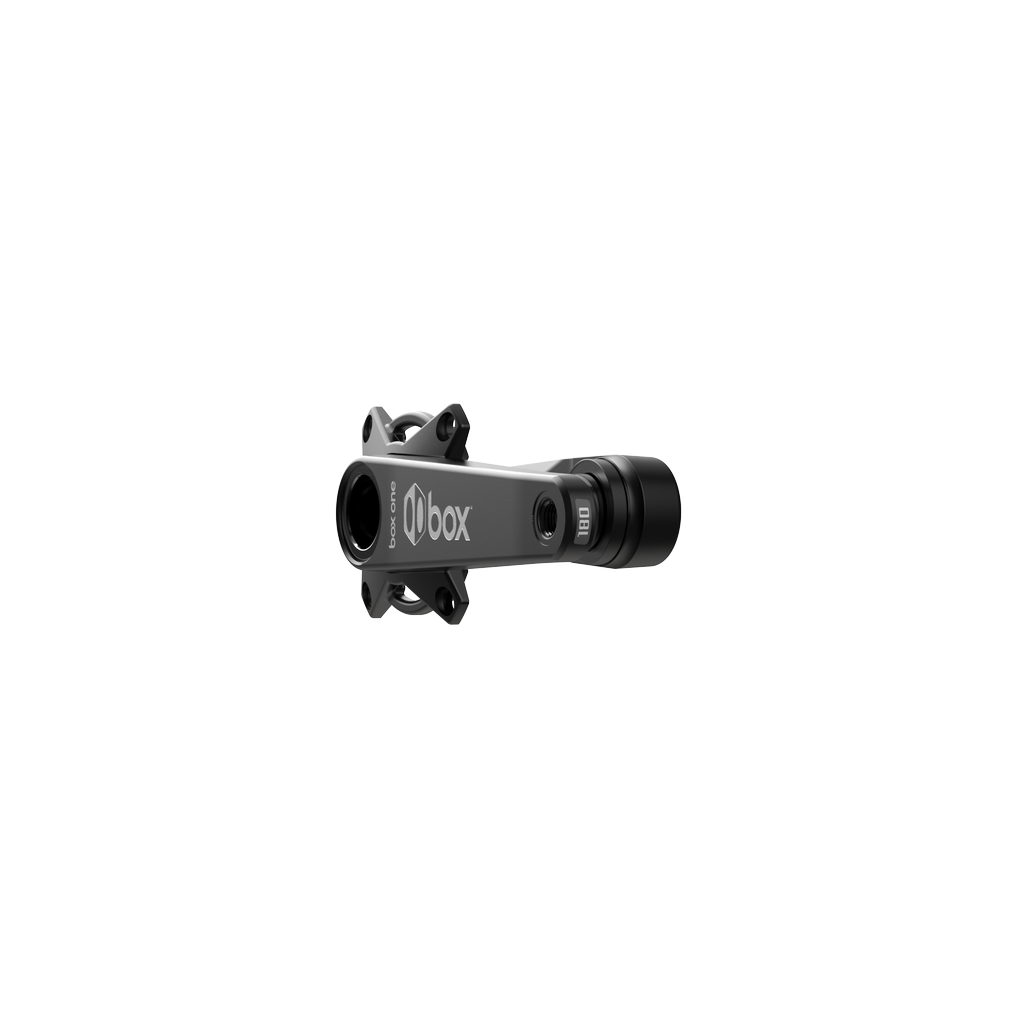

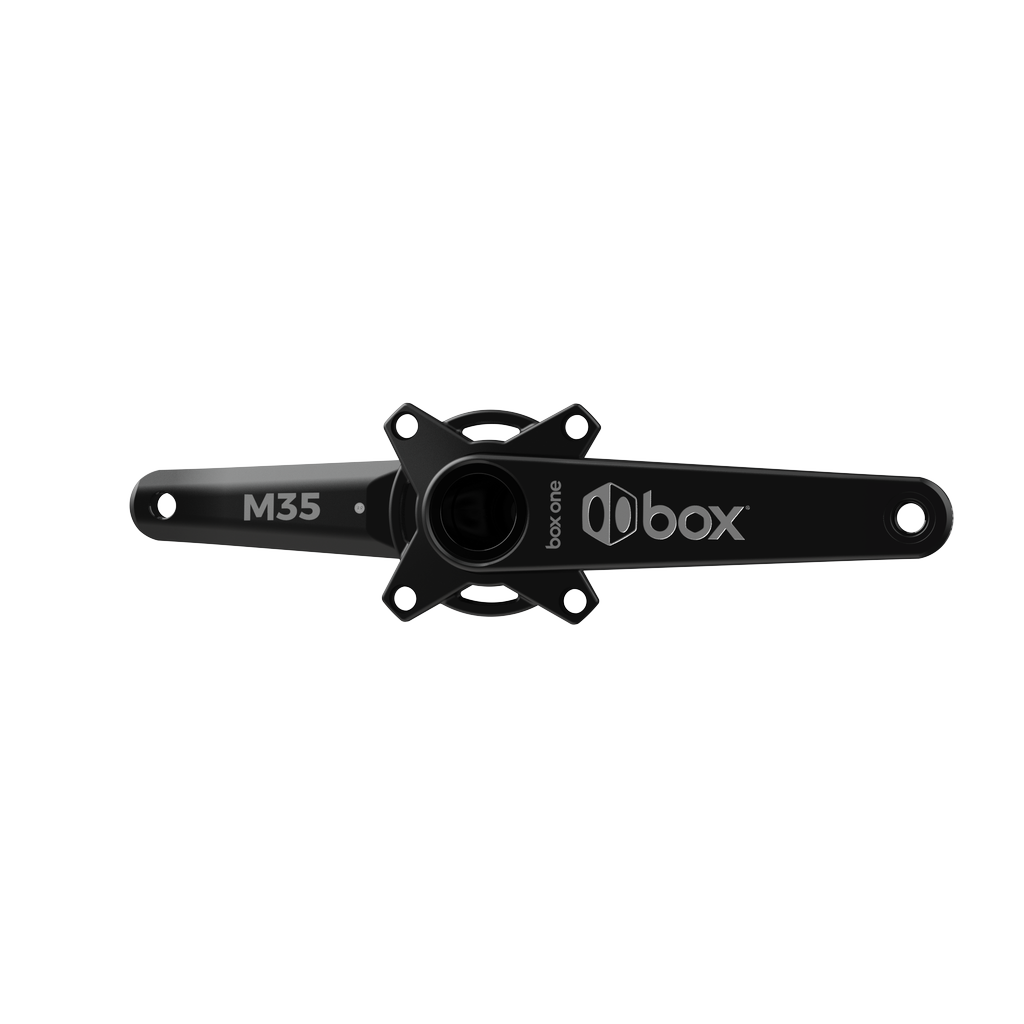

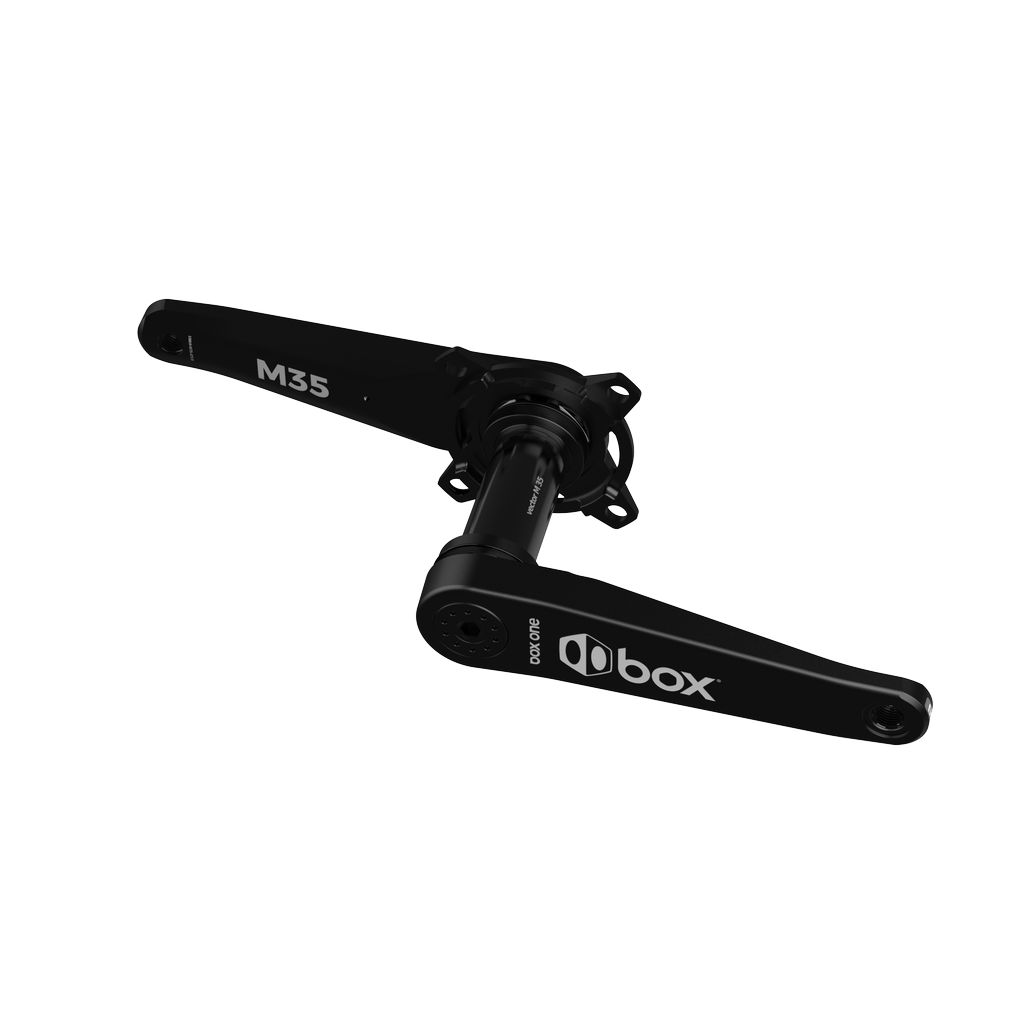

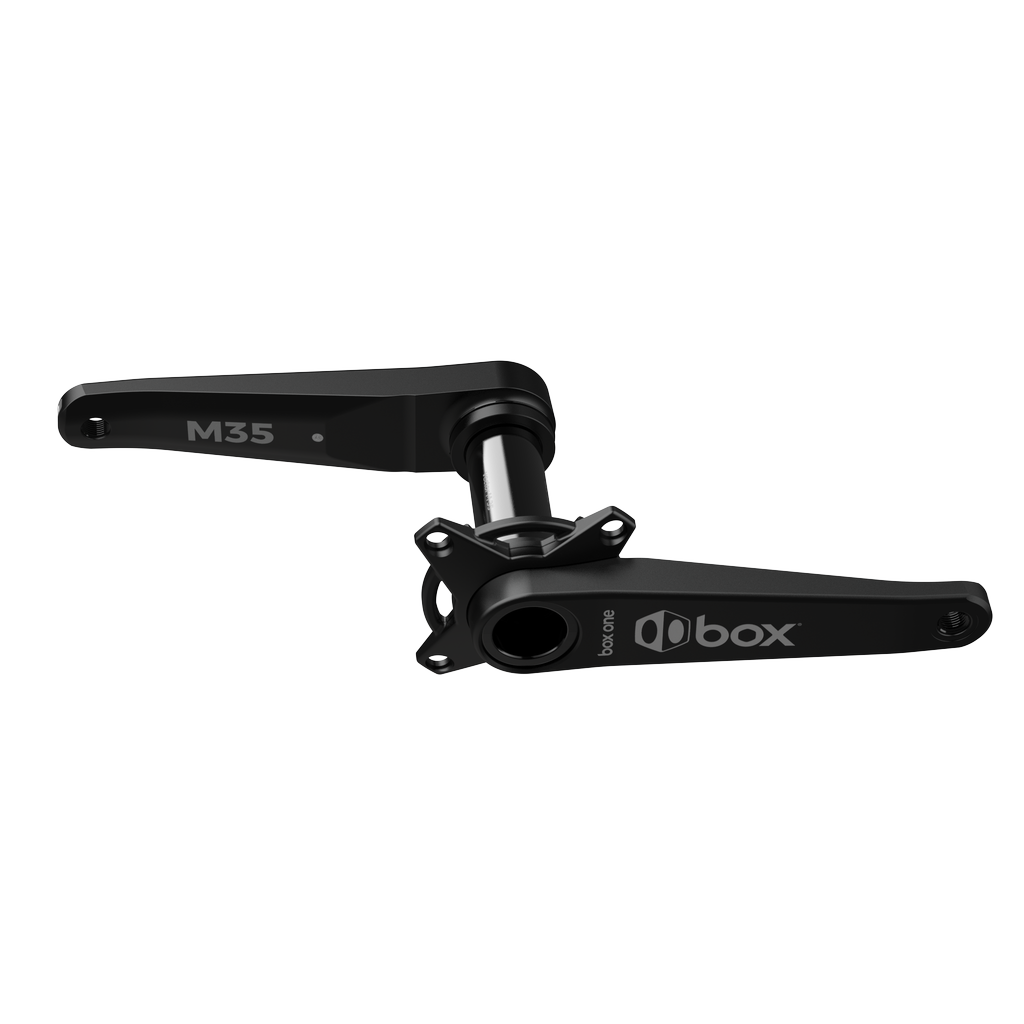

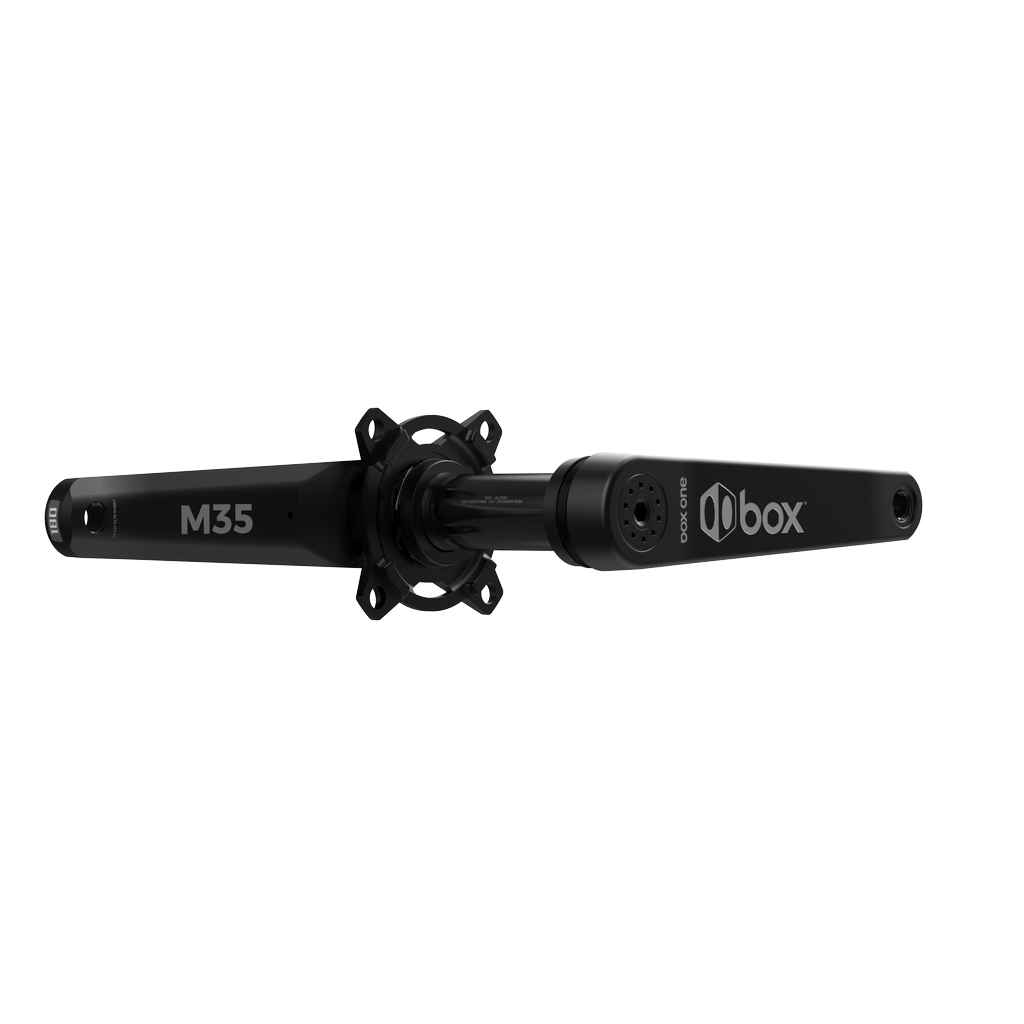

Box One Oversized M35 Crankset

$424.99 Save
Size 172.5mm
Color Black

Item is in stock Only 0 left in stock Item is out of stock Item is unavailable

Adding to Cart Added to Cart

All Box One and Two cranksets are engineered and crafted using our Oversized Technology. we all know that there is no use pushing hard on your pedals if you can’t deliver most of that power to the rear wheel. During the creation of our cranks, we were obsessed with Power delivery AKA pedaling stiffness. To reduce lateral deflection at the bottom bracket we chose to enlarge the spindle and the crank arm’s interfaces. We robbed material from unloaded sections to reinforce these zones of high stress. Not only are you going to be more efficient with power delivery, but you’ll also feel the instant response of acceleration. Seen through another lens, less energy will be required to achieve the same elapsed time.

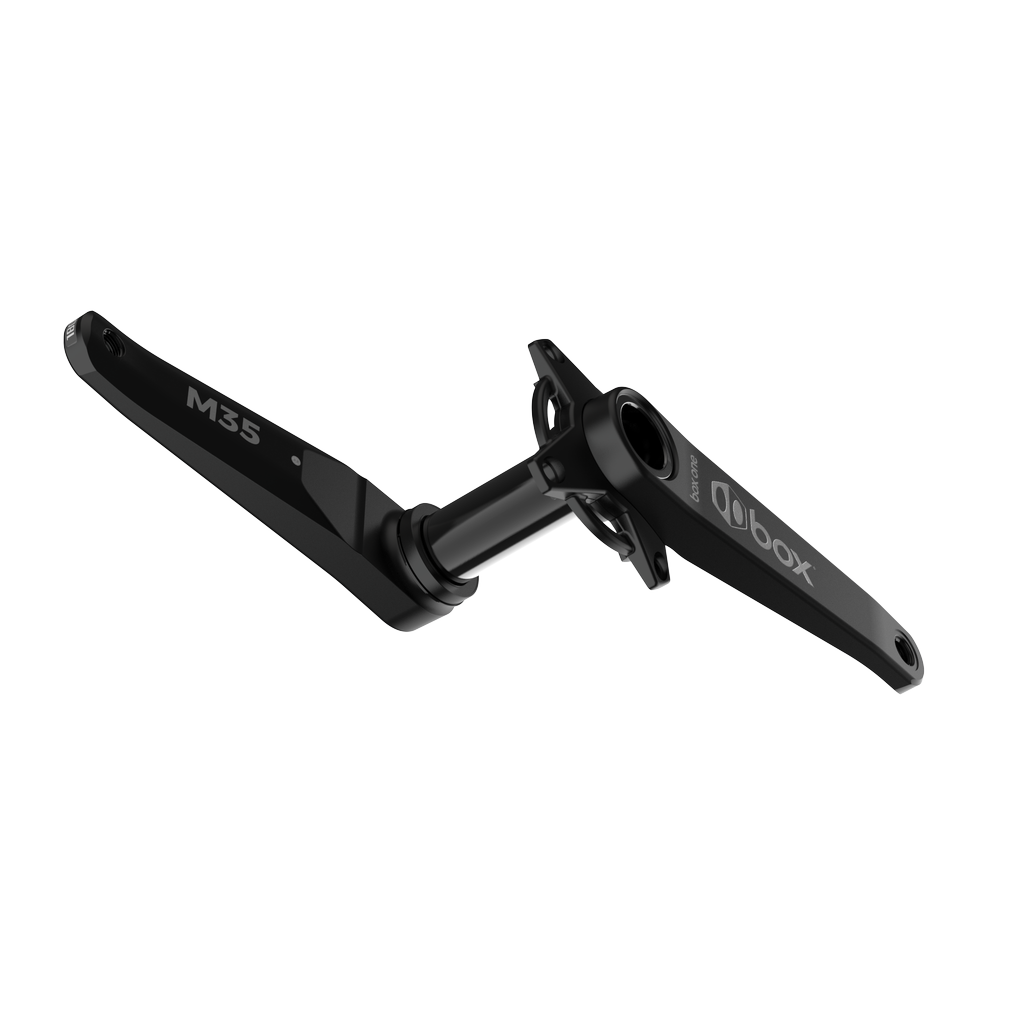

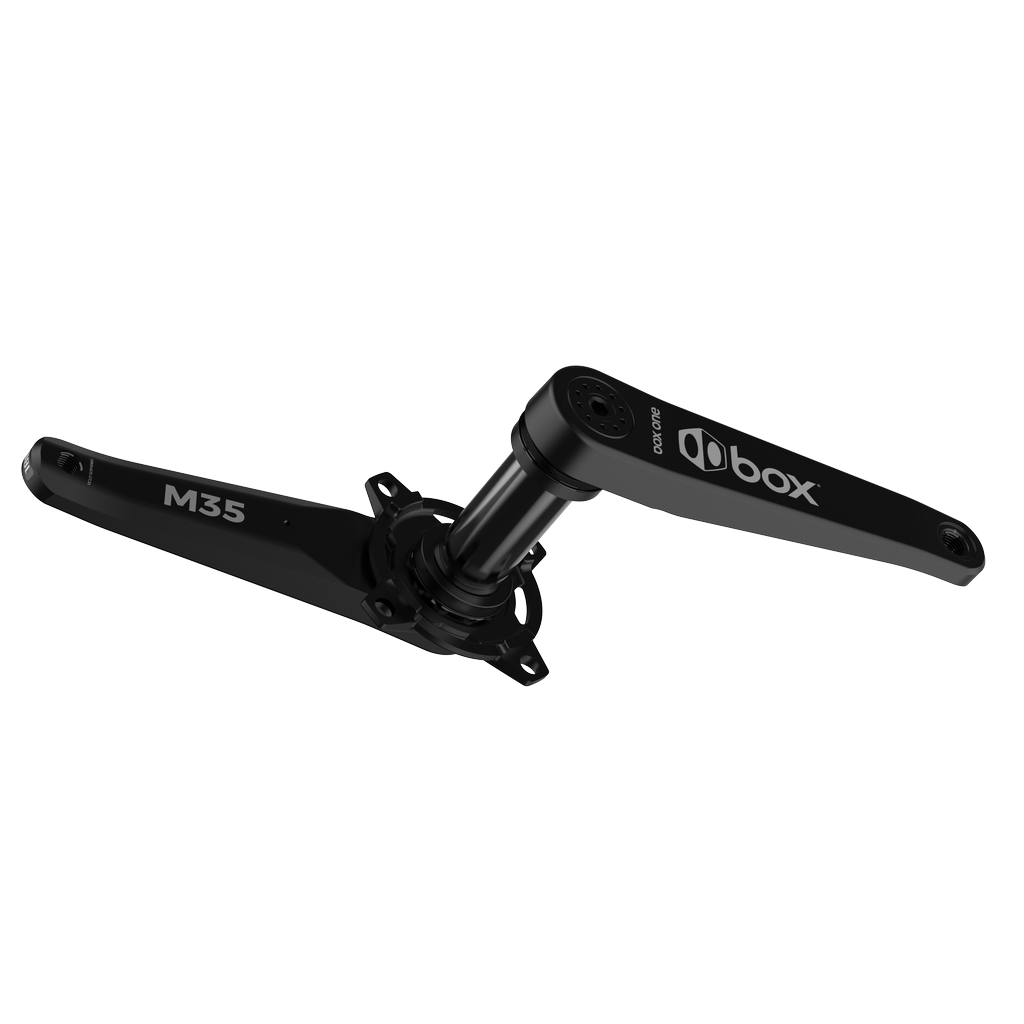

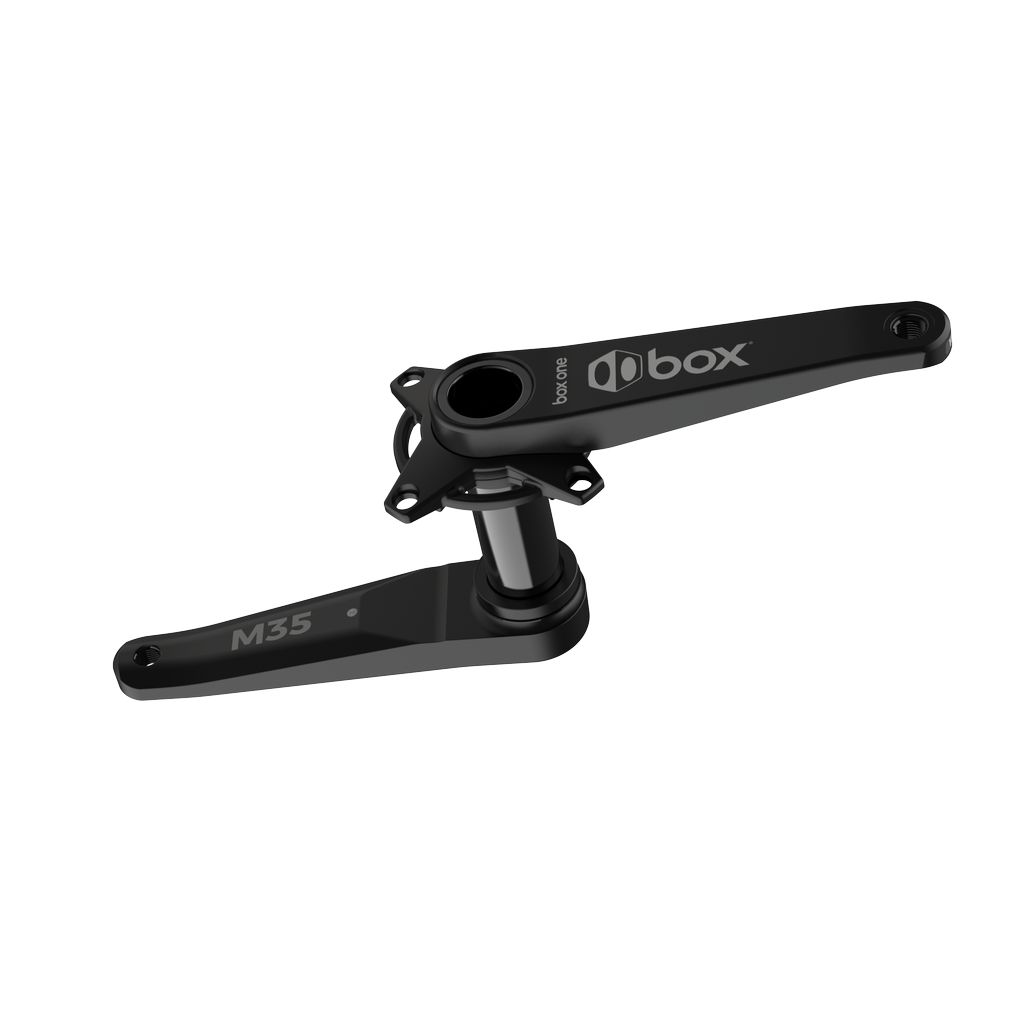

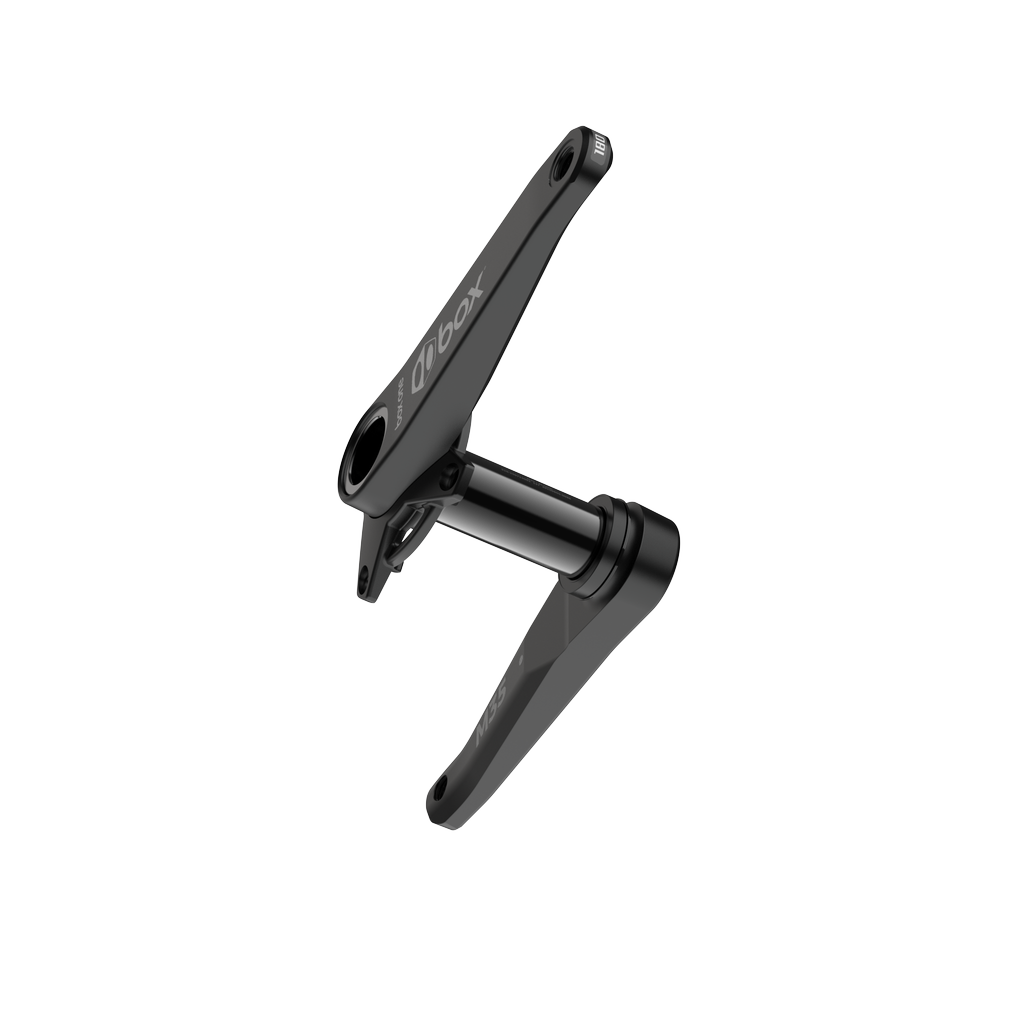

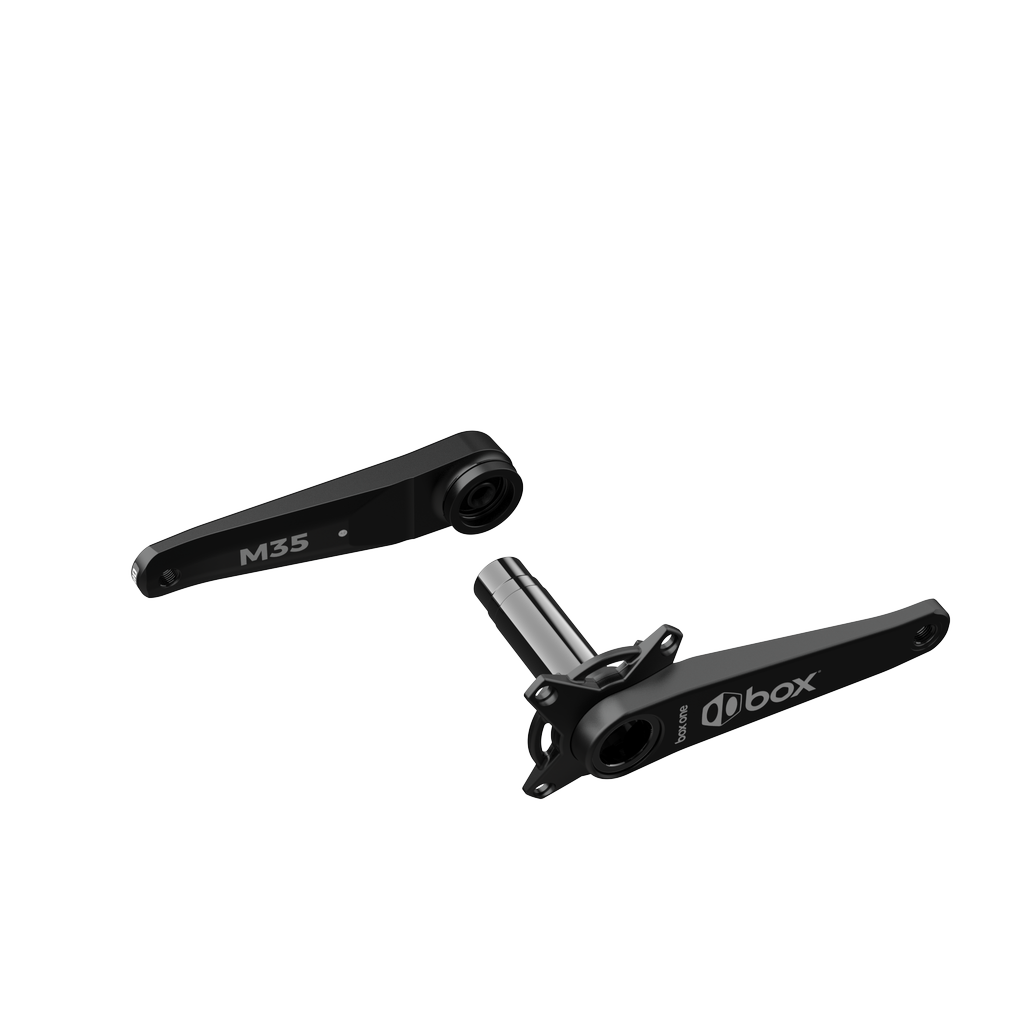

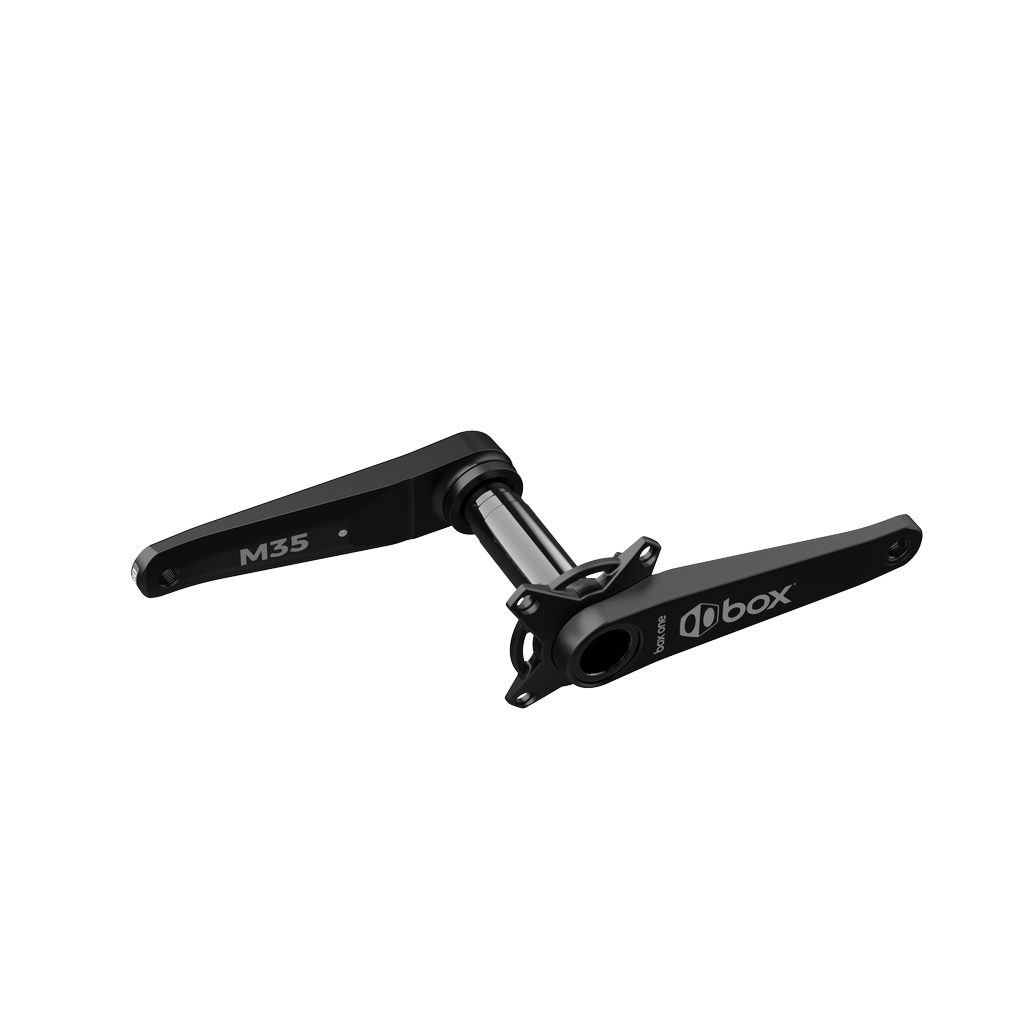

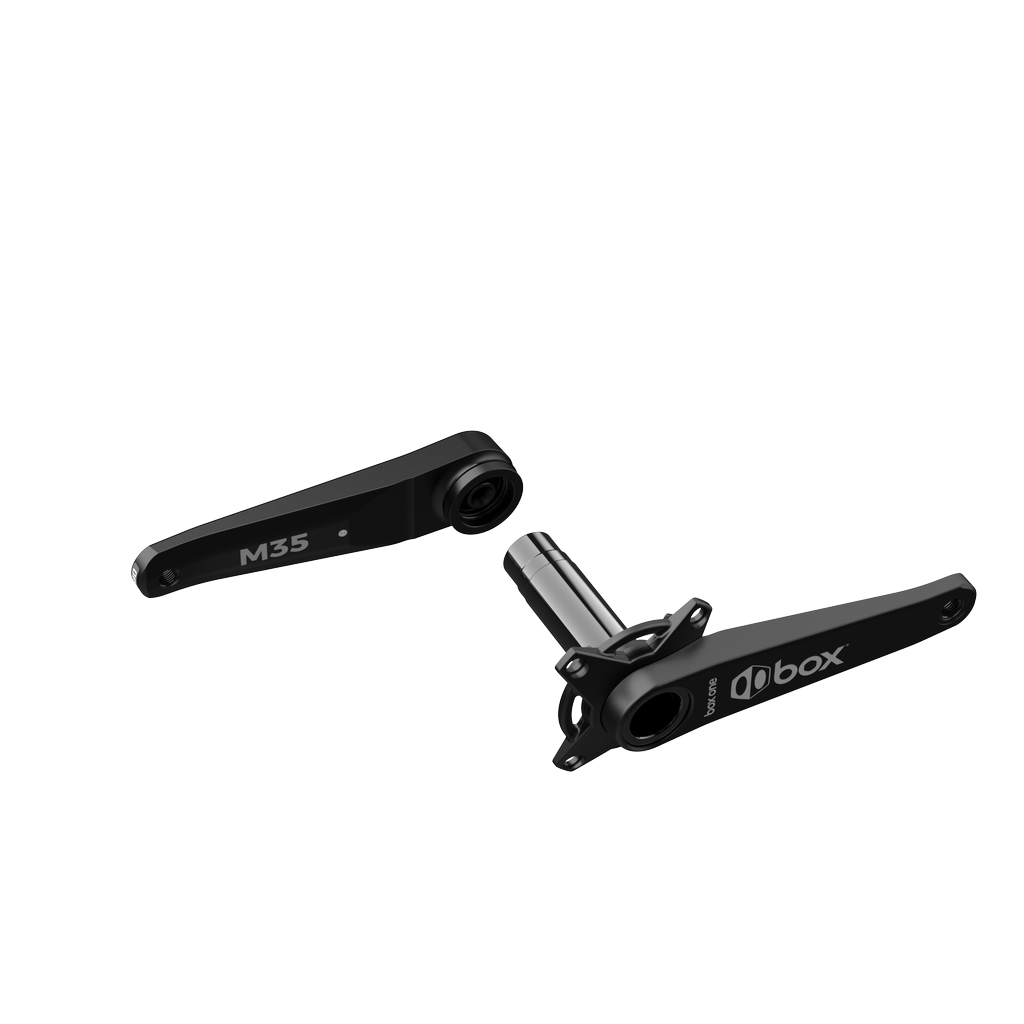

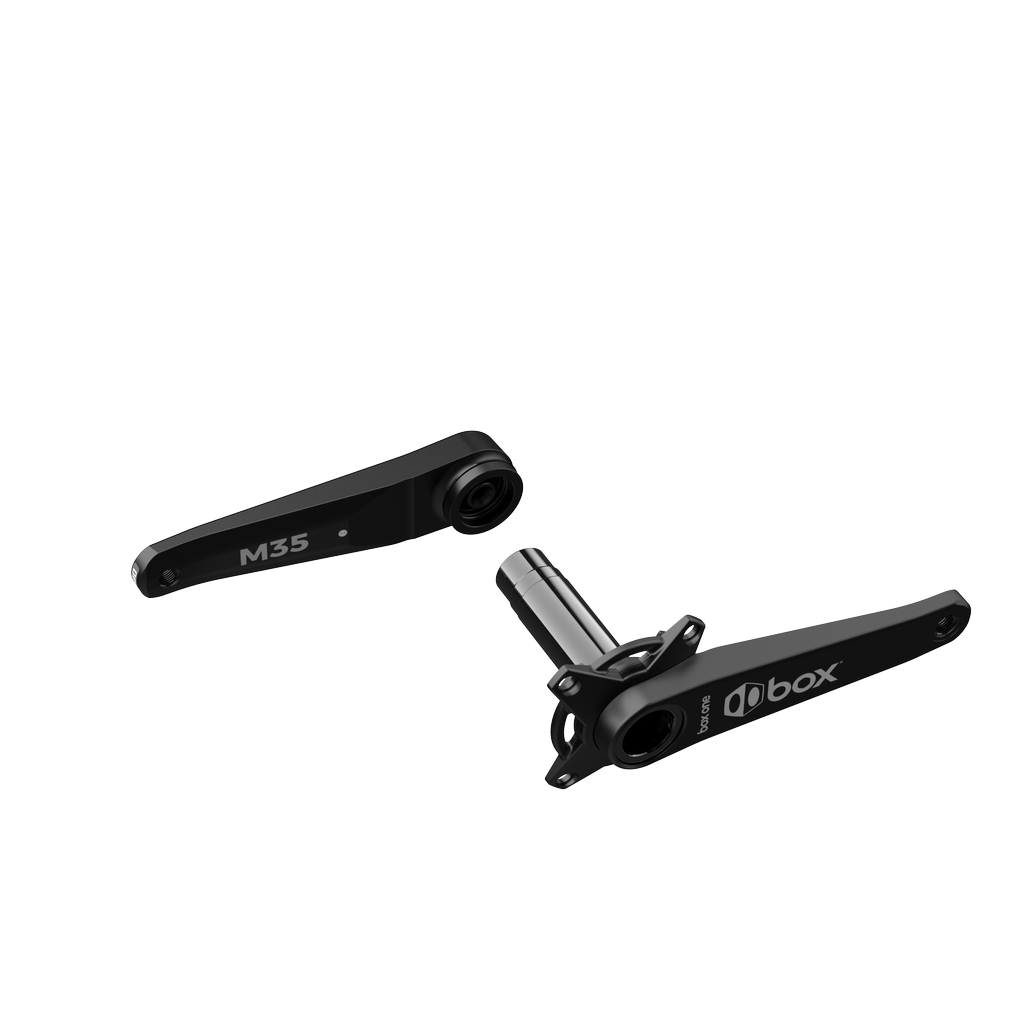

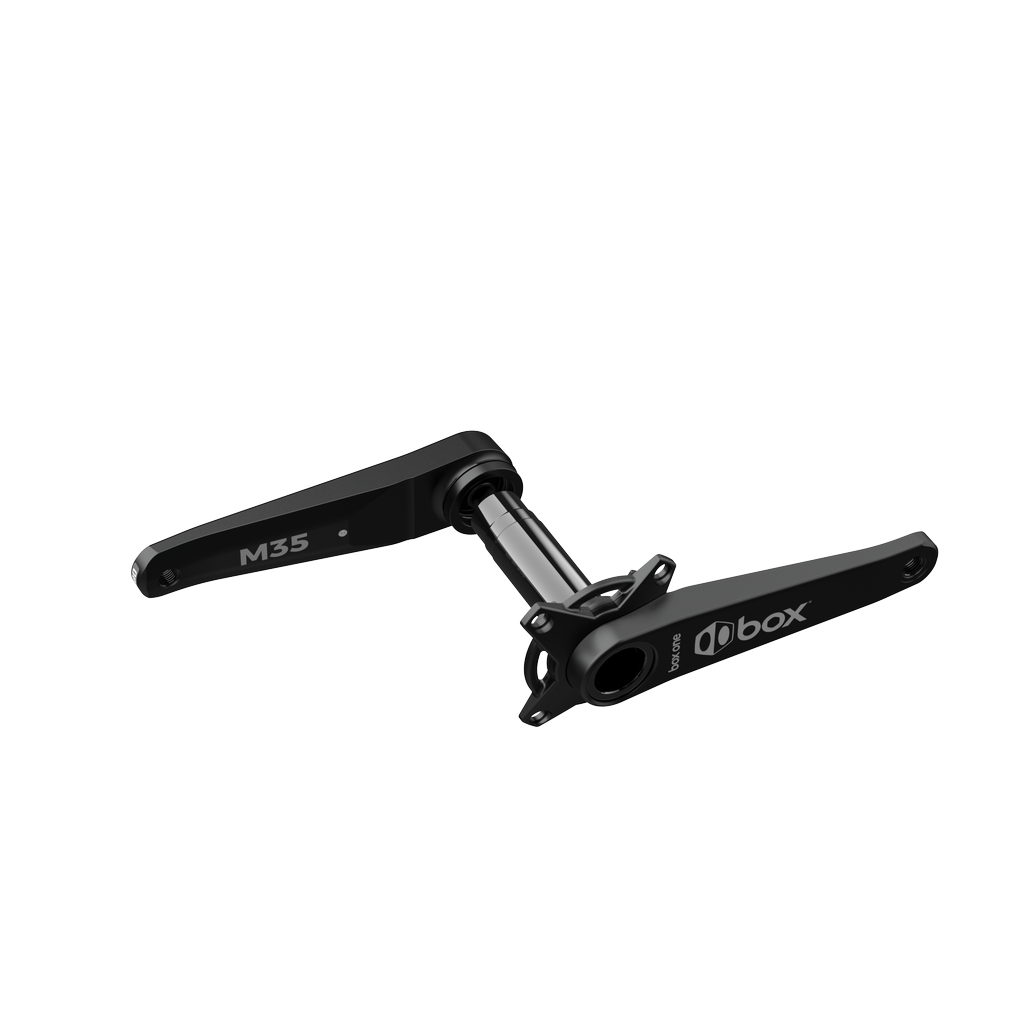

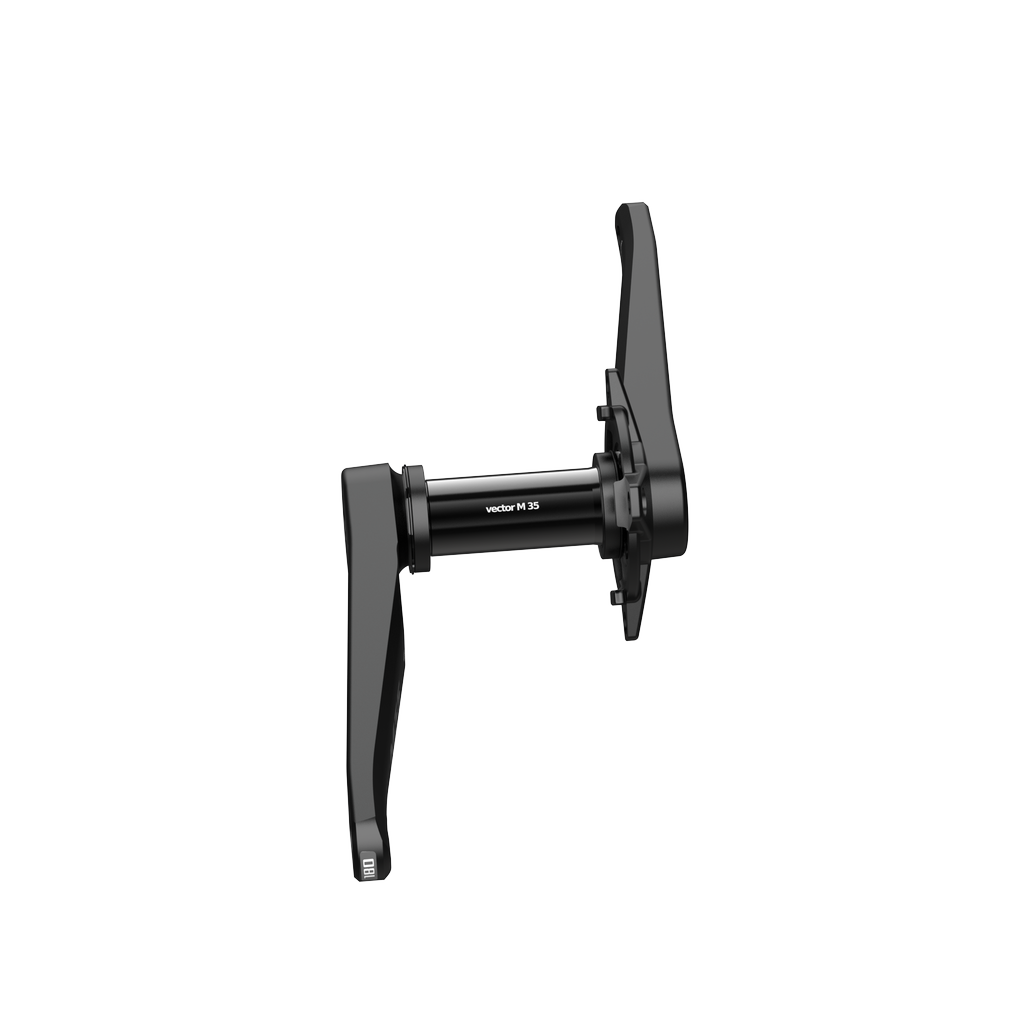

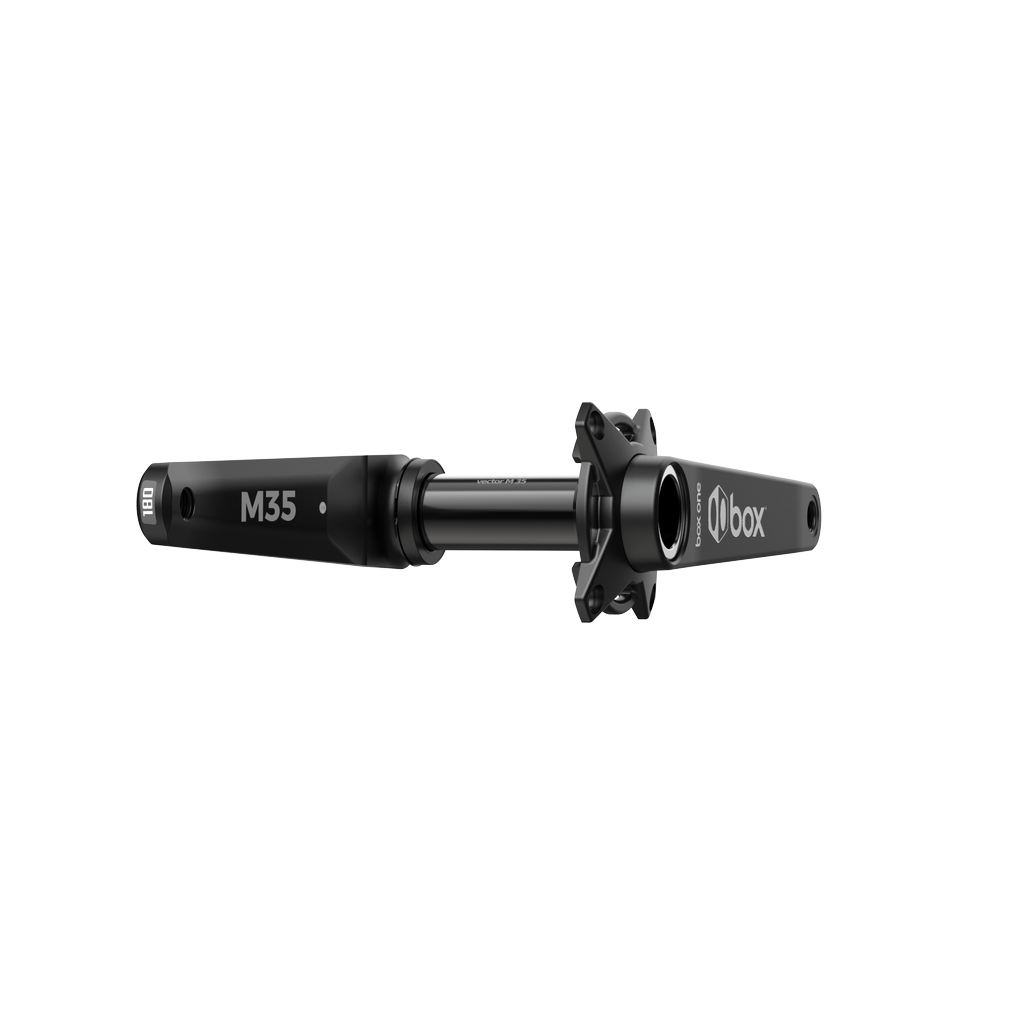

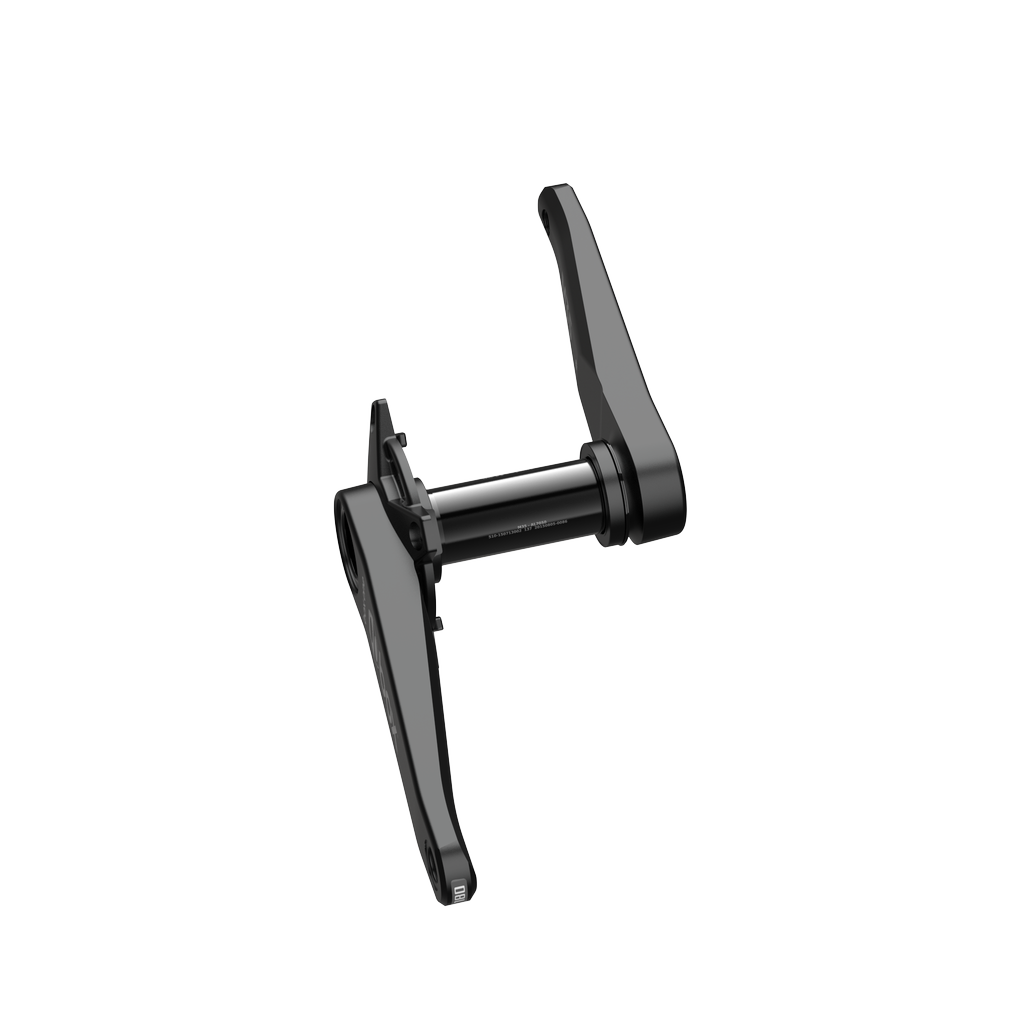

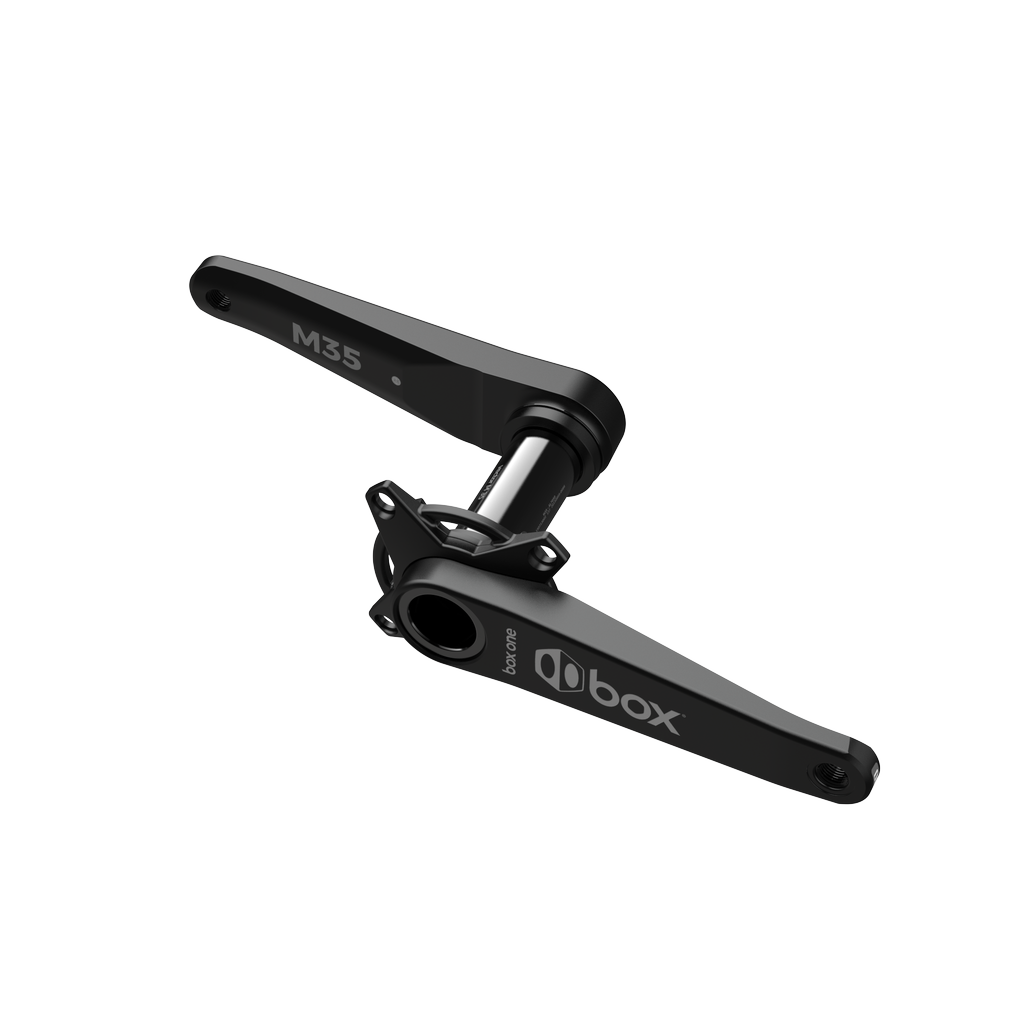

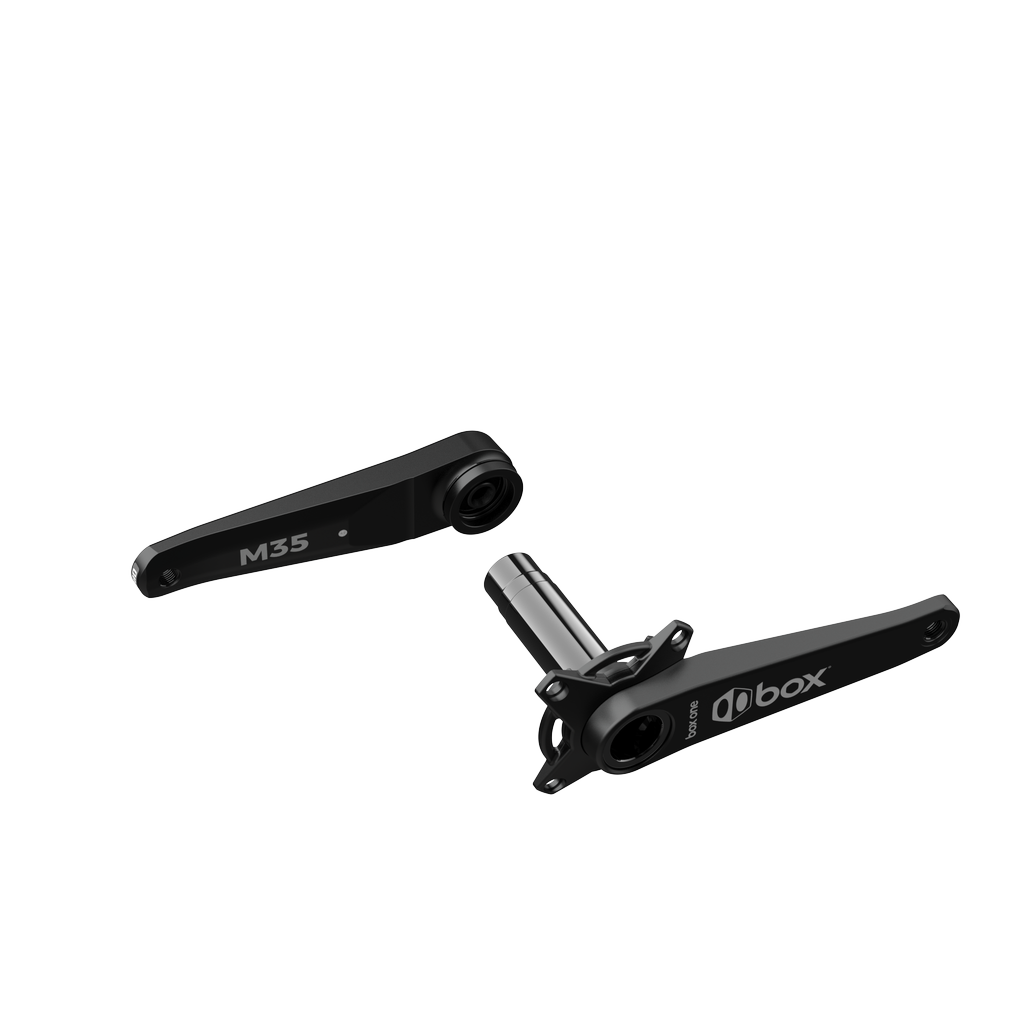

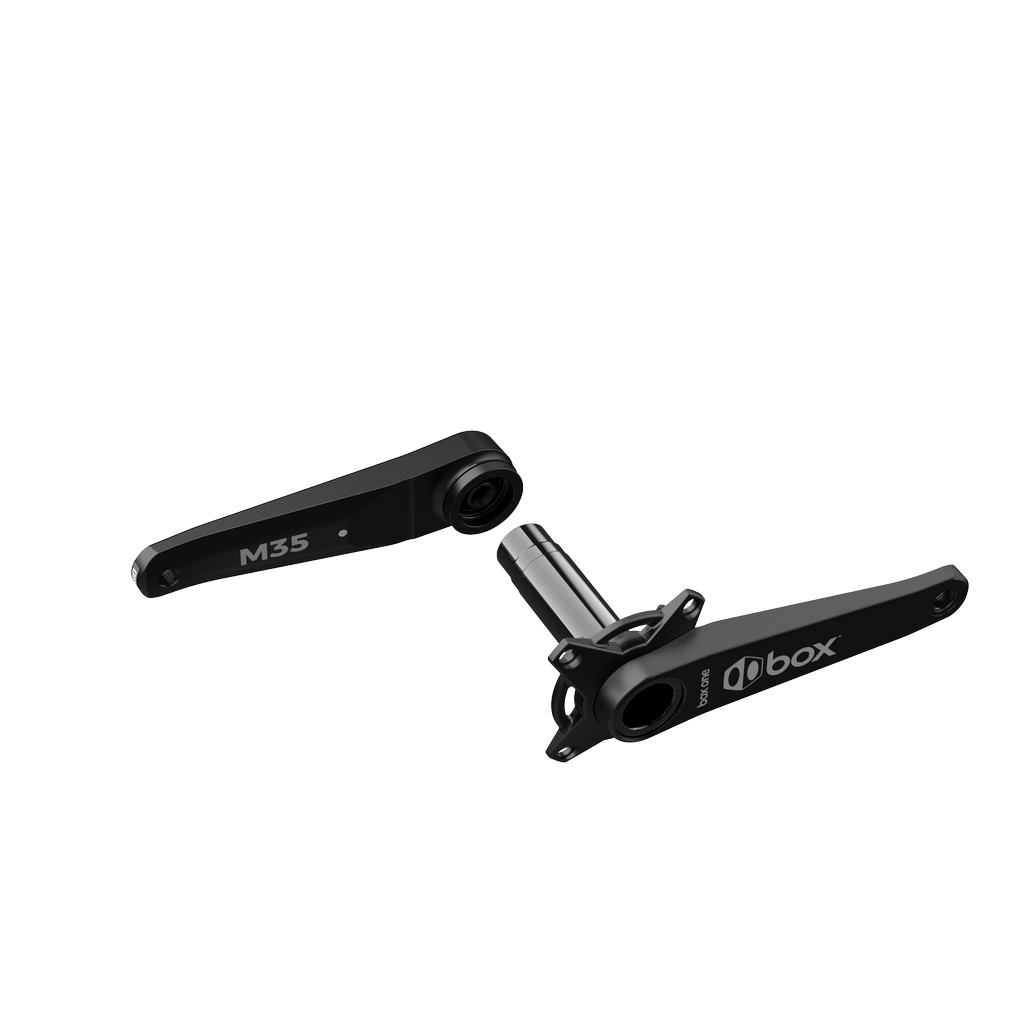

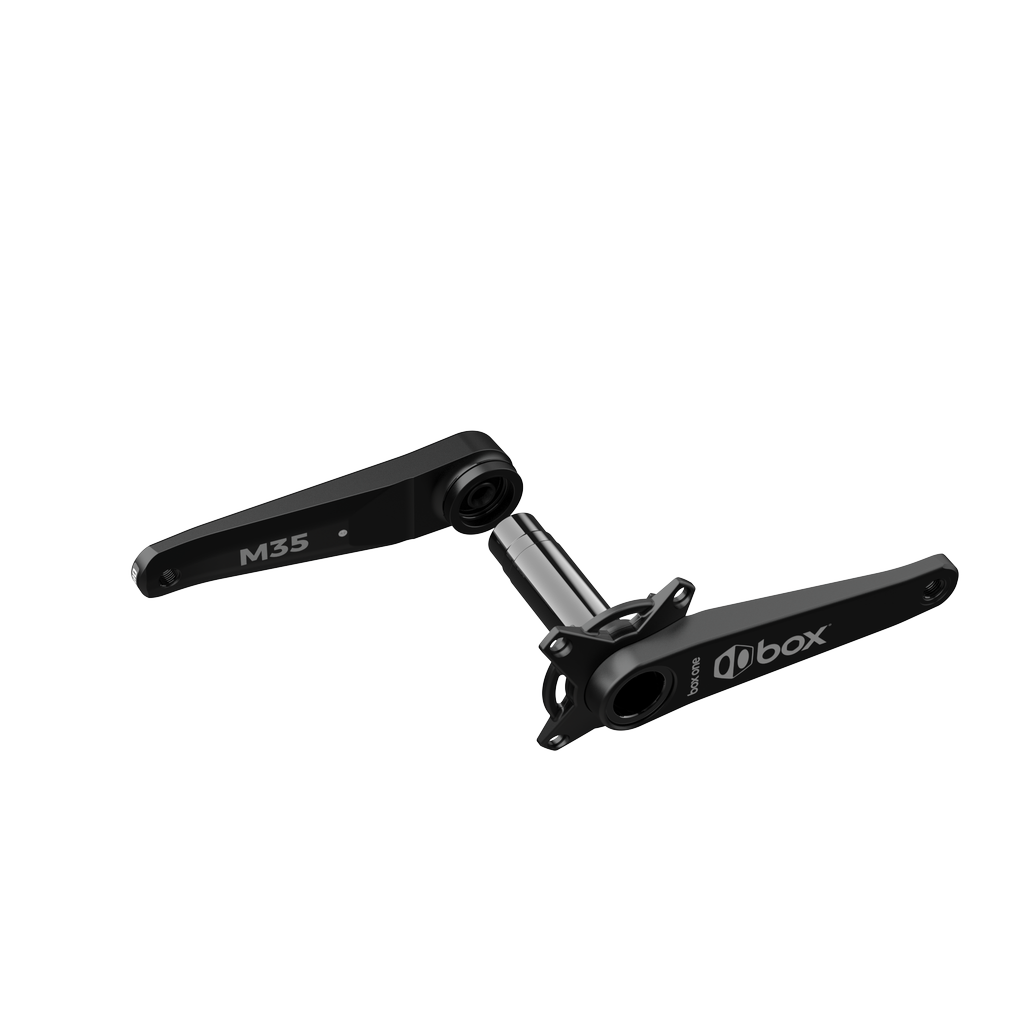

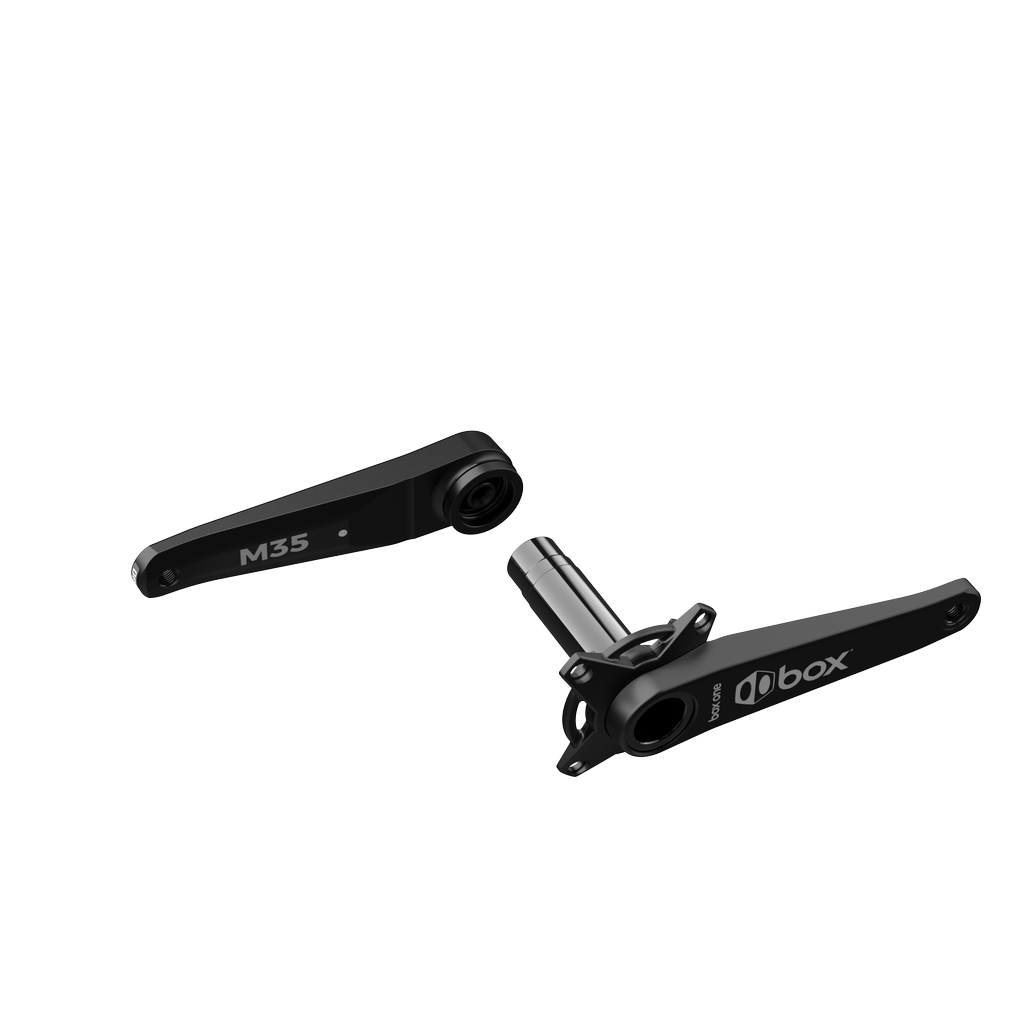

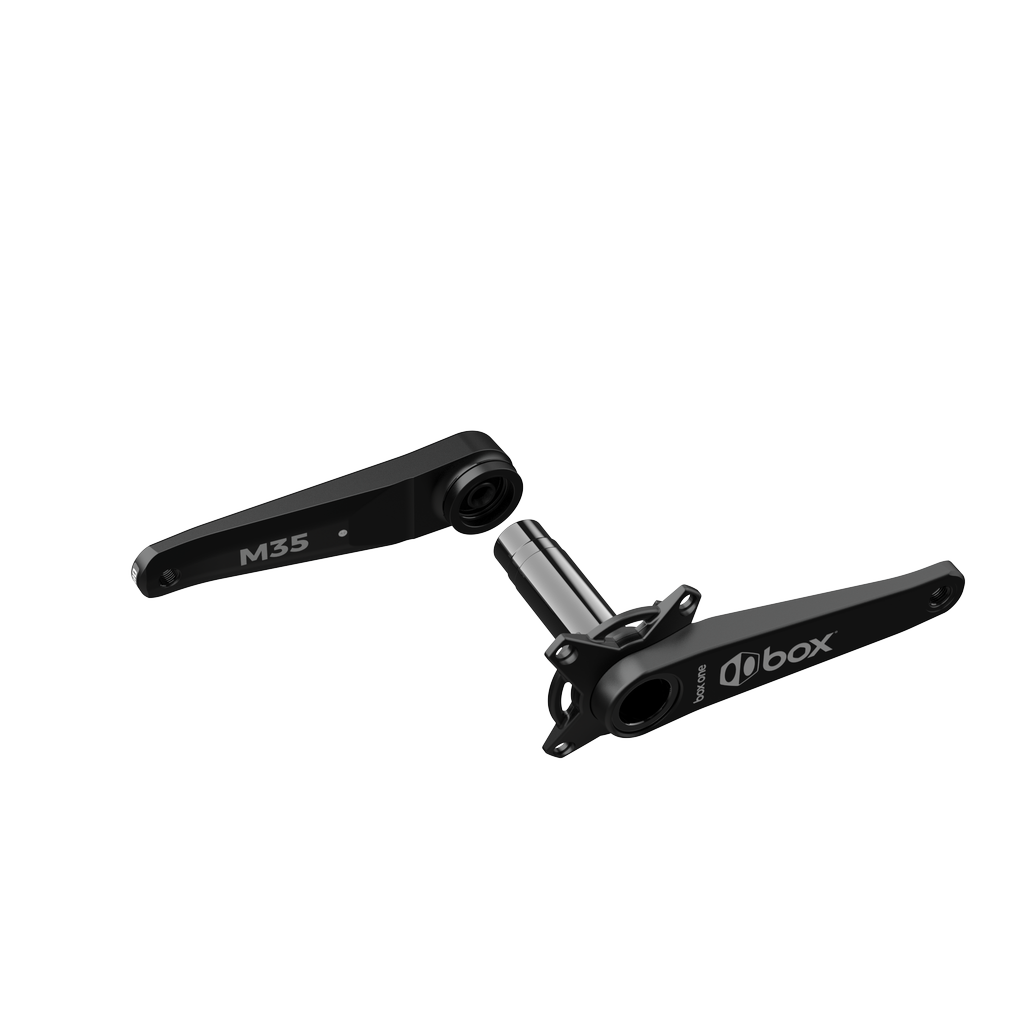

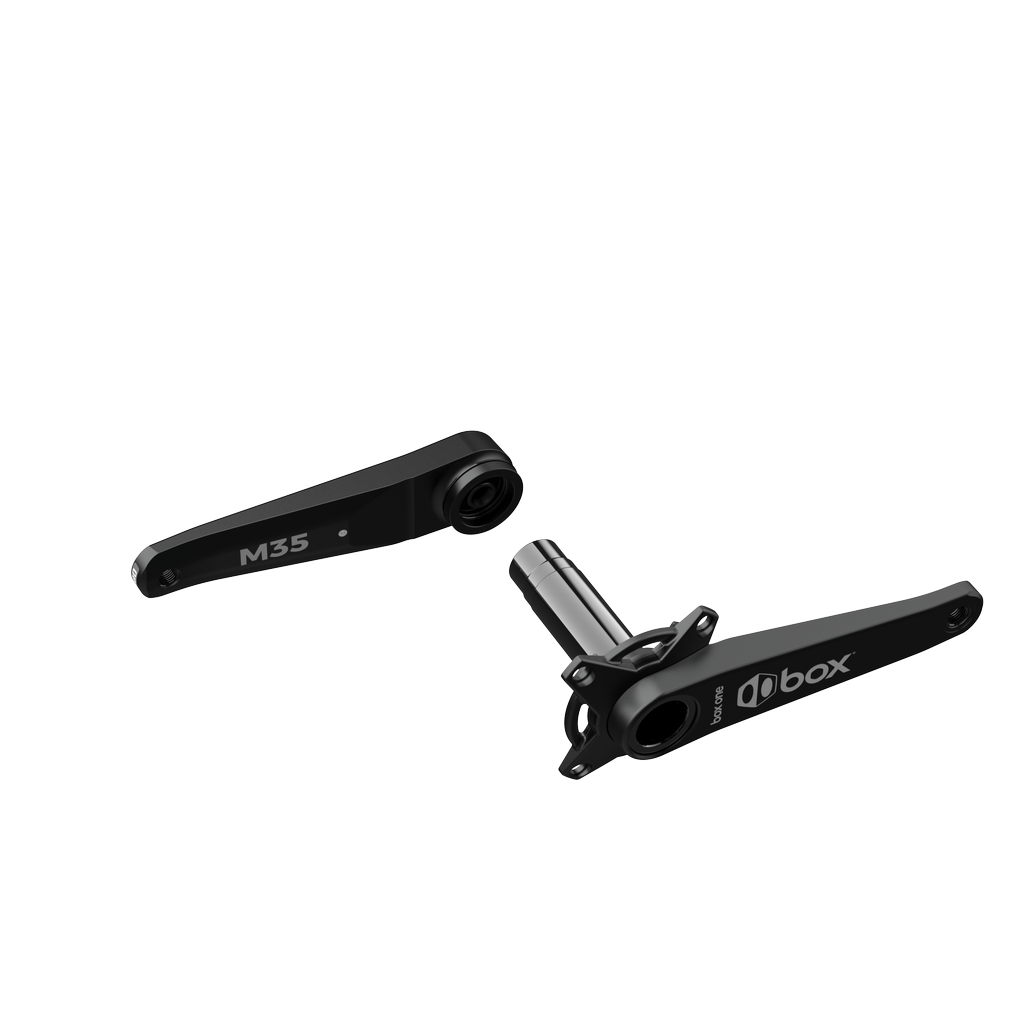

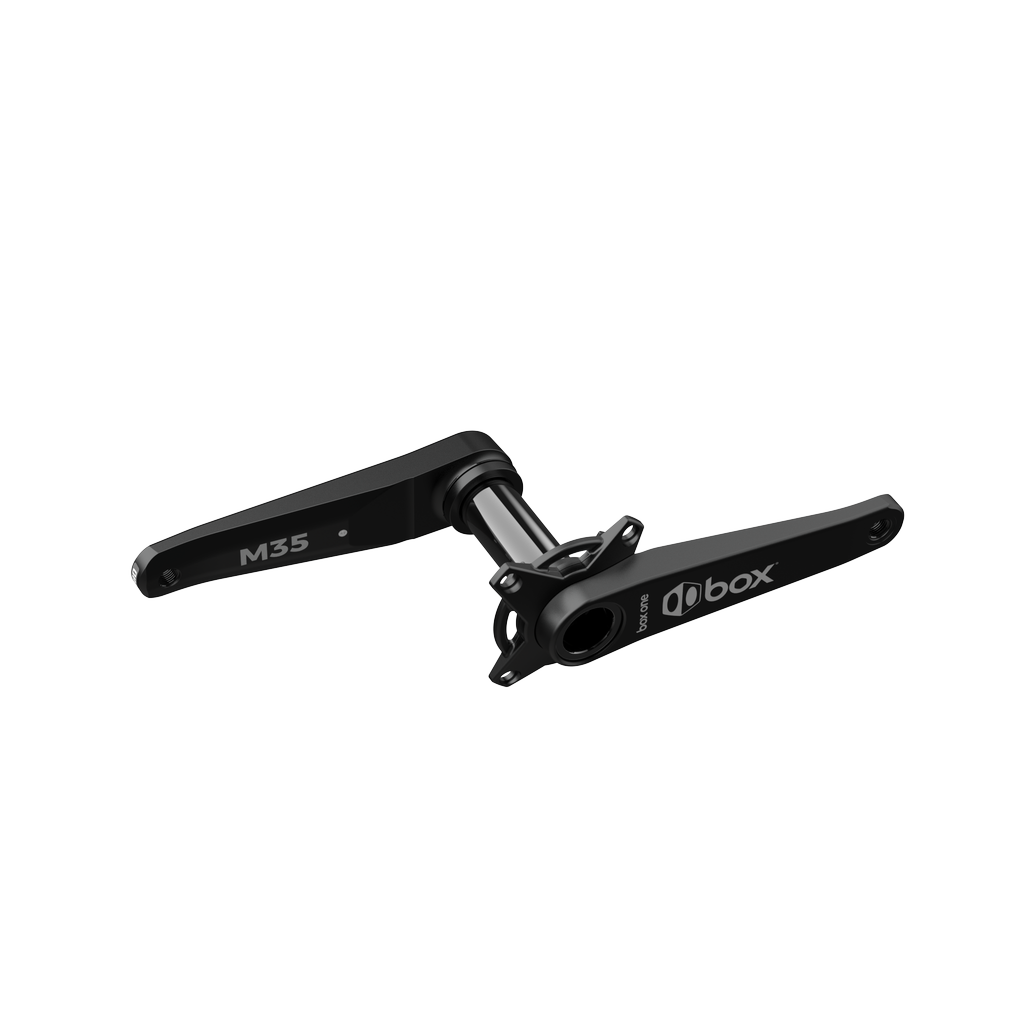

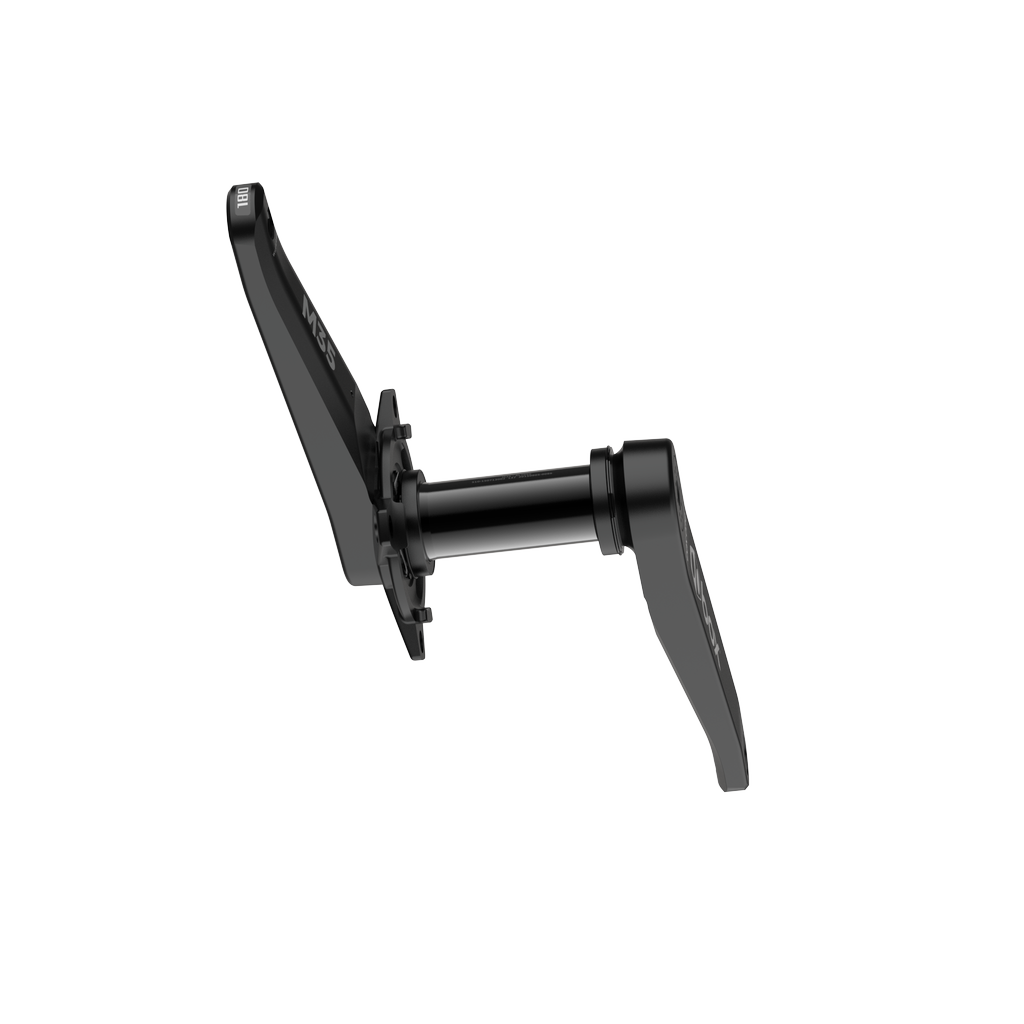

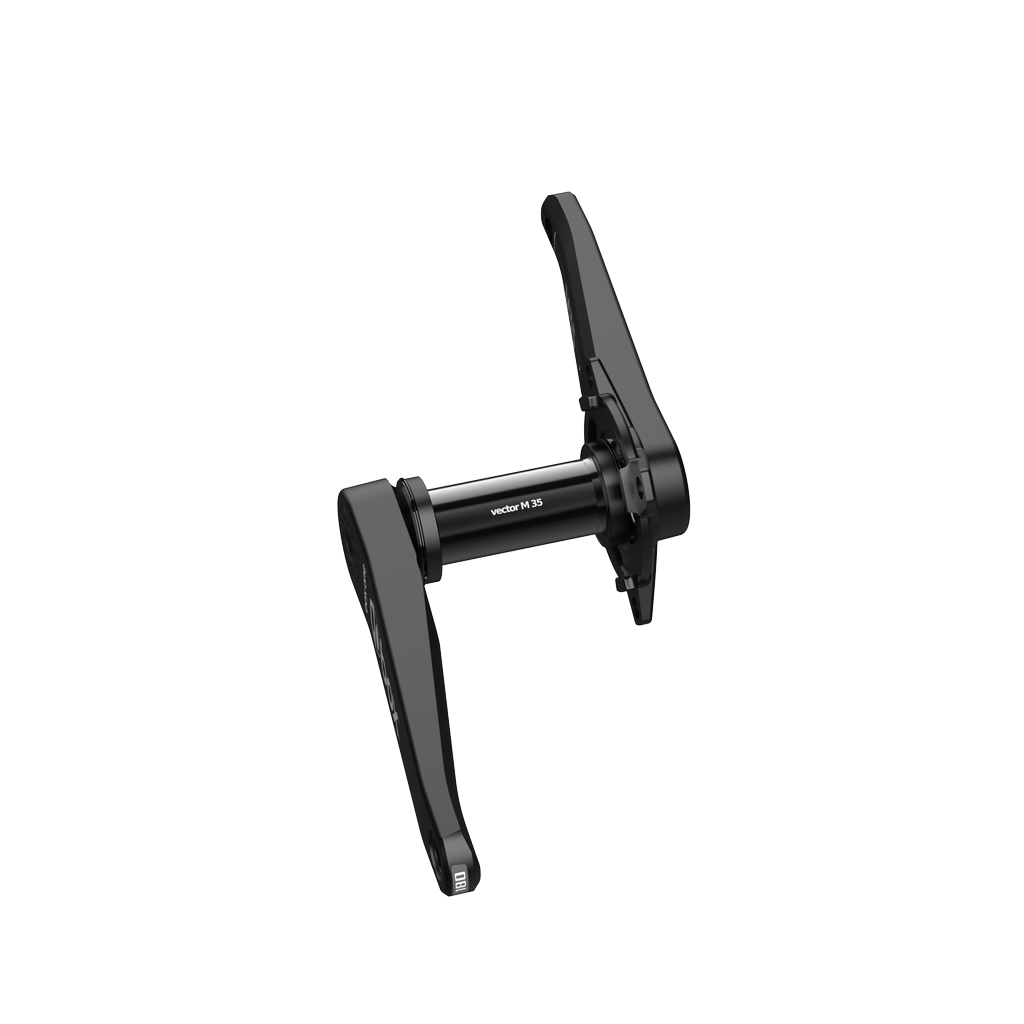

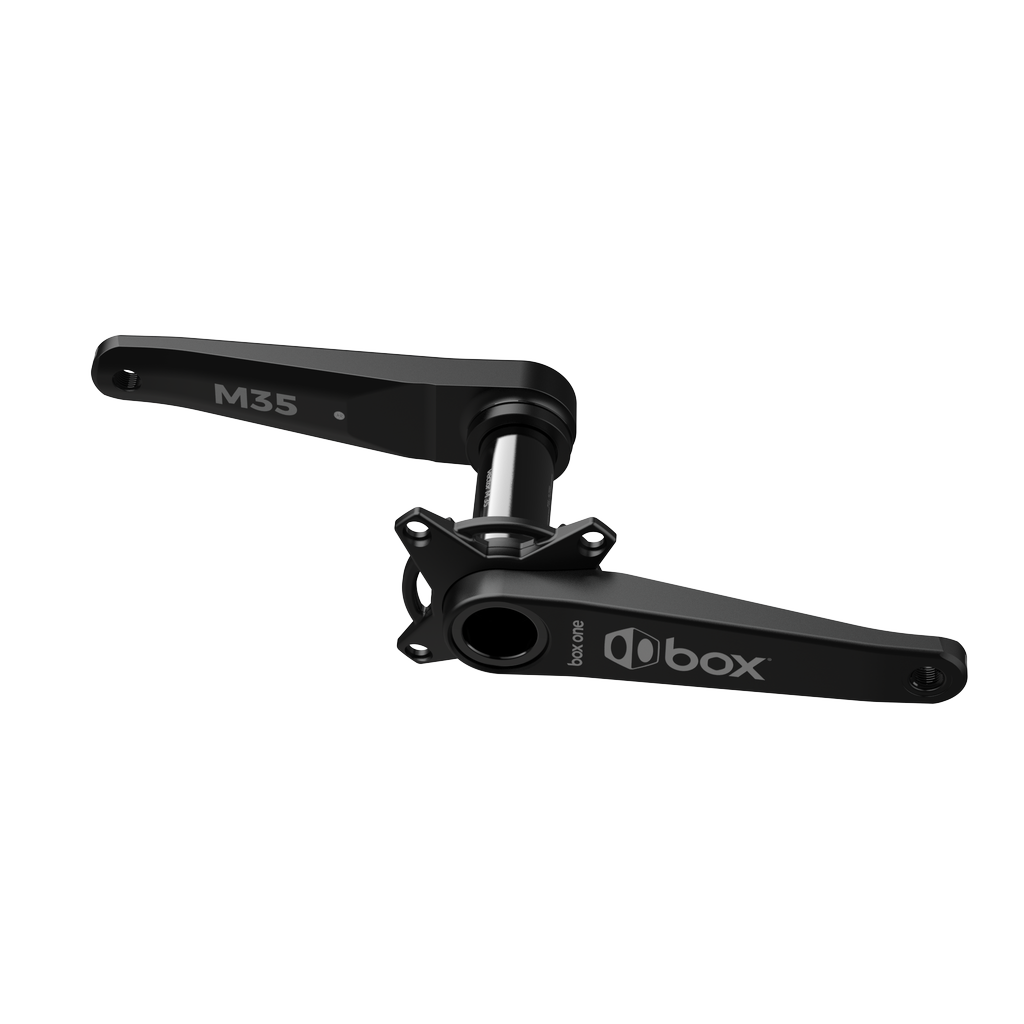

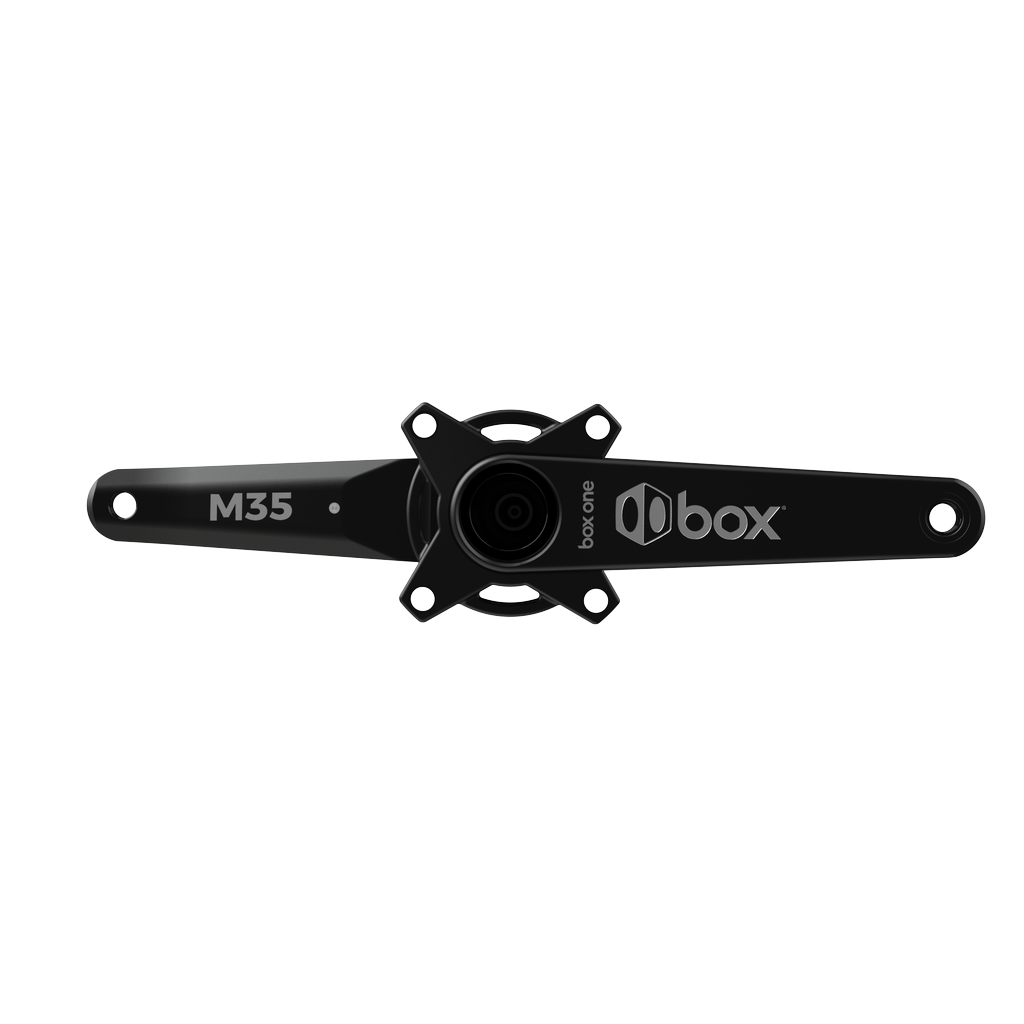

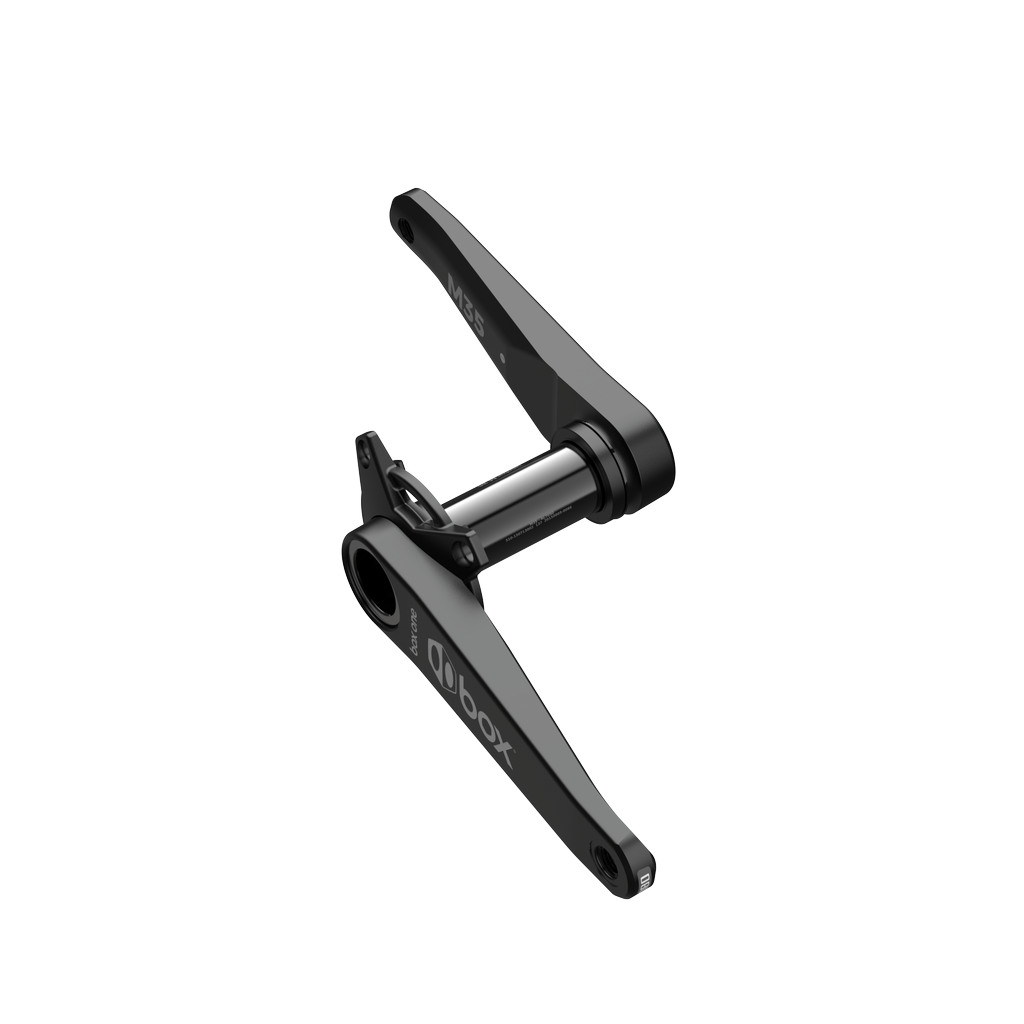

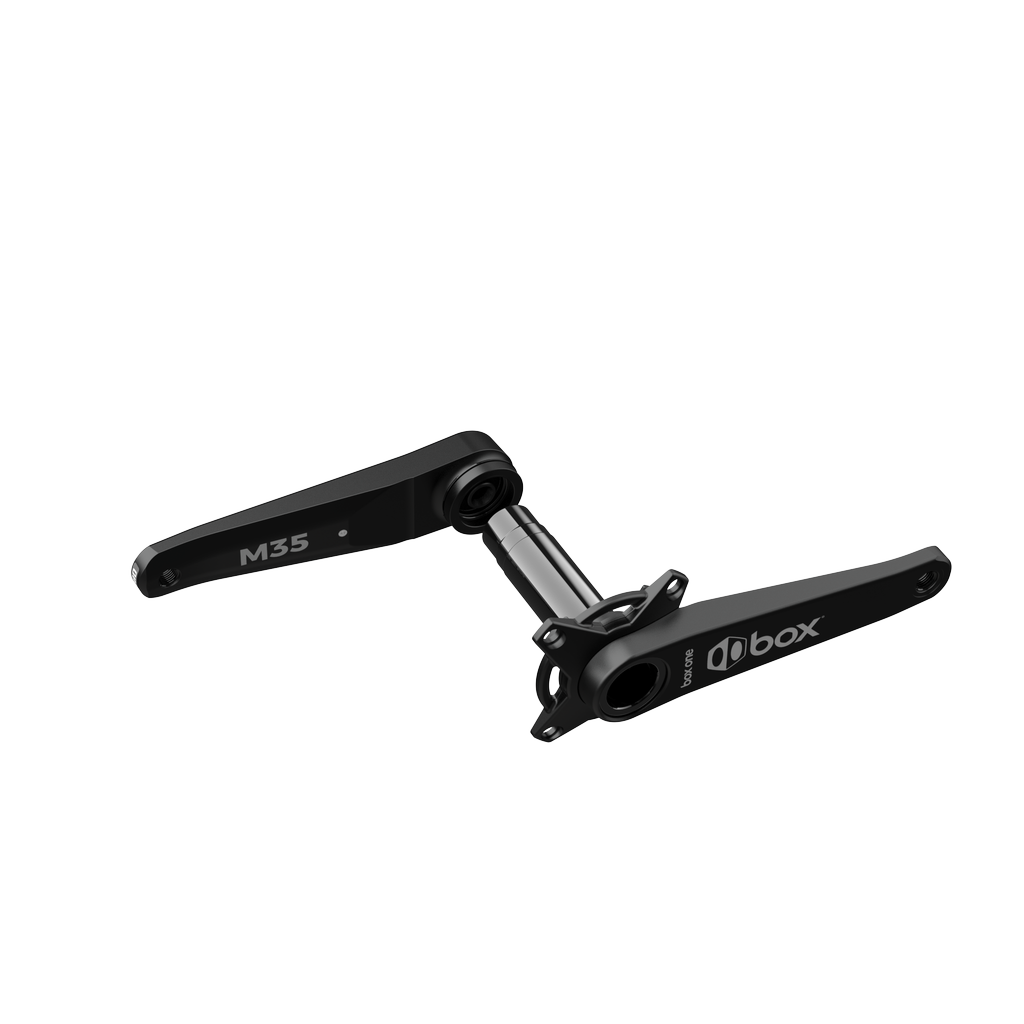

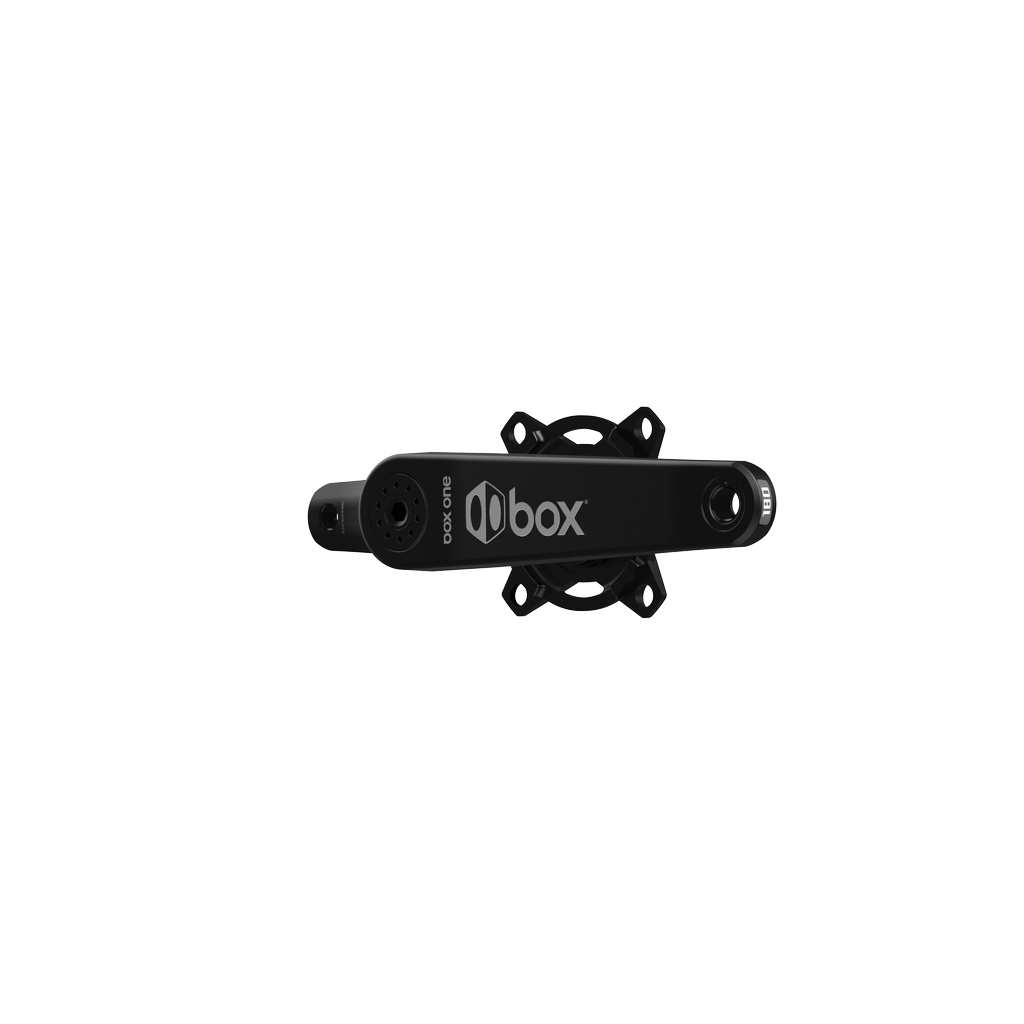

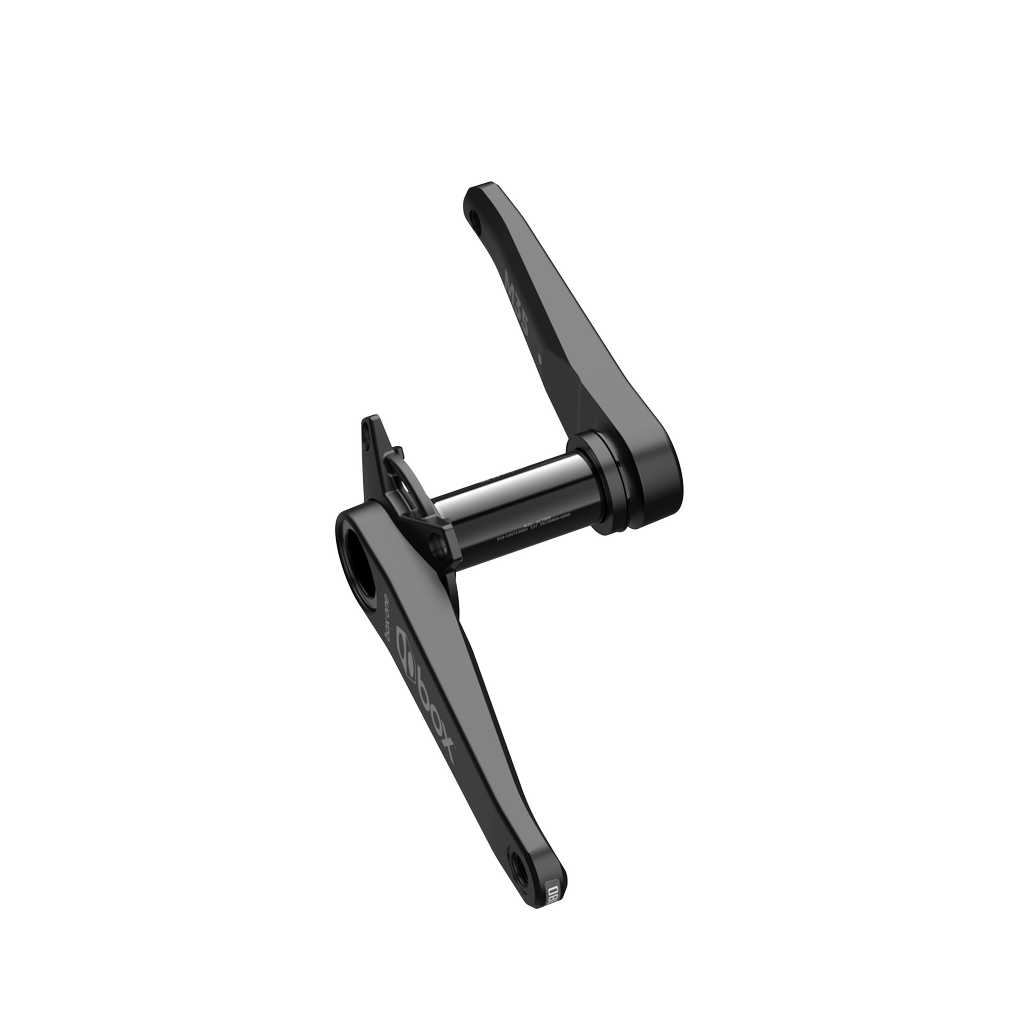

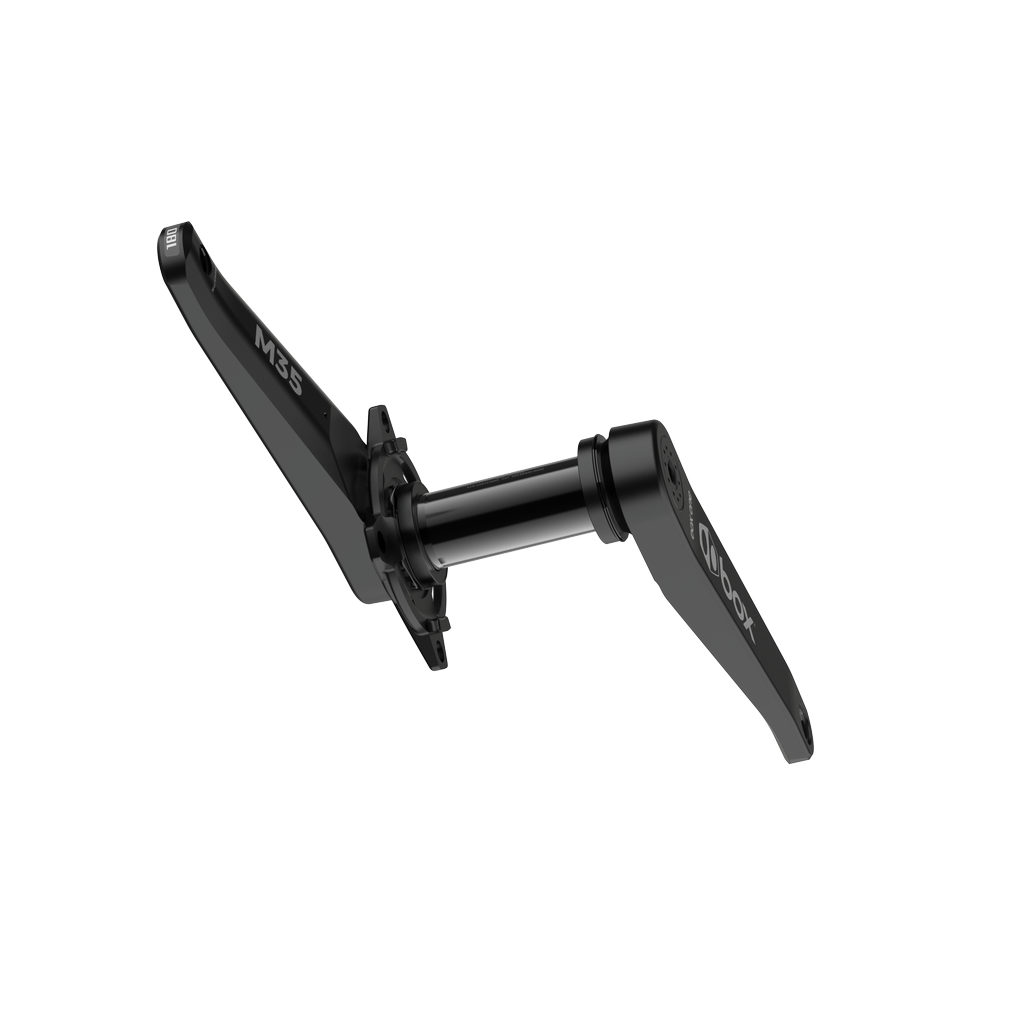

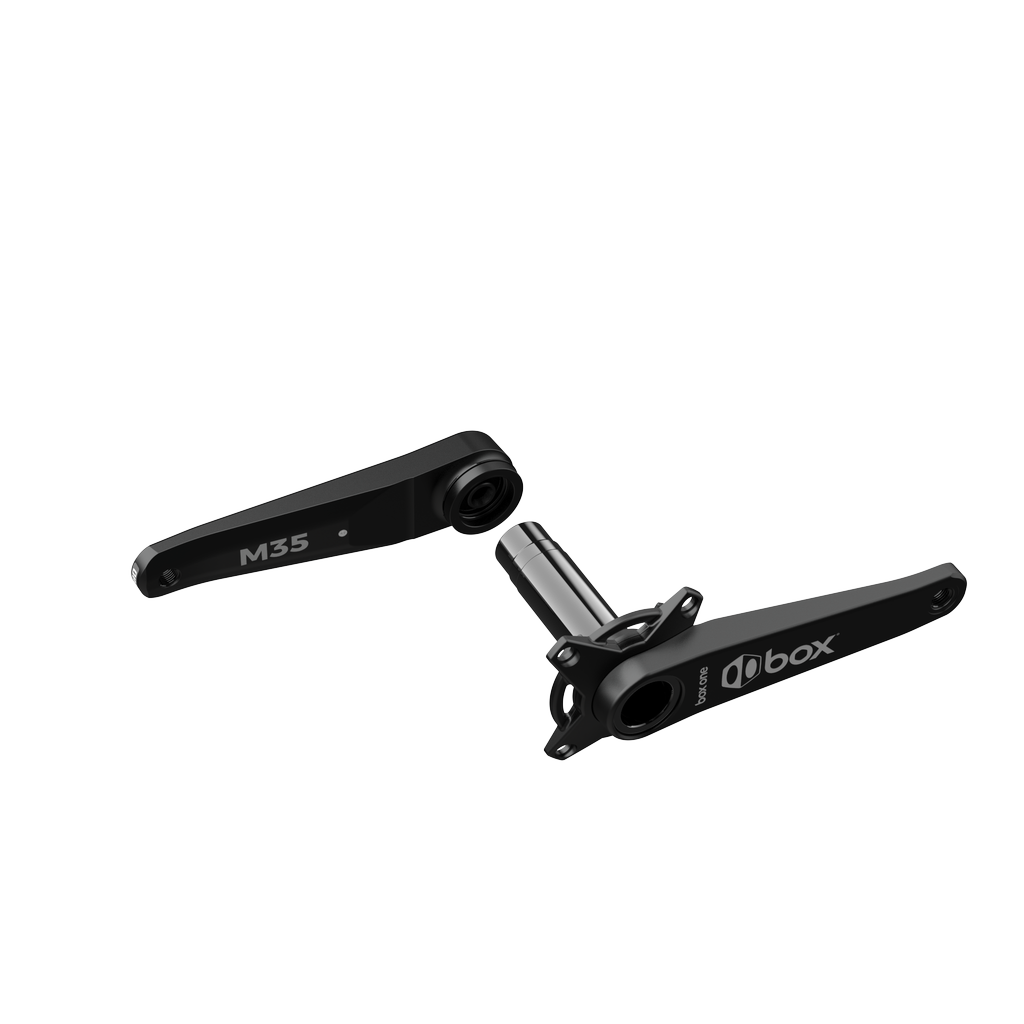

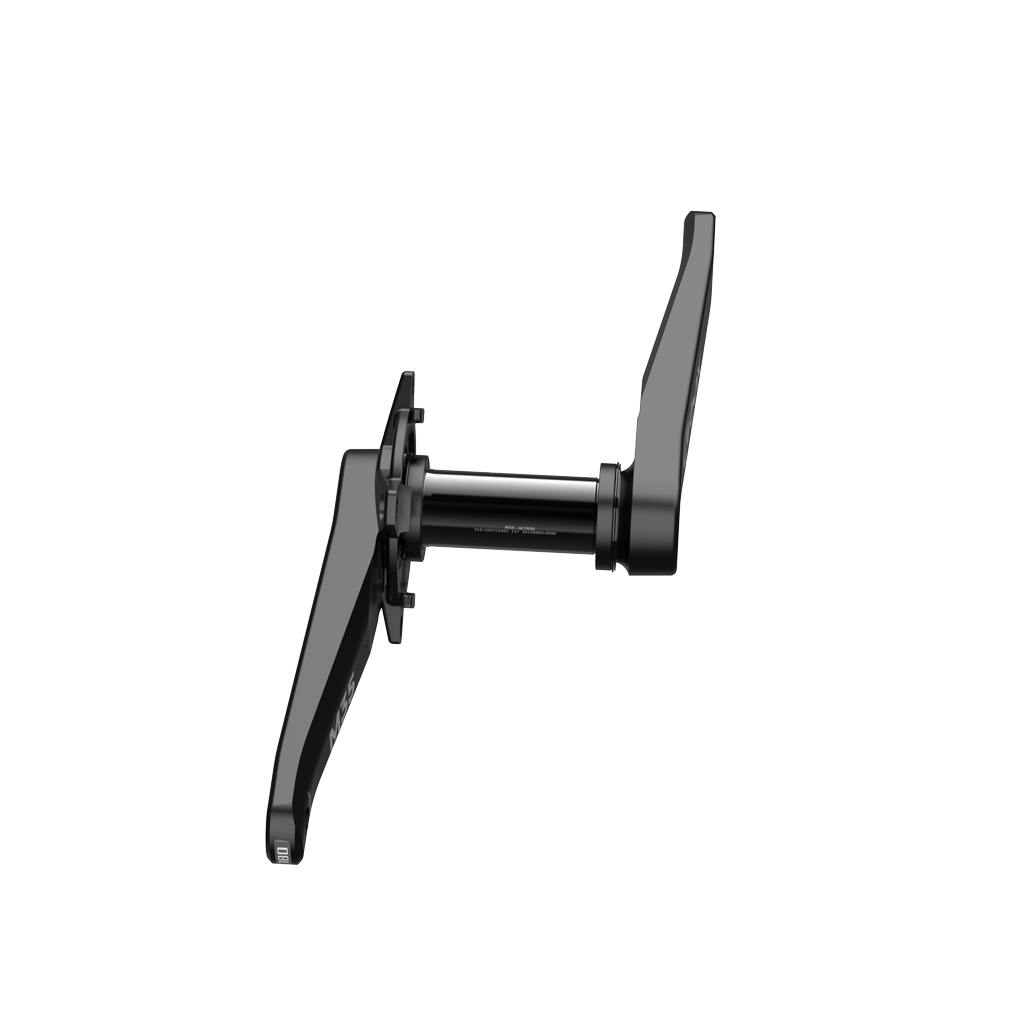

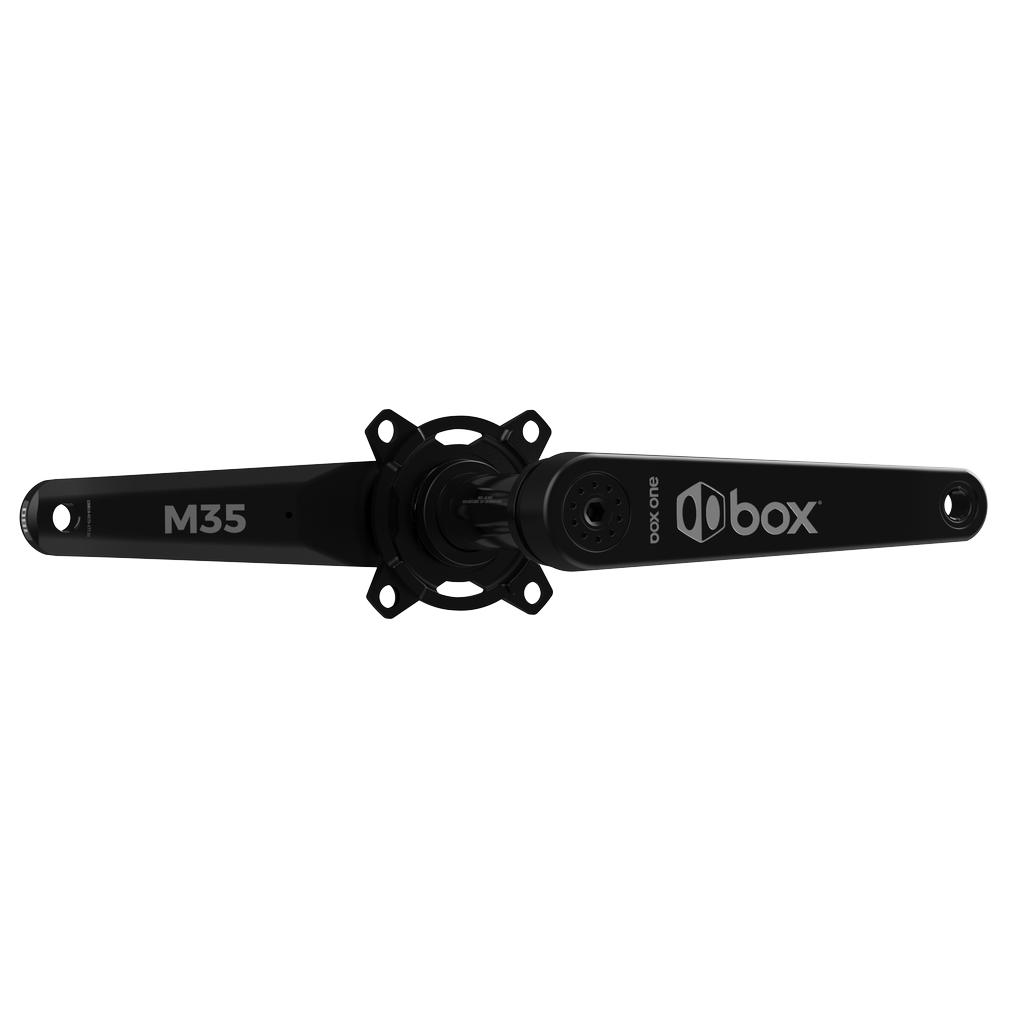

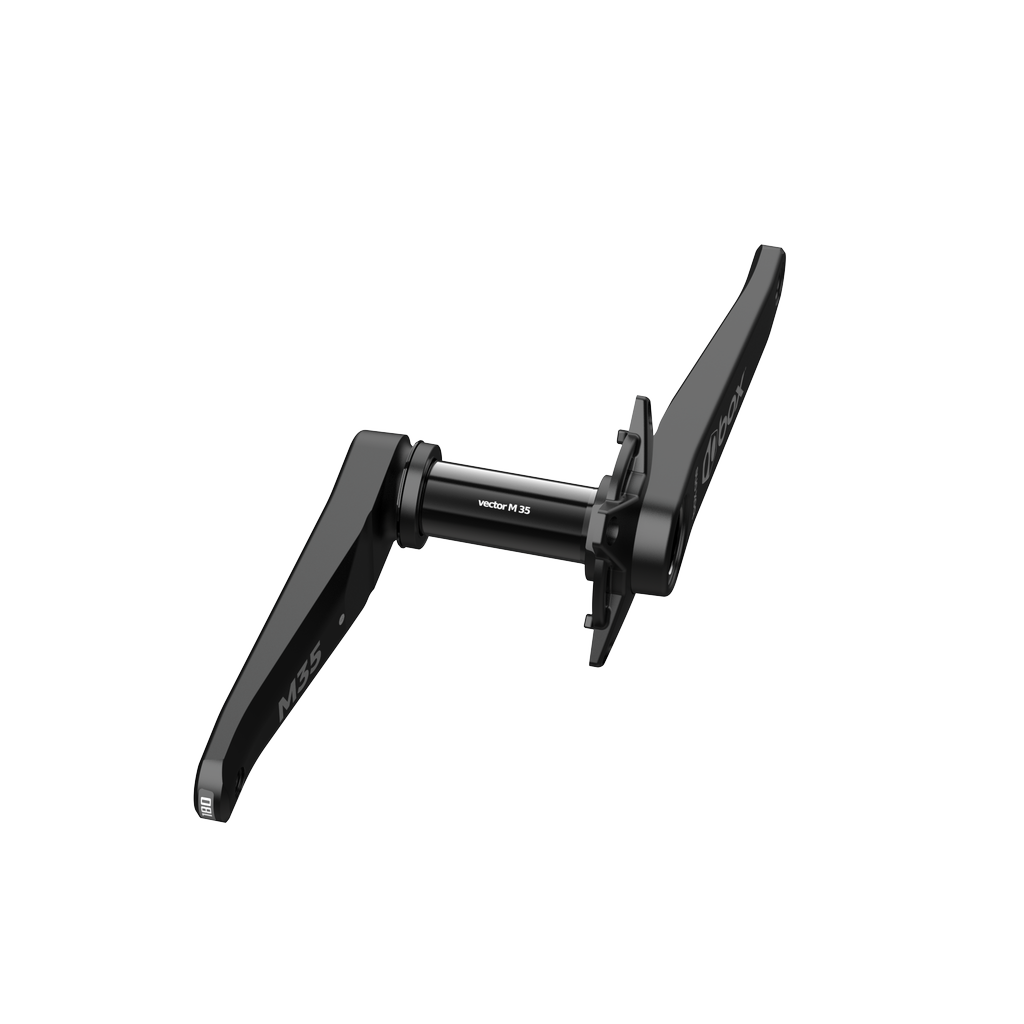

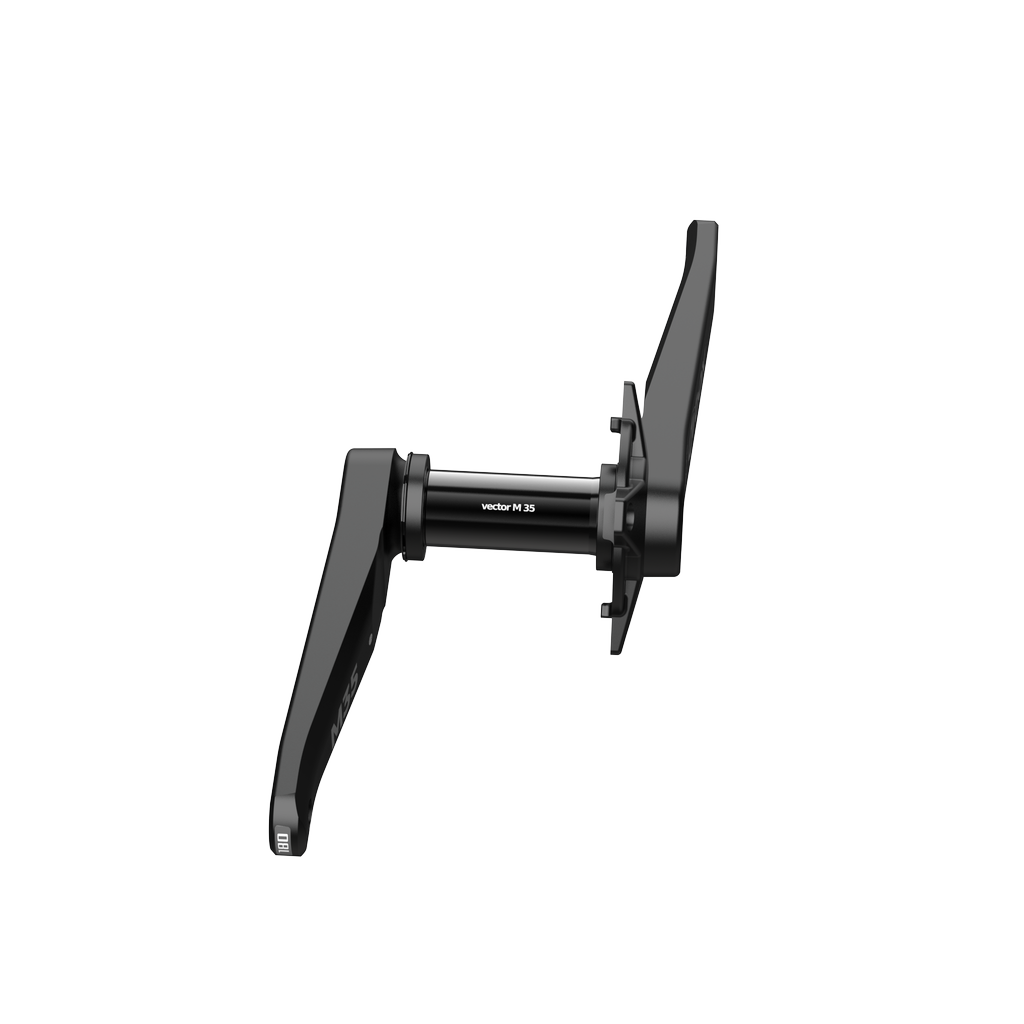

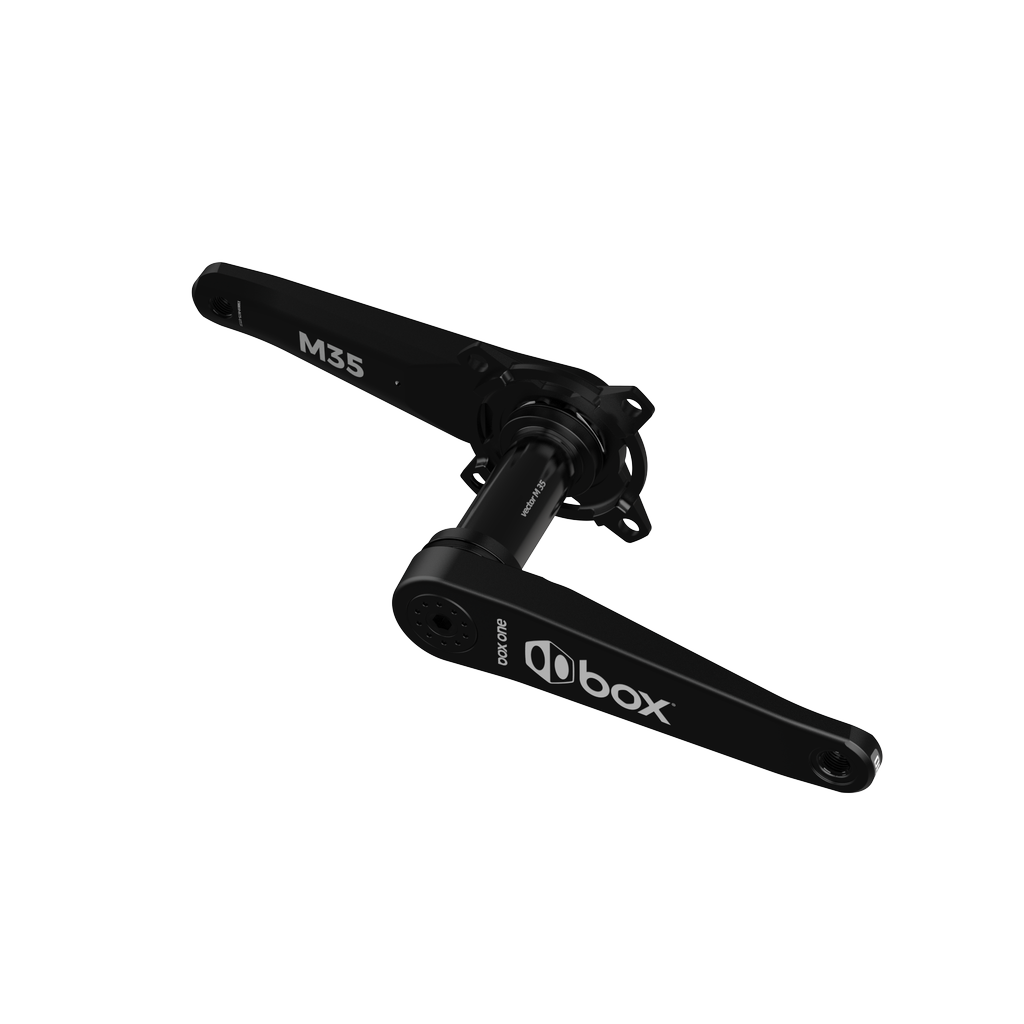

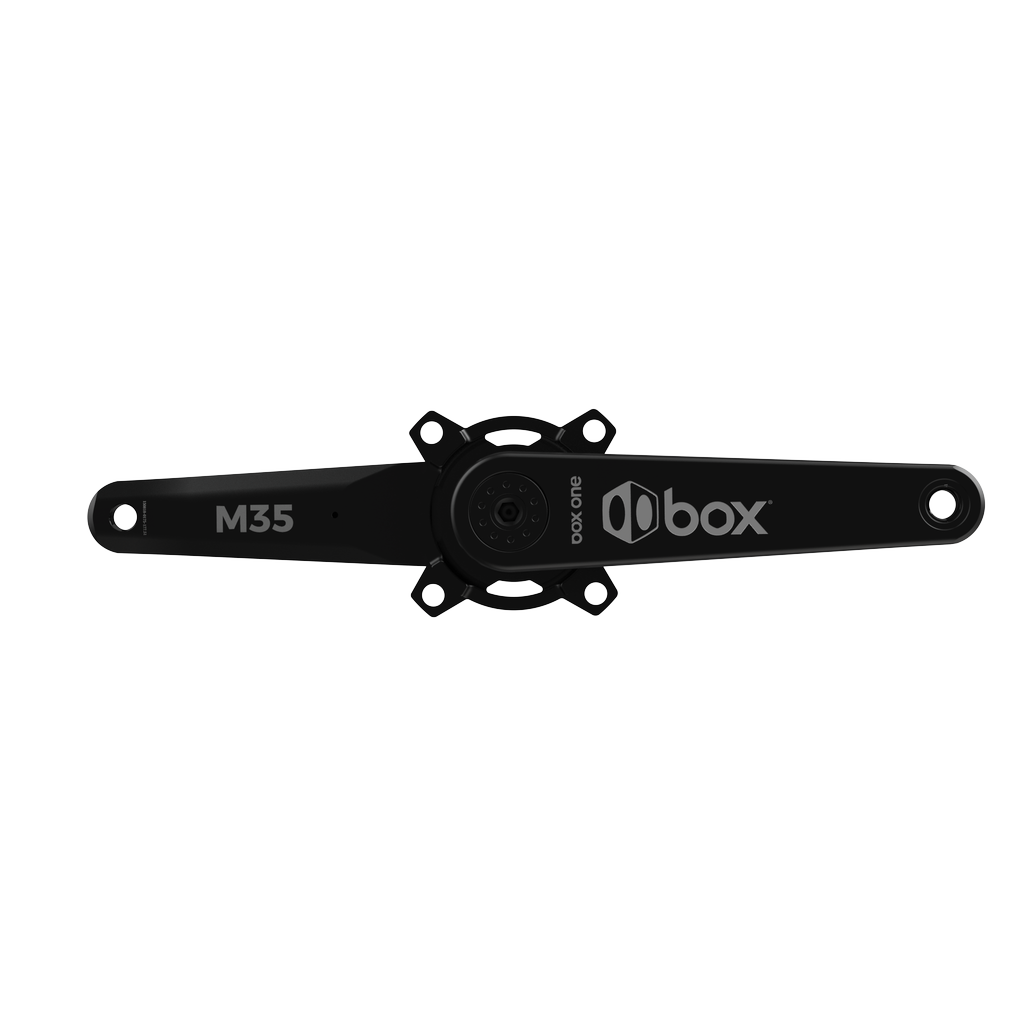

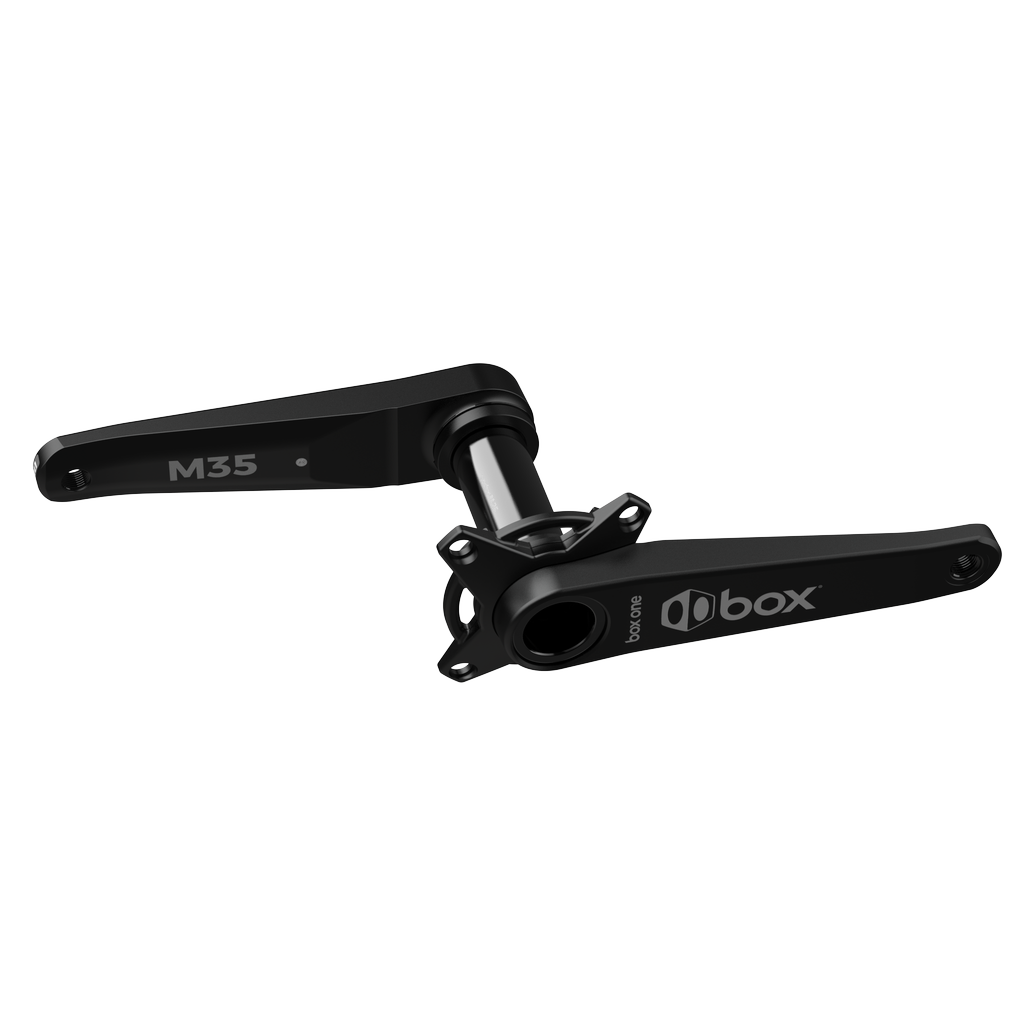

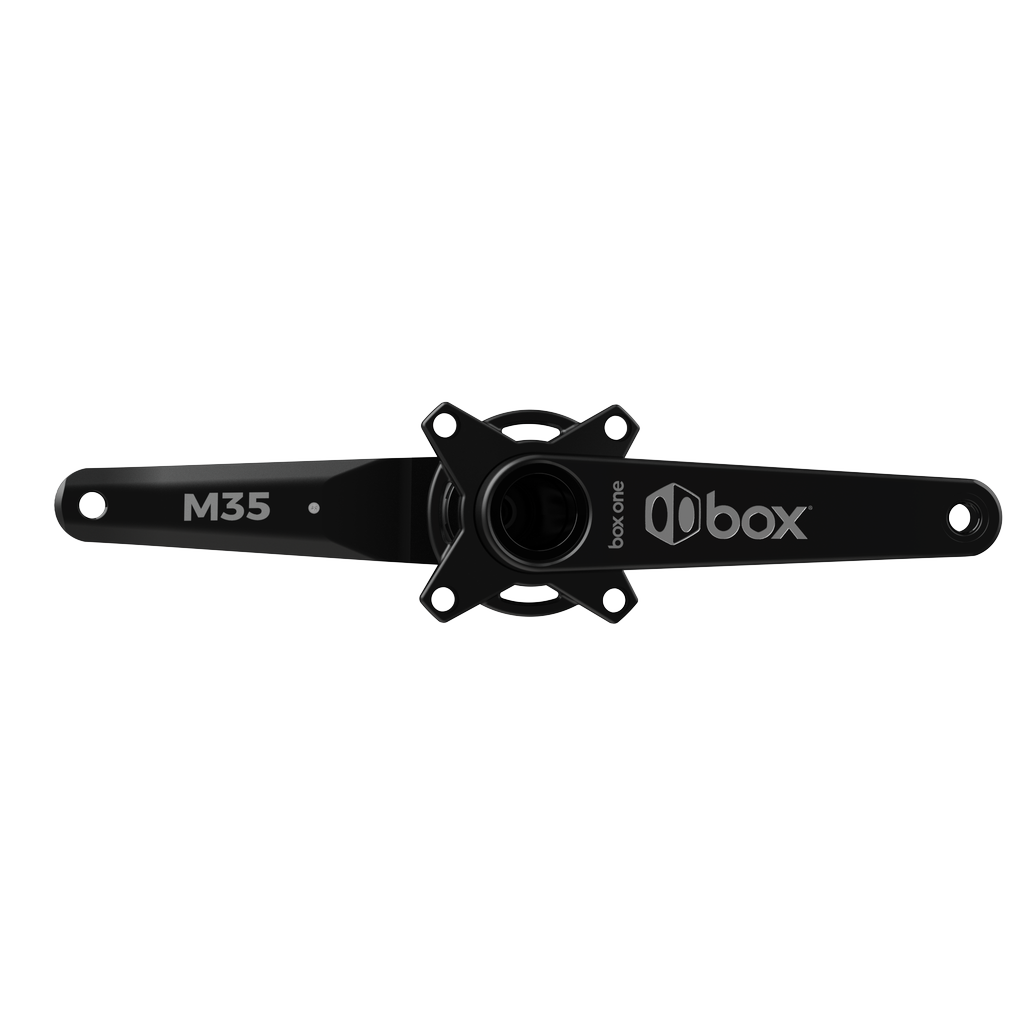

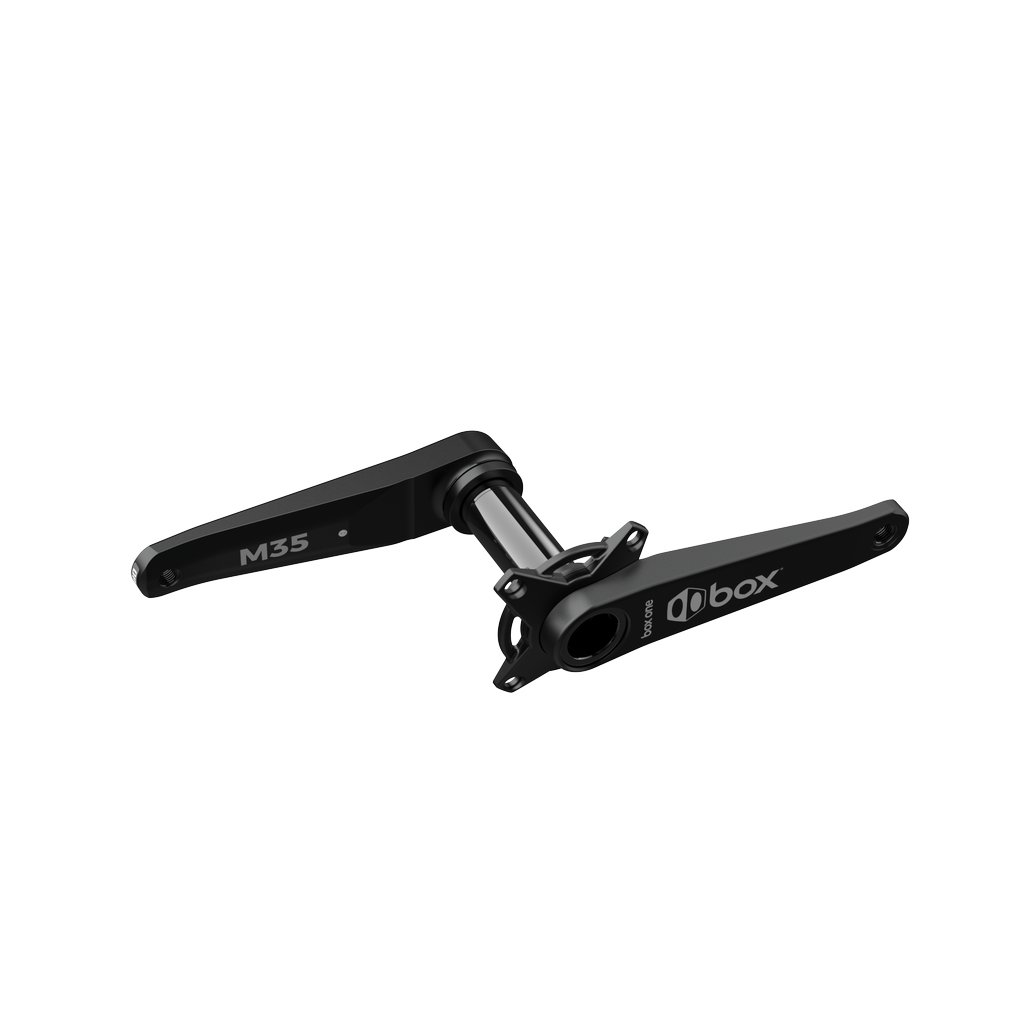

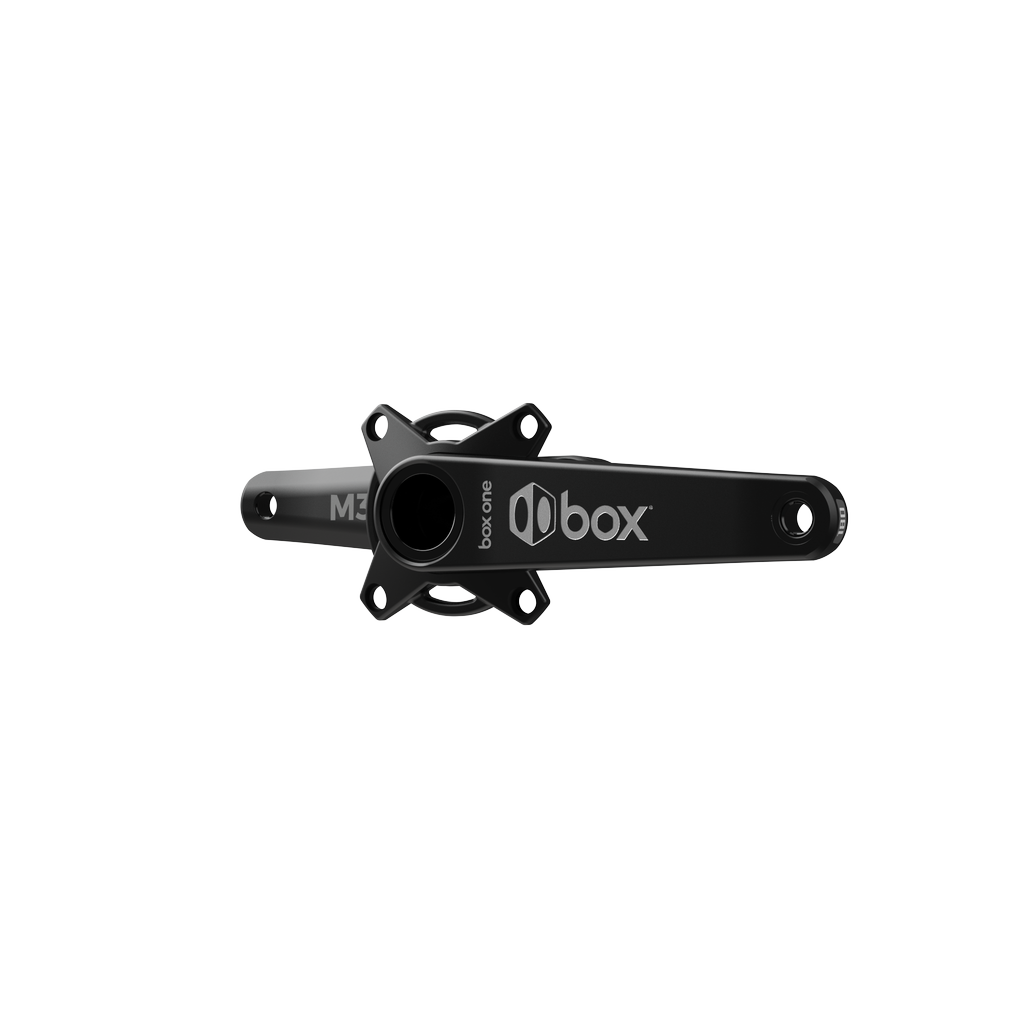

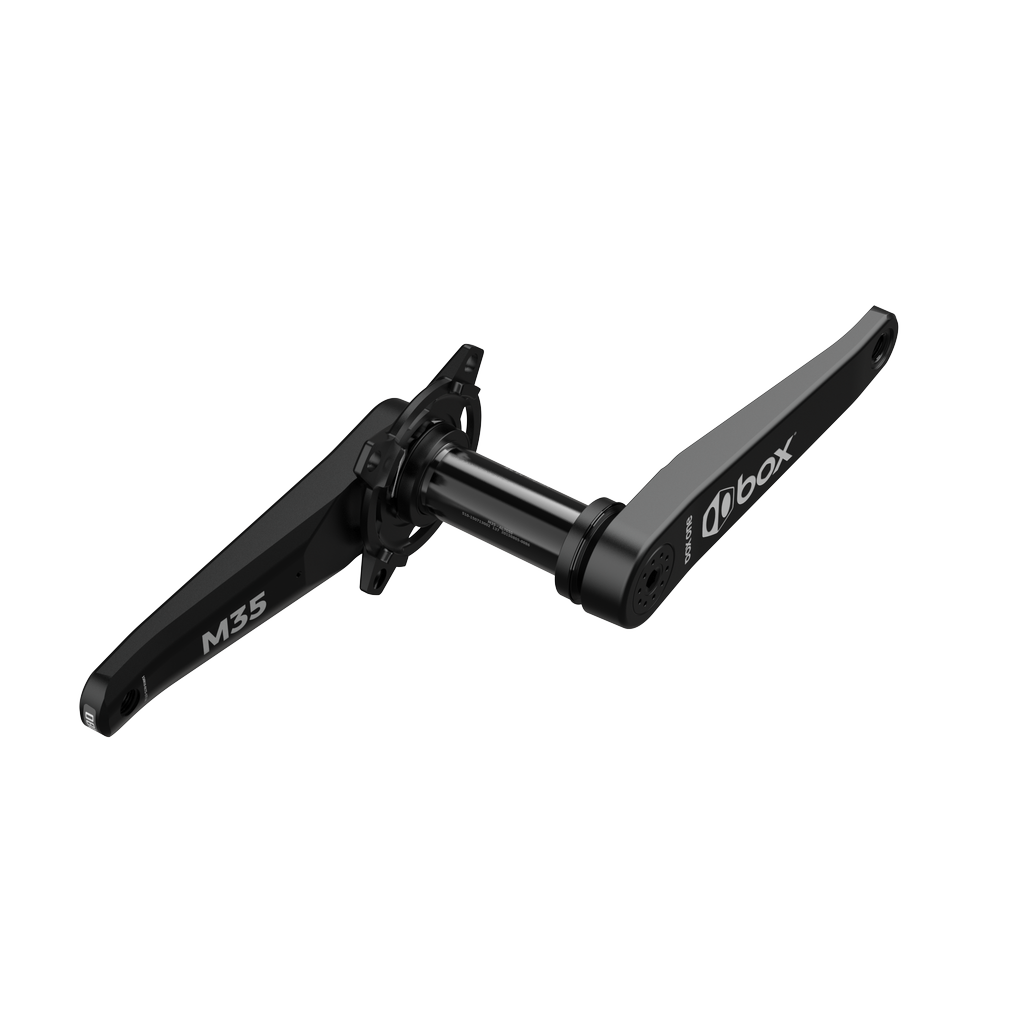

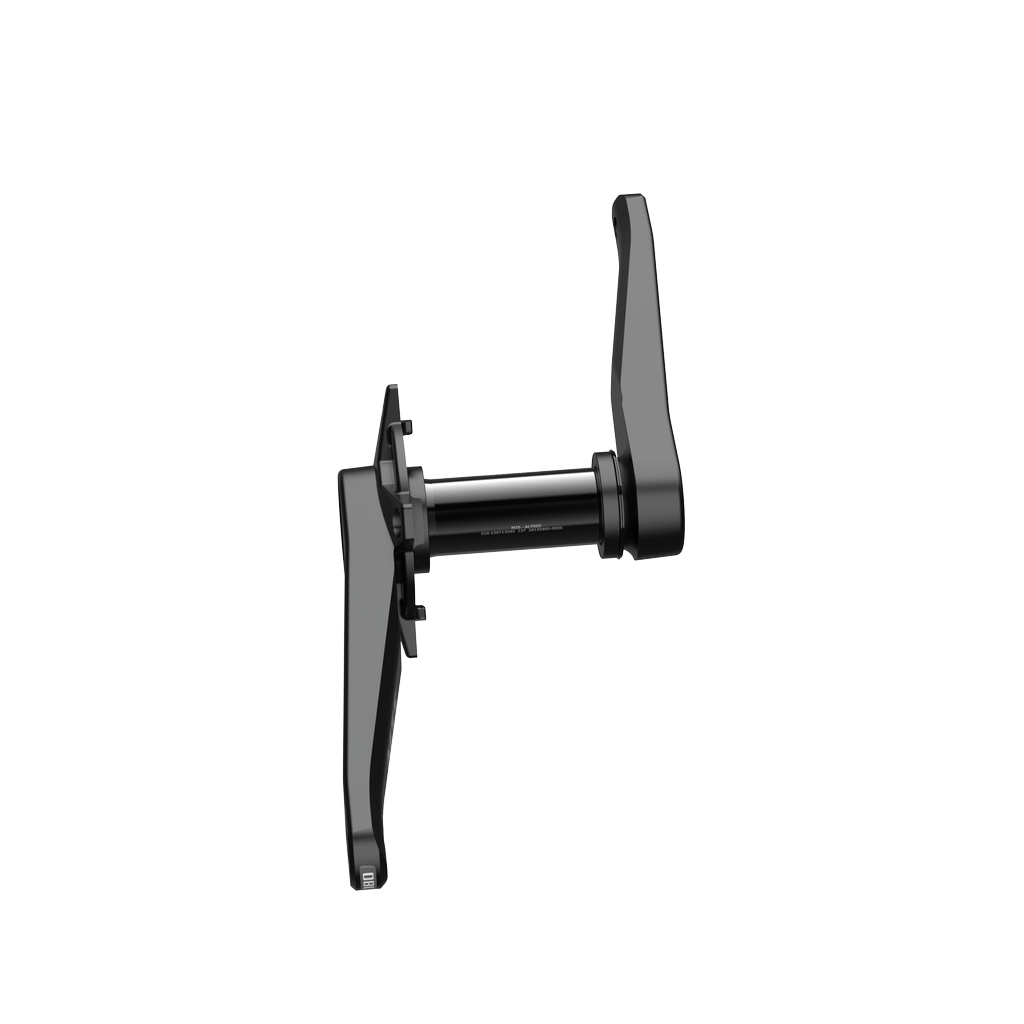

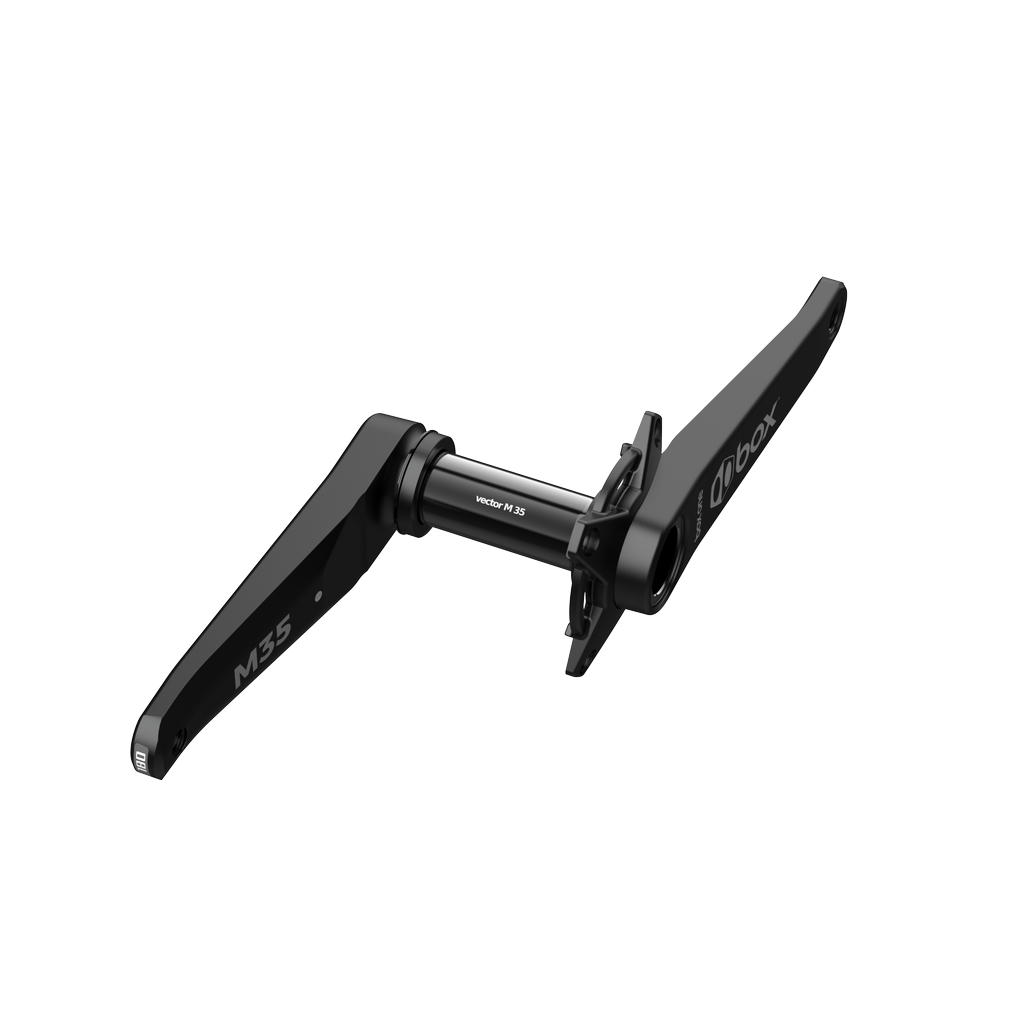

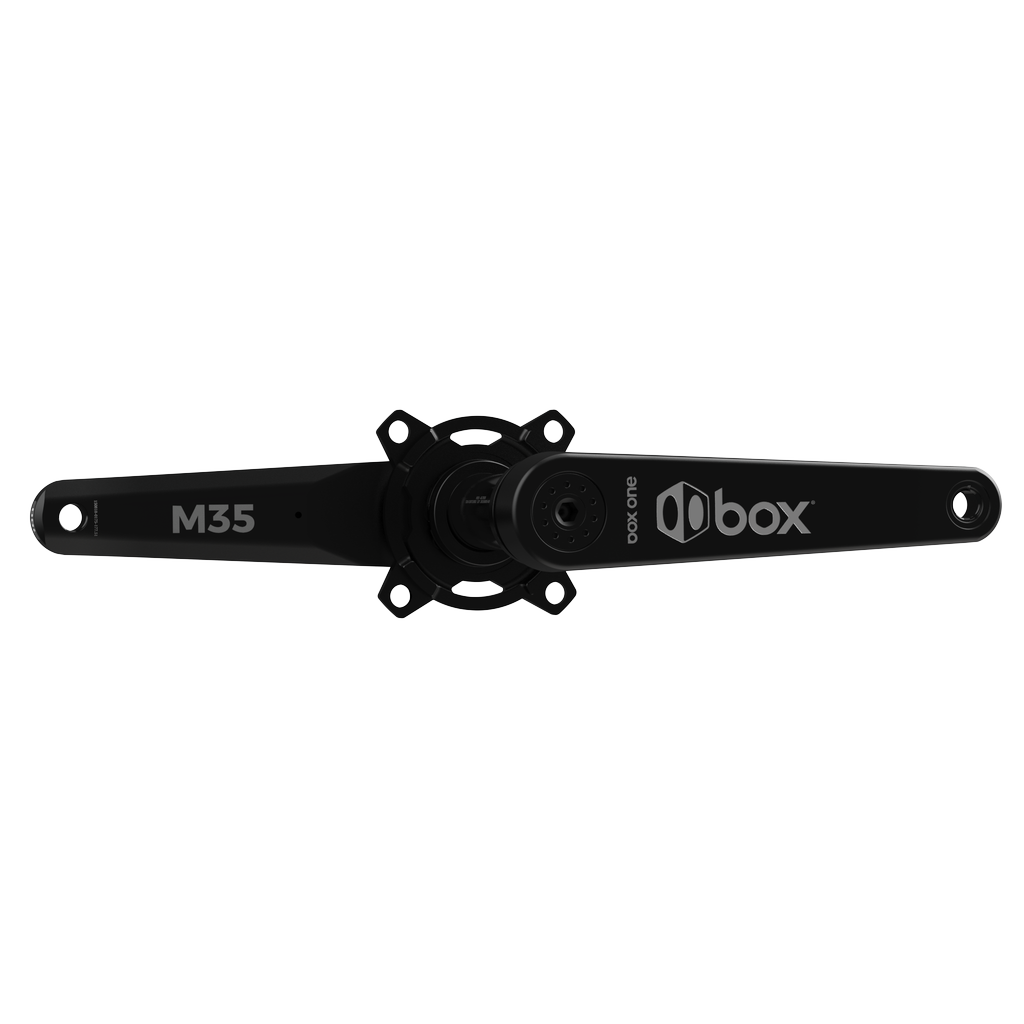

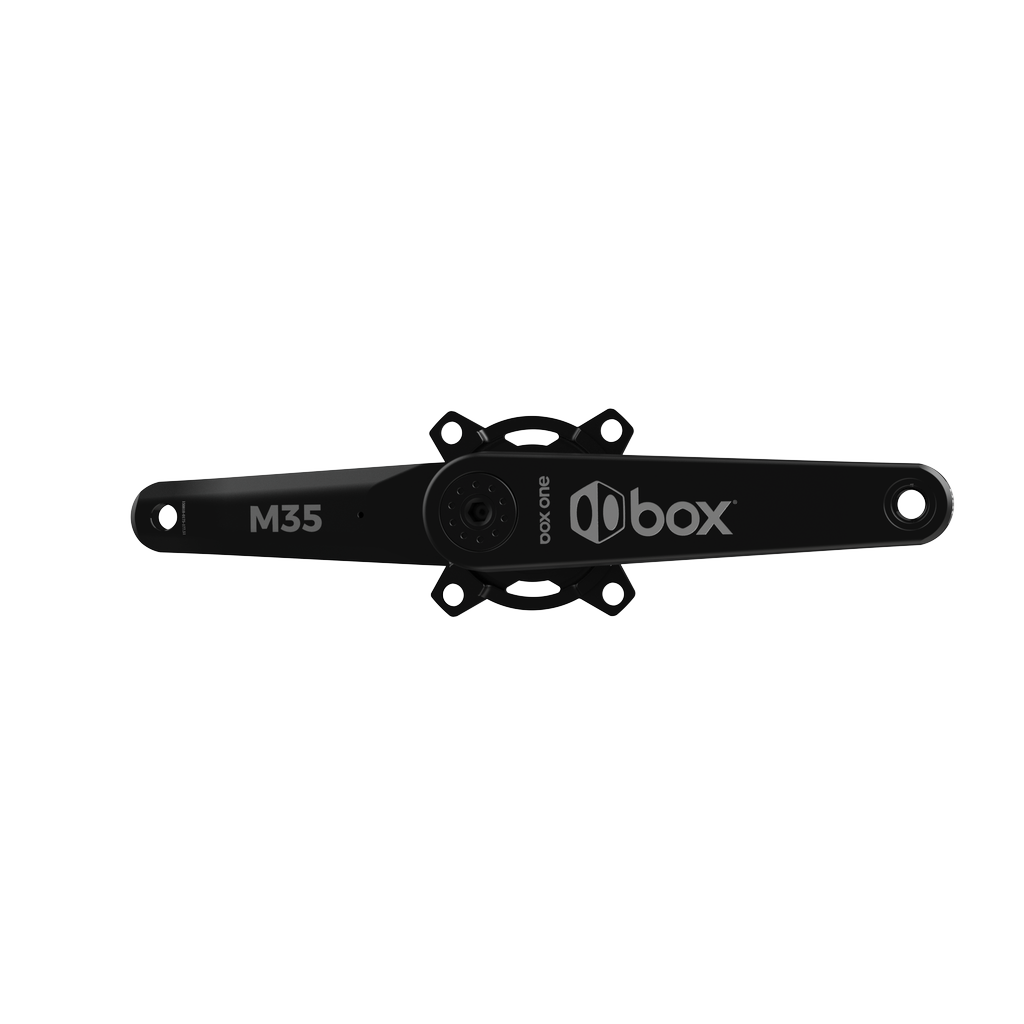

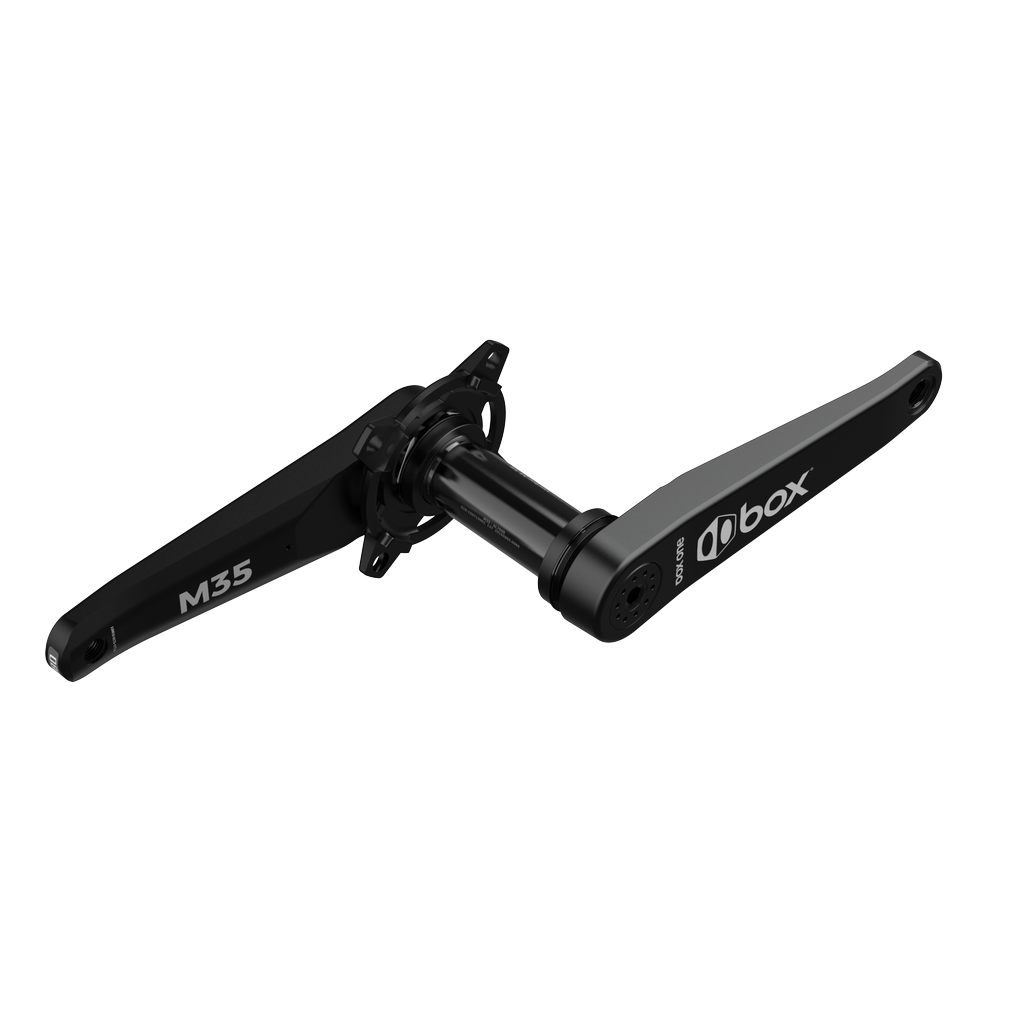

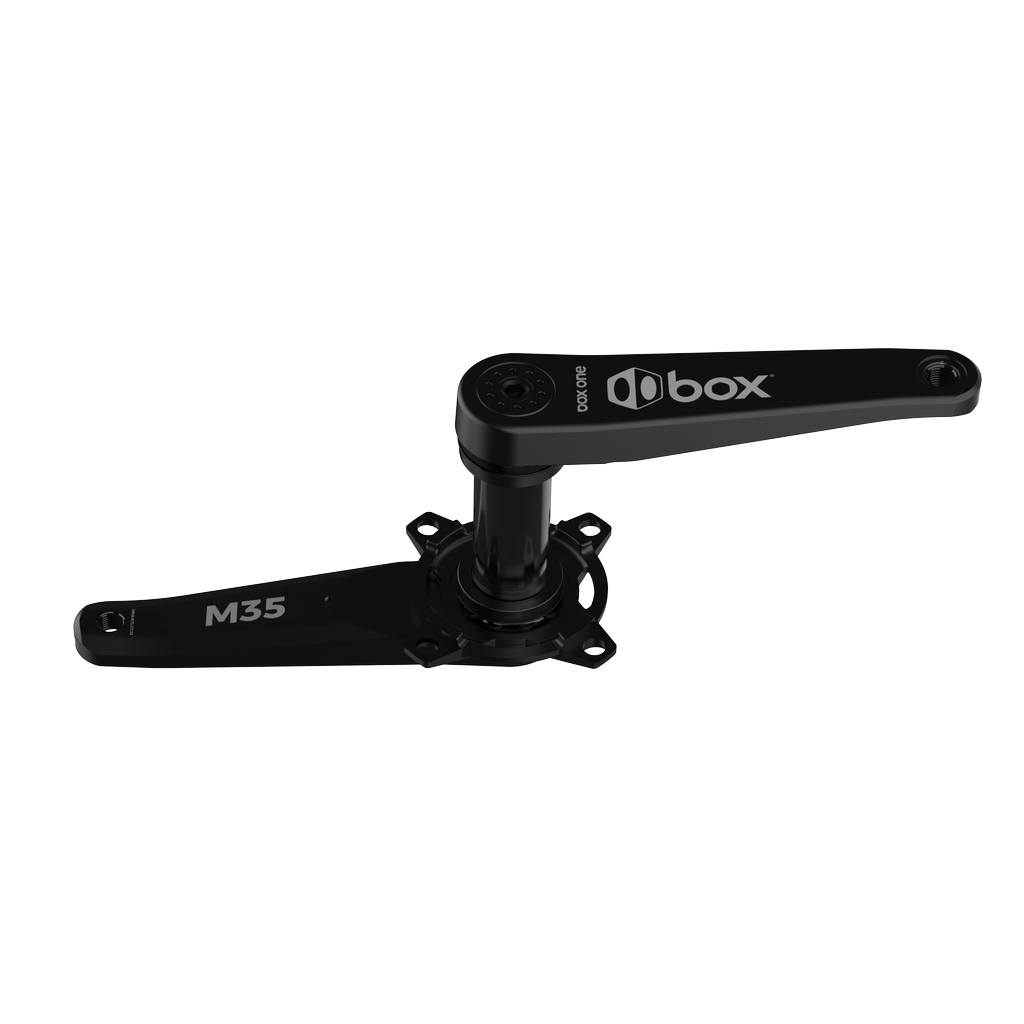

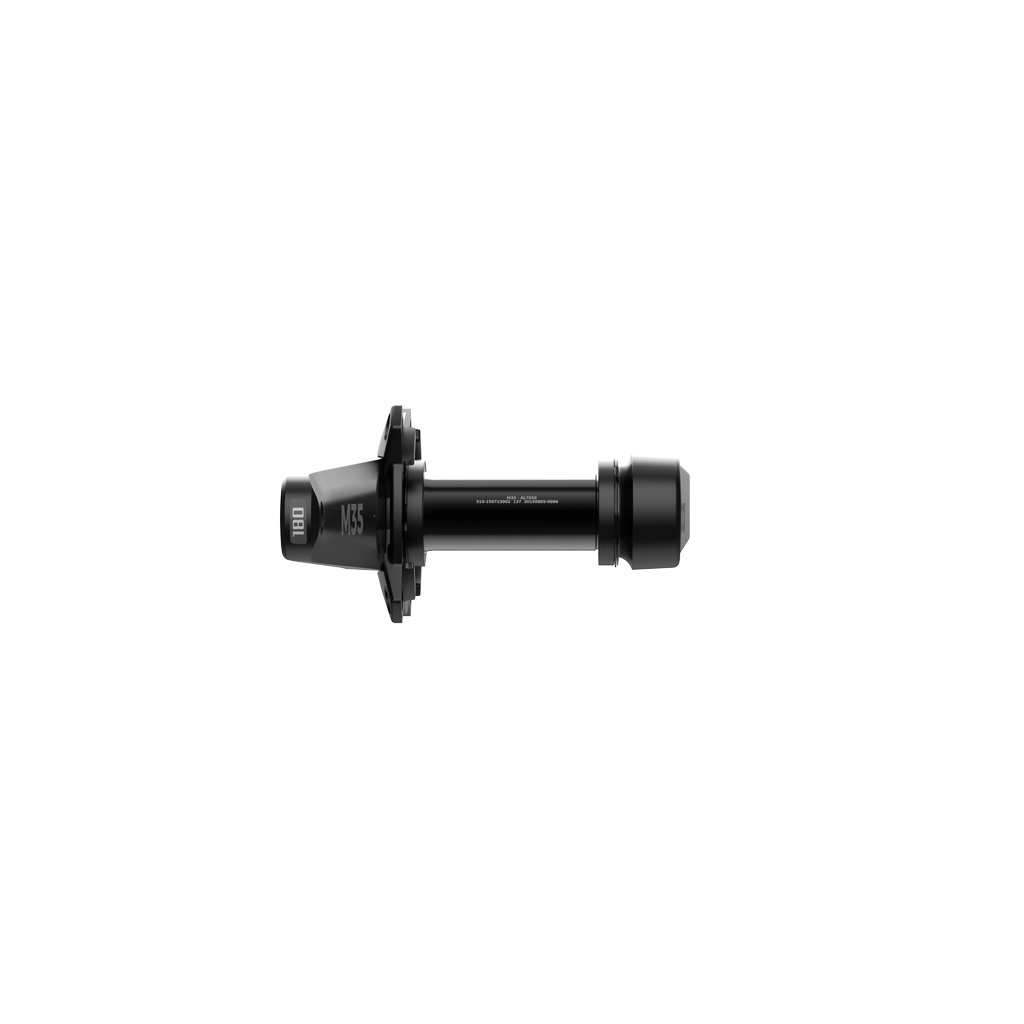

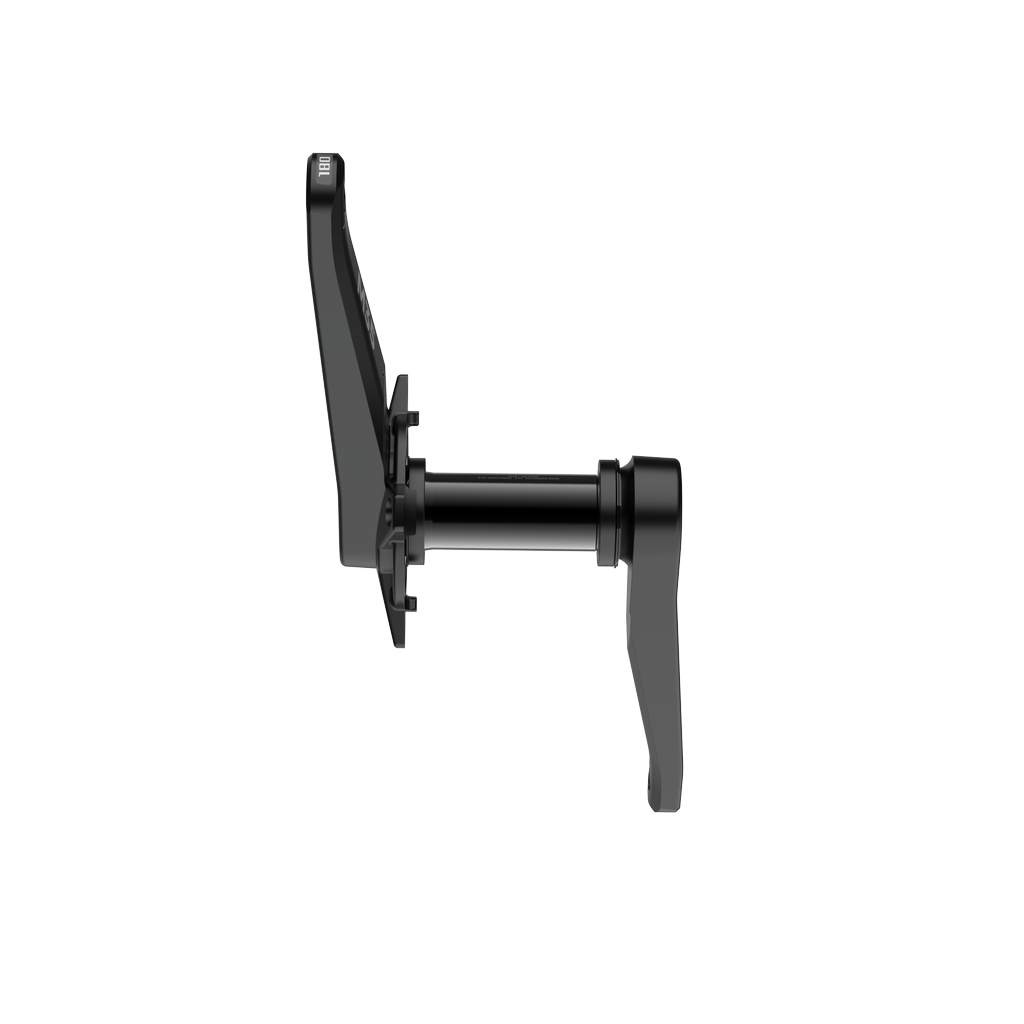

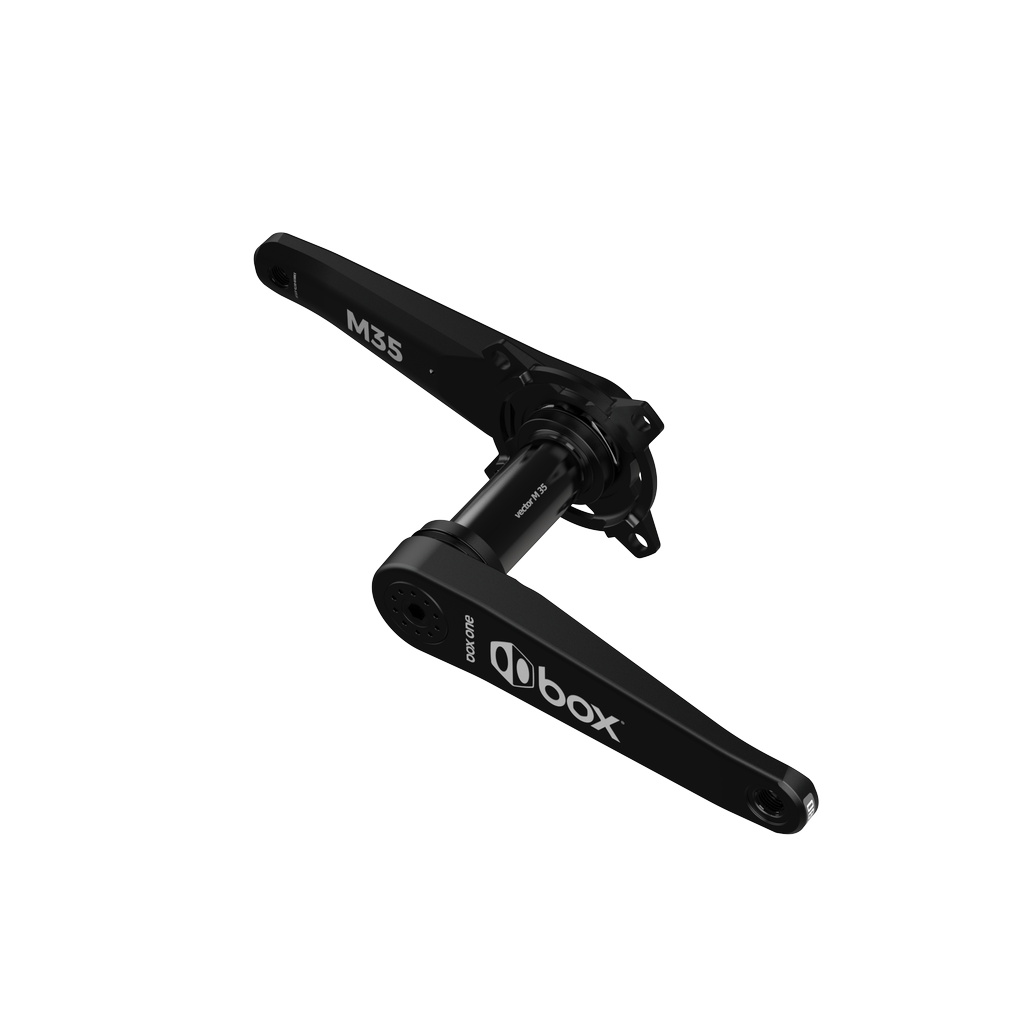

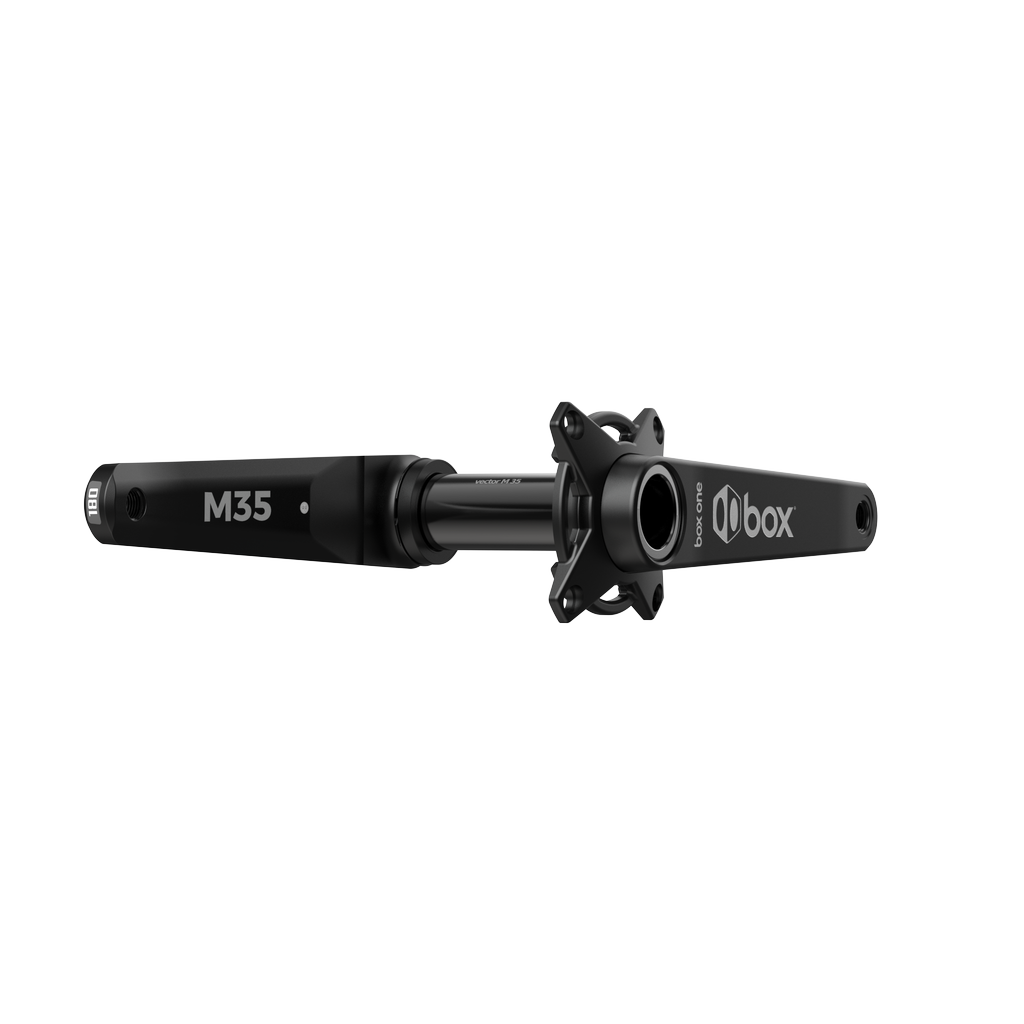

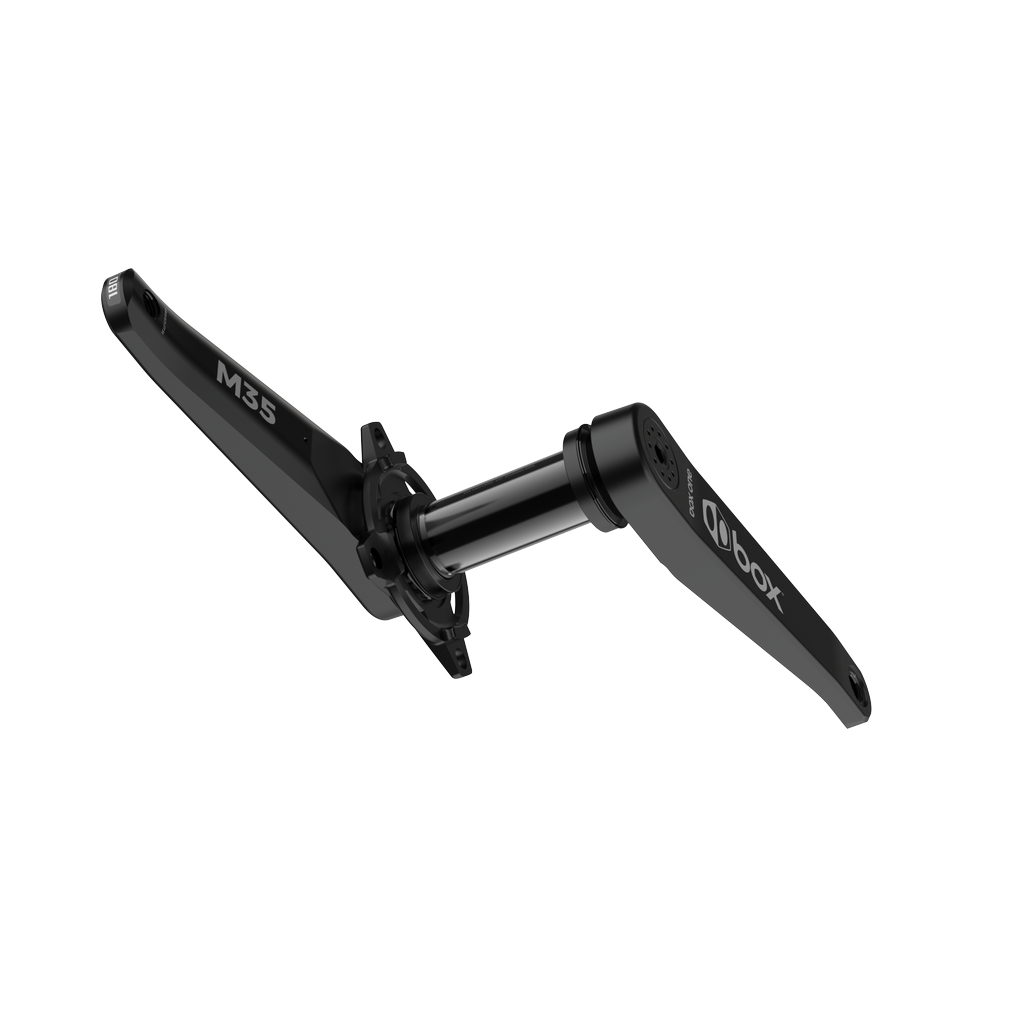

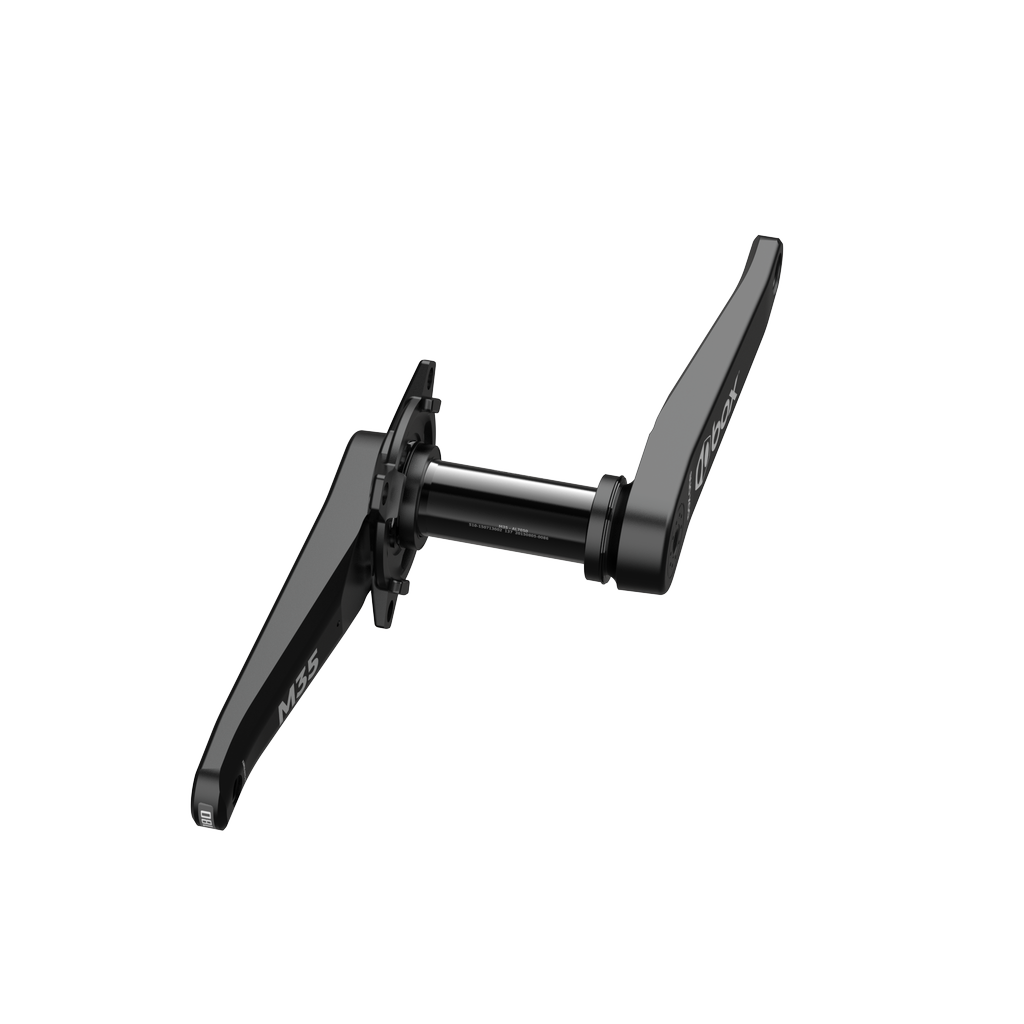

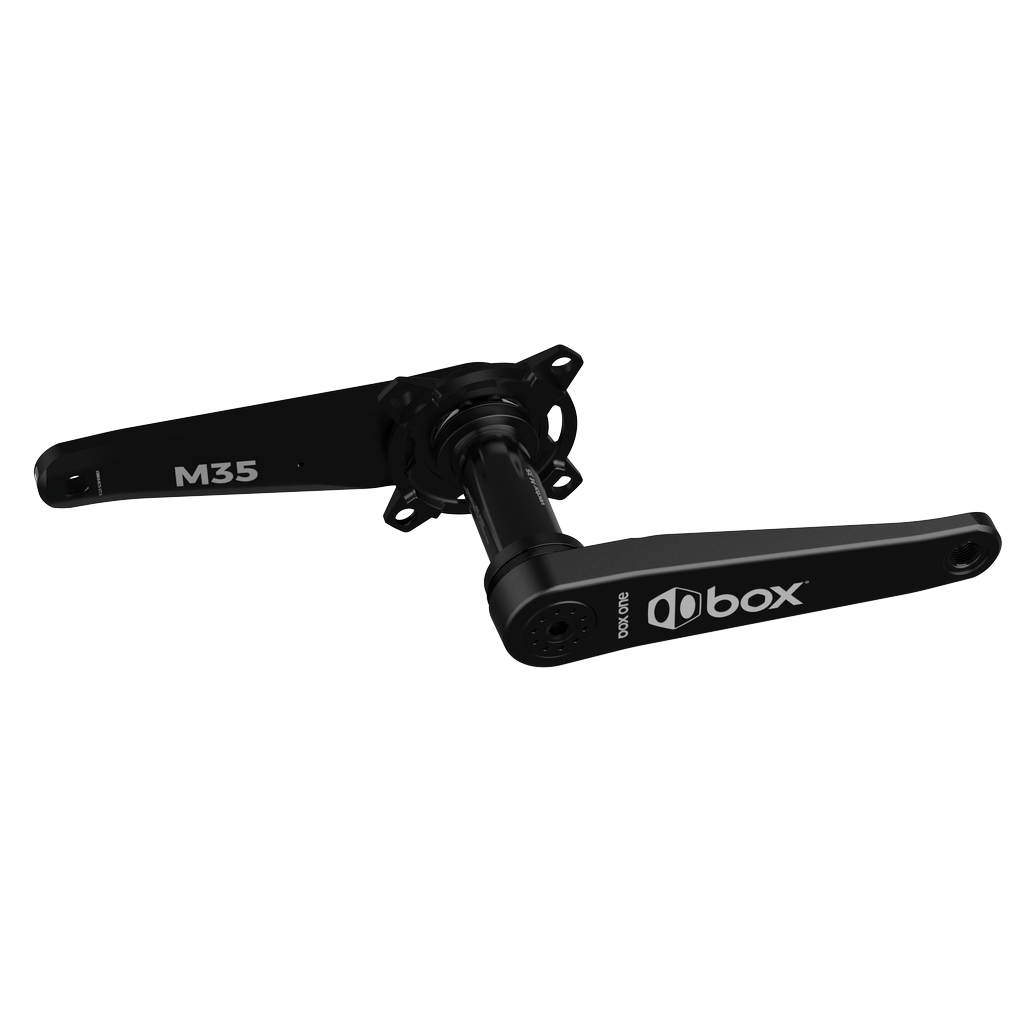

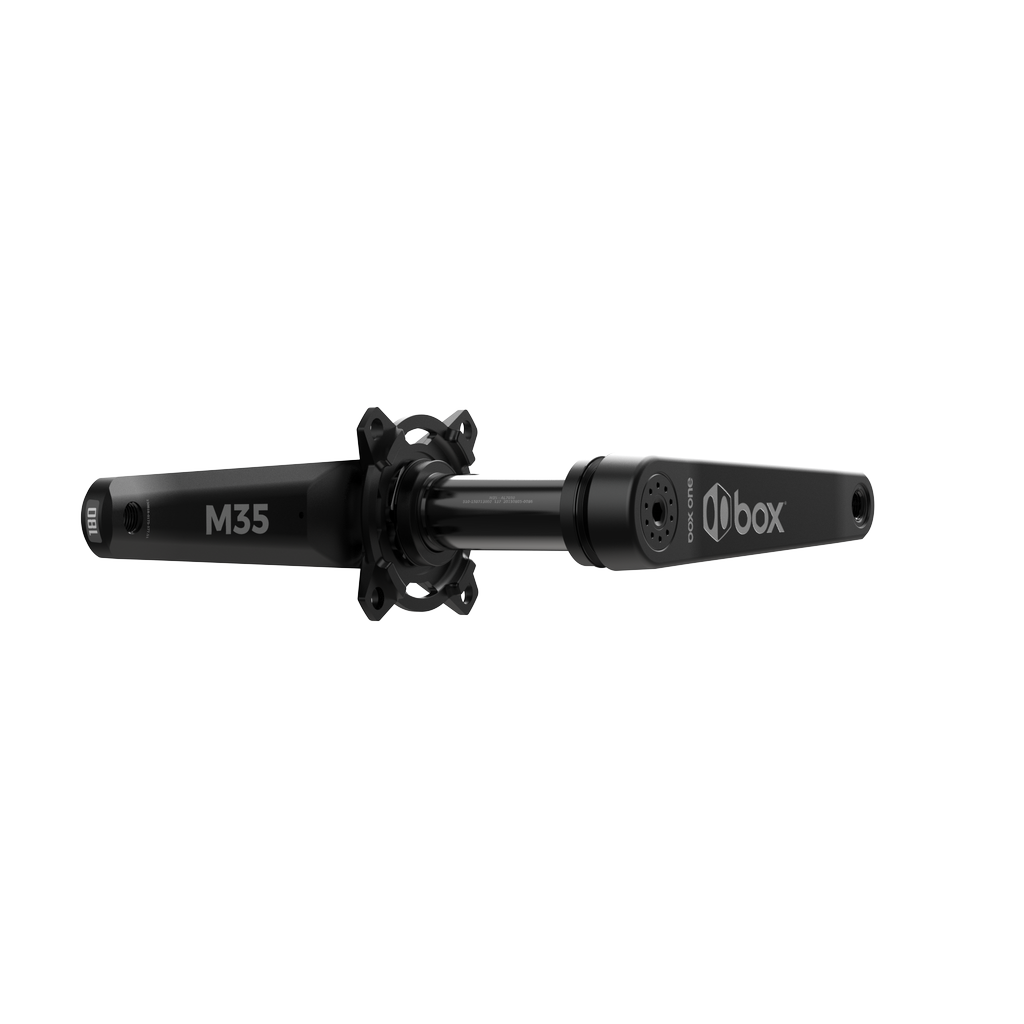

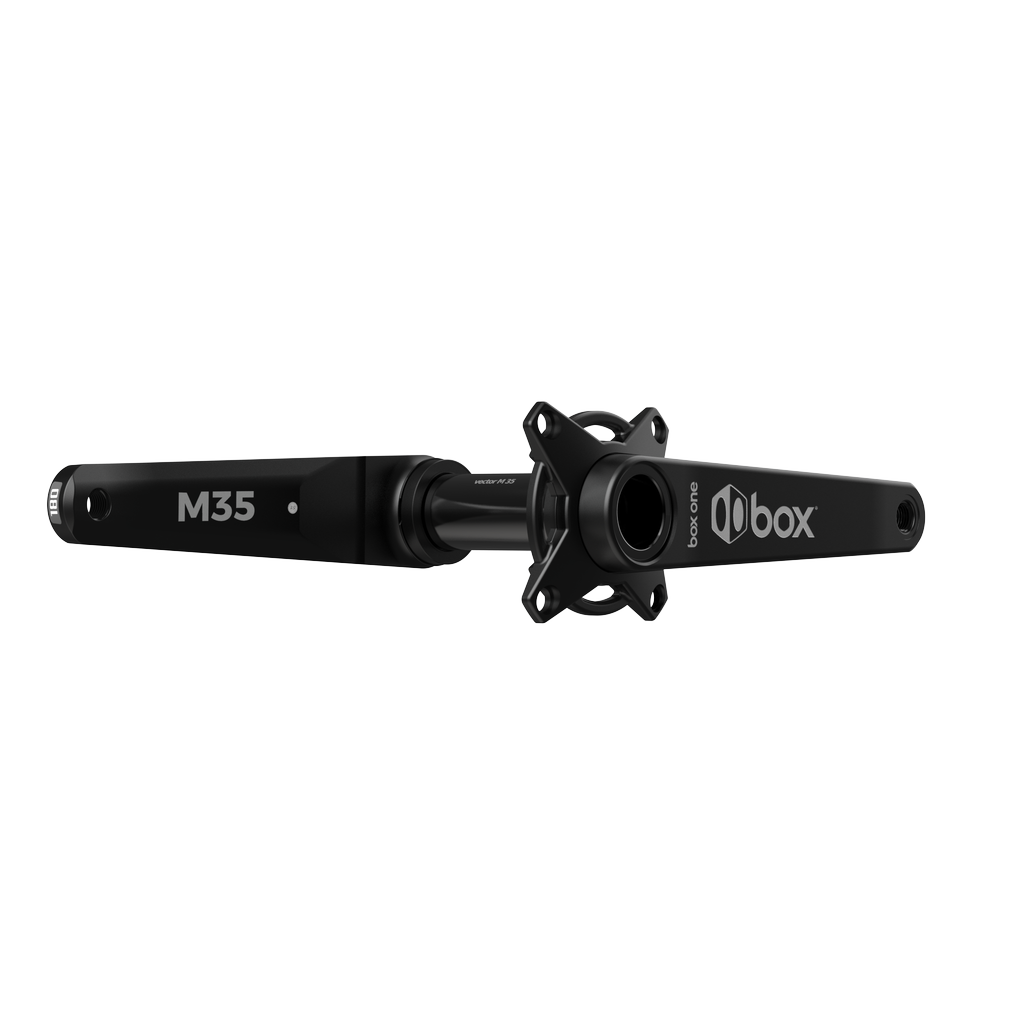

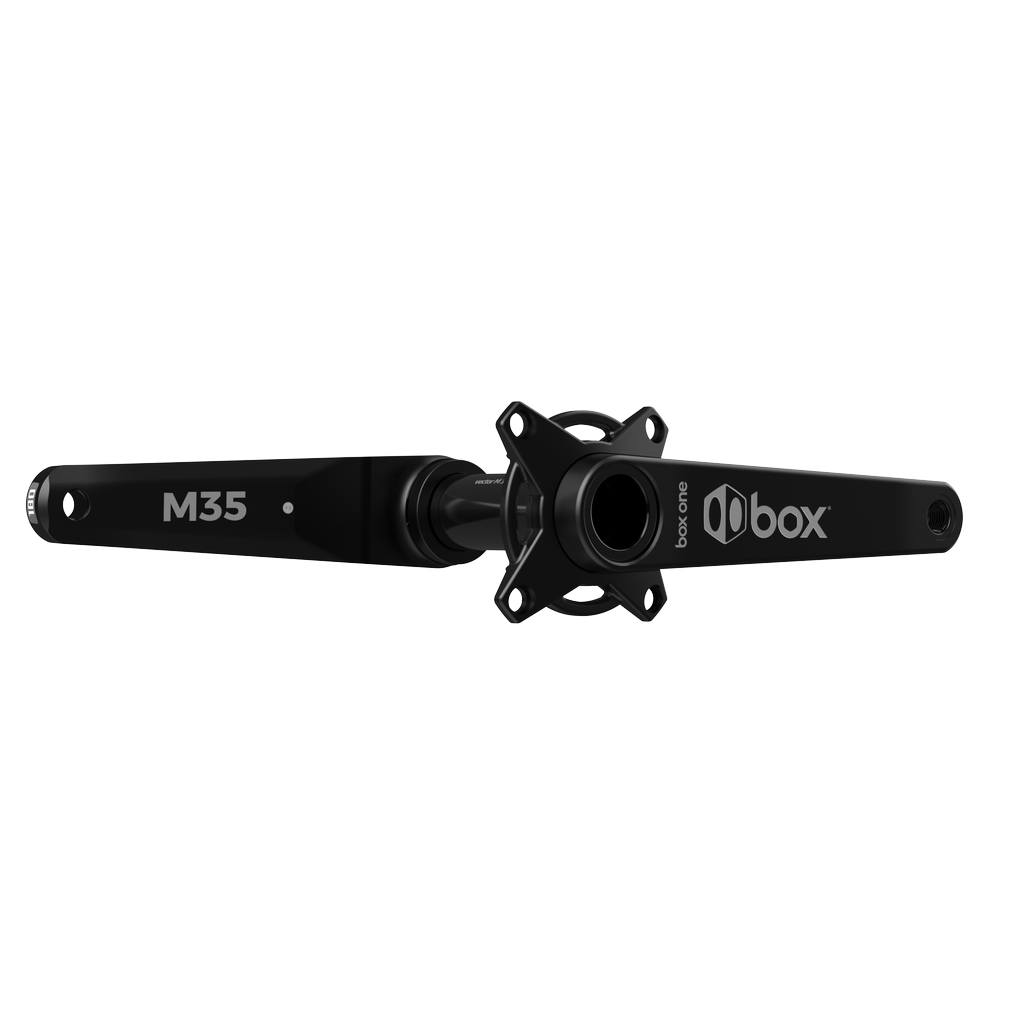

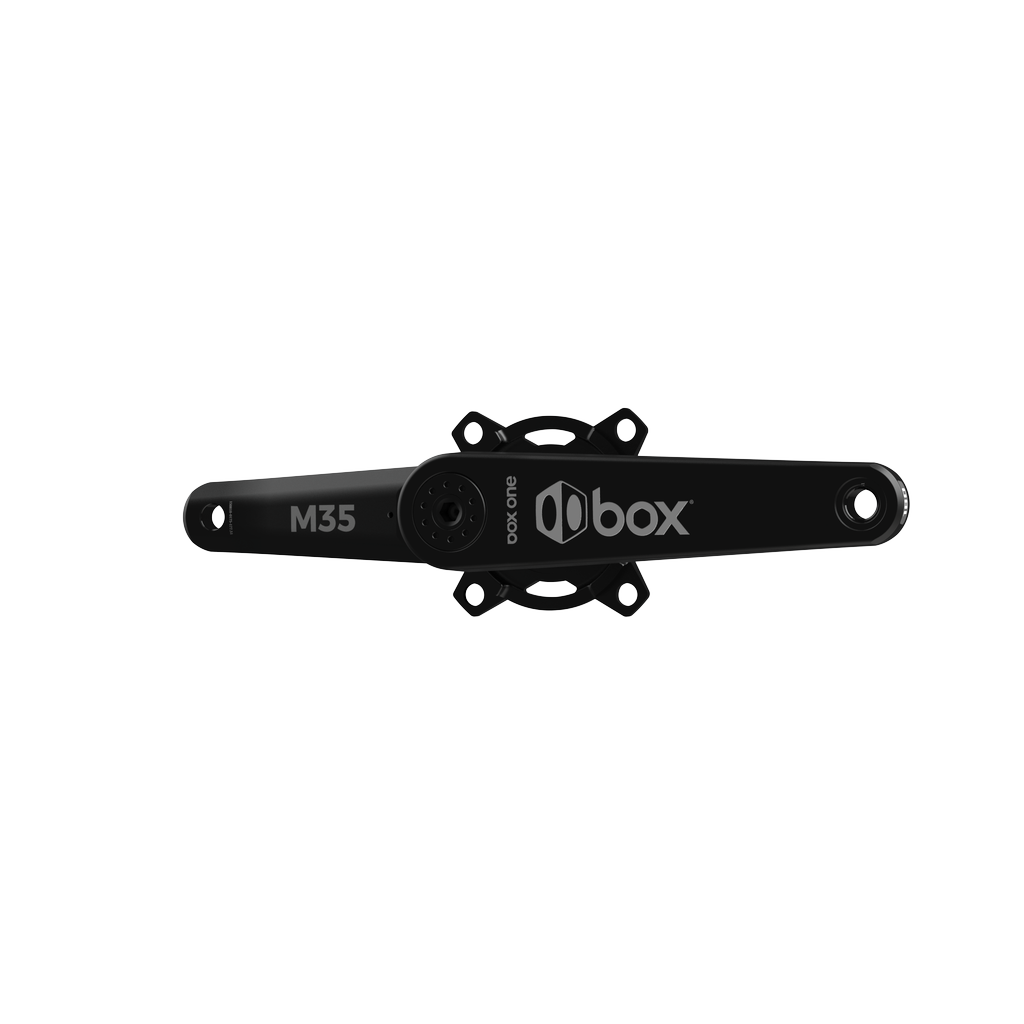

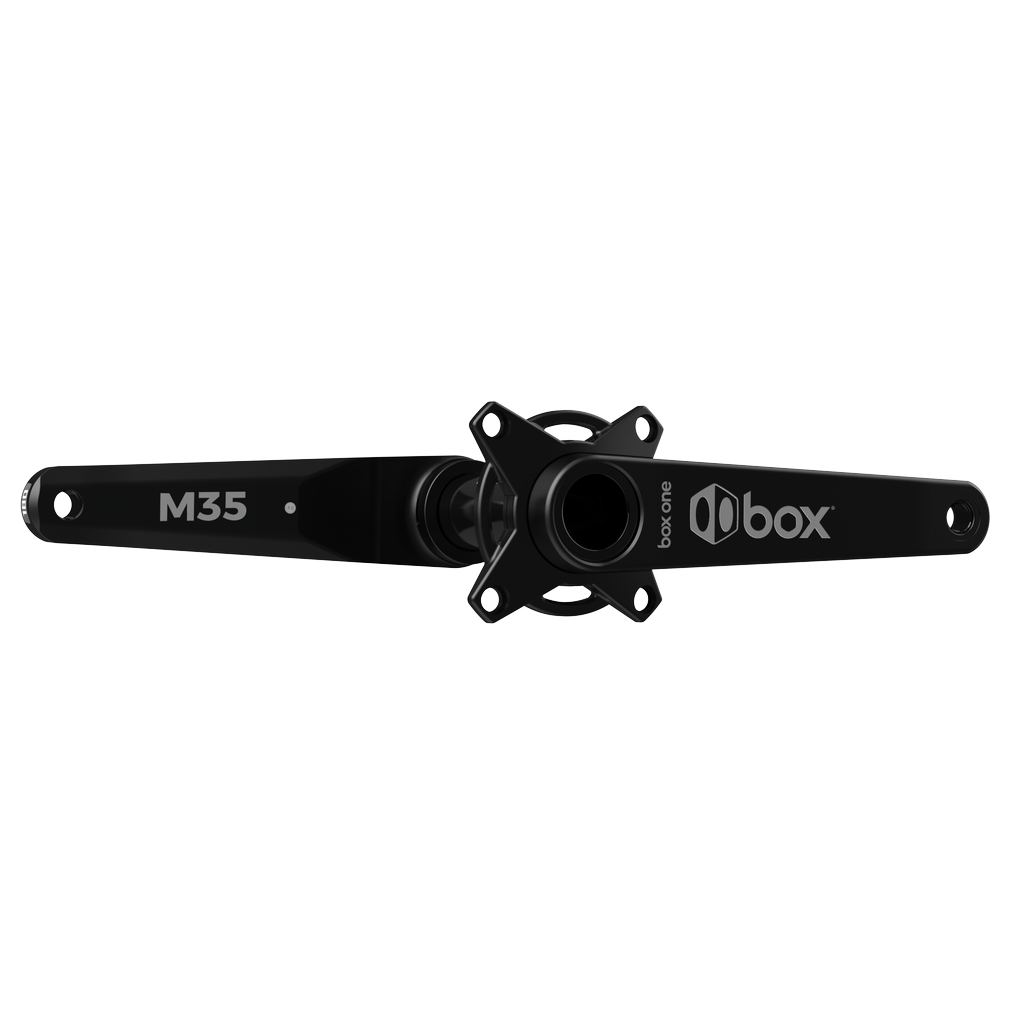

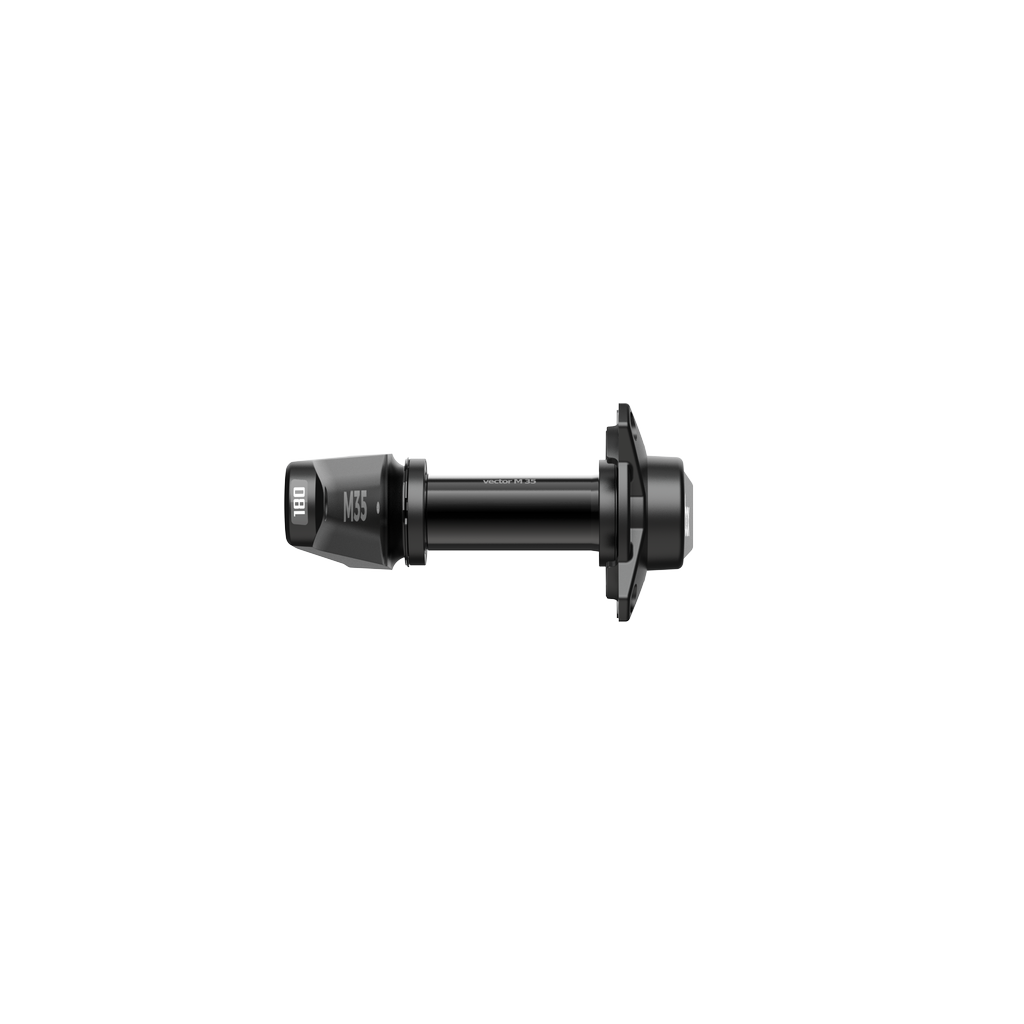

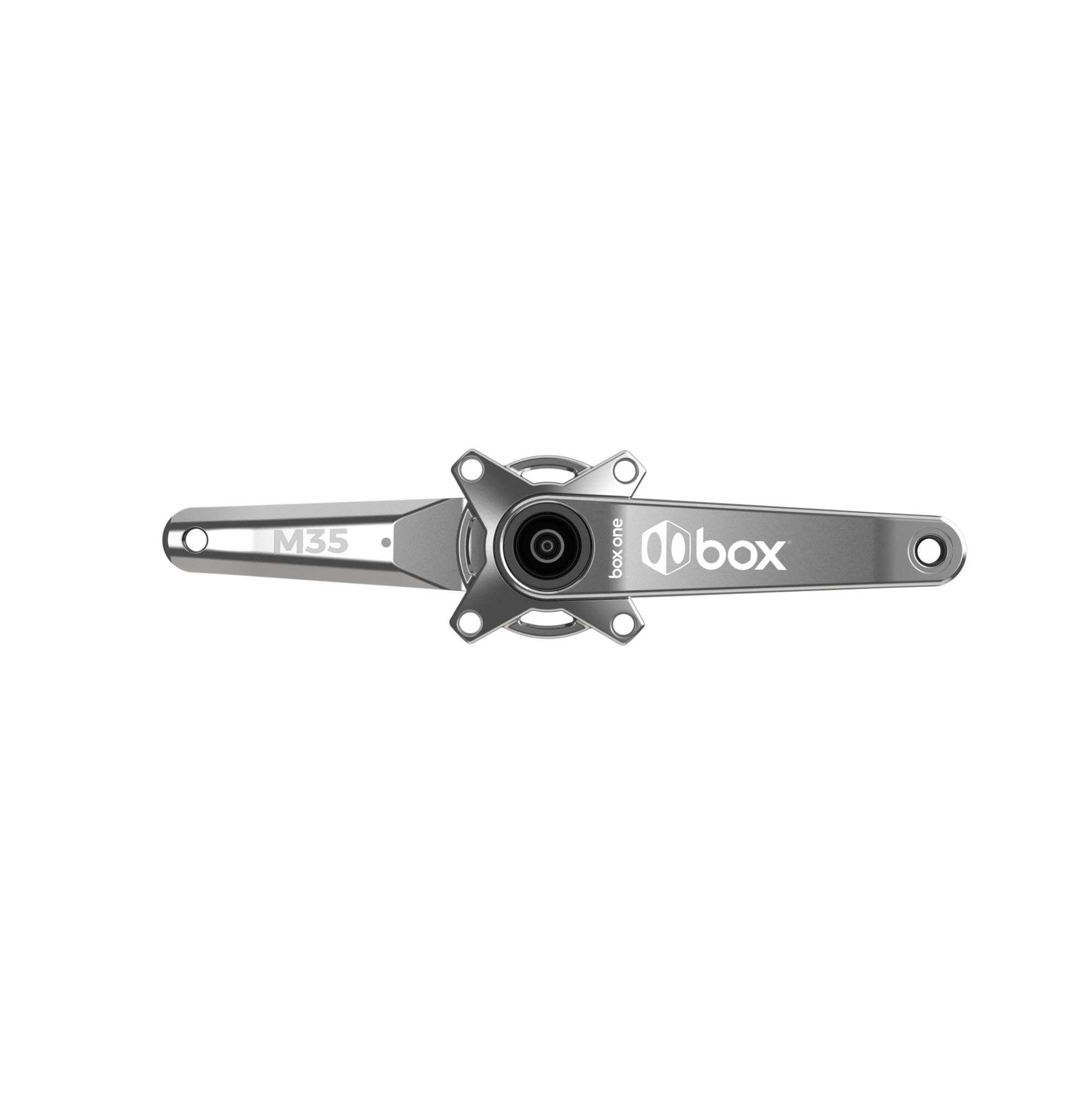

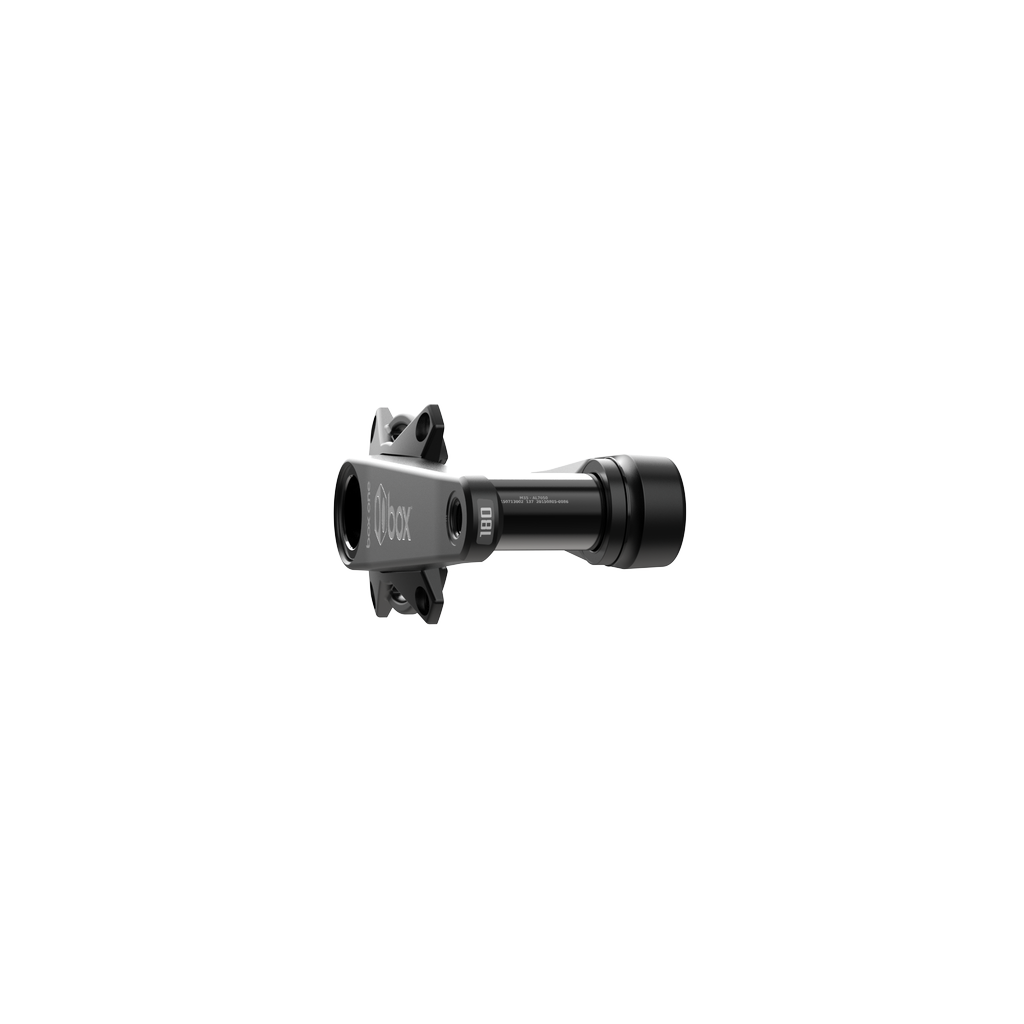

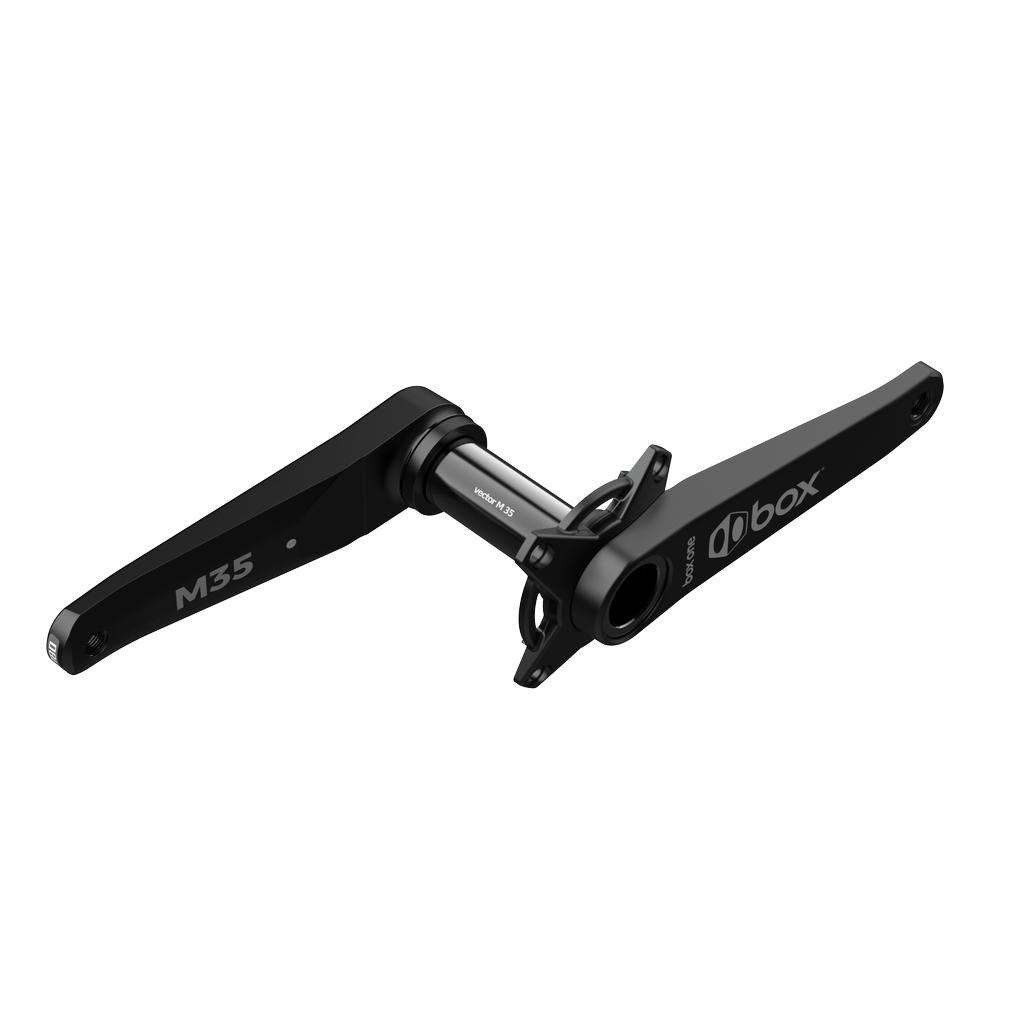

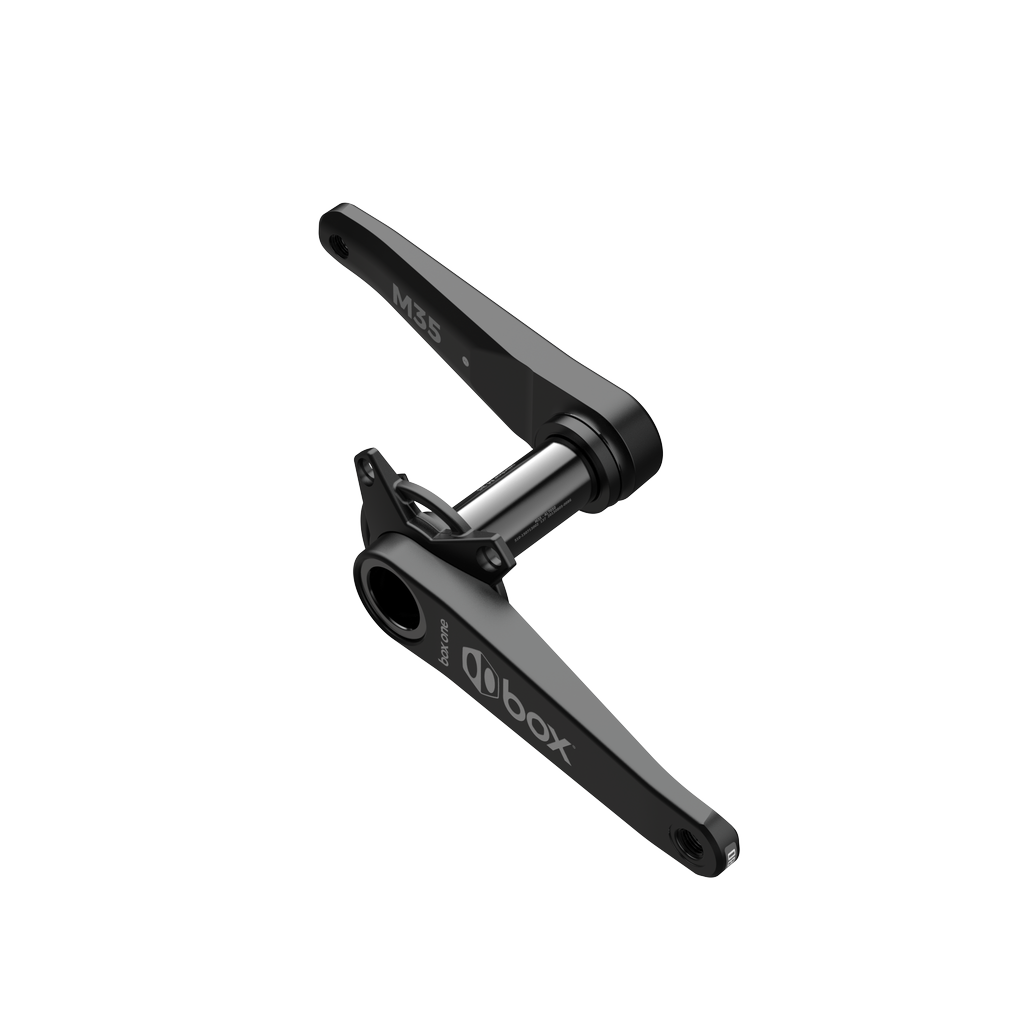

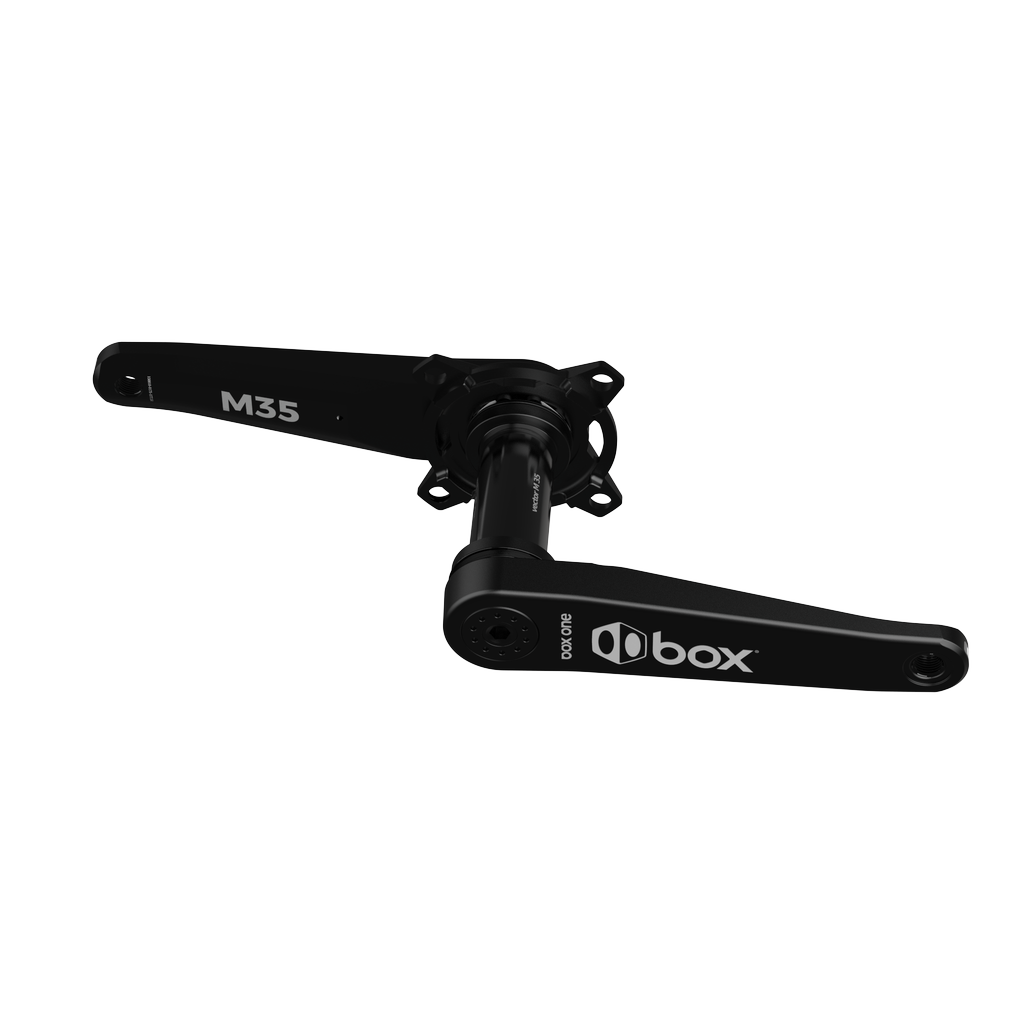

Key differences: The Box One M35 crankset takes the oversized spindle action to an extreme with a colossal 35mm diameter cross-section courtesy of Praxis™. That dimension might seem massive, but we’ve also employed the use of cold-forged 7075 T6 aluminum. That's an alloy that delivers low mass but that also flirts with the toughness of steel. We then grind that spindle with the kind exactitude you’d expect from medical equipment. The very prominent crank arms are hollow-forged with much of the wall thicknesses pushed to high-stress zones. A stabilizer ring acts as an anti-twist brace between spider legs. A precision CNC-machined Chromoly/alloy self-extracting crank bolt system secures the package. Remember, you’ll need a modern frame to cope with this kind of technology.

For compatibility questions, please click here

Weight Limit: 115kg (253 lbs) with limitations as per Category 2 of EN 16054:2012 Standard

Oversized Technology™
• Hollow Forged Design

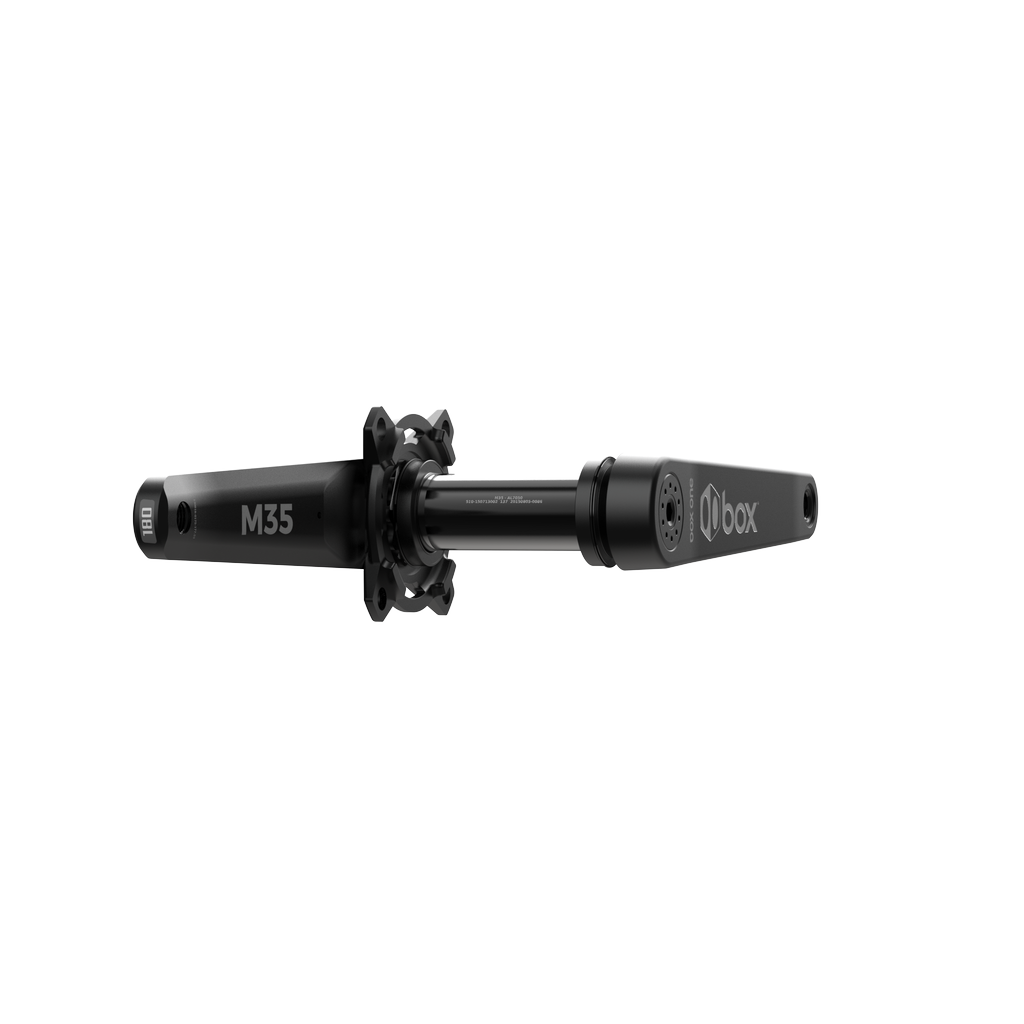

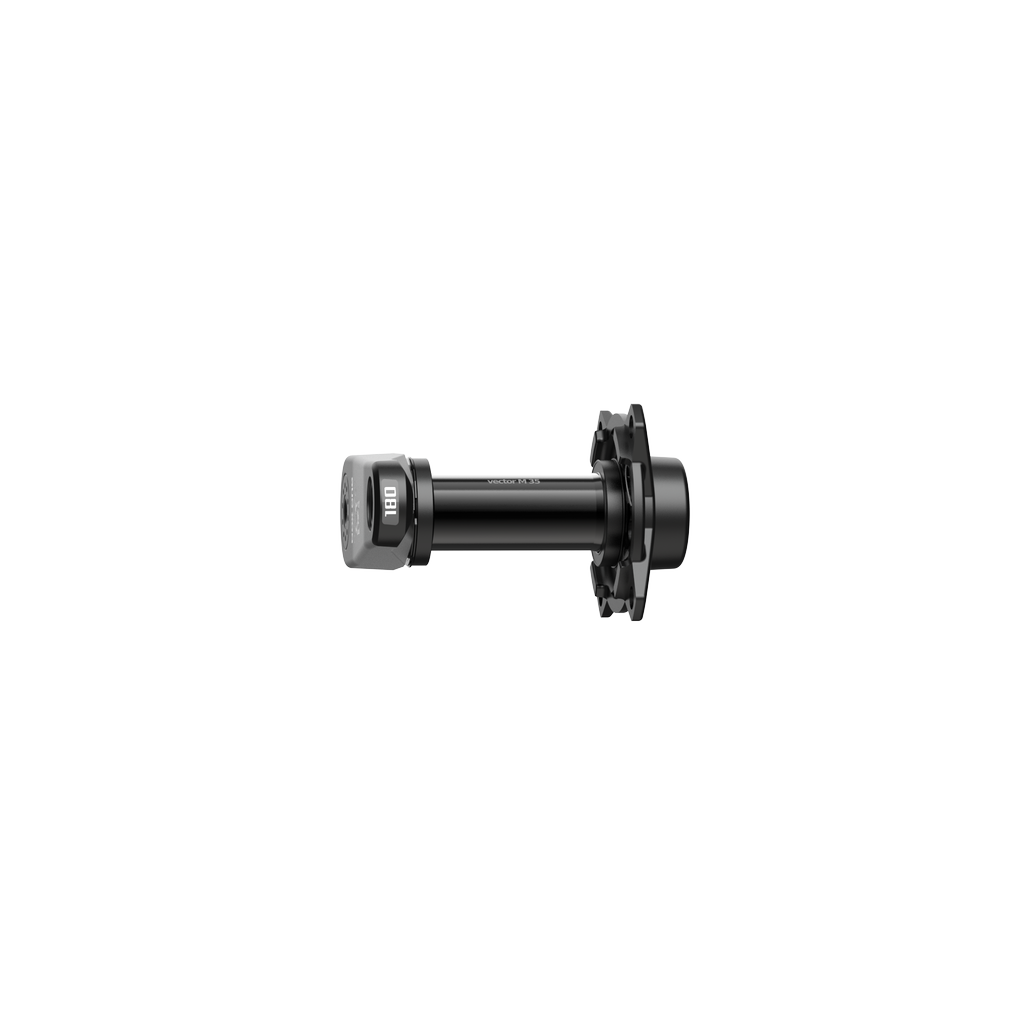

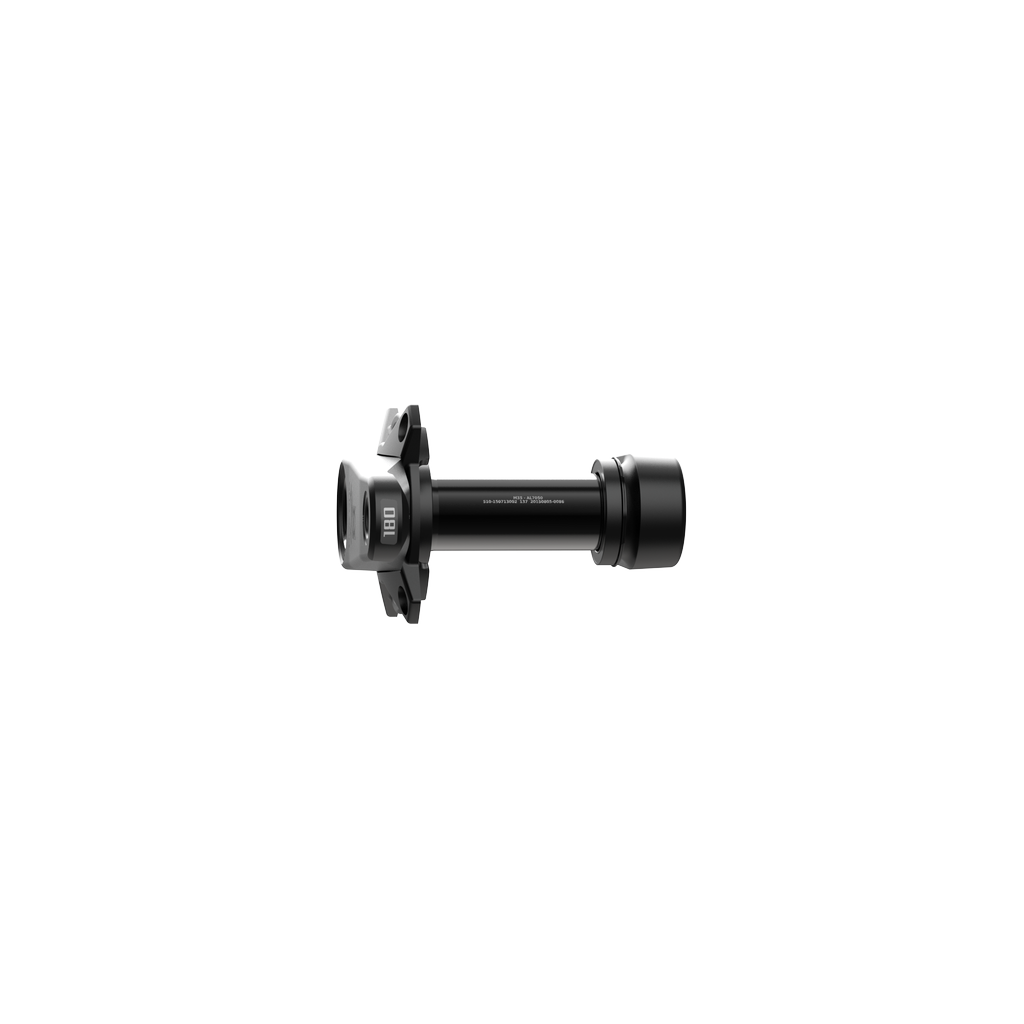

• Massive 35mm Alloy Spindle

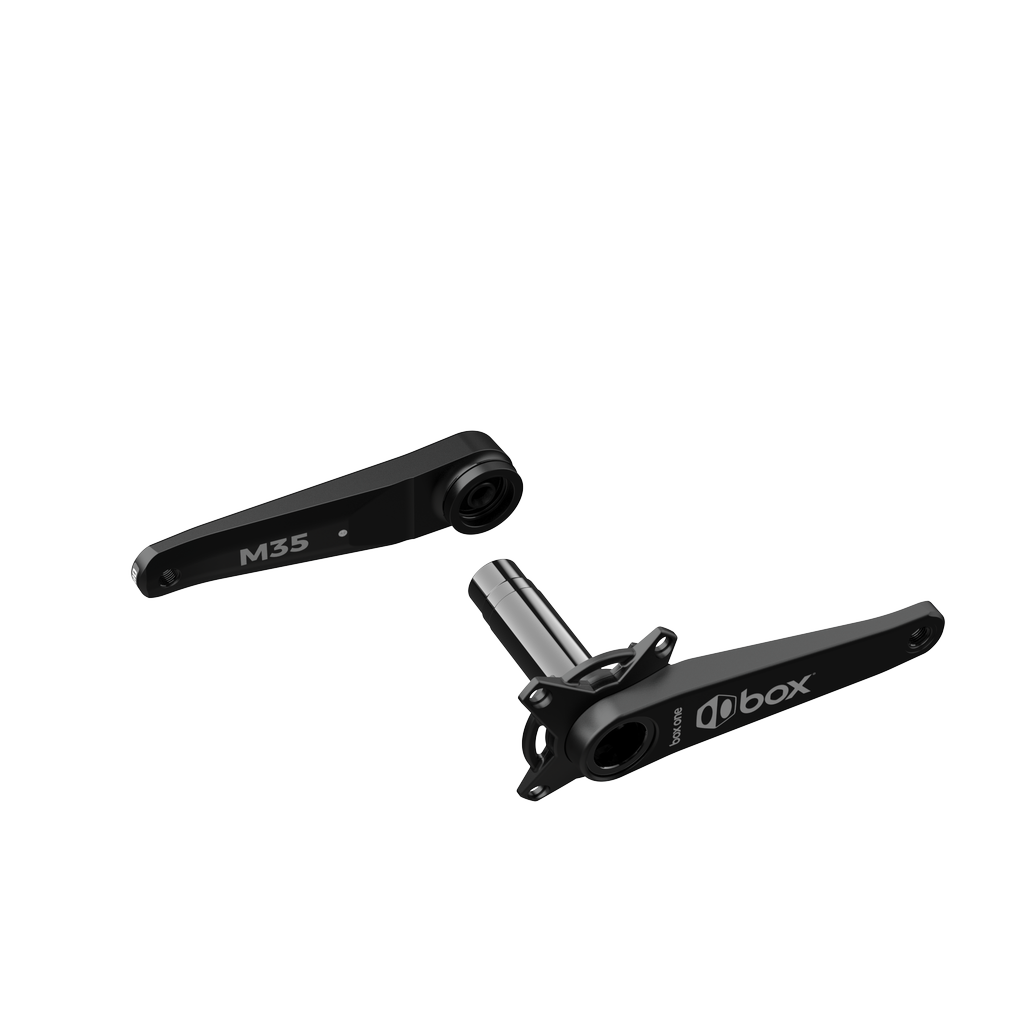

• Self-Extracting Crank Bolt System
• Spider with Flex-Resistant Ring

Material:
• Arms: 7075 T-6 Aluminum
• Spindle: 7075 T-6 Aluminum
Process:
• Arms: Hollow-Forged & CNC
• Spindle: CNC Turned
Finish: Anodized w/Laser-Etched Graphics
Chainline: 44.5mm
Q Factor: 168mm
Spindle: 35mm Included
Bottom Bracket: 35mm BB30/PF30 Included
Compatibility:
• Chainring: 4-bolt 104 BCD
Size & Weight:
• 172.5mm / 940g/33.1oz
• 175mm / 945g/33.3oz
• 177.5mm / 950g/33.5oz
• 180mm / 955g/33.7oz

Box Two Chainring
Box One Chromoly Chainring Bolts
Box One 7075 Alloy Chainring Bolts
Box Two M35 bottom bracket

SKUBX-CK1335172-BK

Banner Image

Enhanced Power Delivery // FASTER

There is no use pushing hard on your pedals if you can’t deliver most of that power to the rear wheel.

Power delivery AKA pedaling stiffness. When a rider pushes down on a pedal, the pedal, crank set, bottom bracket, frame and all the hardware holding those together deflects laterally. Stiffer components deflect less, so more of your energy output goes into turning the rear wheel, rather than deforming the components and frame. By using Oversized technology, Box is able to add only the appropriate amount of material for stiffness where it is most needed. It is possible to add too much stiffness where the rider will not feel the benefits. Going beyond that point simply adds material which is surplus weight.

Superior Control // FASTER RESPONSE

Wonder why there is lag time between input from your hands to reaction from your bike?

Bike control can be defined as steering stiffness and this affects how your bike handles as a result of rider input. At Box we define steering stiffness by how much the grips, handlebar, stem, fork, wheels, frame and all hardware between twists when they are ridden around a corner. Higher steering stiffness contributes to a more responsive handling bike by reducing latency between hand input and reaction in the bike. Just as with power delivery, by using Oversized technology, Box is able to add only the appropriate amount of material for steering stiffness where it is most needed. This allows our components to combat the cornering load as it passes along its load path from grip all the way through to contact point on the track.

Armored Build  // MORE DURABLE

Why invest in cutting edge components if they don’t last?

Toughness is a natural byproduct of our Oversized technology. By adding size to specific areas of components we have not only increased pedaling and steering stiffness, we have also added toughness and strength. Larger surfaces also increase the ability of a component's ability to spread impact loads.

Advanced Materials // ALL ABOVE

Not all things are equal when it comes to materials of construction.

We don’t just manufacture carbon fiber parts. We engineer where the strength/stiffness needs to be and the layer of fibers are added and aligned in the direction and angle required to provide the best effect. With metal alloys we don’t just buy “aerospace grade alloys” we choose the appropriate aluminum alloy for the component, and send it through the appropriate heat treatment processes. We demand material certifications as part of our quality assurance program.
