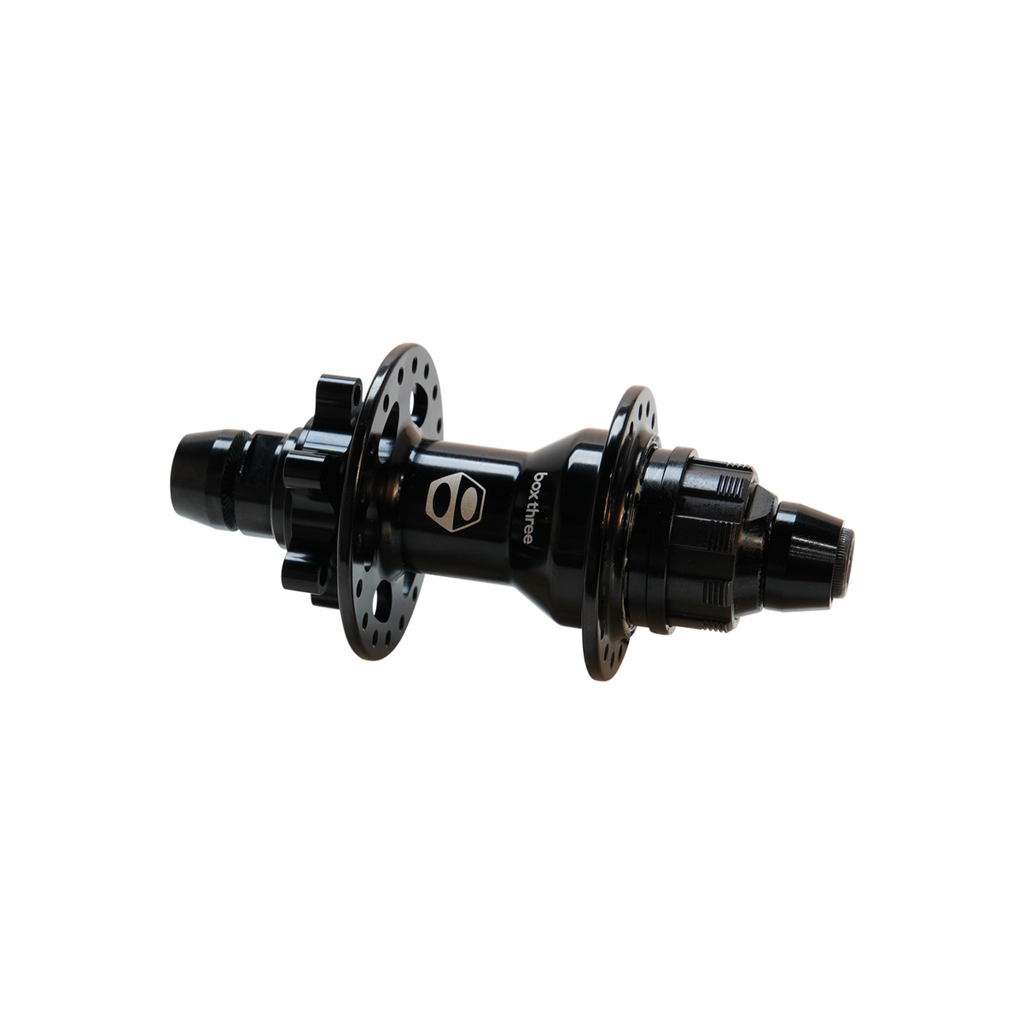

Box Three Pro 10mm Rear Disc Hub 36h Black

Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Availability
Sold out

BX-HU3-1036DR-BK

DESCRIPTION

The Box Three Pro Hubs are our most affordable hubs, but don't be fooled they are still packed full of features!

Our Box Three Pro Disc Rear hub has a super-fast 4-Pawl 120-Point engagement system, precision sealed bearings, a steel 10mm axle, AND a 6-Bolt disc brake rotor mount. This creates a hub that accelerates and decelerates insanely fast at a wallet-friendly price!

Hub includes Steel Bolts, Lockring, Spacers, and 16t Cog.

FEATURES
  • Forged Aluminum Hubshell
  • 10mm Axle
  • Chromoly Axle
  • 3-Pawl 120 Points of Engagement
  • Chromoly Driver
  • Sealed Bearings
  • Straight Flanges
  • Laser Etched Graphics


COMPATIBILITY

  • Box One Cassette Spacer Kit
  • Box One XL Pro Lite Carbon 1-1/8" Alloy Steerer 20” X 10mm Fork
  • Box One XL Pro Lite Carbon 1-1/8" Alloy Steerer 20” X 10mm Fork
  • Box One 24x1.75" 36-Hole Front Rim Black
  • Box One 20x1.75" 36-Hole Front Rim Black



FAQ

Yes, this hub is built to our Box One Pro Rim with Box One Pro Spokes In our Box Three Wheelsets.

We have published recommended lacing patterns and spoke lengths for all Box Hub to Box Rim wheel builds on www.boxcomponents.com/service

No, Box does not recommend radially lacing on any Box Components hub.

The internals can be easily disassembled by removing the drive-side lock-nut; the internals can be wiped down with a lint free rag and mild de-greaser and re-greased with a light amount of grease on the outside of the pawls. Too much grease could cause the pawls to stick or skip. Only disassemble if an issue is present.

SPECIFICATIONS
Axle 10x110
Hole Drilling 36
Material Aluminum, Hardened Alloy Steel
Hardware Steel
Driver Type Shimano Compatible
Engagement Sytem 3-Pawl 120 Points of Engagement
Brake Type 6-Bolt Interface
Finish Gloss Black
Weight 445g/15.7oz
