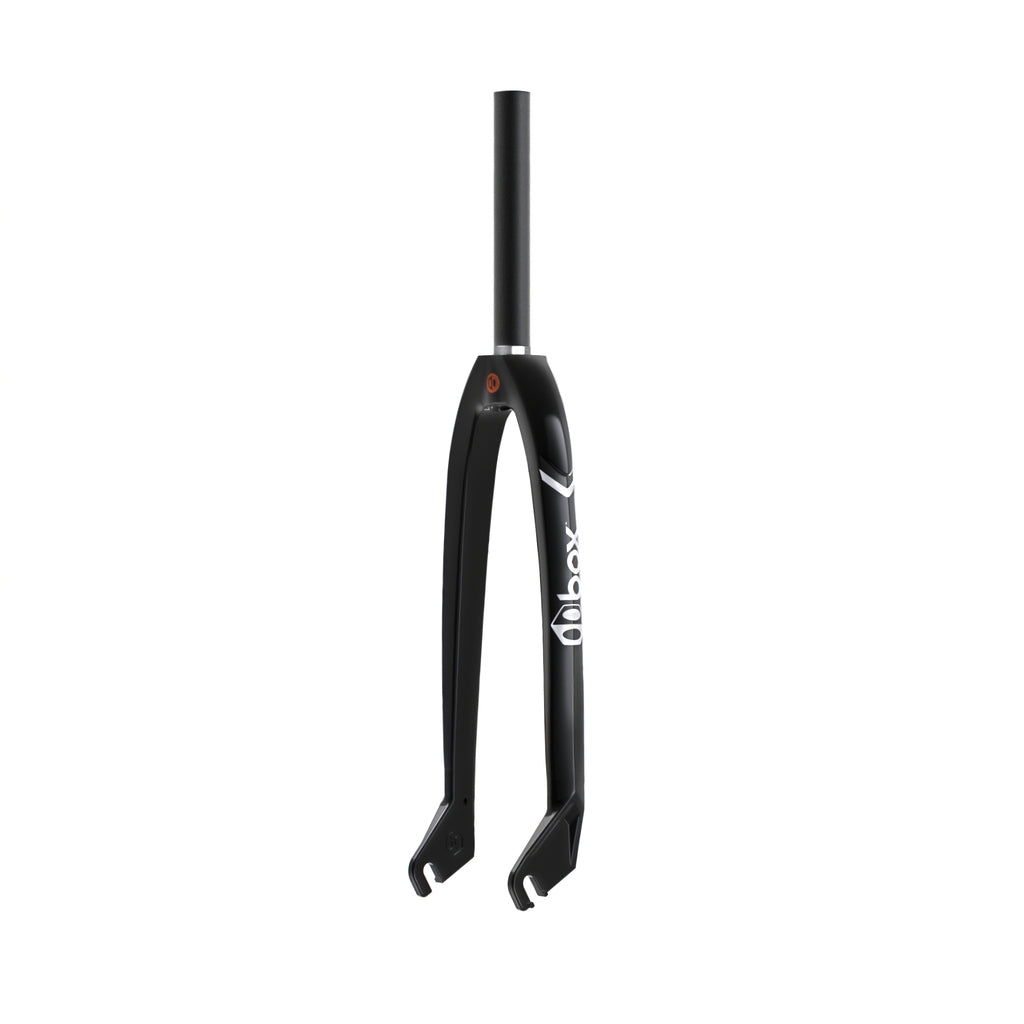

Box One XE Expert Carbon Forks

$329.99 Sale • Save
Size 24 x 10mm
Color Black

Only 0 left in stock

SKUBX-FK20E2410-BK

All Box One forks are engineered and crafted using our Oversized Technology. These forks are the single most crucial component in the quest for bike control. We’ve moved carbon from areas of low stress to areas that handle high load. Those muscular shoulders aren’t just for looks, as they are integral to achieving superior steering stiffness. When combined with Box’s other Oversized components, you’ll experience heightened responsiveness and reduced latency.

Key differences: This particular model fork is tailored for mid-sized racers and includes a lighter weight 1 inch 7000 series aluminum steerer tube and 10mm cold-forged dropouts.


Weight Limit: 45 kg (99 lbs) or less with limitations as per Category 1 of EN 16054:2012 Standard



For compatibility questions, please click here.

7075-T6 Aluminum Standard 1” Steerer Tube to Accommodate Mid-Sized Racers
Designed for 10mm Axle Conventional Hubs
Internal Butterfly for Added Durability at Steerer Tube and Fork Crown Interface

Includes Box One™ Stem Lock

Note: Use of a star nut voids the warranty for this product.

Box One Stem Spacers
Box Two Stem Spacers
Box Two Threadless Headset
Box Two 1" Integrated Headset
Box Two 1" Integrated Conversion Headset
Box Two Headset Adapters
Box Two Top Load 1" Stem
Box Hex Lab 1" Stem
Box Two Center Clamp 1" Stem

Material:
• Legs: High Modulus Unidirectional Carbon Fiber
• Steerer: 7075-T6 Aluminum
• Butterfly & Dropouts: 6061-T6 Aluminum
Process:
• Legs: Vacuum Mold
• Steerer: Extruded & Butted
• Butterfly & Dropouts: Cold-Forged
Hardware: Stem Lock
Finish: Gloss Black/Matte Black with Water Decals
Compatibility/Size:
• Height: 20” / 24”
• Steerer: 1" Straight
• Offset: 32mm
• Axle: 10mm
Weight
• 20": 480g/16.9oz
• 24": 490g/17.3oz

Please note: weight may vary by +/- 10% due to carbon manufacturing processes.

What's the difference between the XS and the XE?
XS forks have narrower legs that accommodate smaller wheel and tire sizes than XE forks. They are also lighter than XE forks, which are potentially designed for a rider racing on a Junior-Expert XL/XXL frame.

Do I need to cut the steerer tube on this fork?
Cutting a steerer tube is optional, but typically not required.

May I use a star nut with this fork?
No. You must use the stem lock provided with the fork, or an equivalent expander plug (i.e. Box One Carbon Headset). Use of a star nut is prohibited and voids the warranty for this product.
