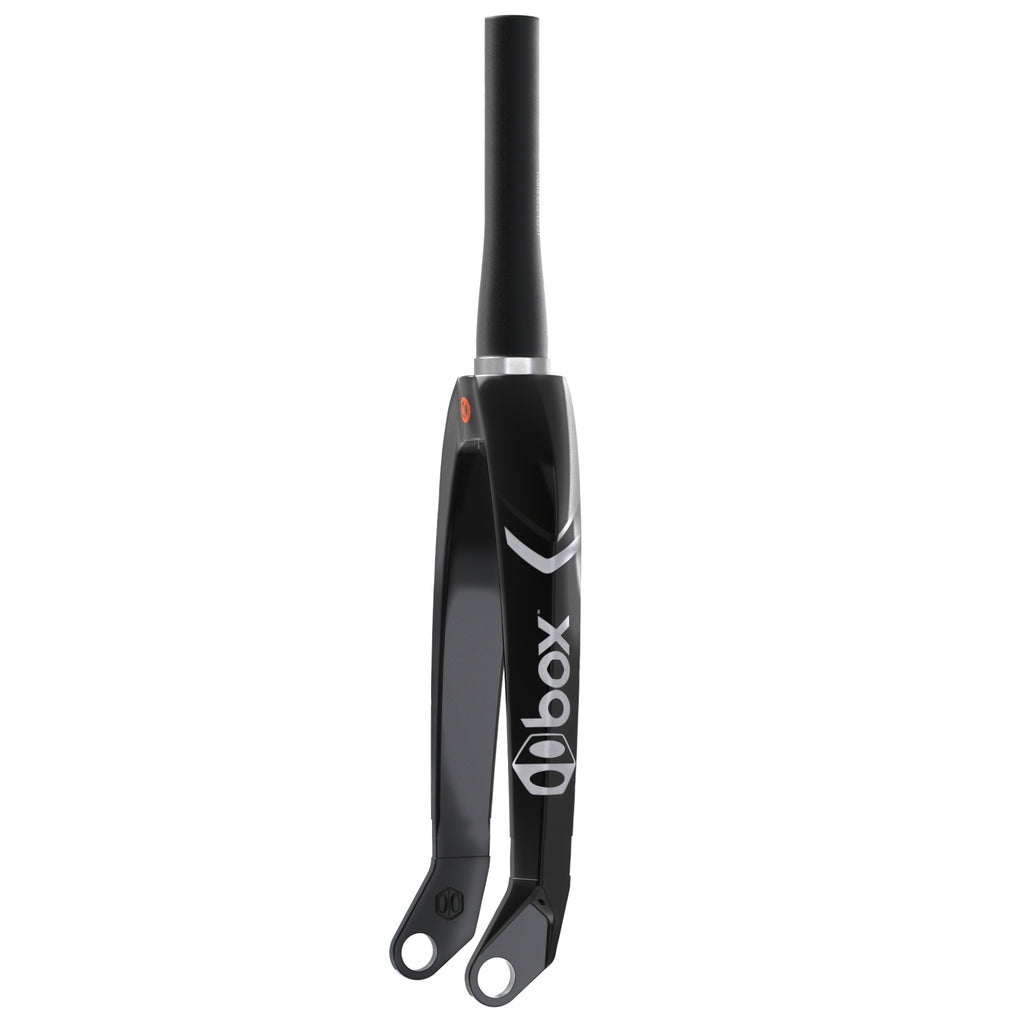

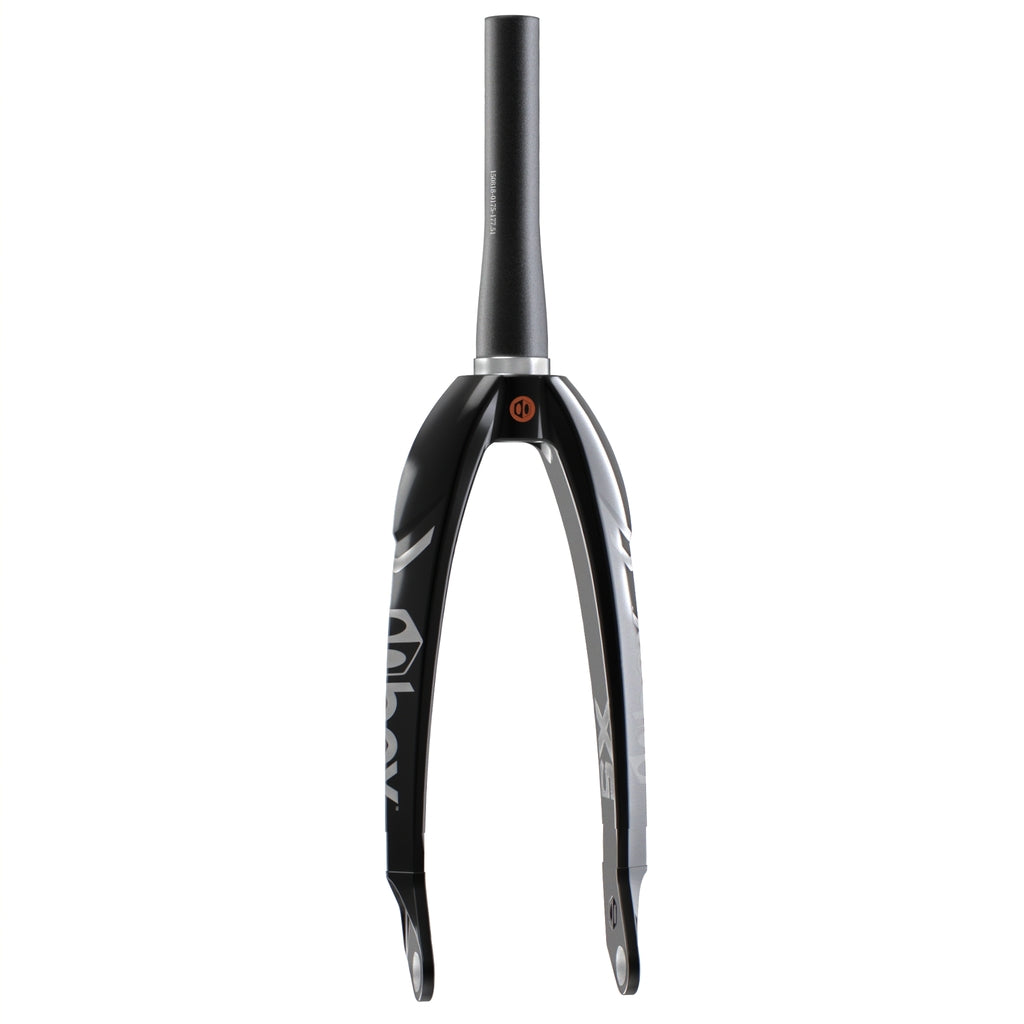

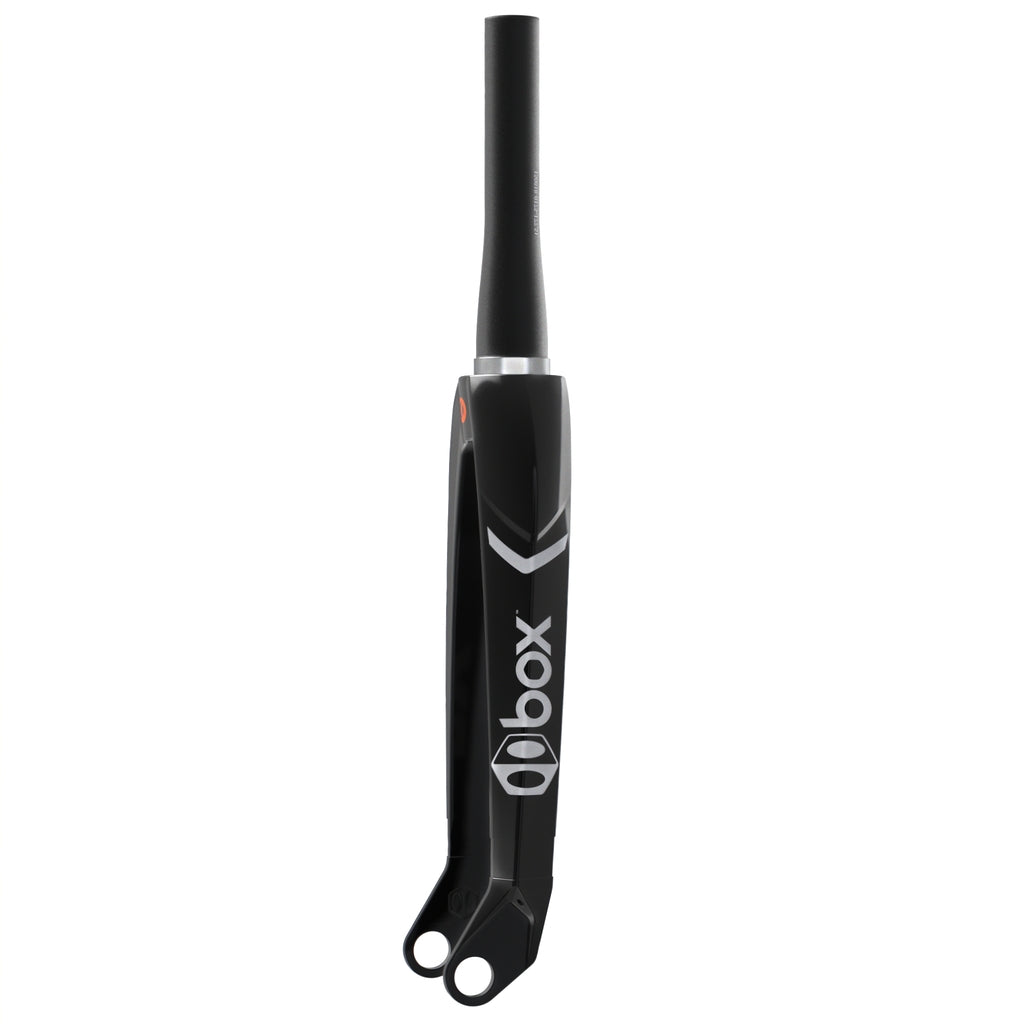

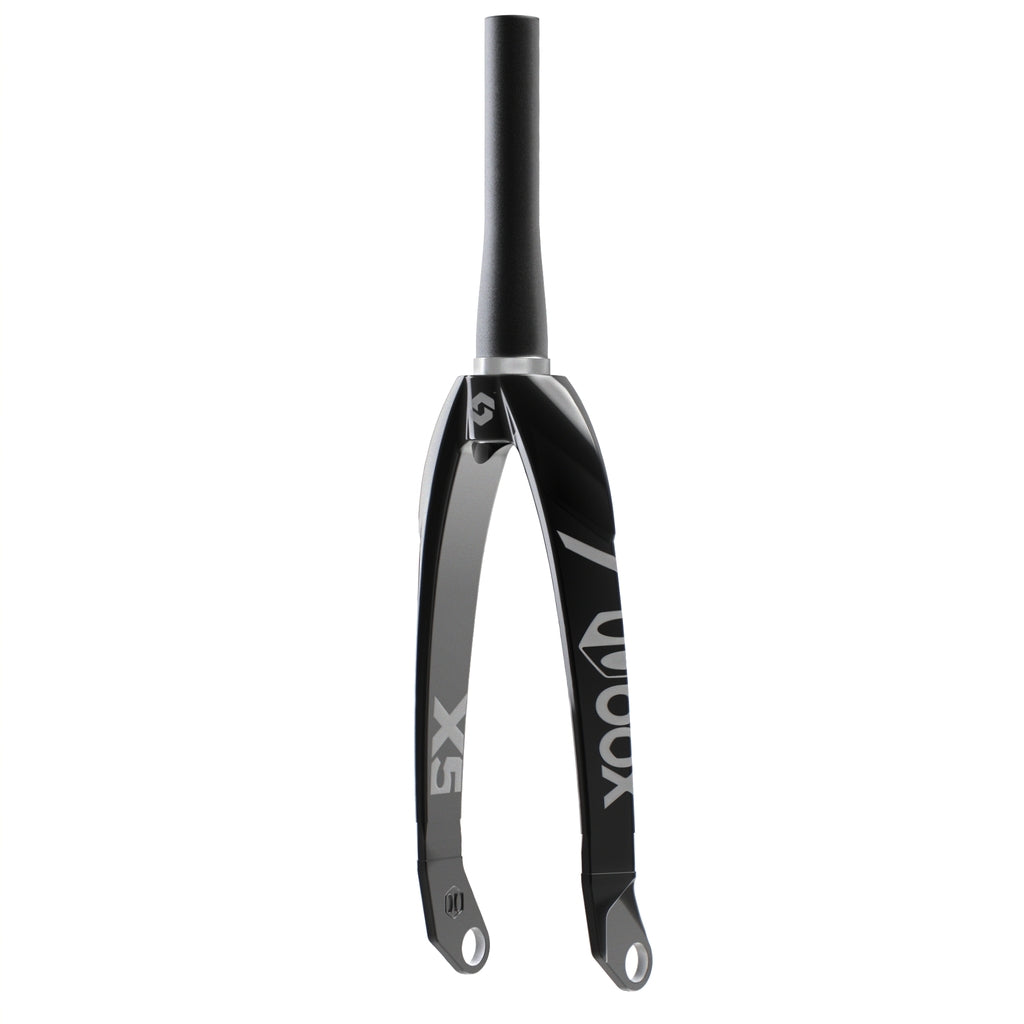

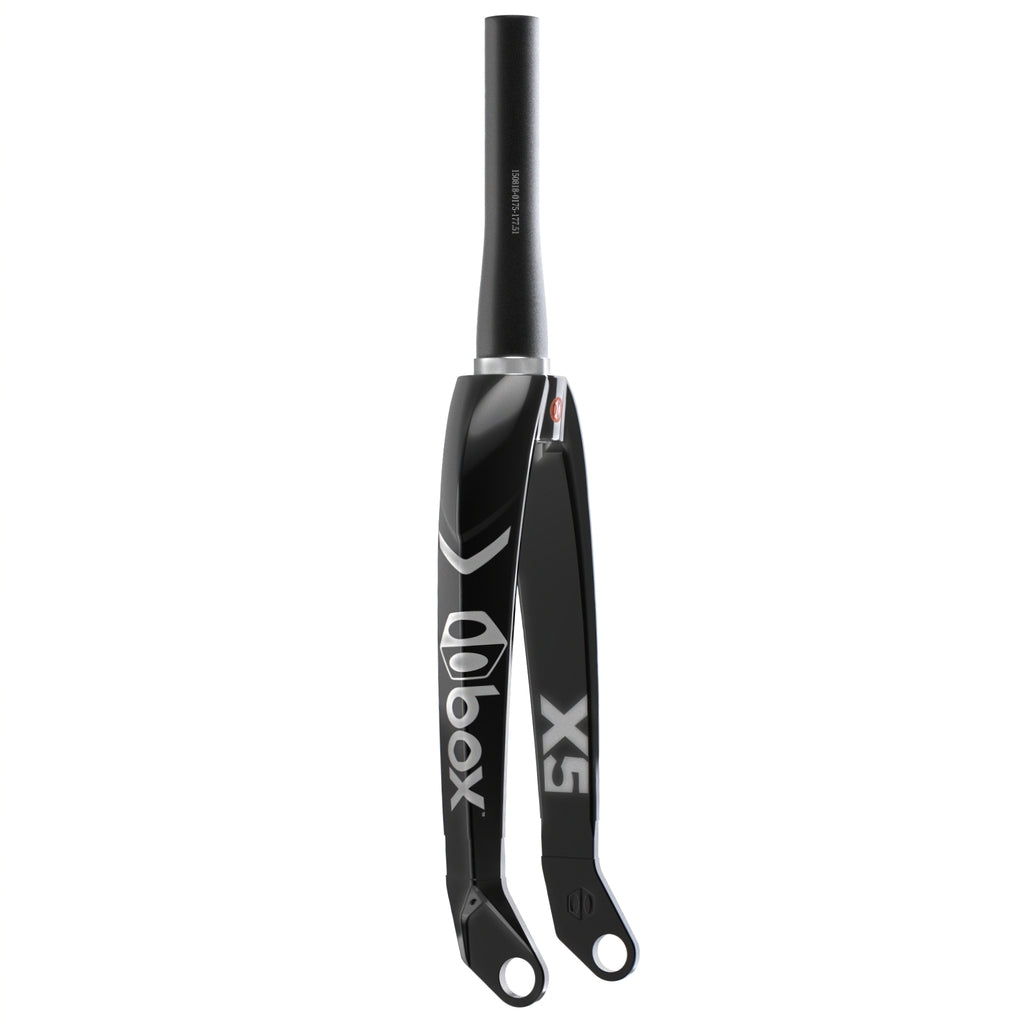

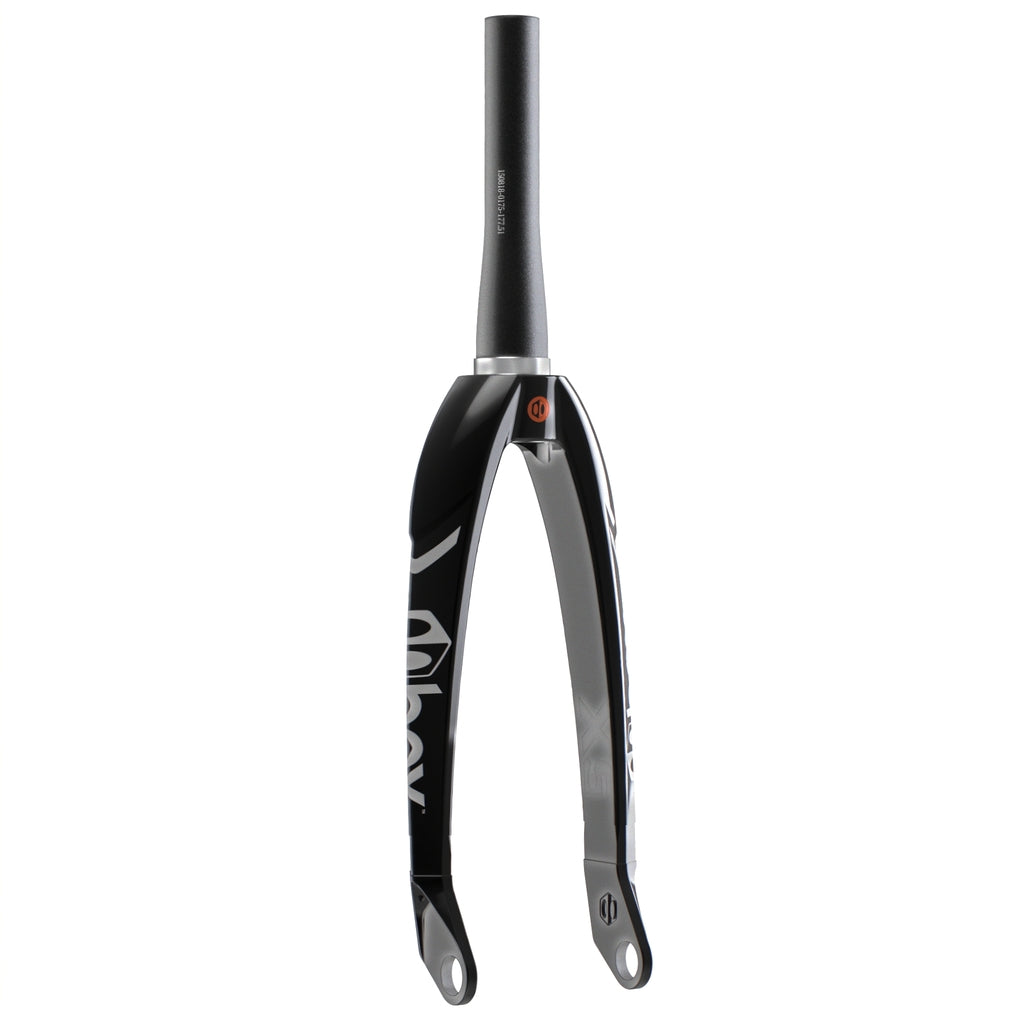

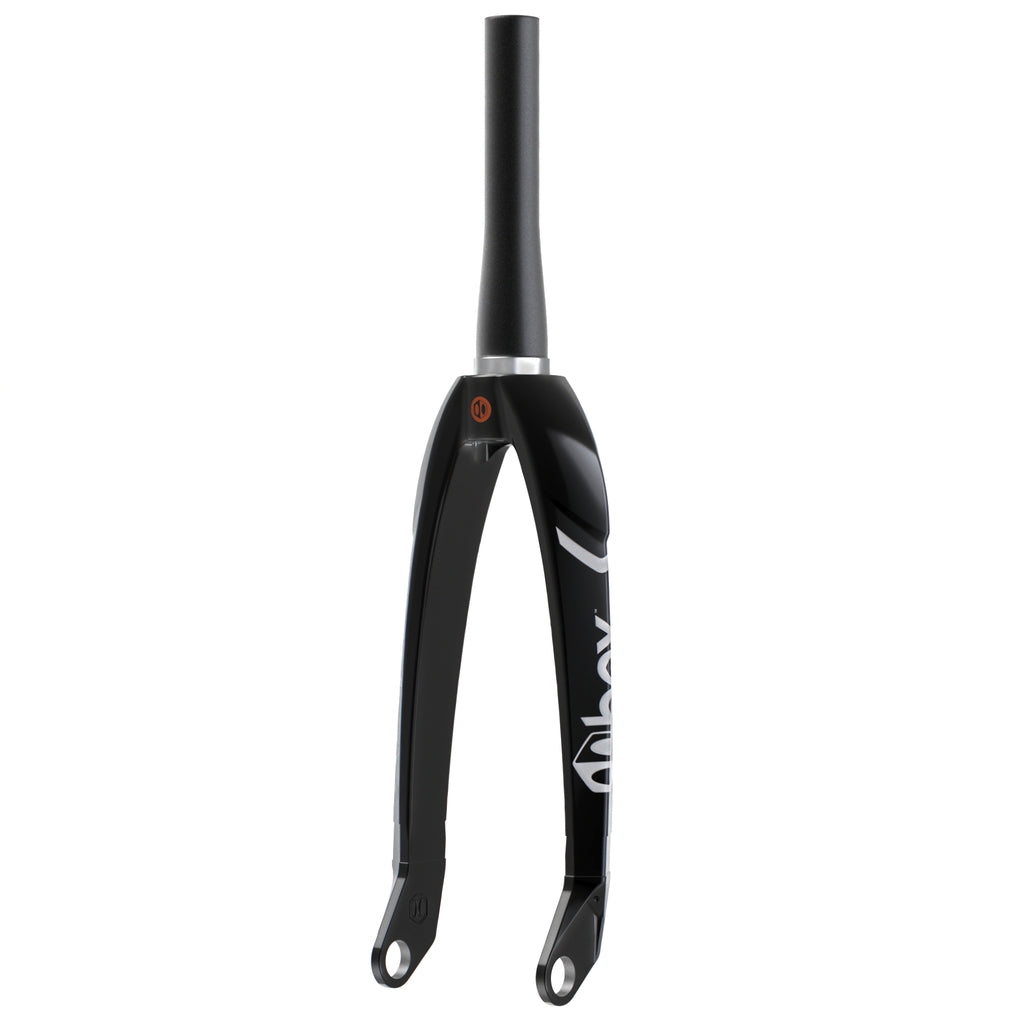

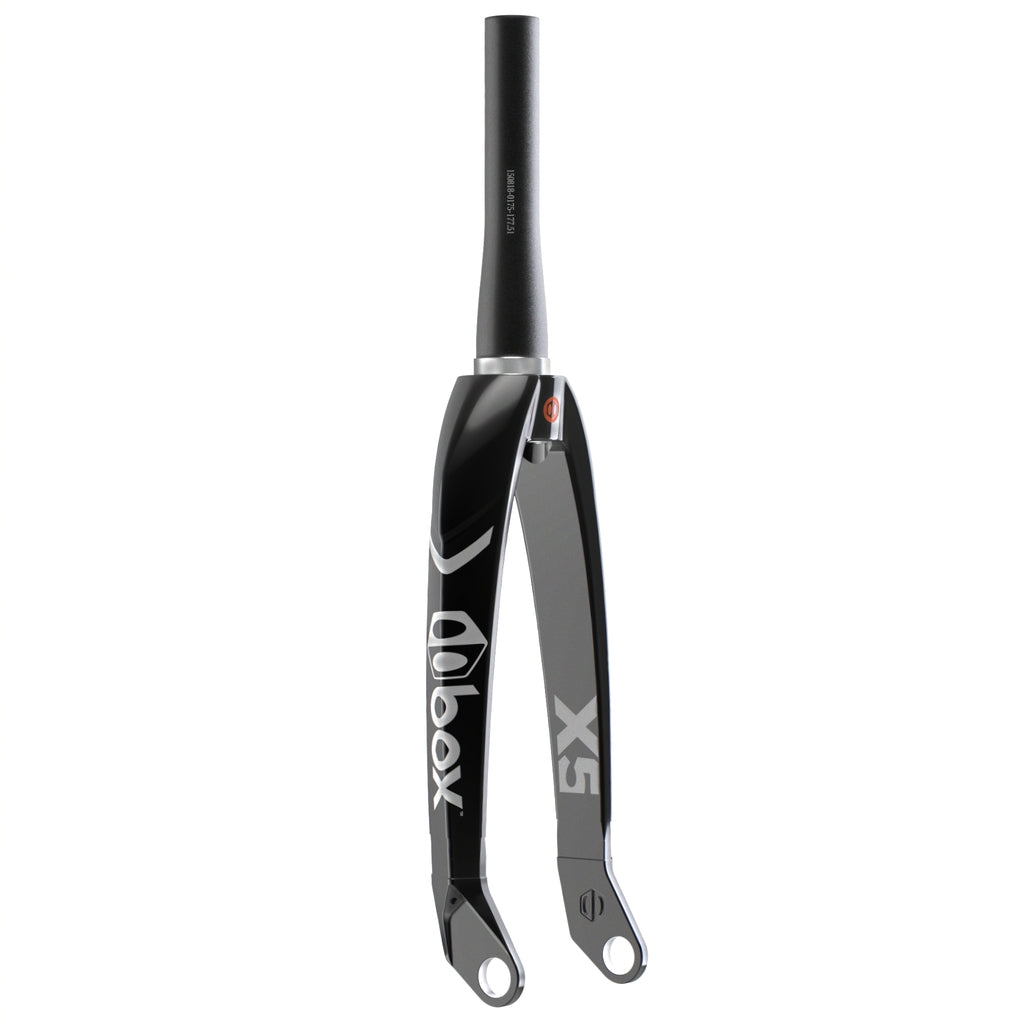

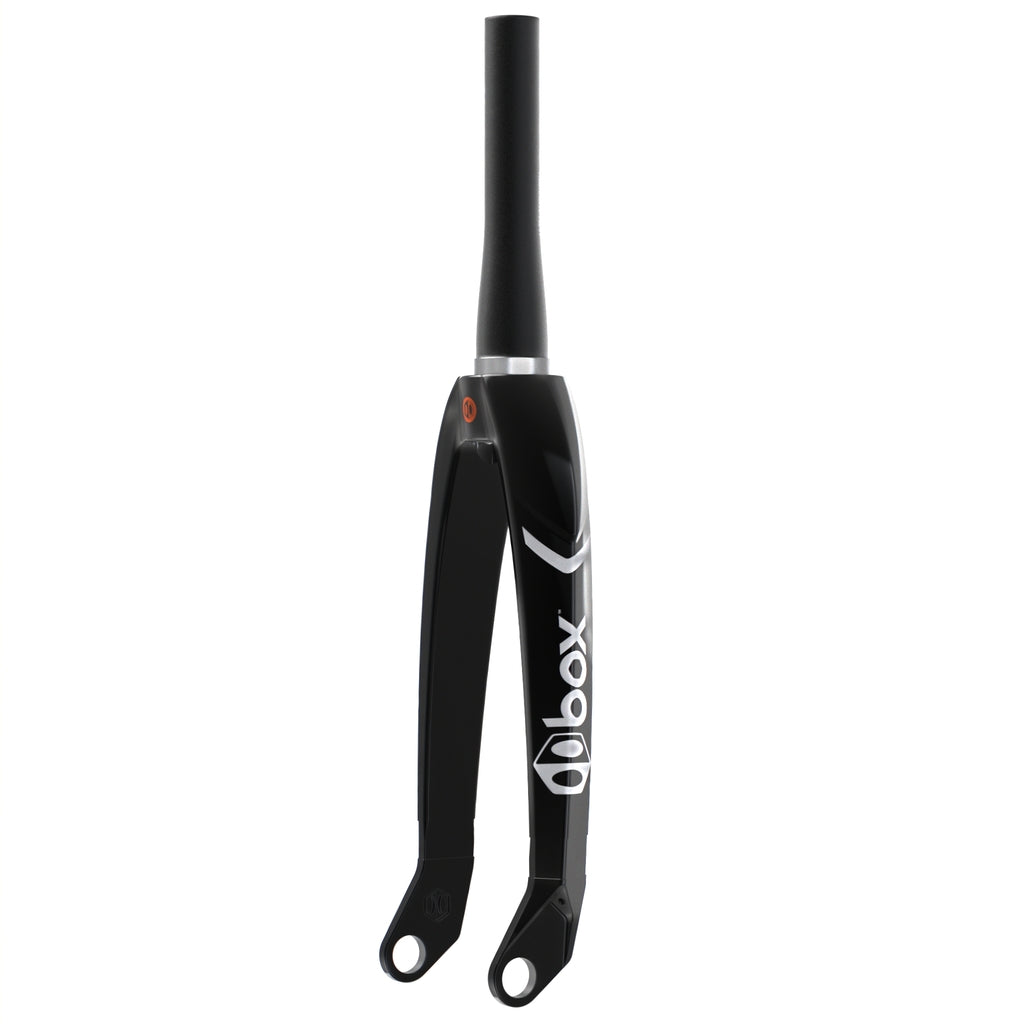

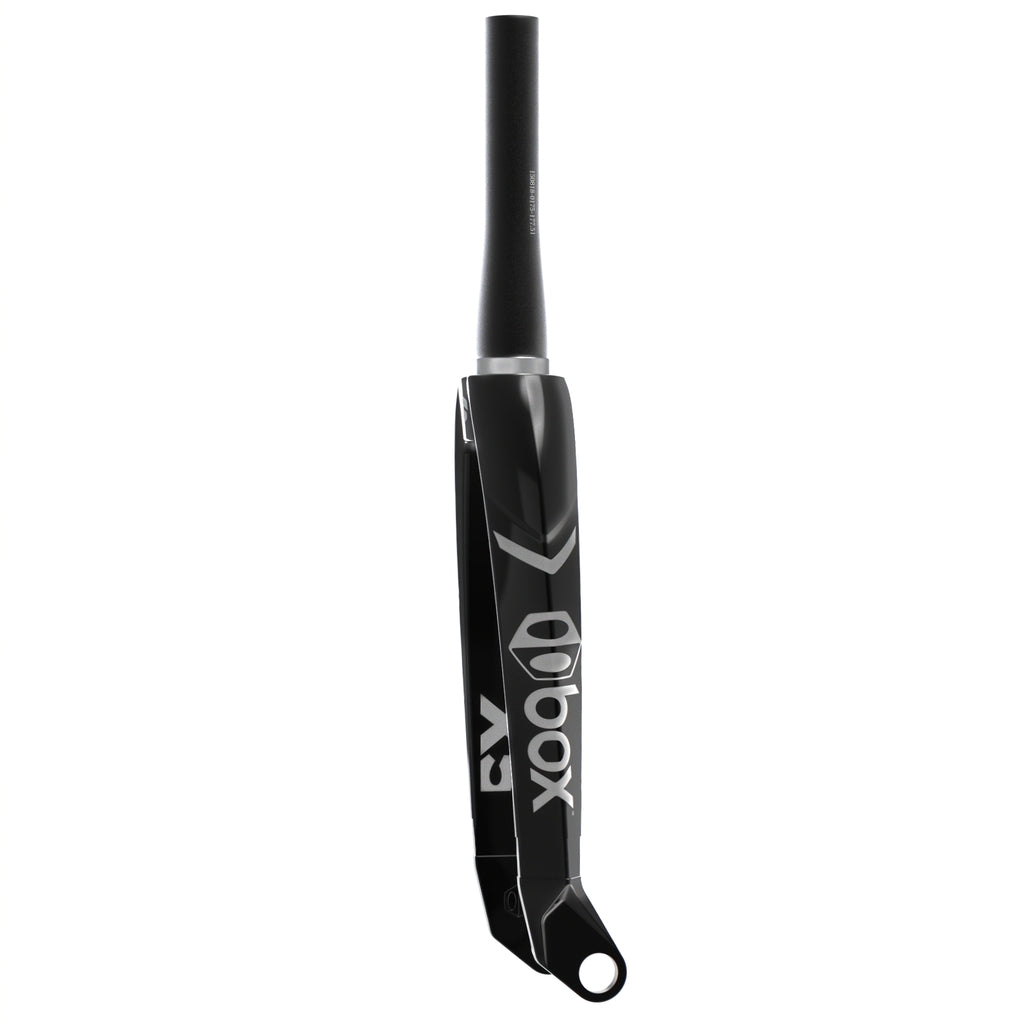

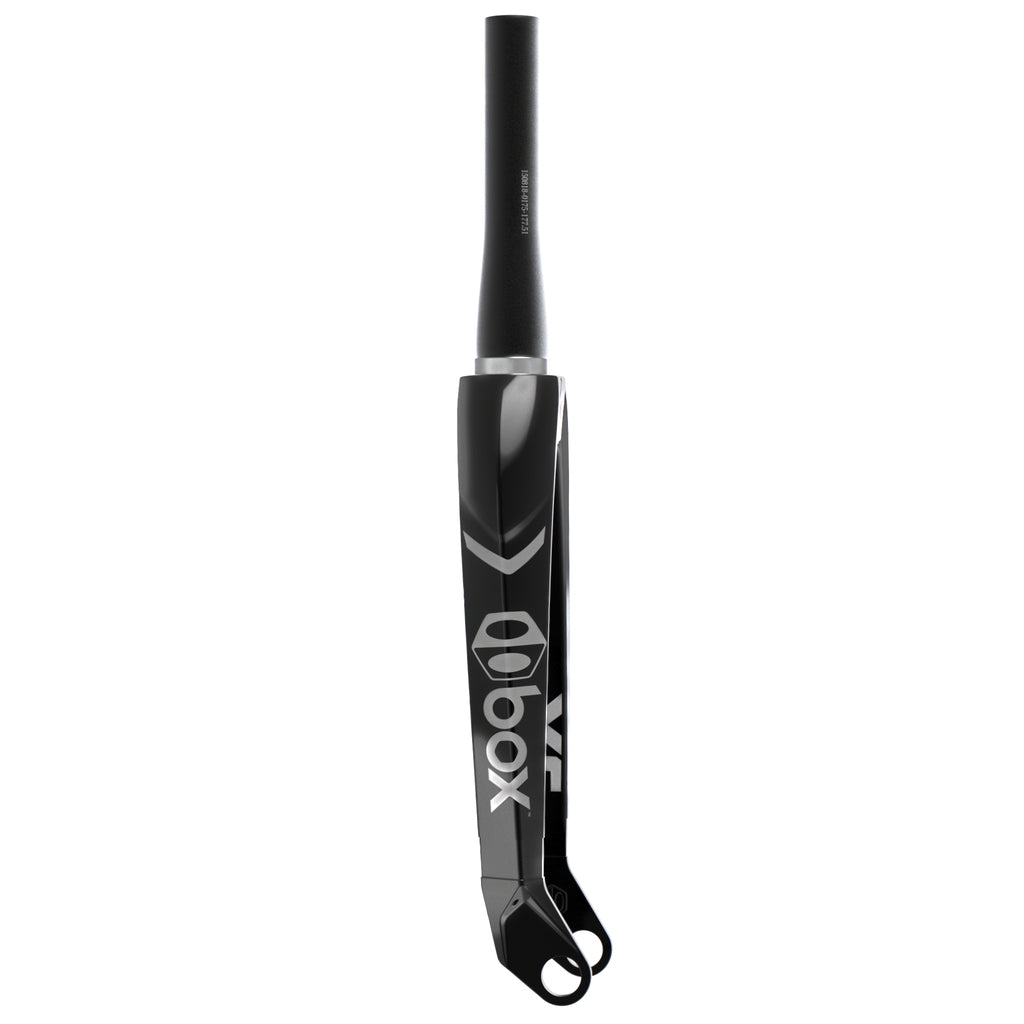

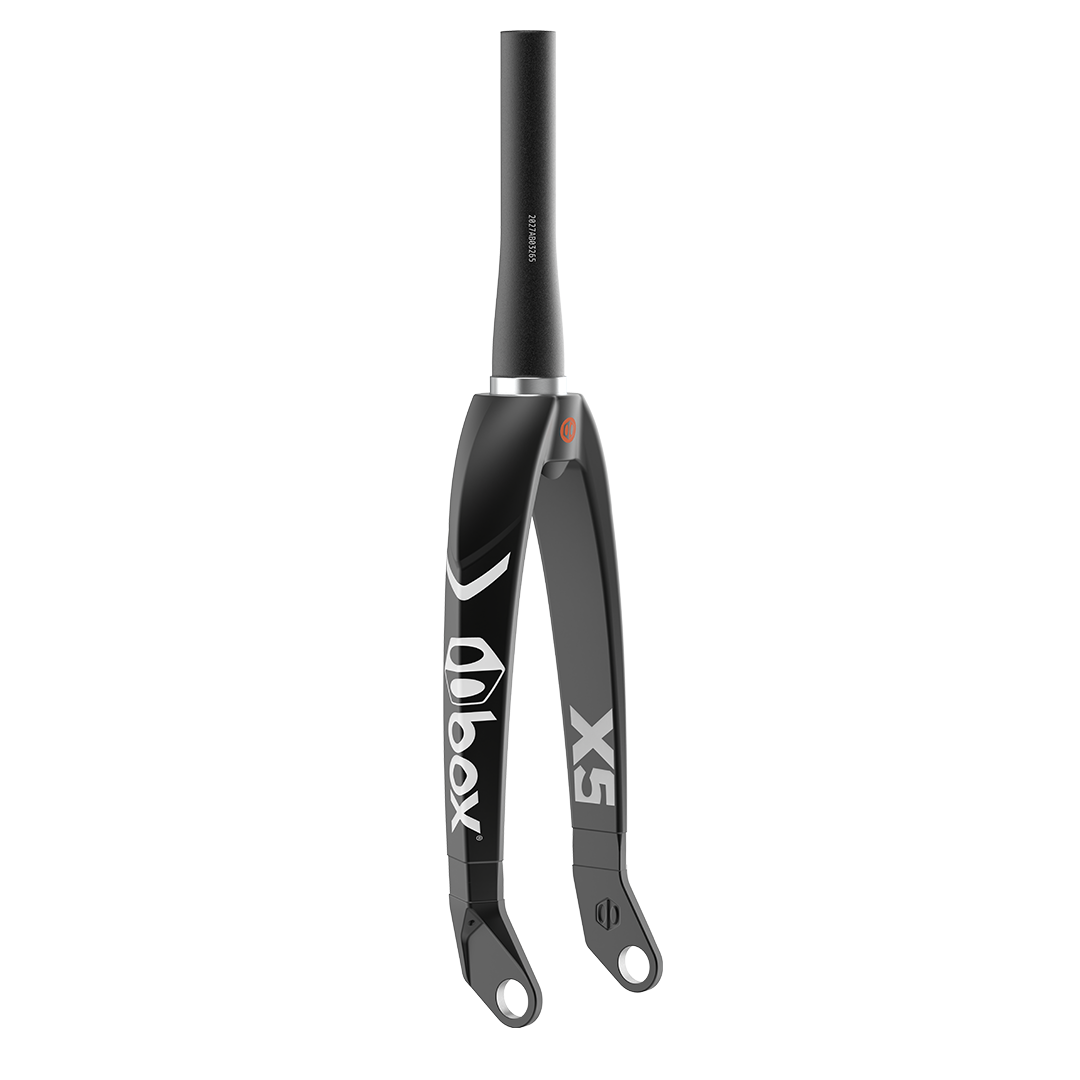

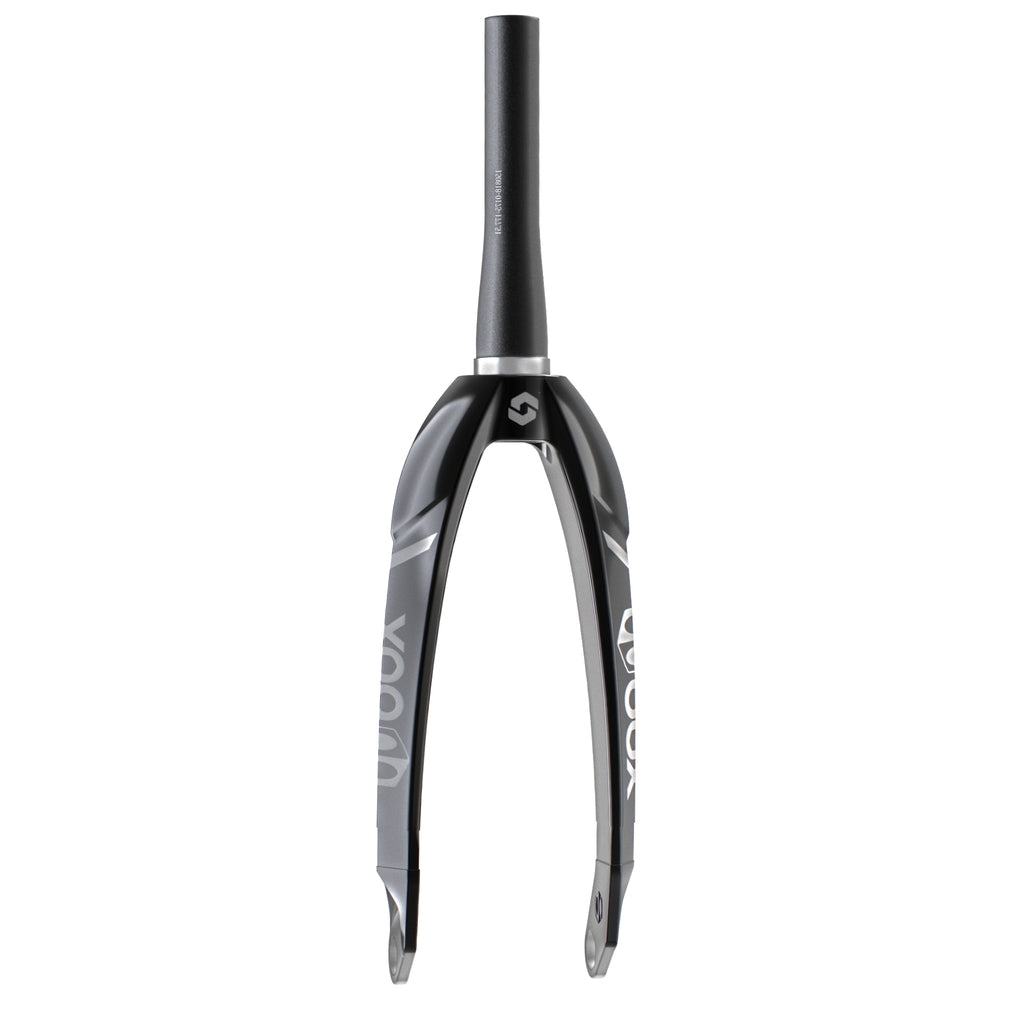

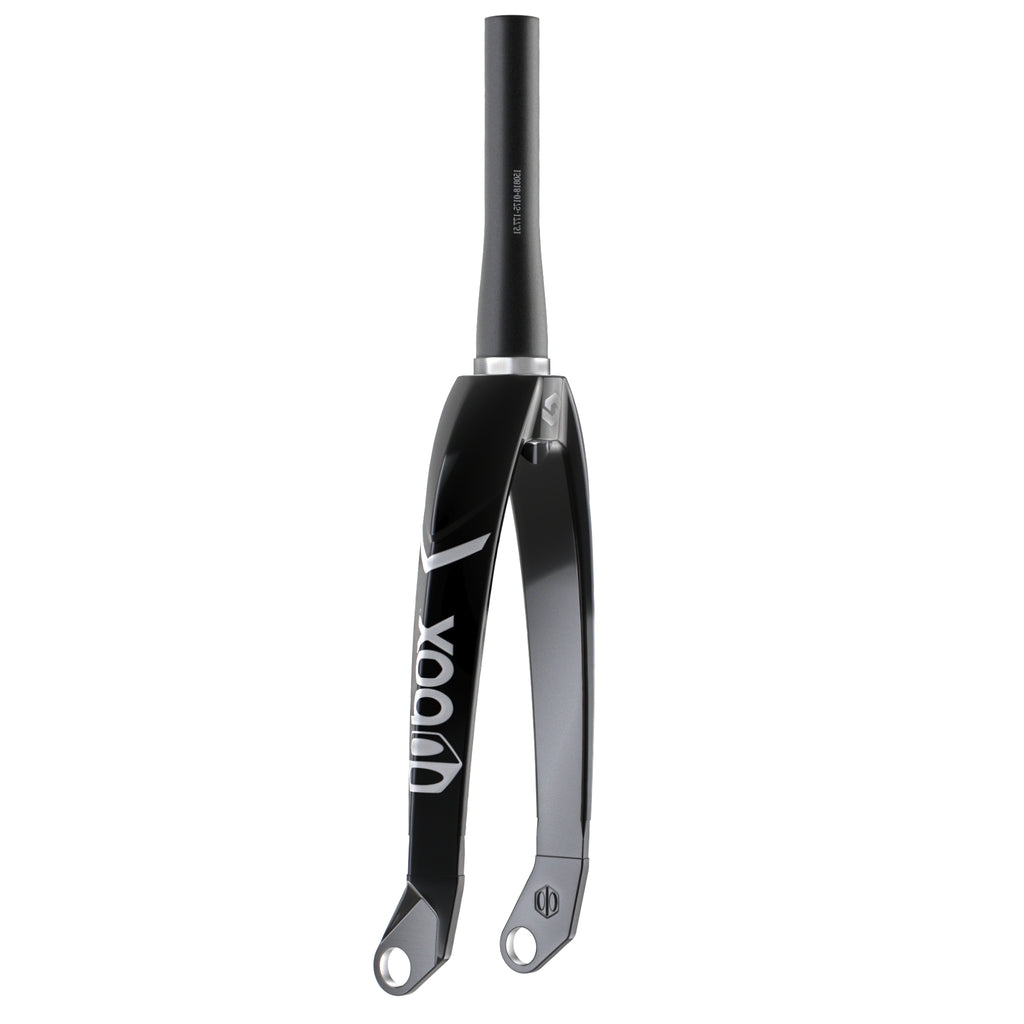

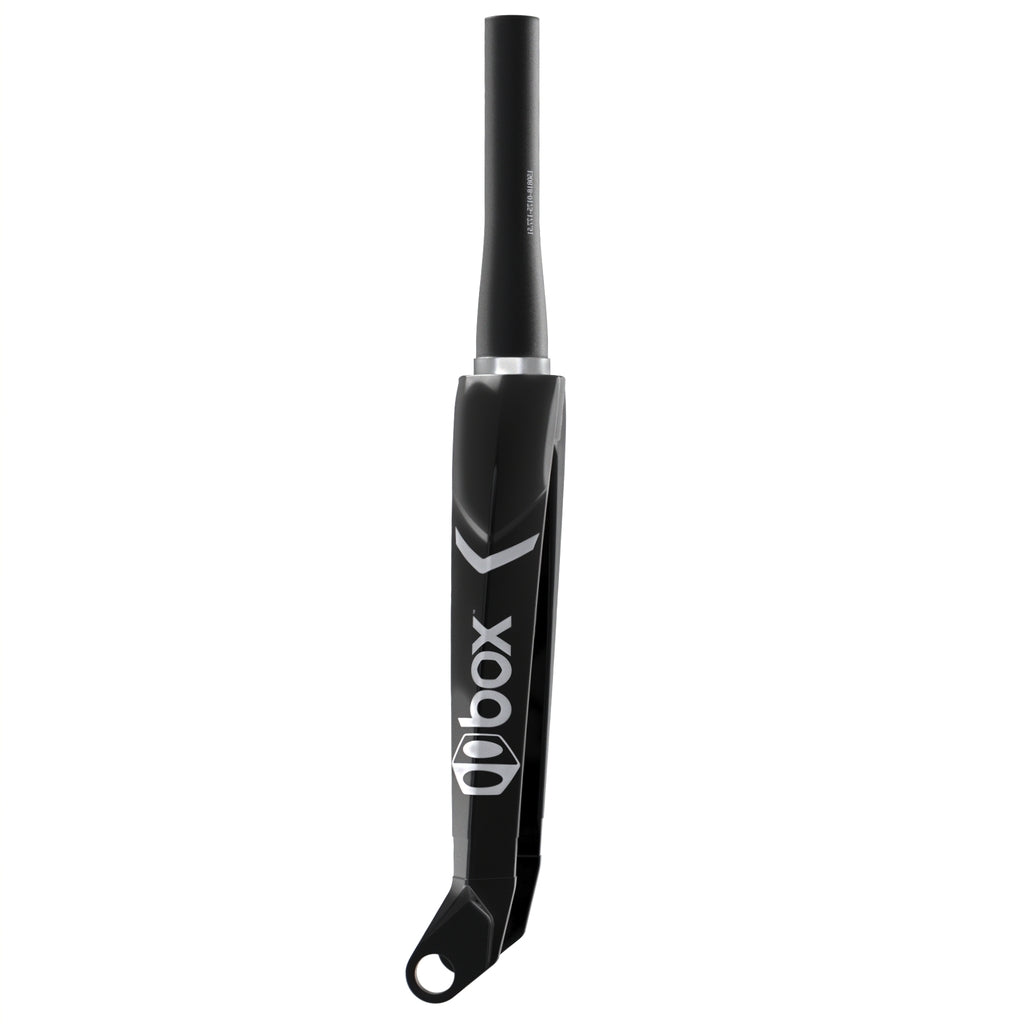

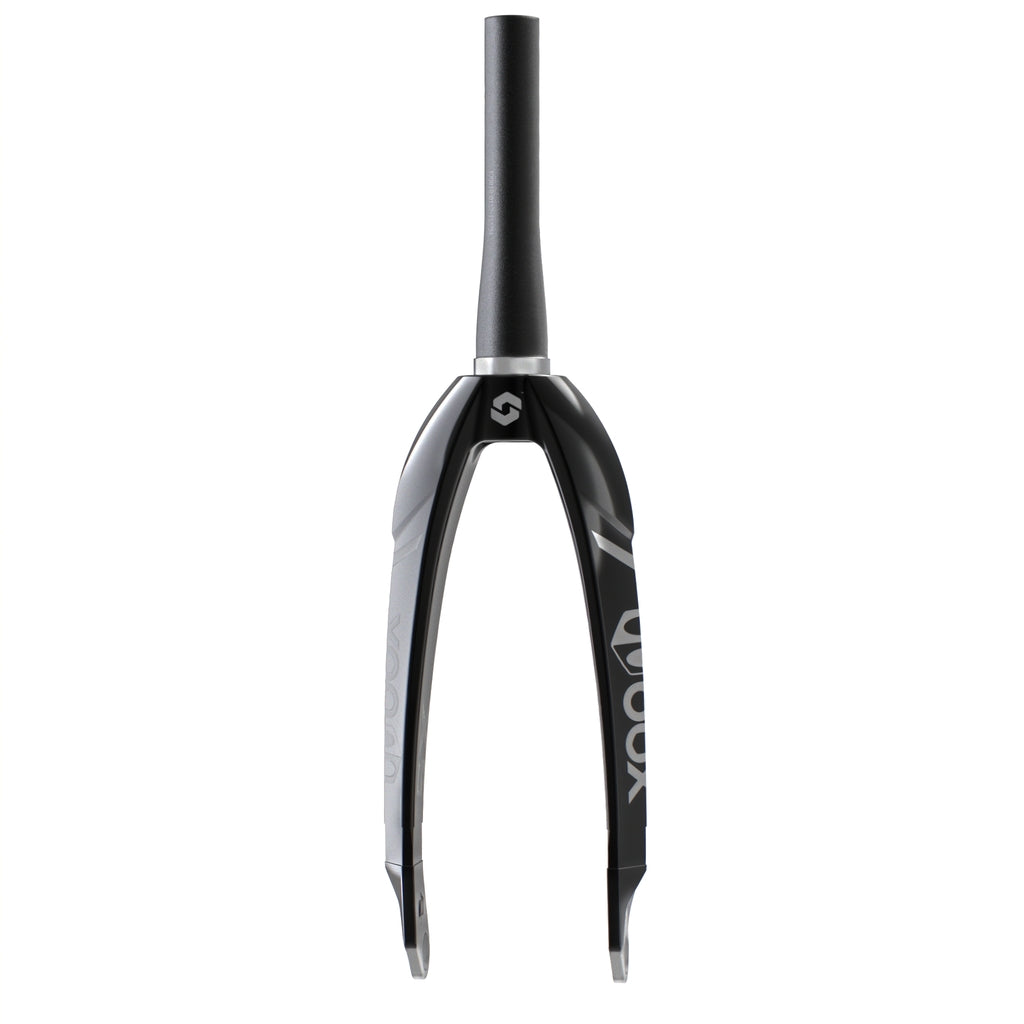

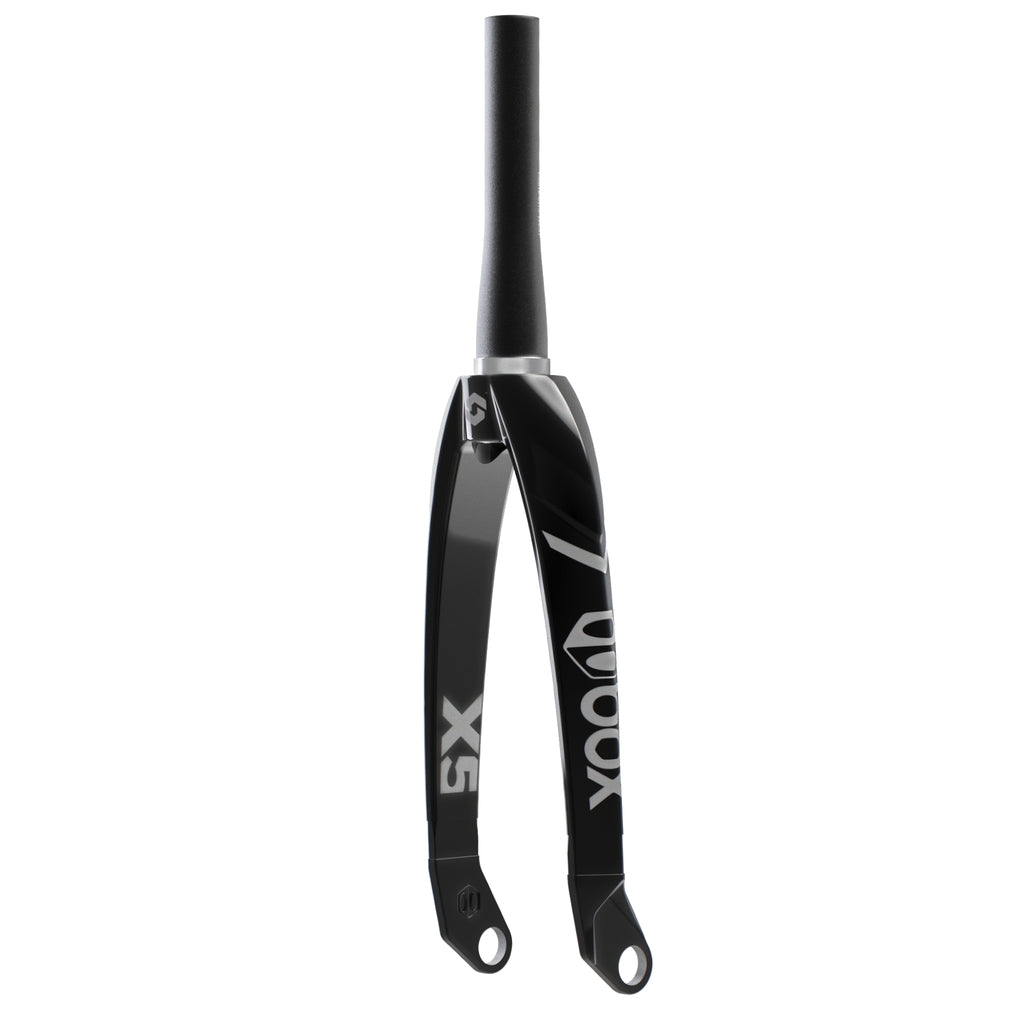

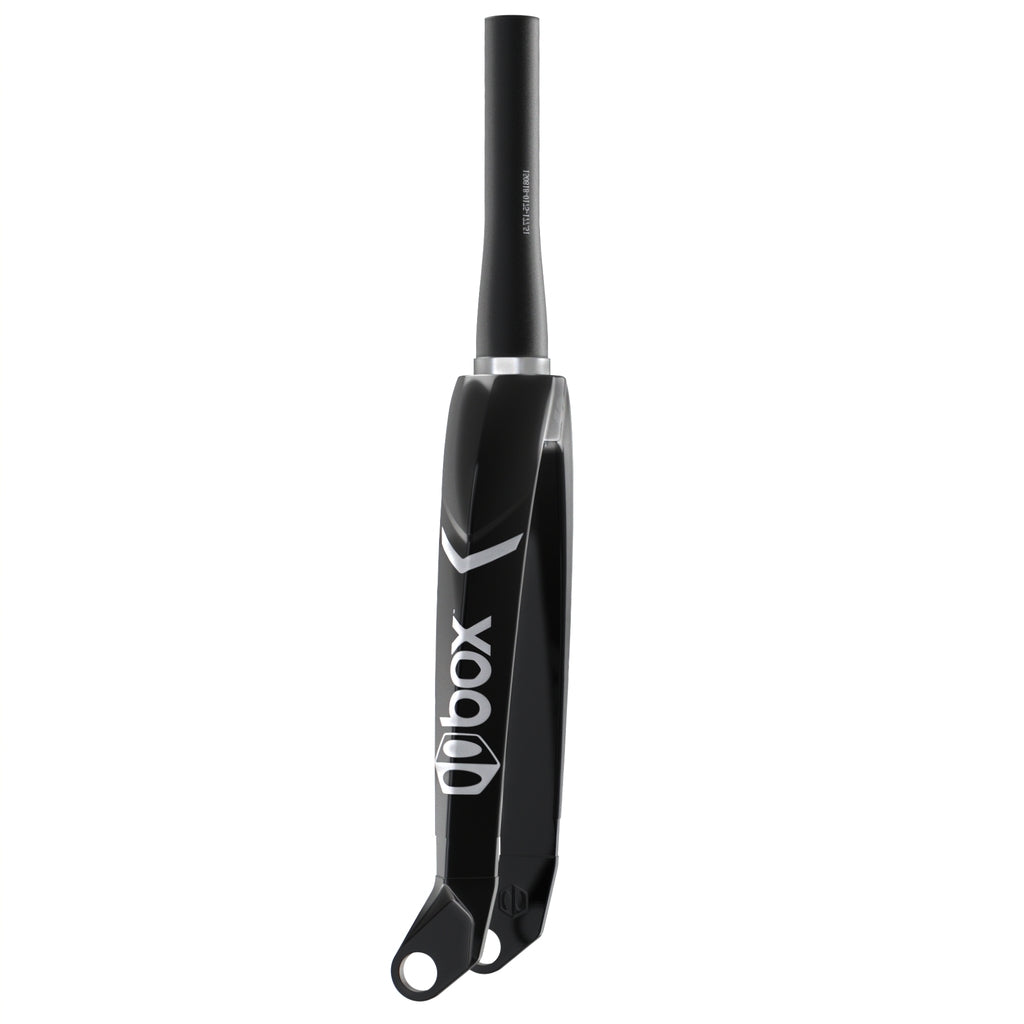

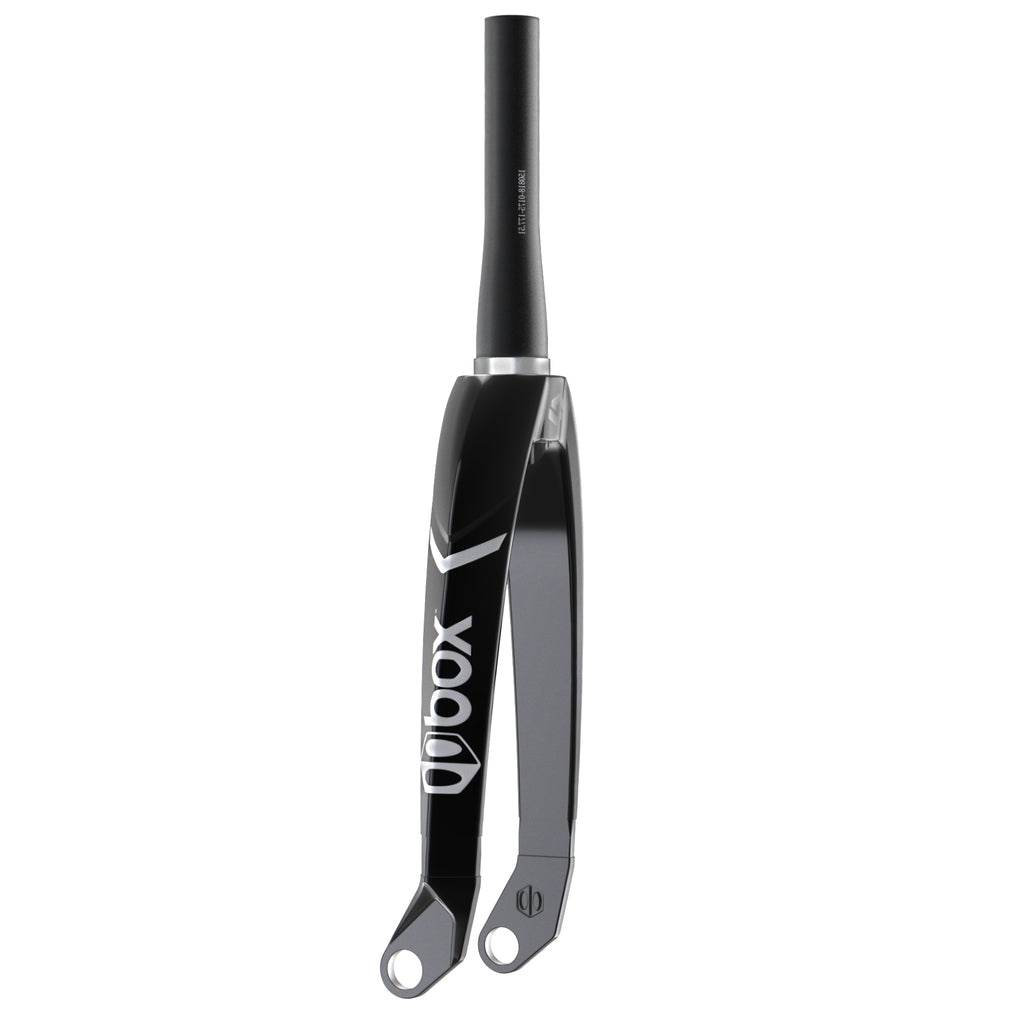

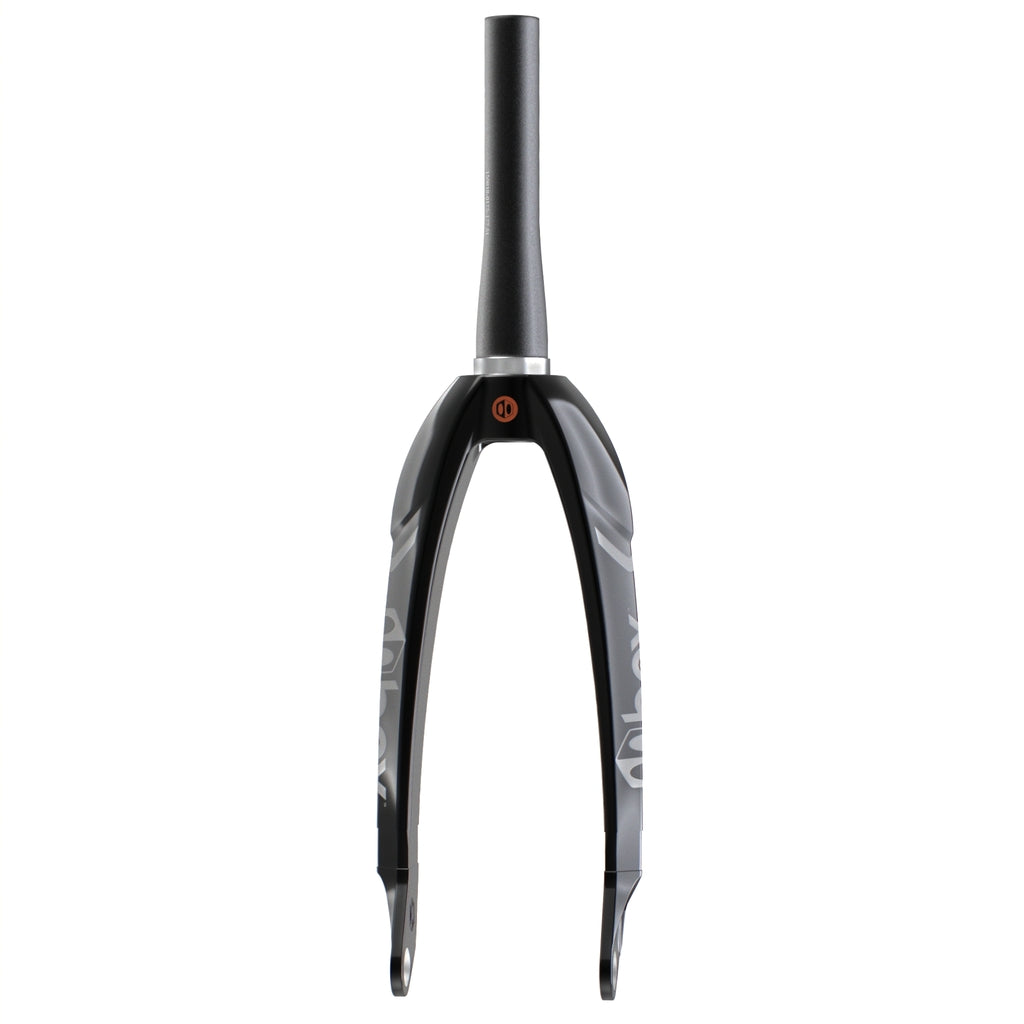

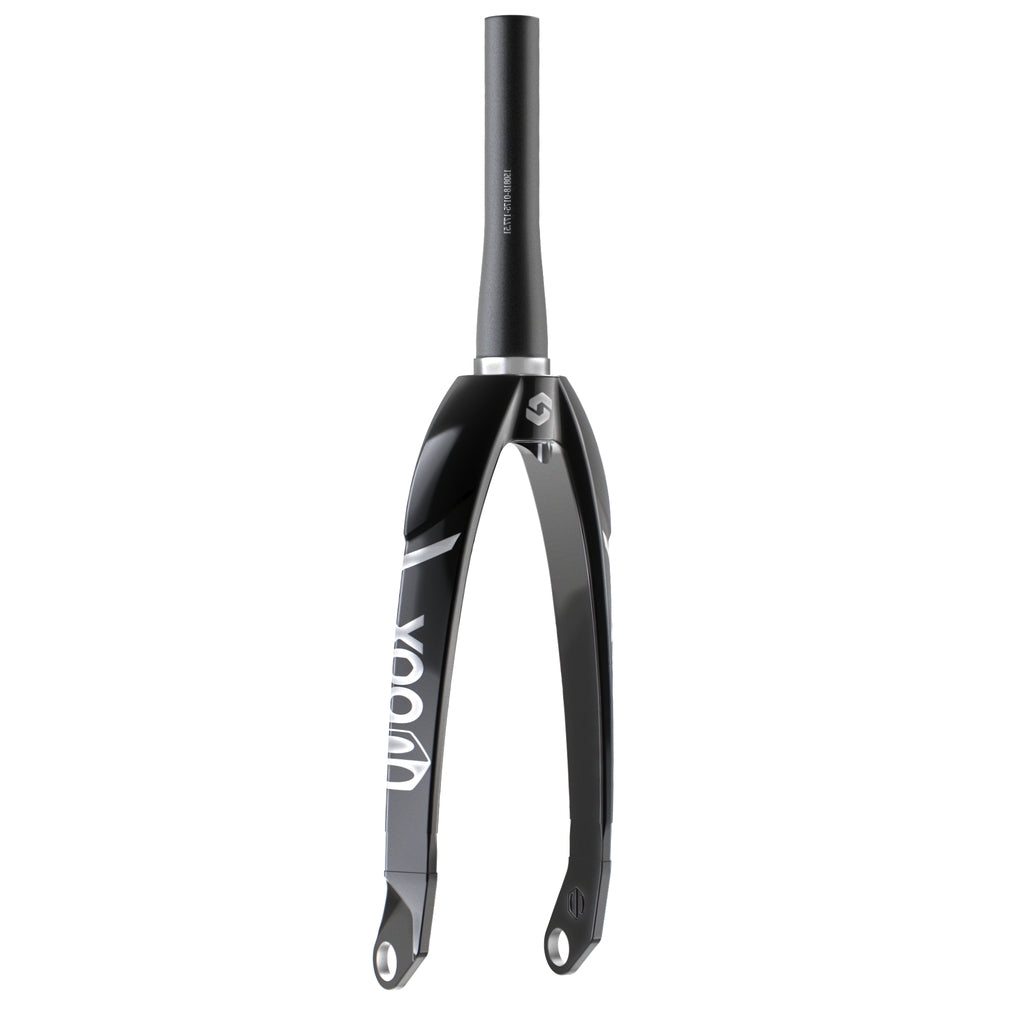

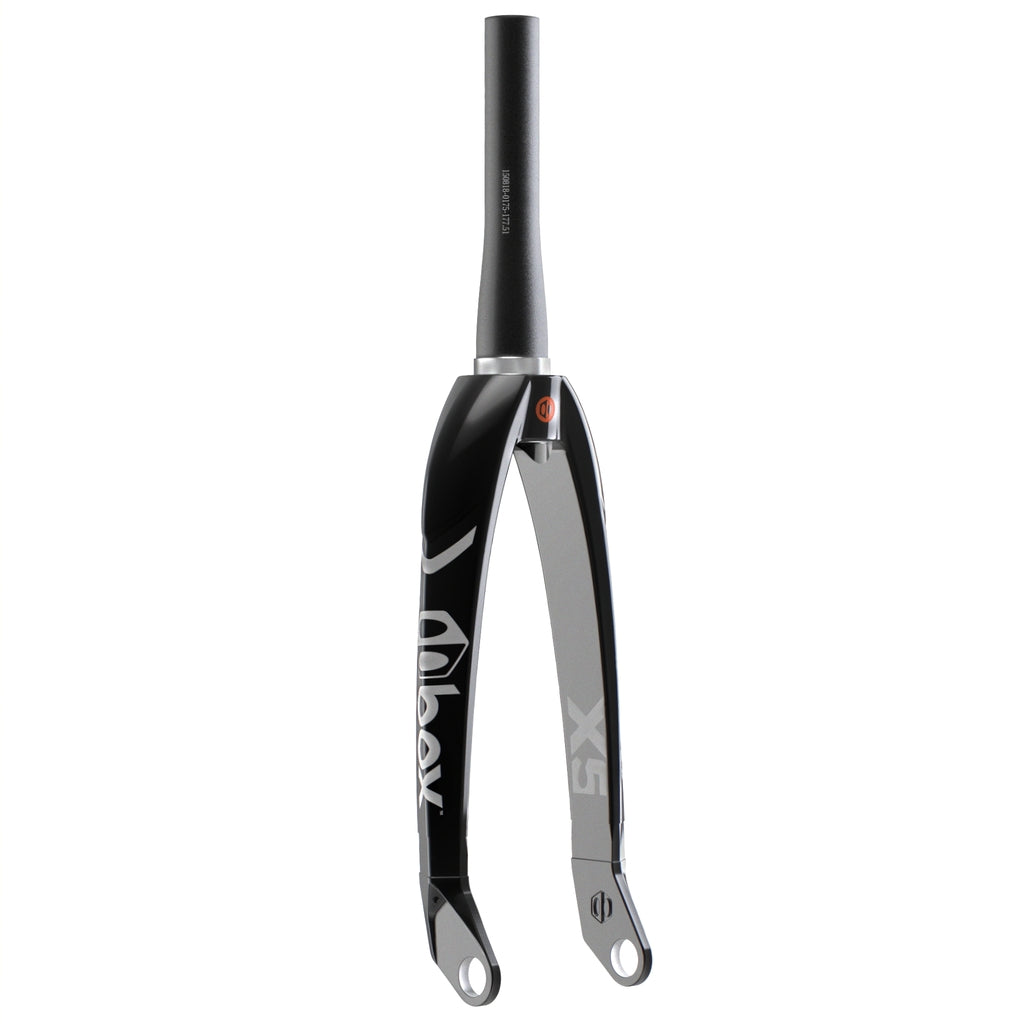

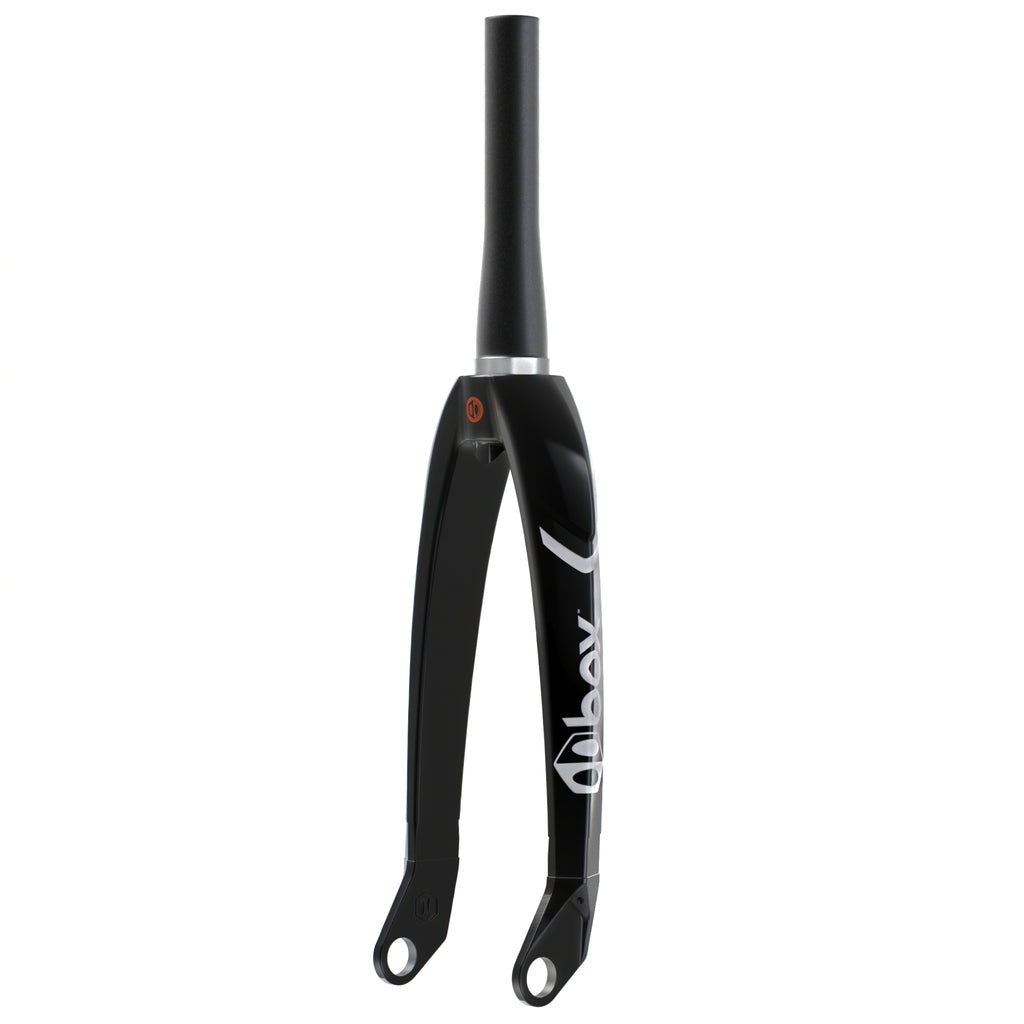

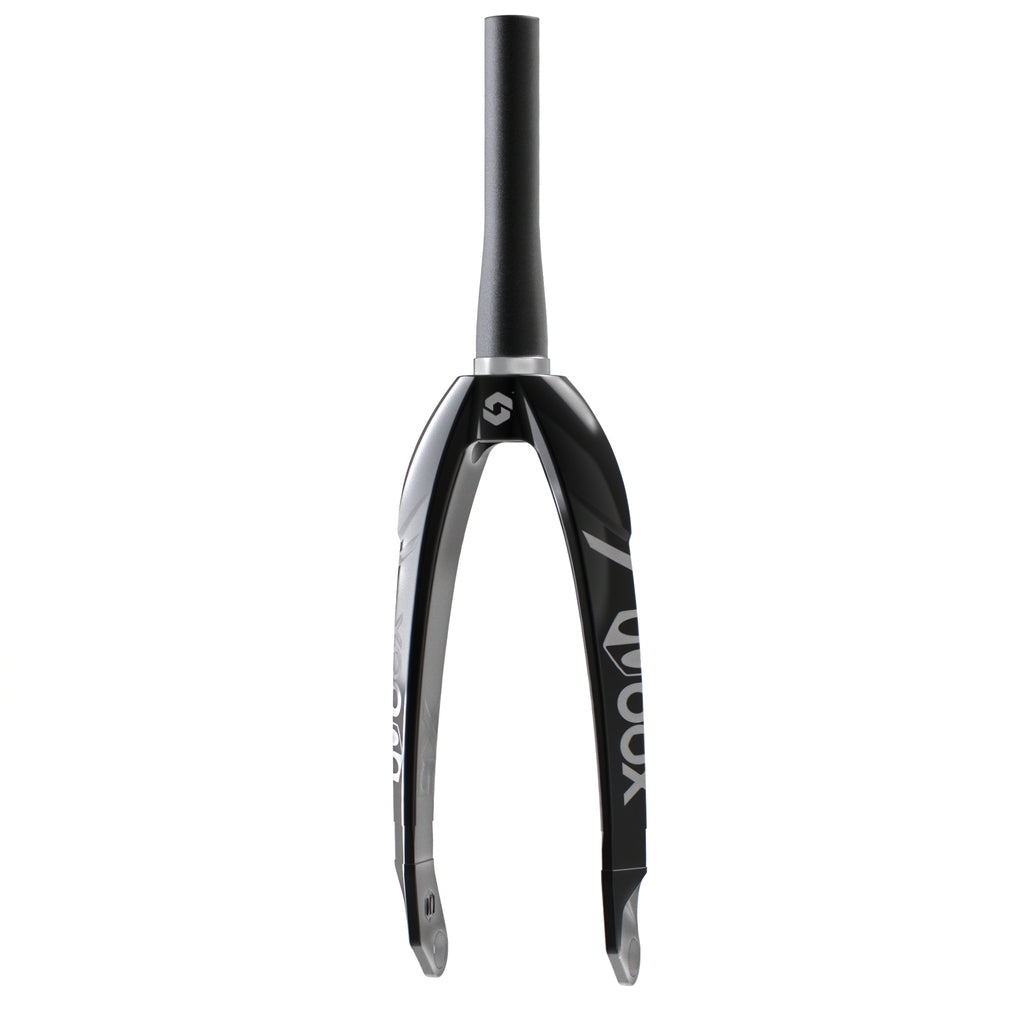

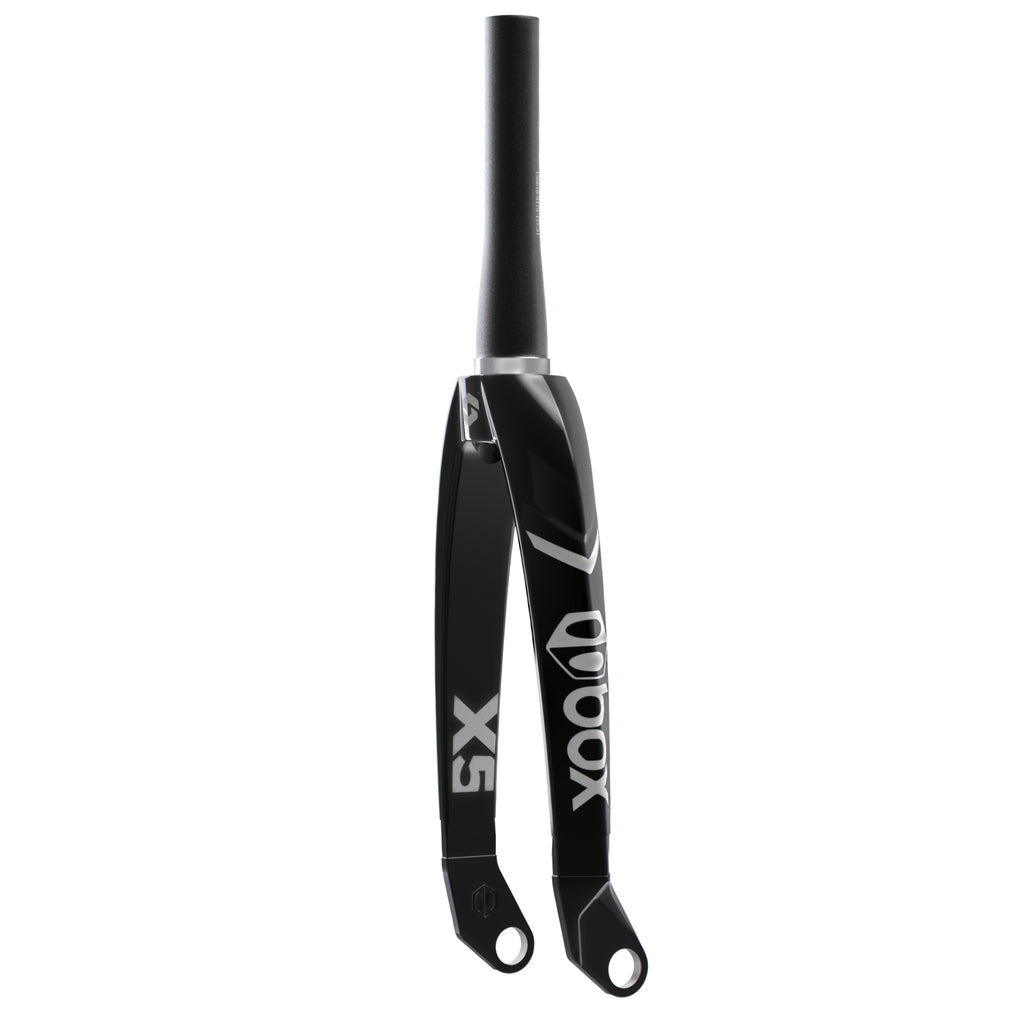

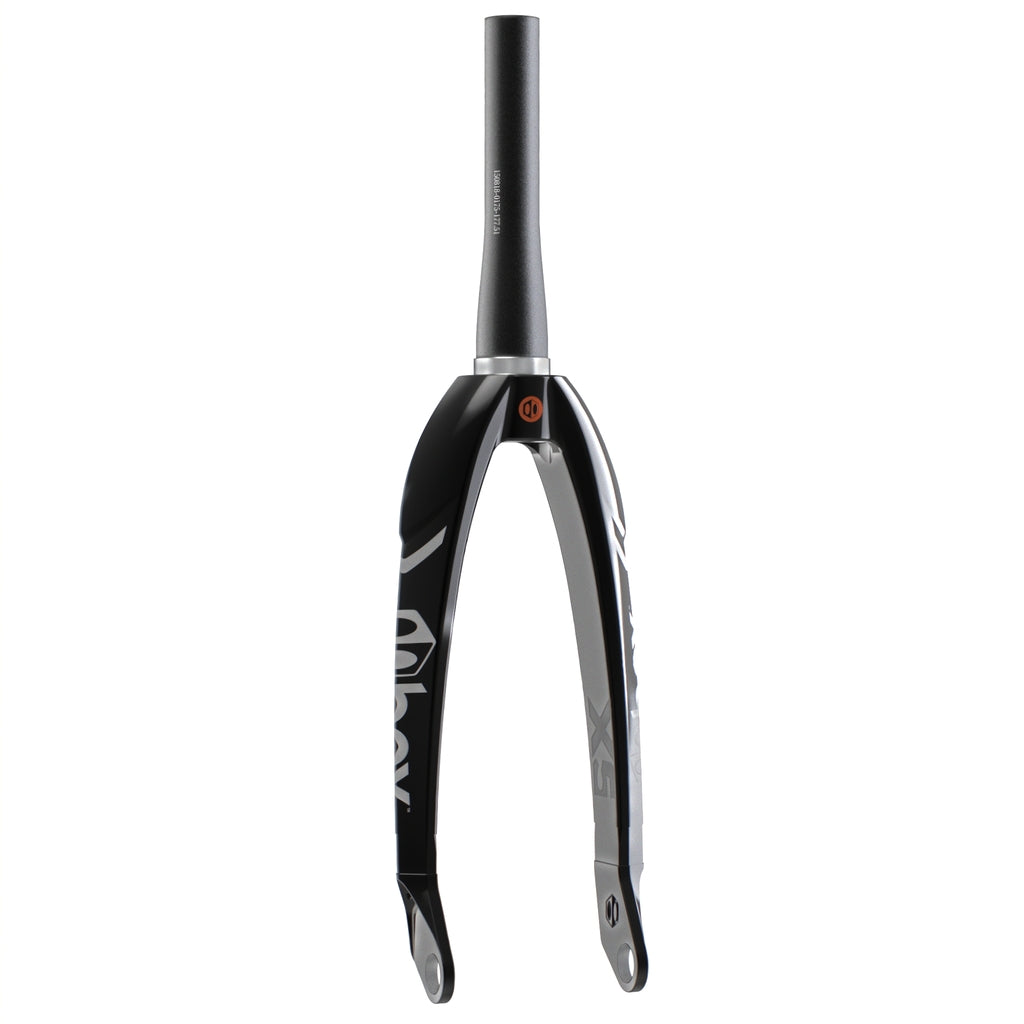

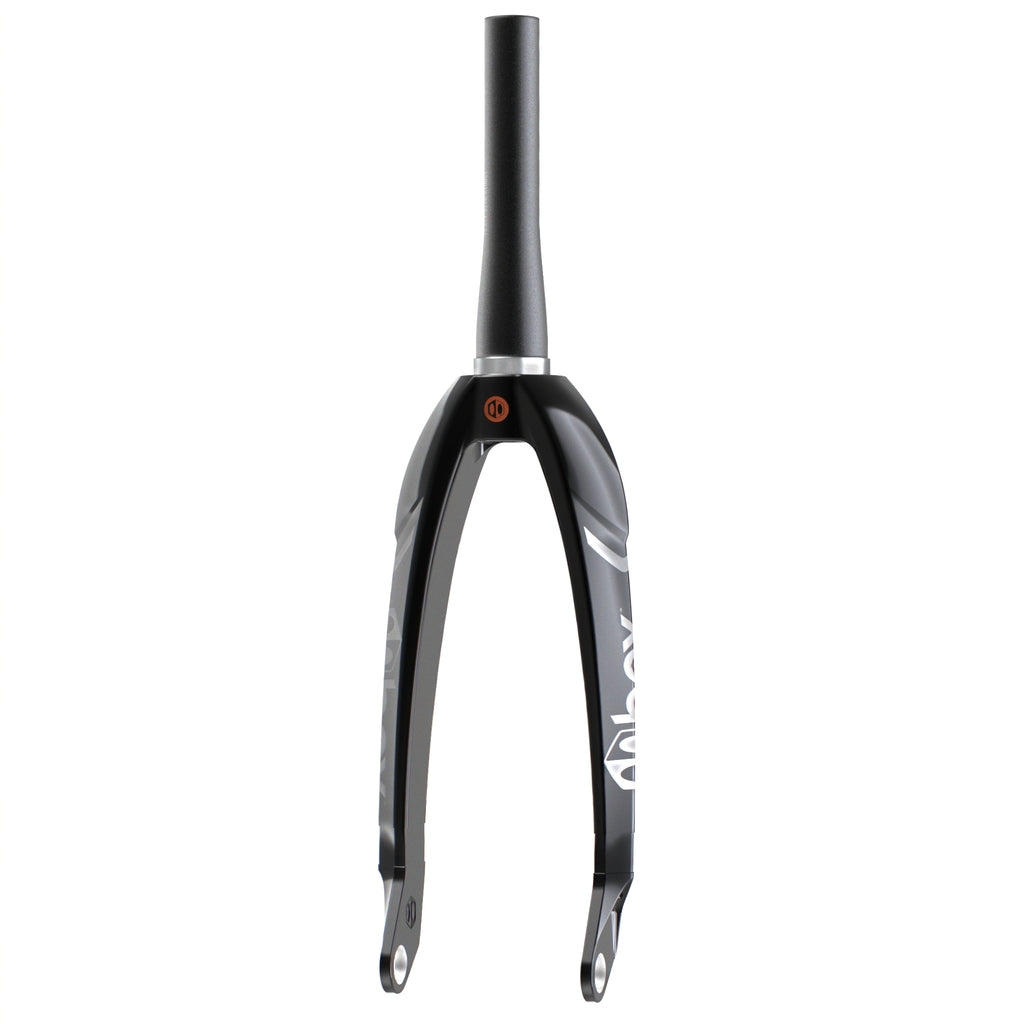

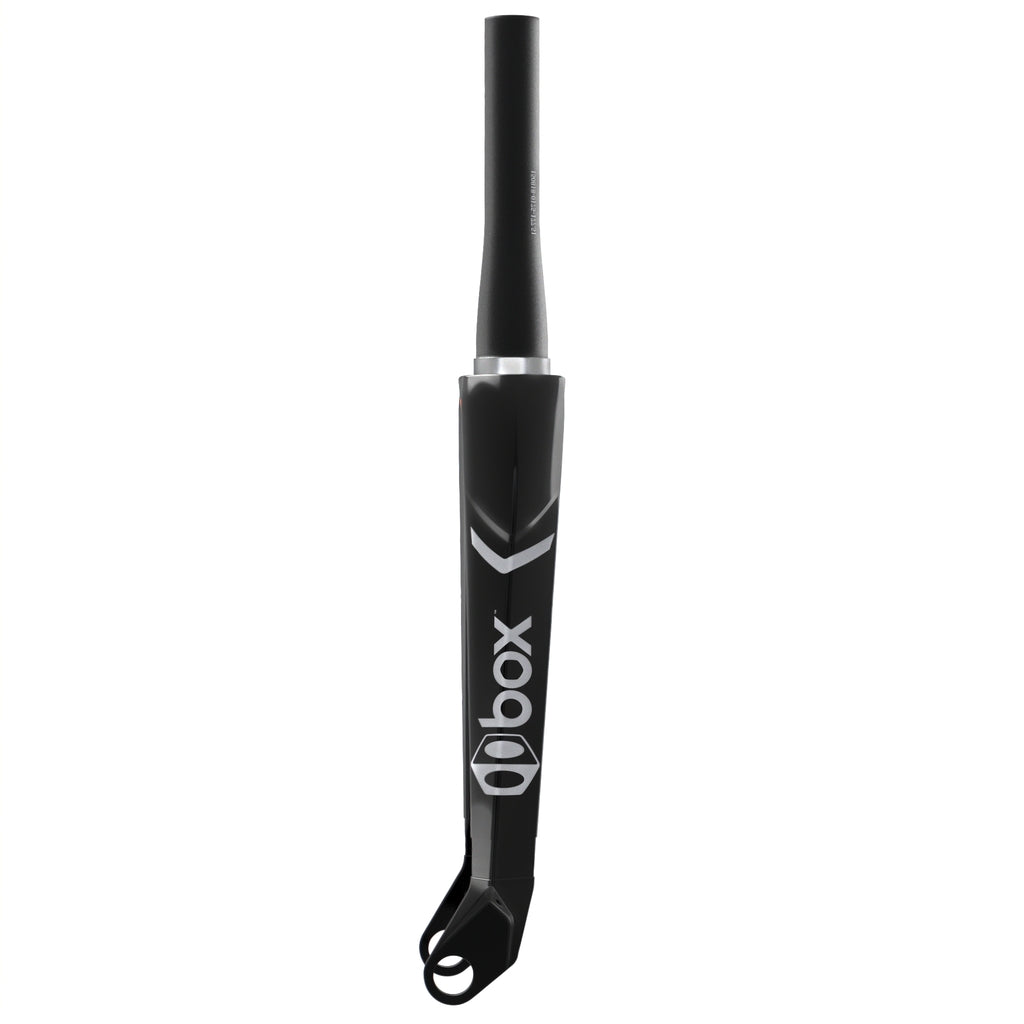

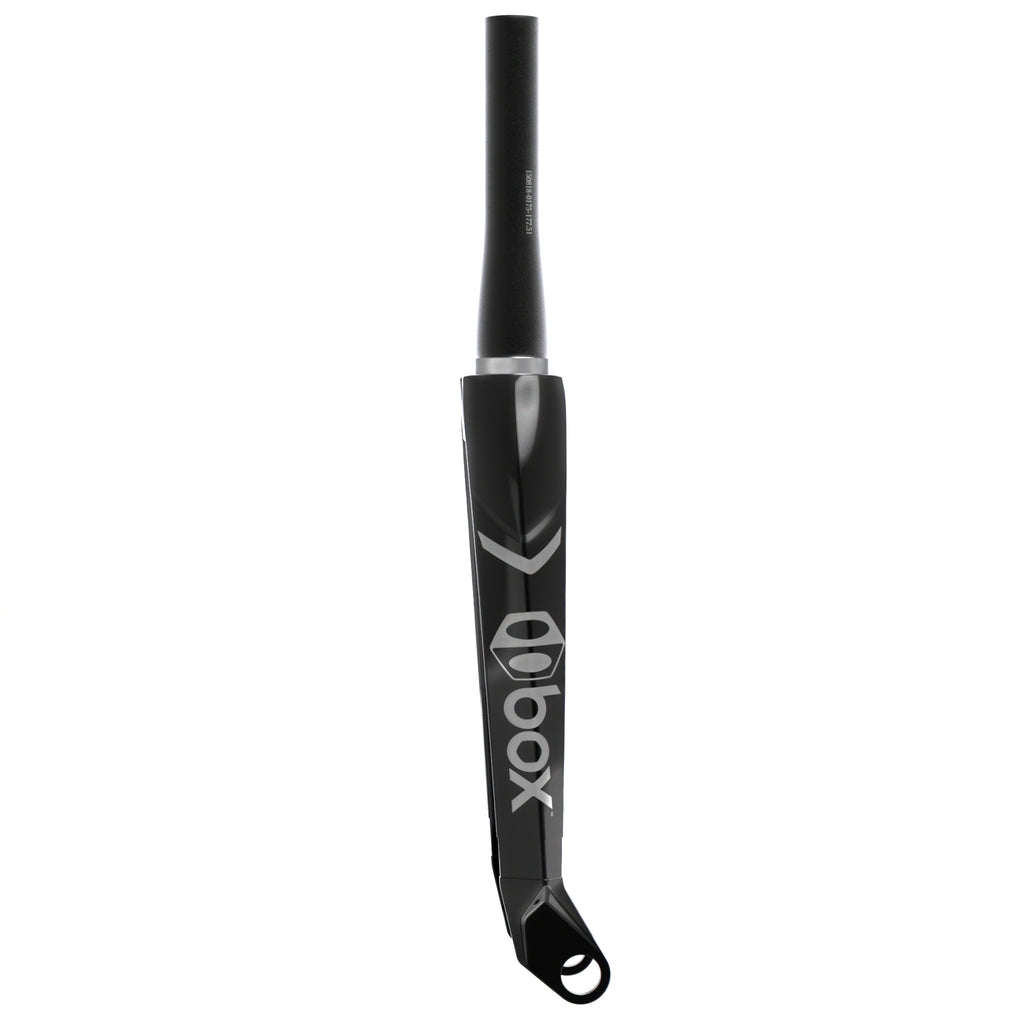

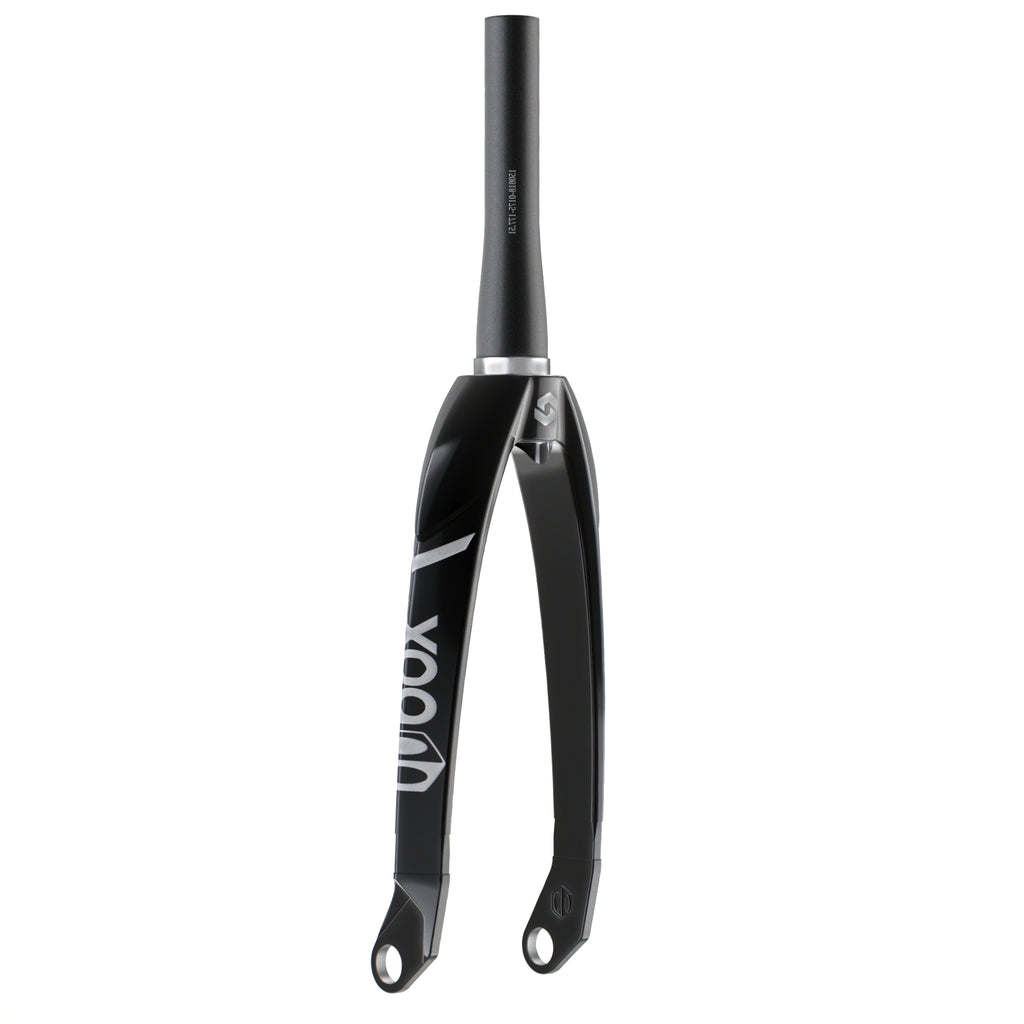

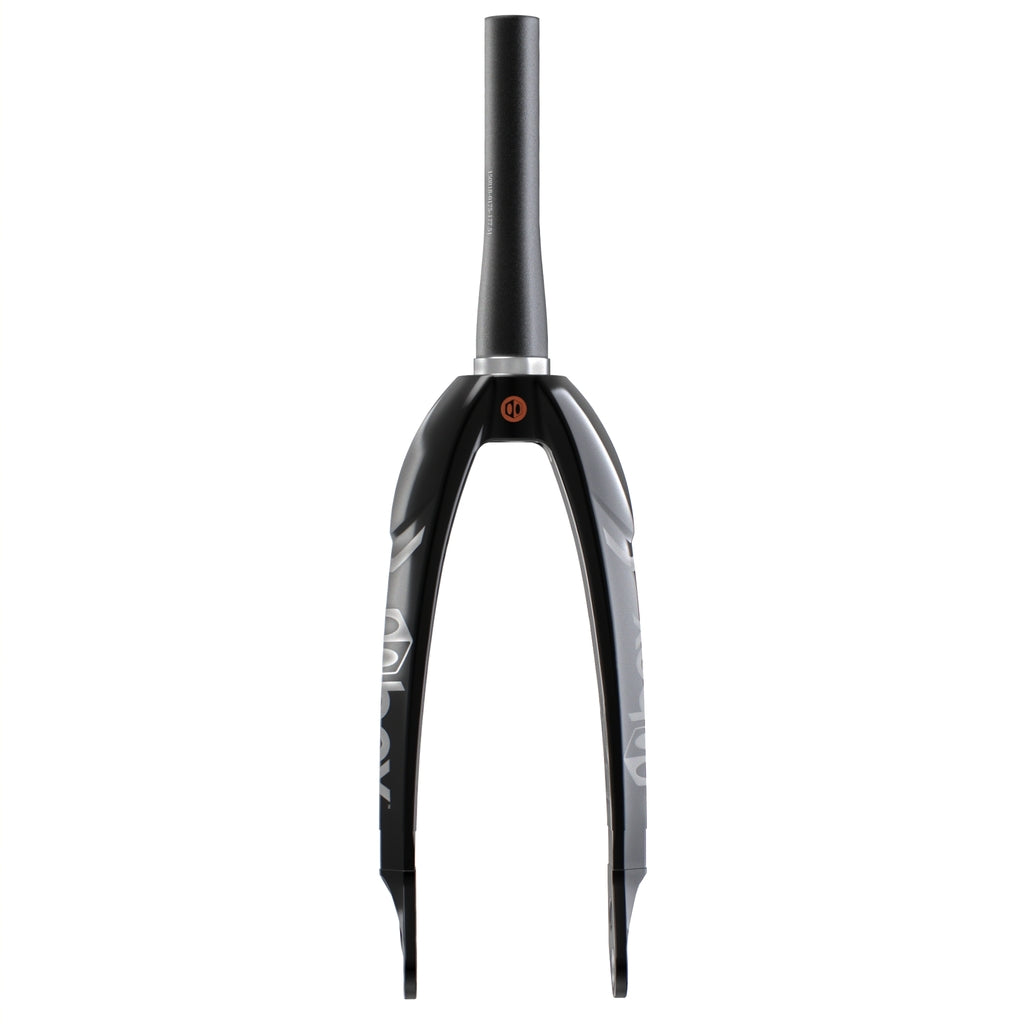

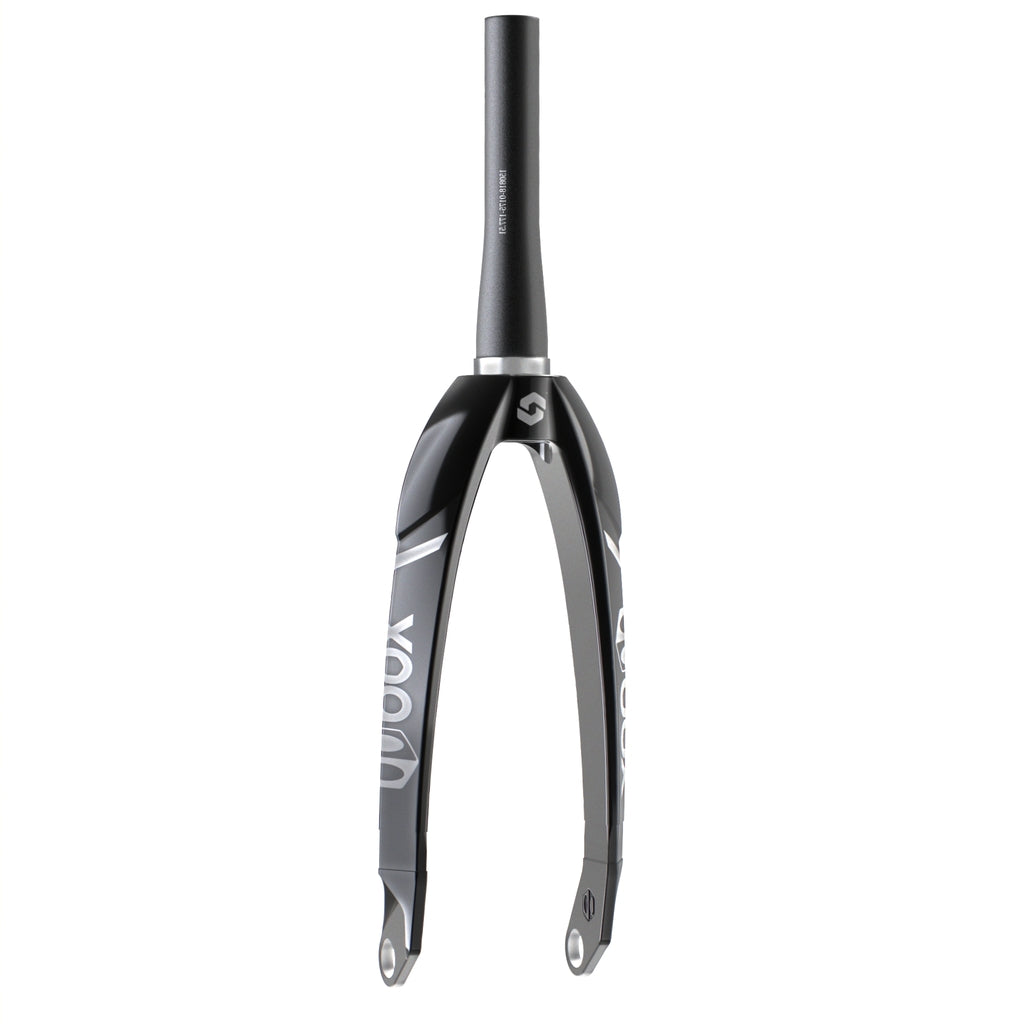

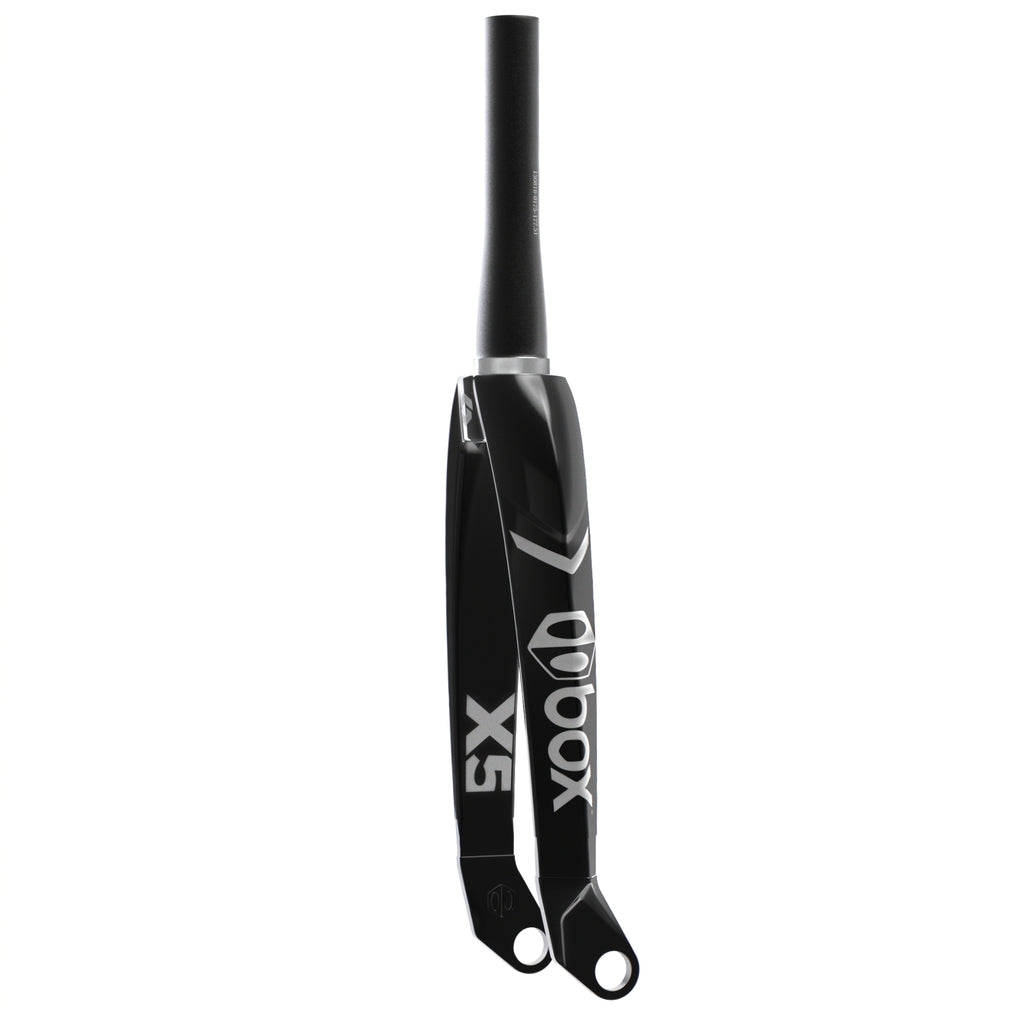

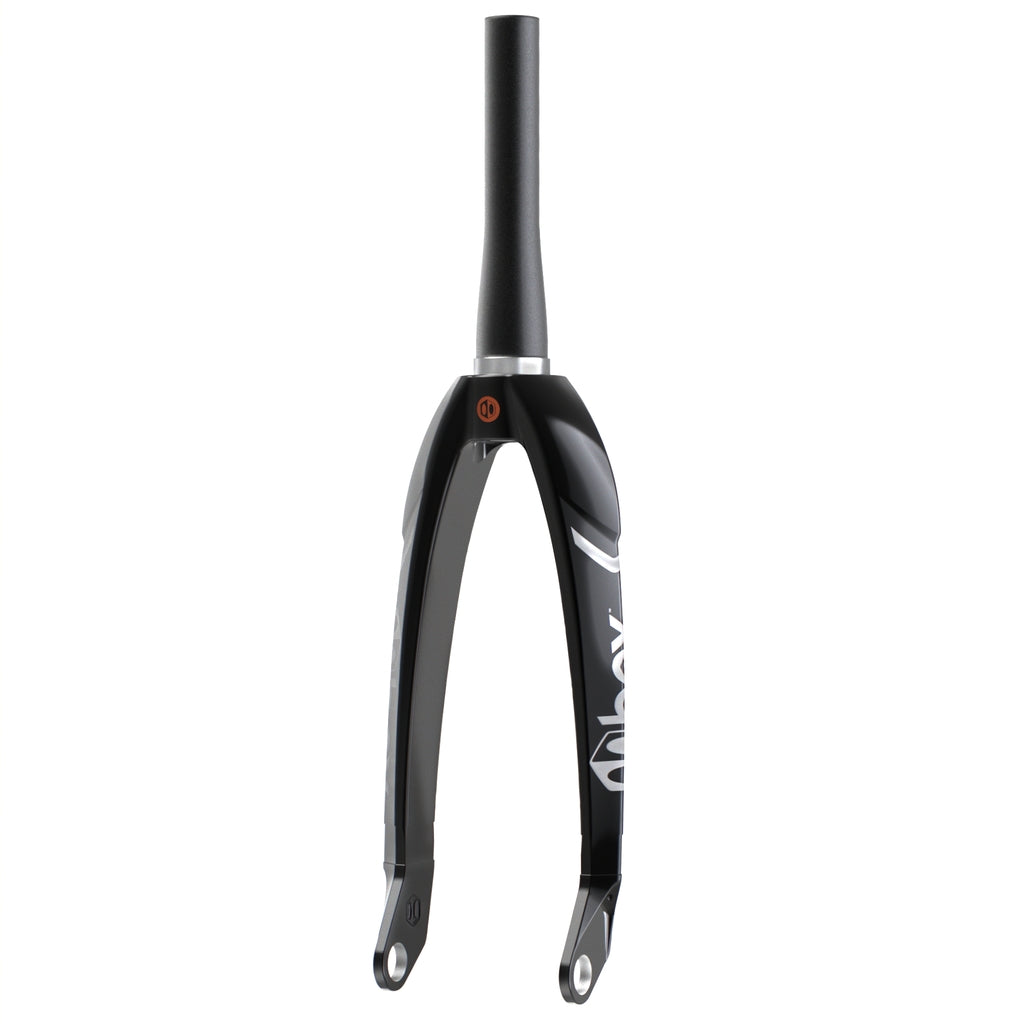

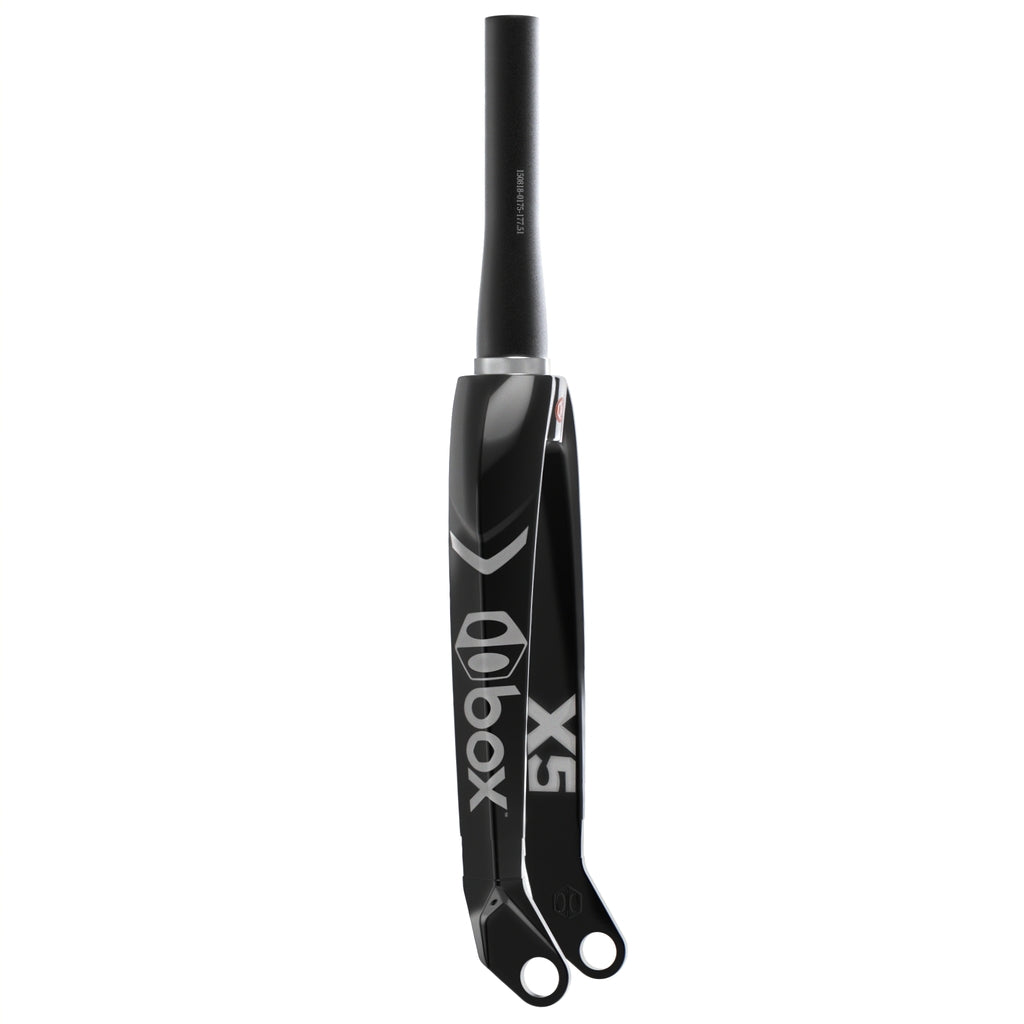

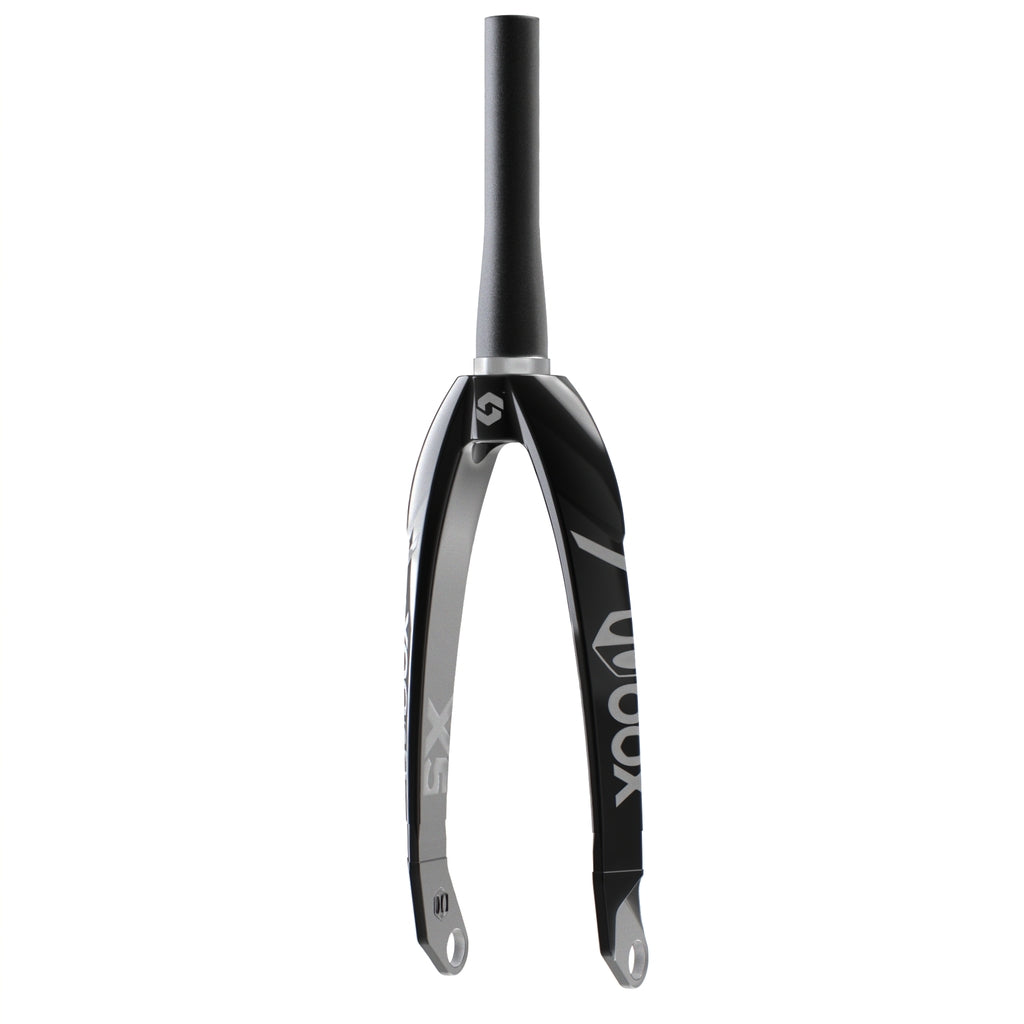

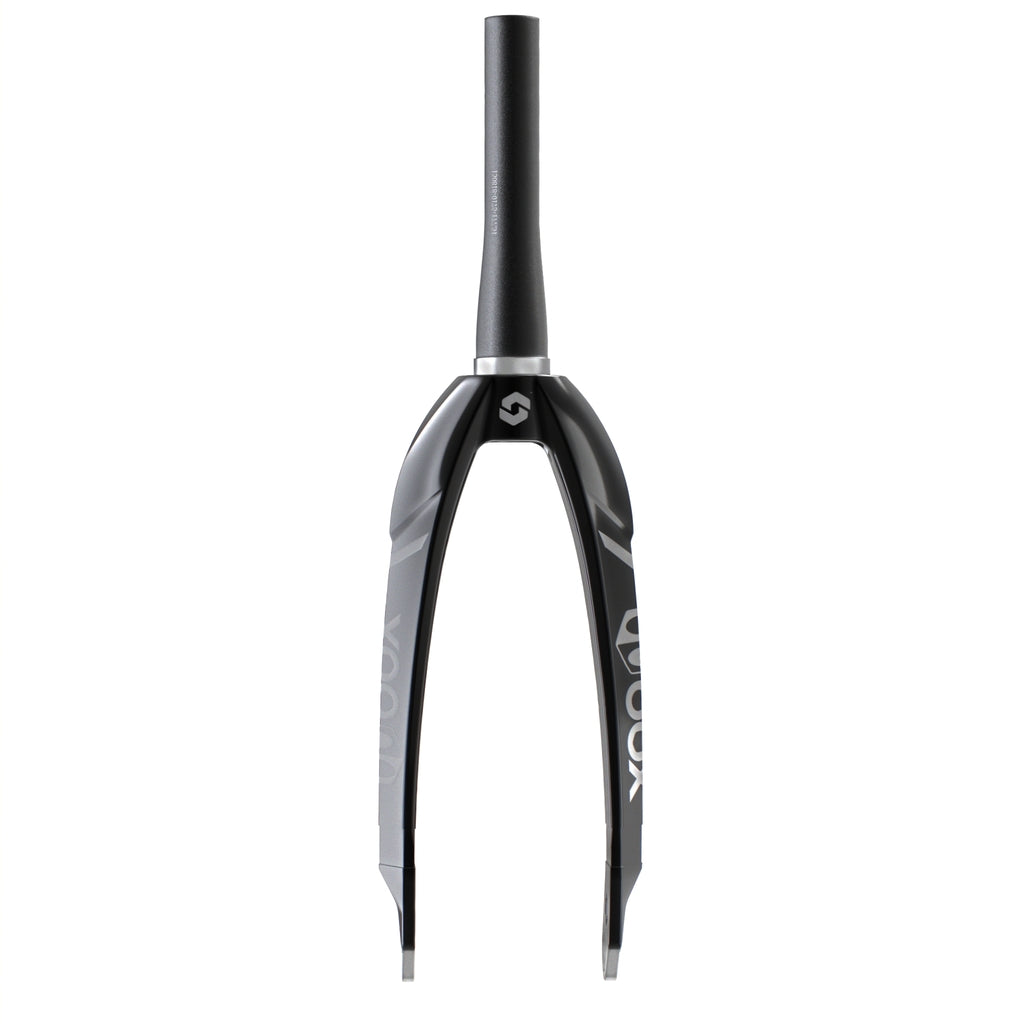

Box One Oversized X5 Pro Carbon Forks

$379.99 Save
Size 24 x 20mm
Color Matte Black

Item is in stock Only 0 left in stock Item is out of stock Item is unavailable

Adding to Cart Added to Cart

All Box One forks are engineered and crafted using our Oversized Technology. These forks are the single most important component in the quest for bike control. We’ve moved carbon from areas of low stress to areas that handle high load. Those muscular shoulders aren’t just for looks as they are integral to achieving superior steering stiffness. When combined with Box’s other Oversized components, you’ll experience heightened responsiveness and reduced latency.

Key differences: This particular model fork pushes our Oversized Technology to the extreme as it includes the 1.5 to 1-1/8 inch tapered 7000 series aluminum steerer tube and stiffer 20mm through-axle cold-forged dropouts. Say good-bye to deflection.


Weight Limit: 115kg (253 lbs) with limitations as per Category 2 of EN 16054:2012 Standard

For compatibility questions, please click here

Oversized Technology™
• Tapered Steerer Tube to Reduce Deflection
• 20mm Through Axle dropouts to Increase Responsiveness
• Internal Butterfly for Added Durability at Steerer Tube and Fork Crown Interface

Material:
• Legs: High Modulus Unidirectional Carbon Fiber
• Steerer: 7075-T6 Aluminum
• Butterfly & Dropouts: 6061-T6 Aluminum
Process:
• Legs: Vacuum Mold
• Steerer: Extruded & Butted
• Butterfly & Dropouts: Cold-Forged
Hardware: Stem Lock & Fork Adapters
Finish: Gloss Black/Matte Black with Water Decals
Compatibility/Size:
• Height: 20” / 24”
• Steerer: 1-1/8" tapers to 1.5"
• Offset: 32mm
• Through-Axle: 20mm
Weight
• 20”: 579g/20.4oz
• 24”: 616g/21.7oz

Please note: weight may vary by +/- 10% due to carbon manufacturing processes.

Weight Limit: 115kg (253 lbs) with limitations as per Category 2 of EN 16054:2012 Standard

SKUBX-FK2052420-MB

Banner Image

Enhanced Power Delivery // FASTER

There is no use pushing hard on your pedals if you can’t deliver most of that power to the rear wheel.

Power delivery AKA pedaling stiffness. When a rider pushes down on a pedal, the pedal, crank set, bottom bracket, frame and all the hardware holding those together deflects laterally. Stiffer components deflect less, so more of your energy output goes into turning the rear wheel, rather than deforming the components and frame. By using Oversized technology, Box is able to add only the appropriate amount of material for stiffness where it is most needed. It is possible to add too much stiffness where the rider will not feel the benefits. Going beyond that point simply adds material which is surplus weight.

Superior Control // FASTER RESPONSE

Wonder why there is lag time between input from your hands to reaction from your bike?

Bike control can be defined as steering stiffness and this affects how your bike handles as a result of rider input. At Box we define steering stiffness by how much the grips, handlebar, stem, fork, wheels, frame and all hardware between twists when they are ridden around a corner. Higher steering stiffness contributes to a more responsive handling bike by reducing latency between hand input and reaction in the bike. Just as with power delivery, by using Oversized technology, Box is able to add only the appropriate amount of material for steering stiffness where it is most needed. This allows our components to combat the cornering load as it passes along its load path from grip all the way through to contact point on the track.

Armored Build  // MORE DURABLE

Why invest in cutting edge components if they don’t last?

Toughness is a natural byproduct of our Oversized technology. By adding size to specific areas of components we have not only increased pedaling and steering stiffness, we have also added toughness and strength. Larger surfaces also increase the ability of a component's ability to spread impact loads.

Advanced Materials // ALL ABOVE

Not all things are equal when it comes to materials of construction.

We don’t just manufacture carbon fiber parts. We engineer where the strength/stiffness needs to be and the layer of fibers are added and aligned in the direction and angle required to provide the best effect. With metal alloys we don’t just buy “aerospace grade alloys” we choose the appropriate aluminum alloy for the component, and send it through the appropriate heat treatment processes. We demand material certifications as part of our quality assurance program.
