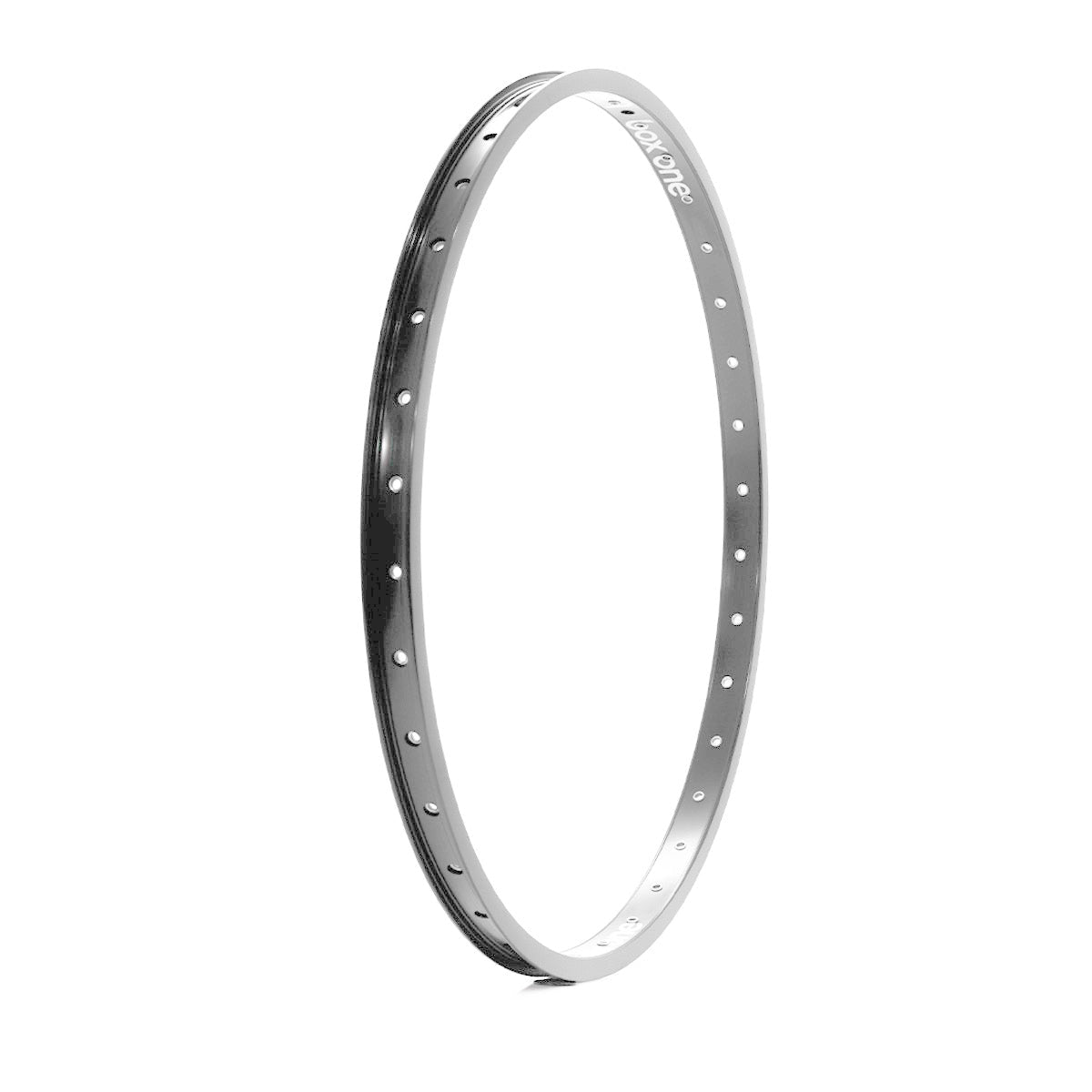

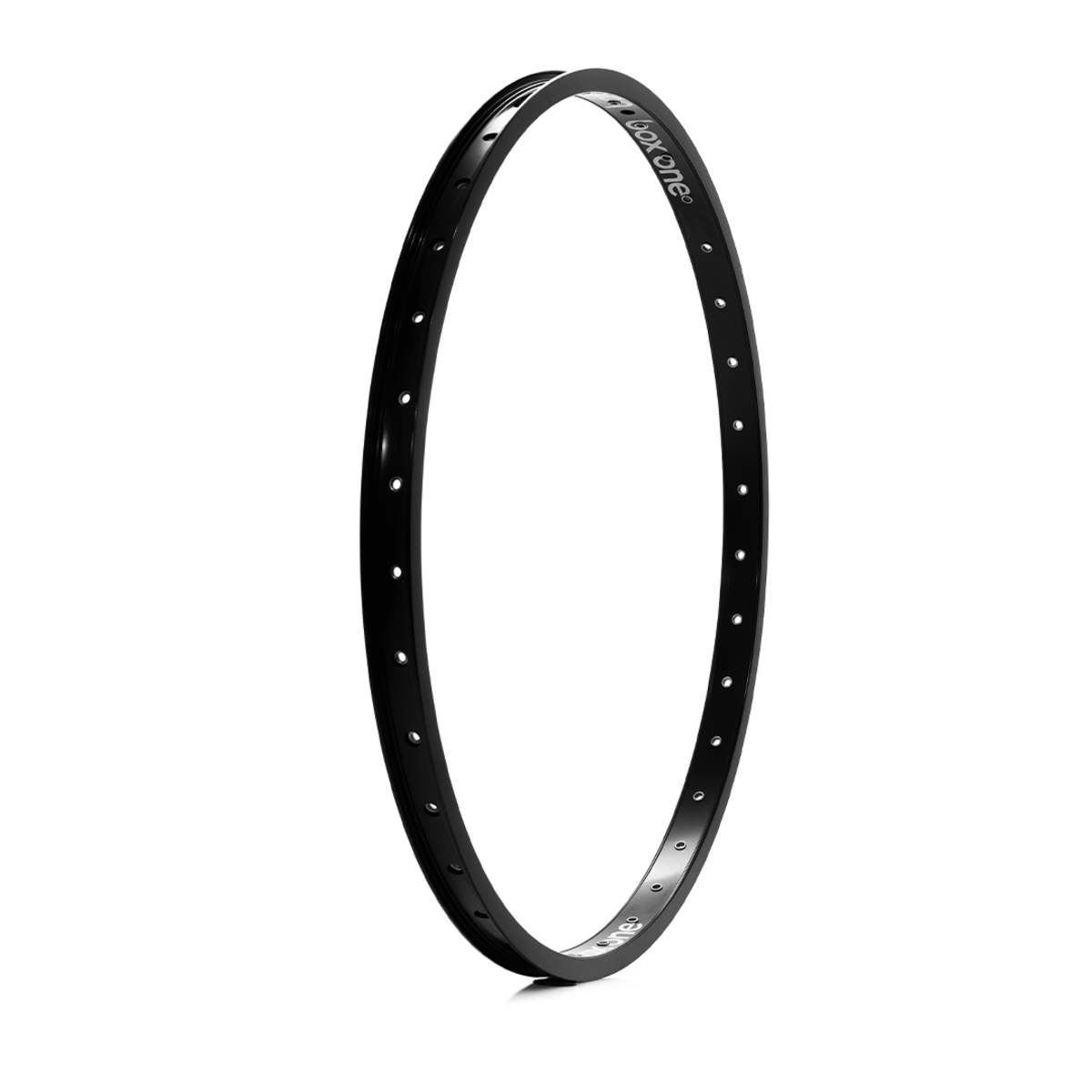

Box One Alloy BMX 24x1.75" 36-Hole Rim

Optimized Internal Geometry
Machined Brake Track

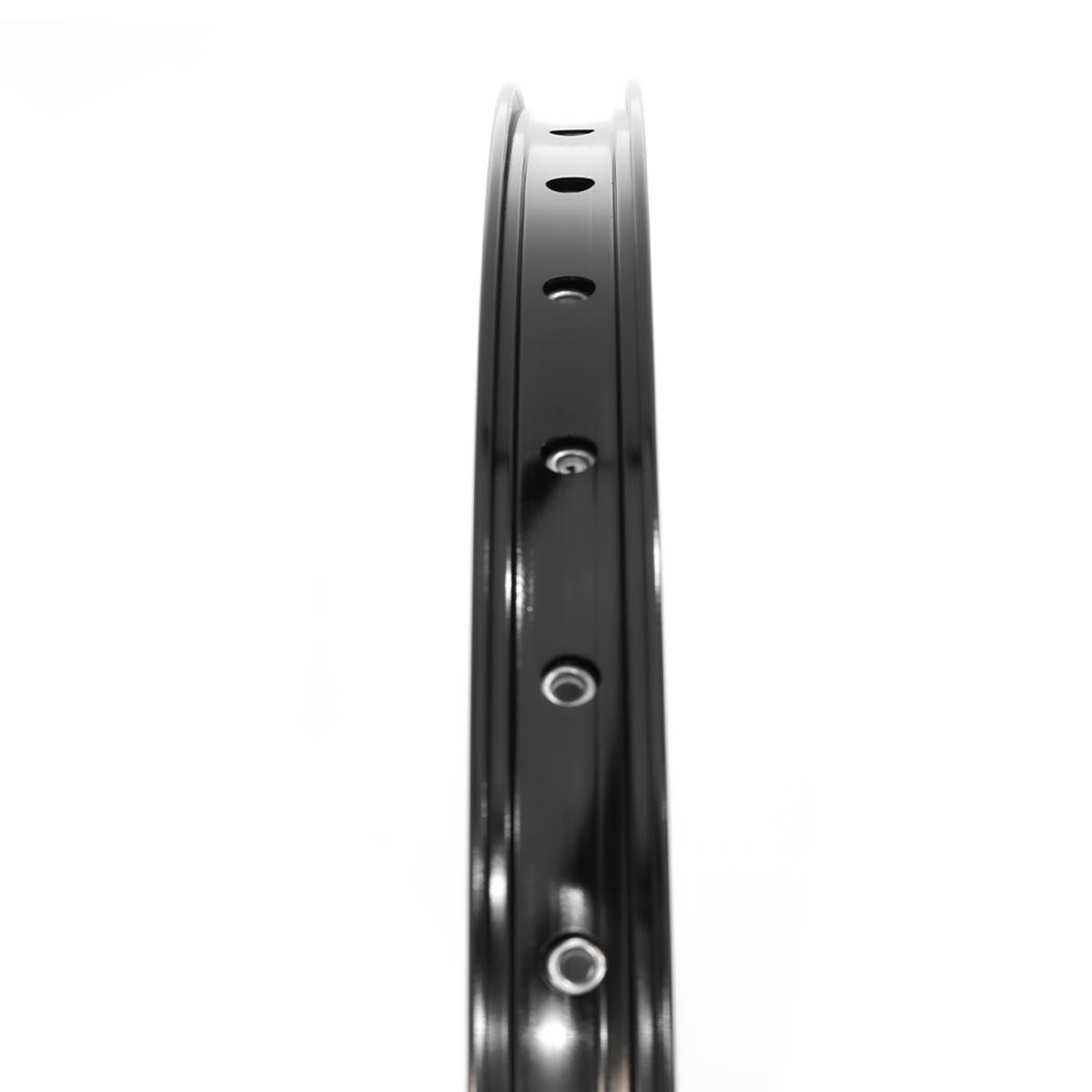

Stainless Steel Eyelets
Brake (Rear) and Brake-Less (Front) Profiles
Low Profile Design
Schrader Valve Hole

Brake-less variants do not have a brake track and therefore are not designed to be used with rim brakes! They are to be used as front or rear rims with disc brakes ONLY!

Box One X2 Pro Carbon 1 1/8" cro-mo steerer 24" X 20mm fork
Box One X5 Pro Carbon 1.5" to 1 1/8" alloy steerer 24" X 20mm fork
Box One XL Pro Lite Carbon 1 1/8" alloy steerer 20” X 10mm fork
Box One X Pro Carbon 1-1/8" cro-mo steer 24" X 10mm fork
Box One Quantum Hubset 36h Black

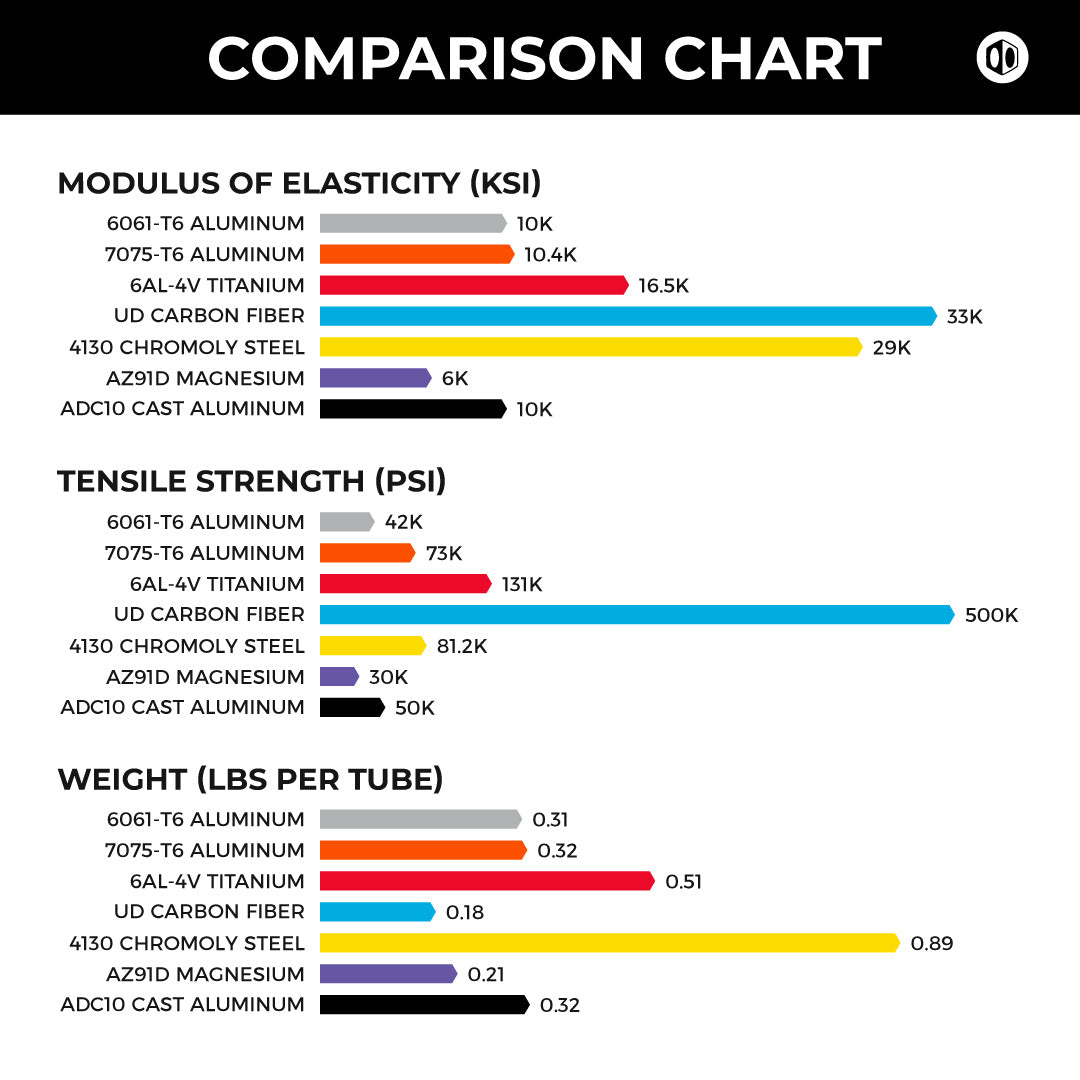

Material: 6061-T6 Aluminum
Process: Extruded and Rolled
Hole Drilling: 36
Seam: Pinned
Valve Hole: Presta
Hardware: Stainless Steel Eyelets
Finish: Matte Black Anodized with Decals
Compatibility:
• Tubeless: Not Compatible
• Brake:
• Rear: Brake
• Front: Brake-Less Profiles
• Tire Size: 24 x 1.50 to 1.95"
Size:
• Diameter: 20”
• External Width: 28mm
• Internal Width: 22.5mm
• ERD:
• Front: 491mm
• Rear: 494mm
• ISO (E.T.R.T.O): 451
Weight:
• Front: 400g/14.1oz
• Rear: 432g/15.2oz

What is the recommended spoke tension for this rim?
We recommend a spoke tension of between 110kgf and 115kgf; remember, every rim is different.

What lacing pattern is best for this rim?
This is a question dependent on many variables; Please check out some of our build information available at box components.com/service.

What spoke length do I need to build this rim?
This is a question dependent on many variables; Please check out some of our build information available at box components.com/service.
