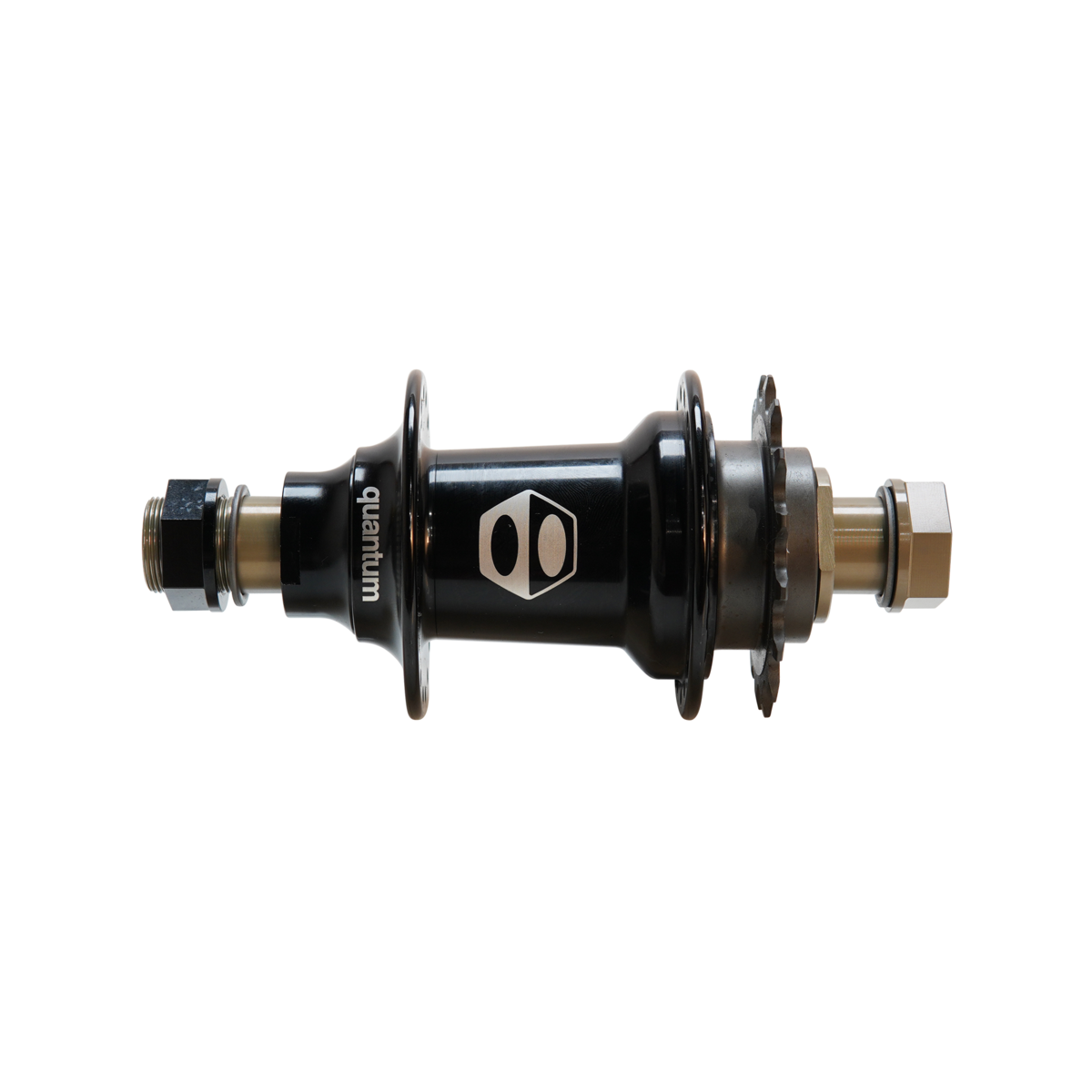

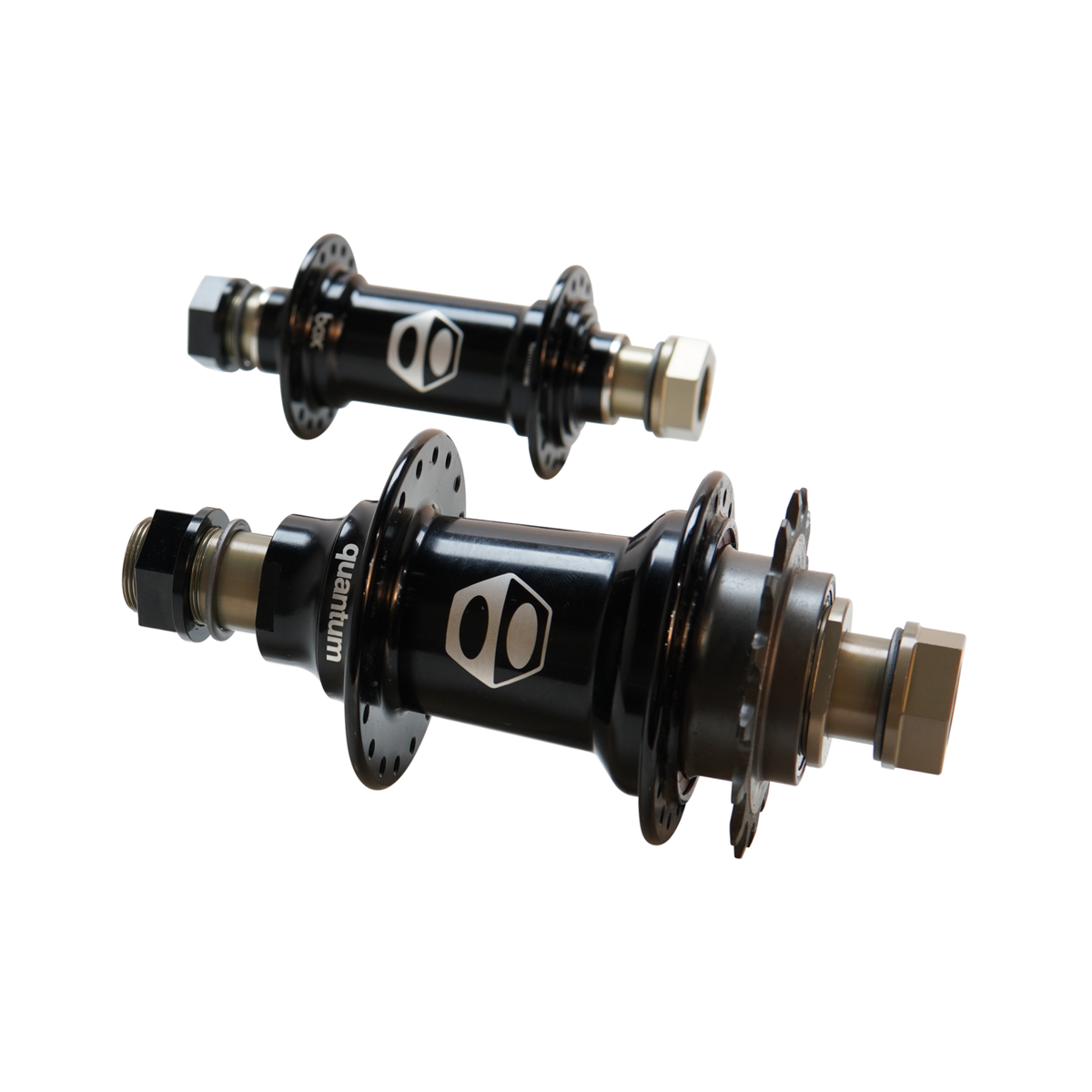

Box One Quantum 36H 20mm hubset black

$349.99 Sale Save

Only 0 left in stock

SKUBX-HU1620S36-BK

All Box hub sets that with axle diameters of 15mm and up are engineered and crafted using our Oversized Technology. For steering stiffness we follow the load paths down the handlebars, through the stem, headset, and eventually to the fork-to-hub interface. To transfer as much of that load from fork to axle we’ve shaped the dropout for substantially more capture of the now oversized 20mm axle. Its the same fundamentals at the rear for pedaling stiffness where we also deploy more substantial diameters to inhibit axle deflection. On both ends the added surface area begs for upsized bearings and consequently we are gifted with materially more contact surface. You’ll put more power to the ground out back and up front you’ll feel in control.When combined with Box’s other Oversized components, you’ll experience heightened responsiveness and reduced latency.

Key differences:The Box One line tunes material distribution to a higher level than Box Two through its CNC process. Aluminum can more accurately be removed from low stress areas to reinforce intersections. Box One’s unique and hard chromoly one-piece driver accepts various (10,15,20mm) diameter oversized axles at the rear while the front is set at 20mm.

Laser Etched Graphics
Straight Flanges
Sealed Bearings
6-Pawl 60 Points of Engagement

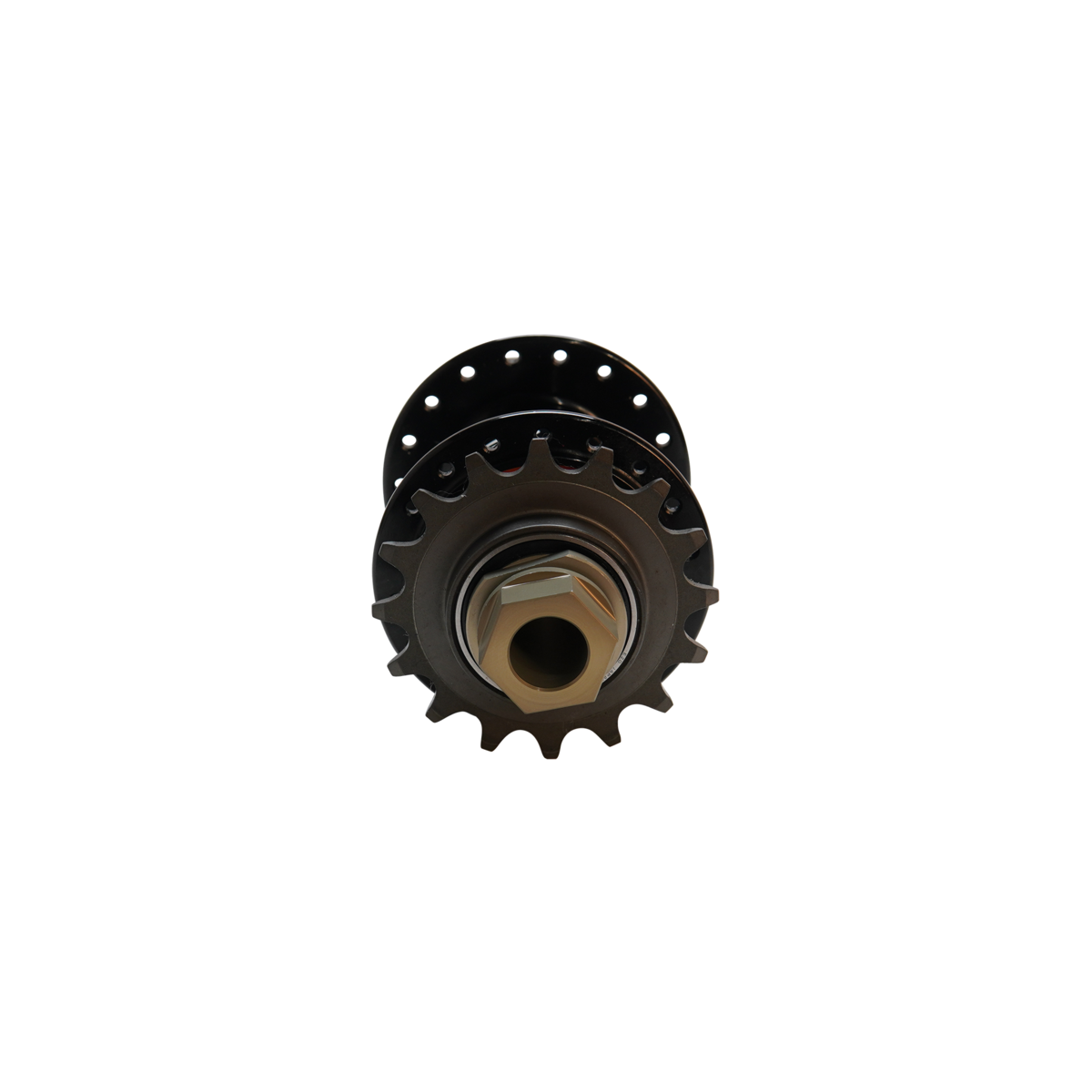

Chromoly Driver
Aluminum Axle, 20mm Axle
15mm Axle
10mm Aluminum Axle
CNC'd Aluminum Hubshell

Includes thru axles and 16t driver. 10 / 15mm rear axle conversion kits sold separately.

Box One Quantum Rear Axle Kit 10mm Thru
Box One X2 Pro Carbon 1 1/8" Cro-Mo Steerer 20" X 20mm Fork
Box One X5 Pro Carbon 1.5" to 1 1/8" Alloy Steerer 20" X 20mm Fork
Box One 24x1.75" 36-Hole Front Rim Black
Box One 20x1.75" 36-Hole Front Rim Black

Rear Front
Axle 20x100
Hole Drilling 36
Material 7075-T6 Aluminum
Hardware 7075-T6 Aluminum
Driver Type Quantum Driver
Engagement System 6-Pawl 60 Points of Engagement
Brake Type Rim Brake
Finish Gloss Black
Weight 535g/18.8oz 235g/8.2oz

I don't know how to build wheels, does this hub come in a pre-built wheelset?
Yes, this hub is built to our Box One Pro Rim with Box One Pro Spokes In our Box Three Wheelsets.

What spoke lengths should I use when building this wheel to a Box Rim?

We have published recommended lacing patterns and spoke lengths for all Box Hub to Box Rim wheel builds on www.boxcomponents.com/service

Can I radially lace this hub?

No, Box does not recommend radially lacing on any Box Components hub.

What should I used to Clean this hub and the internals?

The internals can be easily disassembled by removing the drive-side lock-nut; the internals can be wiped down with a lint-free rag and mild de-greaser and re-greased with a light amount of grease on the outside of the pawls. Too much grease could cause the pawls to stick or skip. Only disassemble if an issue is present.
