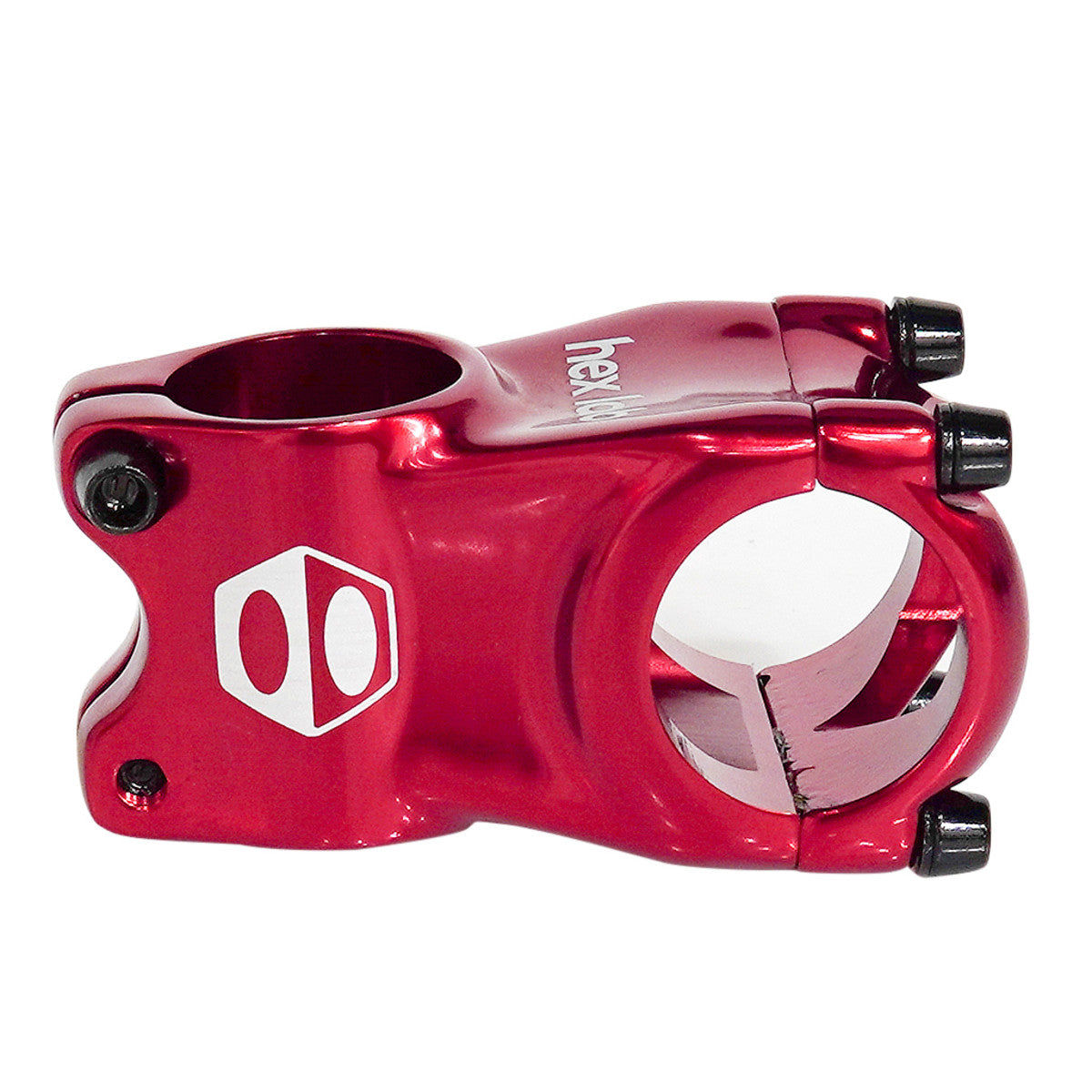

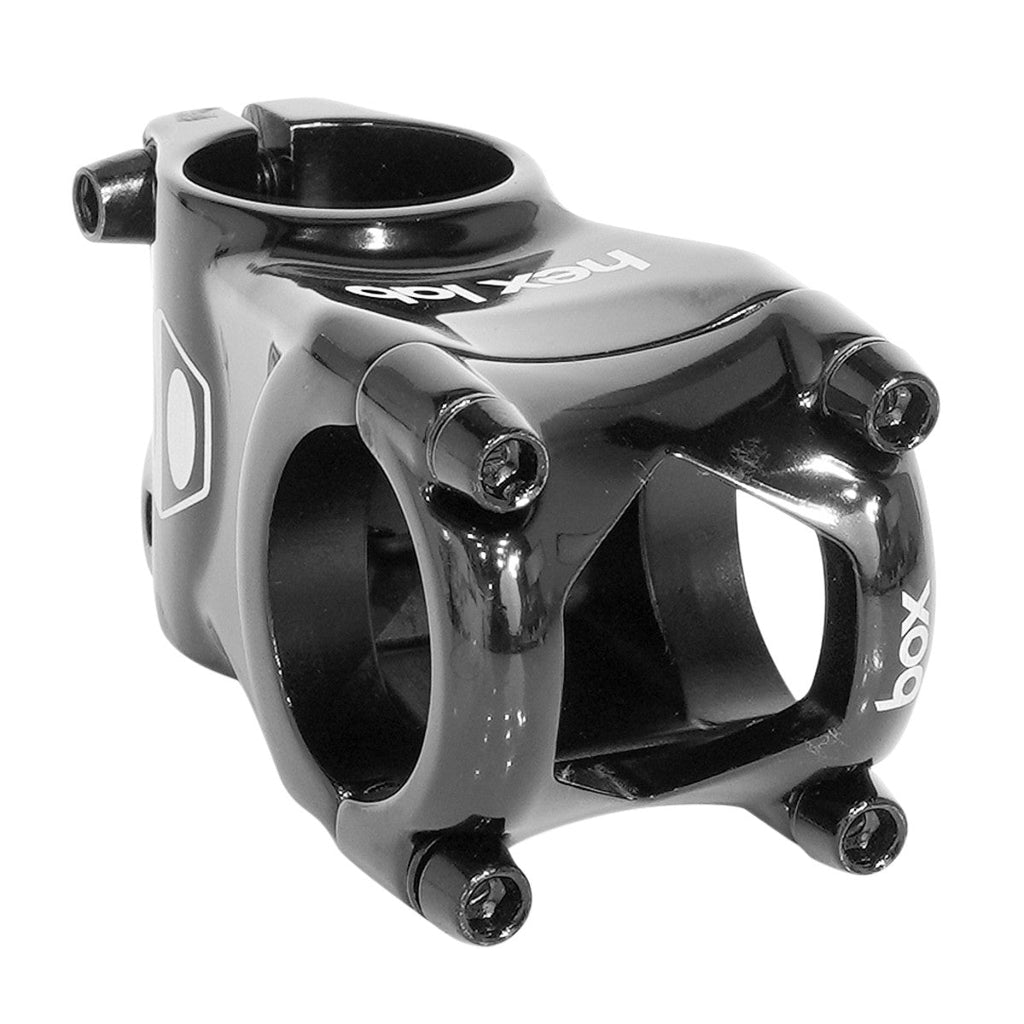

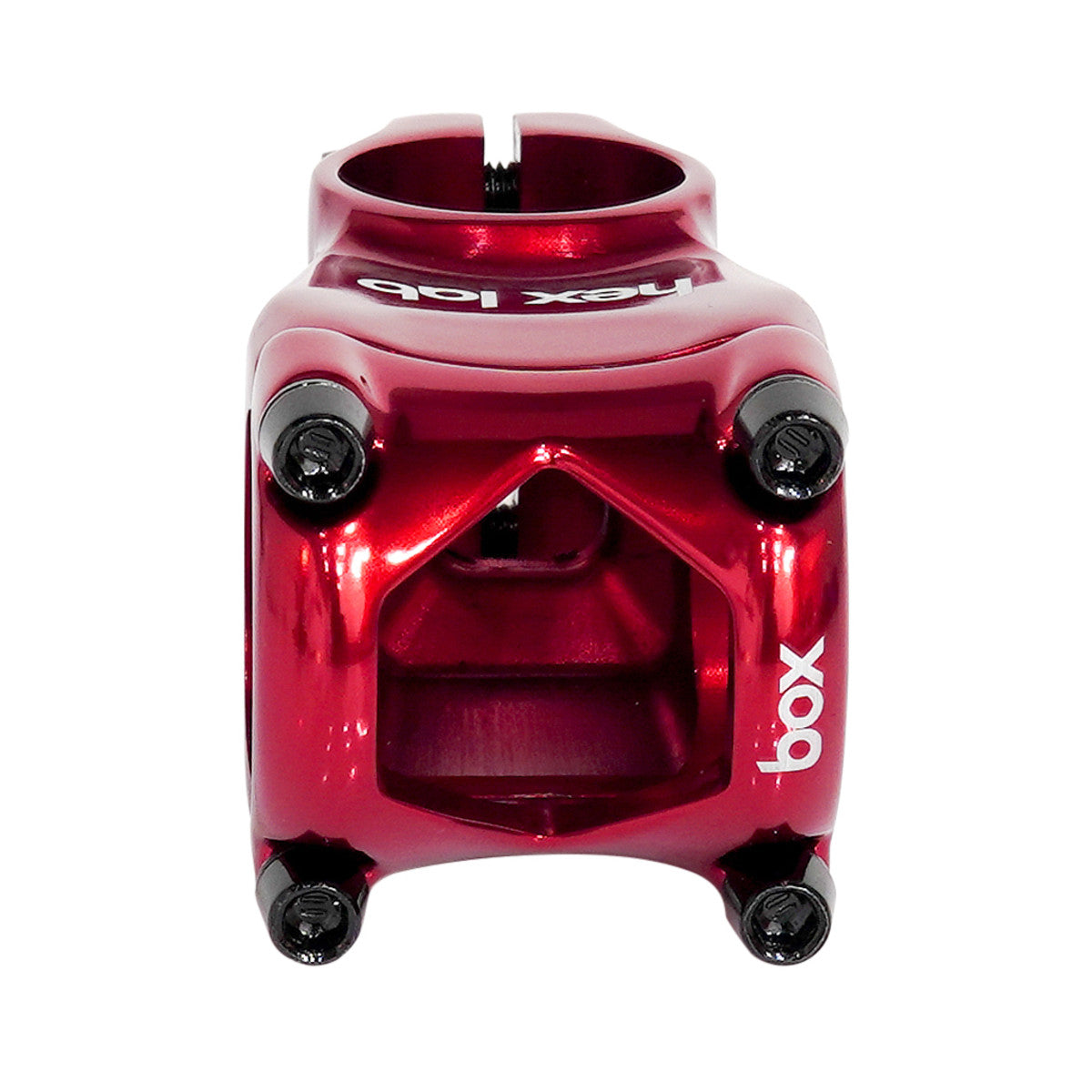

Hex Lab Oversized 28.6 x 1" Front Load Stem

Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Availability
Sold out

BX-ST16CSPM0-BK

DESCRIPTION

All Box stems are engineered and crafted using our Oversized Technology. As we follow the load paths down the handlebars we have focused our attention on the stem-to-bar interface. Since the Oversized handlebars have an increased wall thickness and tube diameter in this sector we have reciprocated with an augmented stem interface with greater surface area. We’ve done this by moving material from low stress areas. This has greatly minimized twist and contributed to responsiveness. As the stem in mated with the handlebars we have contributed to increased pedaling stiffness by providing a backstop to the “lifting” phenomenon. There is no point pushing hard on your pedals if you can’t pull up on your handlebars and deliver that power. Power can easily be lost to handlebar-to-stem deflection and the consequences can be poor power delivery and steering control. When combined with Box’s other Oversized components, you’ll experience heightened responsiveness and reduced latency.

Key differences: This particular model stem pushes our Oversized Technology to the extreme as it maximizes the shift of material from low stress zones to the Oversized interface. These stems are engineered for the smaller-sized racers.

Weight Limit: Meets or exceeds EN Racing 14765 Standard.

FEATURES
  • Oversized Stiff Design
  • Oversized Bar Bore
  • Hollow Cro-Mo Clamping Bolts
  • Front-Load Clamp Design
  • Lightweight 3D Cold Forged Design for Superior Strength

COMPATIBILITY

  • Box One XS Fork with 1" Steerer Tube
  • Box One XE Fork with 1" Steerer Tube
  • Hex Lab Carbon OS 4.5" 28.6mm Handlebars
  • Hex Lab Carbon OS 6" 28.6mm Handlebars

FAQ

No, this stem only fits handlebars with 28.6mm Ø stem clamp area.

SPECIFICATIONS
40mm 45mm
Clamp (Ø) 28.6mm 28.6mm
Material 6061-T6 Aluminum 6061-T6 Aluminum
Process 3D Cold-Forged 3D Cold-Forged
Rise
Stack Height 38mm 38mm
Steerer Tube 1" 1"
Weight 106 grams / 3.7 ounces 115 grams / 3.8 ounces
